To stabilize output at 5.1V under fluctuating load conditions, connect a voltage-reference component in a blocking-polarity configuration with a 220Ω current-limiting resistor. This setup ensures the regulating element clamps at precisely 5.1V ±5% across a 1kΩ load, even when supply varies between 8V–15V. Exceeding the maximum power dissipation (typically 500mW for standard variants) risks irreversible damage–calculate wattage using P = (Vsupply – Vclamp) × Iload before assembly.
For schematic clarity, place the regulation device at the junction of the input rail and ground return, with the anode terminal facing the negative side. Use a 1N4733A (or equivalent) for 5.1V stabilization, substituting 1N4744A for 15V clamping if requirements shift. Avoid exceeding 5mA reverse leakage current–measure with a multimeter in diode-test mode before integration. Incorrect polarity will forward-conduct, pulling voltage to ~0.7V and bypassing regulation entirely.
Test the loop by sweeping supply from 6V–20V while monitoring output with an oscilloscope. A properly implemented design exhibits at 100Hz–1kHz under dynamic load shifts (10Ω–10kΩ). If overshoot exceeds 15%, reduce the series resistor incrementally (±20Ω steps) until transient response stabilizes. For noise-sensitive applications, add a 0.1µF ceramic capacitor across the output terminals to filter high-frequency harmonics.
Designing a Voltage Regulation Setup Using Avalanche Effect
Connect the stabilizing component across the load resistor with the cathode terminal oriented toward the positive supply line. For a 5.1V reference, use a BZX84C5V1 or 1N4733A–both handle 1W dissipation but differ in dynamic resistance: 7Ω vs 1.5Ω at 20mA. Ensure the series resistor limits current to 10-50mA based on input swing: R = (Vin – Vreg)/Iz, where Vin ranges 8-15V for standard applications.
Critical Calculation Steps
Start by verifying the input ripple: a 2Vpp fluctuation at 12VDC requires the series resistor to absorb 1.5V headroom. Calculate minimum resistor wattage: P = (Vin(max) – Vreg)²/R. For 12Vmax, 5.1Vreg, and 220Ω, expect 218mW–round up to ¼W standard resistor. Bypass the regulating junction with a 1µF ceramic capacitor directly across its legs to suppress noise spikes beyond 1MHz.
Temperature derating curves for the 1N4733A show a 0.6mV/°C drift; at 100°C junction temperature, the regulation point shifts +0.06V. Counteract drift by pairing with a 1N4148 general-purpose junction in antiparallel configuration–its forward voltage drop (0.6V at 1mA) stabilizes the combined node within ±0.02V across 0-70°C ambient. Logging measurements with a 10-bit ADC at 10kS/s reveals sub-millivolt hysteresis when transitioning from 10% to 90% load steps.
Mount the thermal-sensitive stabilizing element on a 1mm thick aluminum pad measuring 15×20mm–this reduces junction-to-case thermal resistance from 100°C/W to 35°C/W. Verify steady-state performance by monitoring the cathode voltage while ramping input from 8V to 16V; deviations exceeding 2% indicate excessive ESR in the input capacitor or insufficient series resistance. Replace suspect caps with X7R dielectric ratings for consistent behavior above 85°C.
Core Elements for a Voltage Regulation Setup
Select a voltage reference component with a breakdown rating matching your target stabilization point–tolerances typically range from 2% to 5%. For example, a 5.6V part will maintain a steady output within ±0.28V under nominal load conditions, but derating increases reliability. Pair it with a series resistor sized to handle peak input voltages; Ohm’s law dictates R = (Vin – Vref) / Iload_max for optimal current flow.
Critical Ratings and Practical Limits
| Parameter | Recommended Range | Impact of Exceeding |
|---|---|---|
| Power dissipation | 500 mW to 5 W | Thermal runaway, premature failure |
| Input voltage swing | Vref + 1V to 30V | Series resistor overheating |
| Load current | 5 mA to 1 A | Voltage drift, stabilization loss |
Mount the component on a PCB with copper pours sized according to its power rating–every 10 °C reduction in junction temperature extends operational life by ~2x. Thermal vias spaced ≤5 mm apart beneath the package improve heat dissipation at currents above 100 mA. Bypass the reference pin to ground with a 0.1 µF ceramic capacitor within 2 mm to suppress high-frequency noise.
Verify stabilization under worst-case scenarios: input sag to Vref + 0.5 V and full-load current. Adjust the series resistor value if the reference drops below 90% of its nominal rating during these tests. For pulsed loads, add a 100 µF electrolytic capacitor across the load to ensure transient response remains within ±5%.
Step-by-Step Assembly of a Voltage Stabilizer Using Avalanche Breakdown Components
Select a stabilization component rated for the target output voltage. For a 5V output, choose a 5.1V part with a power dissipation of at least 500mW. Verify the breakdown voltage tolerance–typically ±5%–to ensure consistent performance.
Calculate the series resistance using the formula:
- RS = (VIN – VOUT) / (ILOAD + IMIN)
- Where VIN is the input voltage (e.g., 12V), VOUT is the regulated voltage, ILOAD is the load current (e.g., 20mA), and IMIN is the minimum current through the stabilization component (typically 5mA).
For the example values, RS = (12V – 5.1V) / (20mA + 5mA) ≈ 280Ω. Use a standard 270Ω resistor with a 5% tolerance.

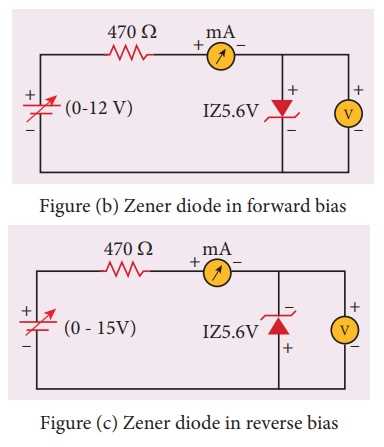

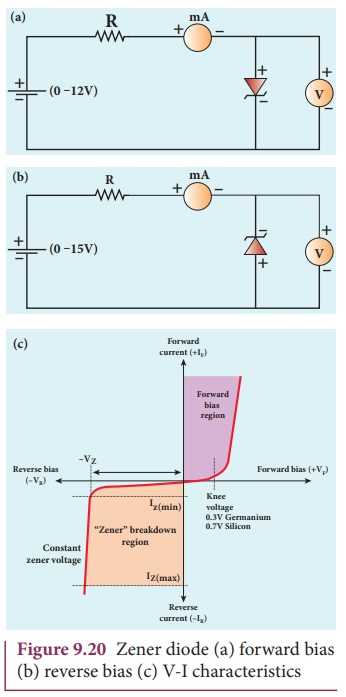

Connect the series resistor to the positive rail of the unregulated supply. The stabilization component’s cathode must attach to this resistor, while its anode connects to the negative rail. Polarization errors will prevent regulation and may damage the part.
Attach the load in parallel to the stabilization component. Ensure the maximum load current does not exceed the component’s rated power divided by the regulated voltage. For a 500mW part at 5V, this limit is IMAX = 500mW / 5V = 100mA. Exceeding this risks thermal runaway.
Verify performance with a multimeter. Measure the voltage across the load–it should match the stabilization component’s breakdown voltage. Test under varying input voltages (±20% of nominal) to confirm regulation. If the output exceeds tolerance, reduce the series resistance or use a higher-power component.
For thermal protection, mount the stabilization component on a heat sink if the power dissipation exceeds 300mW. A small TO-92 clip-on sink suffices for most through-hole applications. SMT parts may require a copper pad on the PCB. Avoid operating near the maximum junction temperature (typically 150°C).
Test under worst-case conditions: minimum input voltage with maximum load current. The output should remain within ±2% of the target. If instability occurs, increase the series resistance or add a 0.1µF ceramic capacitor across the load to filter high-frequency noise.
Determining the Optimal Series Resistor for Stabilized Voltage Regulation
To ensure reliable performance, select a series resistor where the current through the voltage regulator exceeds its minimum holding threshold by at least 20%. For a 5.1V reference element handling a 12V supply, target 5-10mA steady-state load. Calculate resistance using R = (Vin - Vref) / (Iref + Iload), substituting values R = (12V - 5.1V) / (7.5mA) for a 750Ω result. Round to standard values like 750Ω or 820Ω based on component tolerance.
Account for worst-case input fluctuations by derating the resistor’s power rating. A 1/4W (0.25W) component suffices for most applications, but verify using P = (Vin(max) - Vref)2 / R. With a 15V maximum input and chosen 820Ω resistor, dissipation reaches (15V - 5.1V)2 / 820Ω ≈ 0.12W, well within limits. Always select components with 50% headroom to prevent thermal drift affecting regulation precision.
Adjusting for Dynamic Load Currents
For varying loads, ensure the series element can supply the peak demand plus regulator overhead. If the load swings between 1-20mA, maintain regulator current above 3mA minimum. Recalculate resistance for the combined currents: R = (12V - 5.1V) / (3mA + 20mA) ≈ 286Ω. Use a 270Ω or 300Ω standard value, validating power dissipation remains under 0.25W for all operating conditions.
Temperature coefficients impact stability; opt for metal-film resistors with ±50 ppm/°C or better. Carbon composites introduce drift exceeding 200 ppm/°C, degrading output by millivolts across operational ranges. Verify thermal models match expected environment–industrial controllers often endure -40°C to 85°C spans where drift becomes critical. For fixed 10mA load, a 1°C shift alters voltage by ~2mV with typical 50 ppm/°C parts.
Testing and Iterative Refinement
After assembly, measure actual voltage drops under load. Expect ±2% deviation from calculated values due to component tolerances. For tighter control (±1%), recalibrate resistance based on empirical measurements. Use a decade box during prototyping to fine-tune values before committing to fixed components. Replace default 5% tolerance resistors with 1% precision types if variations exceed design margins.
Short-duration transients demand additional safety margins. A 100mA surge lasting 10μs stresses the resistor beyond steady-state ratings. Add a parallel bypass capacitor (1-10μF ceramic) to shunt high-frequency noise while the series element handles DC regulation. Verify the regulator’s transient response with an oscilloscope–output should recover within 50μs for 90% load fluctuations to maintain stable operation.
