To troubleshoot ignition failures in your G22E engine model, first isolate the ignition coil circuit–pins 8 and 9 on the controller harness should show 12V during cranking. If voltage is absent, inspect the run/tow switch and main fuse (30A) located beneath the dashboard panel. Corrosion at the battery terminals often mimics wiring faults; clean connections with a wire brush and apply dielectric grease before reassembly.
For reverse light circuits, trace the purple wire from the shift lever microswitch to the rearward lamp assembly. A common point of failure is the connector near the differential housing, where road debris can penetrate insulation. Use a multimeter set to continuity mode to verify signal integrity–expect resistance below 0.5 ohms between the switch terminal and bulb socket. If readings exceed this threshold, replace the wire segment between the switch and lamp with 16-gauge stranded copper wire rated for 60°C minimum.
When addressing charging system anomalies, begin by testing the voltage regulator’s output. With the engine running at 2000 RPM, expect 13.8–14.5V across the battery posts; readings outside this range indicate regulator or stator failure. The stator’s white/green and white/orange wires should each measure 20–30 ohms to ground when the ignition is off. Deviations suggest internal winding shorts–replace the stator assembly if necessary.
For throttle position sensor (TPS) calibration, locate the potentiometer on the carburetor linkage. The gray wire (signal) should register 0.5–1.5V at idle and 4.0–4.8V at full throttle; adjust the sensor’s mounting screws incrementally until readings align. Erratic voltage swings often point to a worn wiper track–replacement TPS units cost approximately $35 and require no special tools beyond a 10mm socket.
Headlight dimming under load typically stems from undersized wiring or poor grounding. Verify the brown ground wire’s connection to the frame rail near the front axle; sand the contact surface to bare metal if oxidation is visible. Upgrade the headlight circuit to 12-gauge wire if voltage drop exceeds 0.5V between the fuse box and bulb socket. For persistent issues, install a relay kit (available for $25) to isolate high-current draw from the switch contacts.
Electrical Schematic for Combustion-Powered Utility Vehicles
Begin troubleshooting any ignition system issue by verifying the 10A fuse linked to the starter solenoid. Locate it in the main fuse block beneath the dash panel–it’s typically the third slot from the left. If blown, replace it with an identical amperage rating; deviations risk damaging the voltage regulator. For persistent failures, trace the purple wire from the fuse to the ignition switch, ensuring no chafing against metal edges, especially near the steering column bracket.
Key Voltage Checks and Harness Inspections
- Ignition coil primary circuit: Measure resistance between the positive terminal and ground–expect 0.7–1.2 ohms. Values outside this range indicate a faulty coil.
- Solenoid activation: With key in “start” position, probe the small terminal (usually yellow) for 12V. Absence signals a broken circuit in the neutral safety switch or faulty ignition switch contacts.
- Battery-to-starter cable: Inspect for corrosion at both ends; clean with baking soda solution and recheck voltage drop (should not exceed 0.2V under load).
For intermittent stalling, focus on the ground connections. The two primary grounds–one at the engine block (near the carburetor) and another at the frame rail behind the driver’s seat–must show zero resistance to the negative battery terminal. Use a wire brush to remove oxidation, then secure with star washers to prevent loosening from vibration. Corroded grounds are the most common cause of erratic fuel pump behavior and ignition cut-outs.
- Disconnect the spark plug wires at the distributor cap. Label each wire (1–4) based on engine firing order before removal to avoid misrouting. Check the rotor’s alignment: it should point to terminal #1 with the engine at TDC on the compression stroke.
- Inspect the distributor’s centrifugal advance mechanism. Rotate the rotor shaft by hand–it should snap back freely. If sluggish, dismantle and clean with electric contact cleaner; lubricate the shaft with dielectric grease.
- For tachometer issues, verify the white wire from the distributor’s “TACH” terminal reaches the gauge without breaks. If readings fluctuate wildly, bypass the wire directly to the gauge–persistent faults confirm a defective sending unit.
Identifying Critical Elements in a Gas-Powered Utility Vehicle Electrical Setup

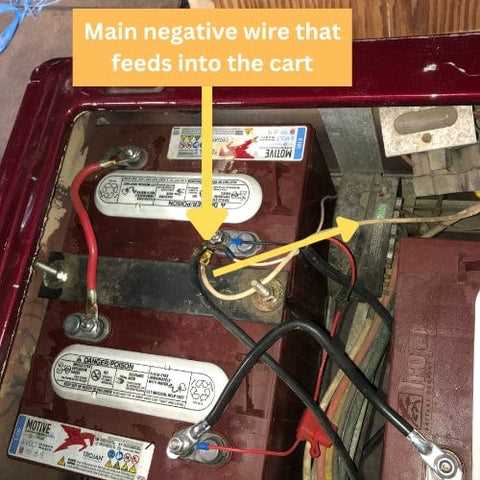

Begin inspection at the battery pack–typically positioned beneath the forward seating compartment or adjacently in the chassis frame. Verify terminals for corrosion or loose connections, as they supply primary voltage (usually 36V or 48V) to the ignition module, solenoid, and motor assembly. Use a multimeter to confirm voltage stability; deviations exceeding ±2V indicate internal cell degradation or charging irregularities.
The ignition switch, mounted on the dash panel or control box, directs current to the solenoid coil through a dedicated 10–14 AWG red wire. Trace this circuit by locating the starter relay–often adjacent to the forward-facing motor housing–where the solenoid bridges battery power to the series-wound motor. Interruptions here manifest as a faint click during startup attempts; bypass the solenoid temporarily with a screwdriver to isolate contactor failure.
Monitor the fuel shutoff solenoid, a cylindrical unit integrated into the carburetor assembly, wired via a 16 AWG purple lead. This component regulates fuel flow based on ignition state; if the engine stalls post-startup, probe the solenoid’s terminals for 12V input during ignition engagement. Absence of voltage suggests a break in the ignition circuit or a faulty micro-switch.
Examine the voltage regulator–commonly a square or rectangular module secured near the battery tray–responsible for maintaining alternator output between 13.5V and 14.5V. Use oscilloscope readings to detect voltage spikes exceeding 0.5V (peak-to-peak), which degrade lighting circuits and onboard electronics. Replace the regulator if readings persist above 15V under load.
| Component | Typical Wire Gauge | Color Coding | Function |
|---|---|---|---|
| Battery to Solenoid | 6 AWG | Red (thick) | Primary current delivery |
| Solenoid Control | 14 AWG | Yellow | Relay activation |
| Alternator Exciter | 12 AWG | White/Red stripe | Field coil energizing |
| Fuel Solenoid | 16 AWG | Purple | Fuel valve actuation |
Check the fuse block, usually housed beneath the dash cover, for blown 15A–30A fuses protecting accessory circuits (horn, headlamps, turn signals). Replace fuses with identical amp ratings; higher values risk wire insulation meltdown at pinch points near the frame. Label each fuse with its corresponding system to expedite future diagnostics.
Inspect the DC-DC converter if auxiliary 12V systems (radio, gauges) exhibit dimming or failure. This step-down module, often lying flat against the frame rail, converts primary battery voltage to 12V for low-power devices. Probe input/output terminals with a load tester at 50% of rated wattage; output below 11.5V signals internal capacitor failure.
Ground points cluster near the chassis and engine block, evidenced by bare or ring-terminated black wires. Remove surface oxidation with a wire brush and apply conductive grease to prevent voltage drop–critical for solenoid, motor, and microswitch functionality. Test continuity between ground lugs and battery negative post; resistance exceeding 0.5 ohms warrants rerouting of ground straps.
How to Interpret an Electrical Blueprint for a Petrol-Powered Utility Vehicle
Locate the master power switch symbol–usually a square or circular icon with an intersecting line–near the battery lead connections. This component controls all voltage flow, so trace its output path first to establish the primary circuit route.
Identify color-coded conductors by their standardized abbreviations: BLK for black ground wires, RED for positive supply lines, WHT for neutral or return paths, and YEL for key-activated ignitions. Each hue corresponds to a specific function; cross-referencing these with the legend prevents misinterpretation of parallel branches.
Follow the ignition coil representation–a coiled loop with two terminals–as the central node splitting current into spark generation and accessory feeds. One terminal connects directly to the distributor, while the other branches toward the fuel pump relay and voltage regulator.
Examine fuse markings labeled with numbers (e.g., 10A, 15A) adjacent to rectangular outlines. Each fuse protects a distinct subsystem; verify all downstream components operate within the specified amperage to avoid overload scenarios.
Trace the throttle position sensor line–often a dotted or dashed path–to its endpoint near the carburetor assembly. This path intersects with the engine control module (ECM), indicated by a grid-like box, where signal calibration occurs.
Check relay switches depicted as square blocks with switchable contacts. The starter relay is typically positioned closest to the battery, while auxiliary relays manage peripherals like headlights or cooling fans. Confirm coil and contact alignments match the “normally open” or “normally closed” labels.
Verify grounding points marked by downward-pointing triangular symbols. All ground paths must terminate at a common metallic chassis point; insufficient grounding creates voltage drops, leading to erratic behavior in electronic subunits.
