Begin with a balanced three-pin configuration for optimal signal integrity. Pin 1 connects to the cable shield (ground), Pin 2 carries the hot (positive) signal, and Pin 3 handles the cold (negative) signal. This arrangement minimizes interference and preserves audio quality over long cable runs. Use 24 AWG stranded copper wire for all conductors, ensuring at least 90% shielding coverage to reduce electromagnetic interference. Solder joints should be mechanically reinforced with heat-shrink tubing to prevent stress fractures under repeated flexing.
For microphone applications, maintain polarity consistency between the source and destination. Verify the pinout with a multimeter before finalizing connections–reverse polarity can cancel out phantom power or degrade signal clarity. When working with high-impedance instruments, consider adapting to a four-pin variant, where Pin 4 provides an additional ground reference for reduced noise in unbalanced setups. Avoid twisting conductors during assembly, as this introduces capacitance and compromises high-frequency response.
Termination quality dictates performance. Crimp contacts should fully engage the connector’s retention mechanism, and solder points must be smooth to prevent shorts. Test each assembly with a continuity checker, verifying no more than 0.5 ohms resistance across any connection. For stage applications, use locking connectors to prevent accidental disconnection. Cable gauge selection must balance flexibility with conductivity–18 AWG is ideal for power delivery in active systems, while 22 AWG suffices for line-level signals.
DIY repairs require precision. Strip insulation cleanly without nicking conductors, and trim stray strands to avoid bridging adjacent pins. Ground all tools and work surfaces to prevent electrostatic discharge, which can damage sensitive components. Label both ends of custom cables immediately after assembly to prevent miswiring. Store assemblies coiled in loops no tighter than 8x the cable diameter to prevent permanent kinks that weaken signal integrity over time.
Connecting Balanced Audio Connectors: Pin Configuration Guide
Begin by ensuring the male and female interfaces use identical pin assignments. The standard configuration assigns ground to pin 1, hot signal to pin 2, and cold signal to pin 3 on a three-pin connector. Deviations from this layout risk introducing hum, noise, or signal reversal in the audio chain.
For unbalanced conversion, link the cold (negative) terminal of the balanced source to the sleeve of the mono connector. The hot (positive) terminal connects to the tip. This method preserves signal integrity while reducing interference, though it sacrifices some noise rejection compared to fully balanced setups.
Verify cable shielding continuity between devices. A broken shield can act as an antenna, picking up electromagnetic interference. Use a continuity tester to confirm the shield connects pin 1 on both ends without interruption. If the shield fails, replace the entire cable rather than attempting repairs.
Common Mistakes in Termination
- Reversing hot and cold conductors causes phase cancellation, resulting in thin or muffled audio. Double-check polarity before soldering.
- Omitting the shield connection leads to buzzing, especially near power sources. Always solder the ground wire to the shell of the connector.
- Using mismatched cable types (e.g., guitar cable for balanced lines) introduces signal degradation. Shielded twisted pair cable is mandatory for balanced connections.
For four-contact variants, follow the three-pin standard for the first three contacts. The fourth contact typically carries phantom power (48V) or serves as a ground lift for specialized applications. Consult equipment documentation before wiring the fourth contact–incorrect use can damage sensitive circuits.
- Strip 5mm of insulation from each conductor, ensuring no stray strands short adjacent pins.
- Tin the stripped ends to prevent oxidation and improve solder flow.
- Secure the connector shell before soldering to avoid mechanical stress on joints.
- Heat the pin and apply solder; do not overheat, as this can melt insulation or degrade the connector’s integrity.
- After soldering, tug lightly on each conductor to confirm adhesion before reassembling the connector housing.
Test all connections with a multimeter set to continuity mode. Measure between pin 2 and pin 3–resistance should match the cable’s characteristic impedance (typically 110Ω for professional audio lines). If readings vary significantly, recheck solder joints or cable integrity.

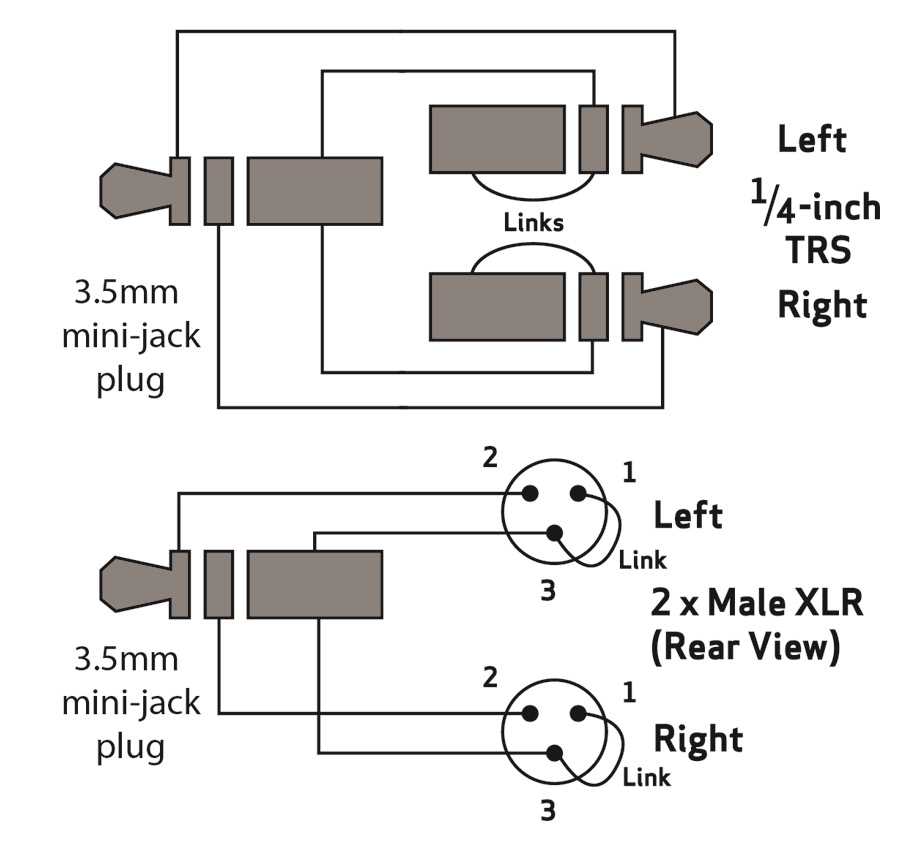

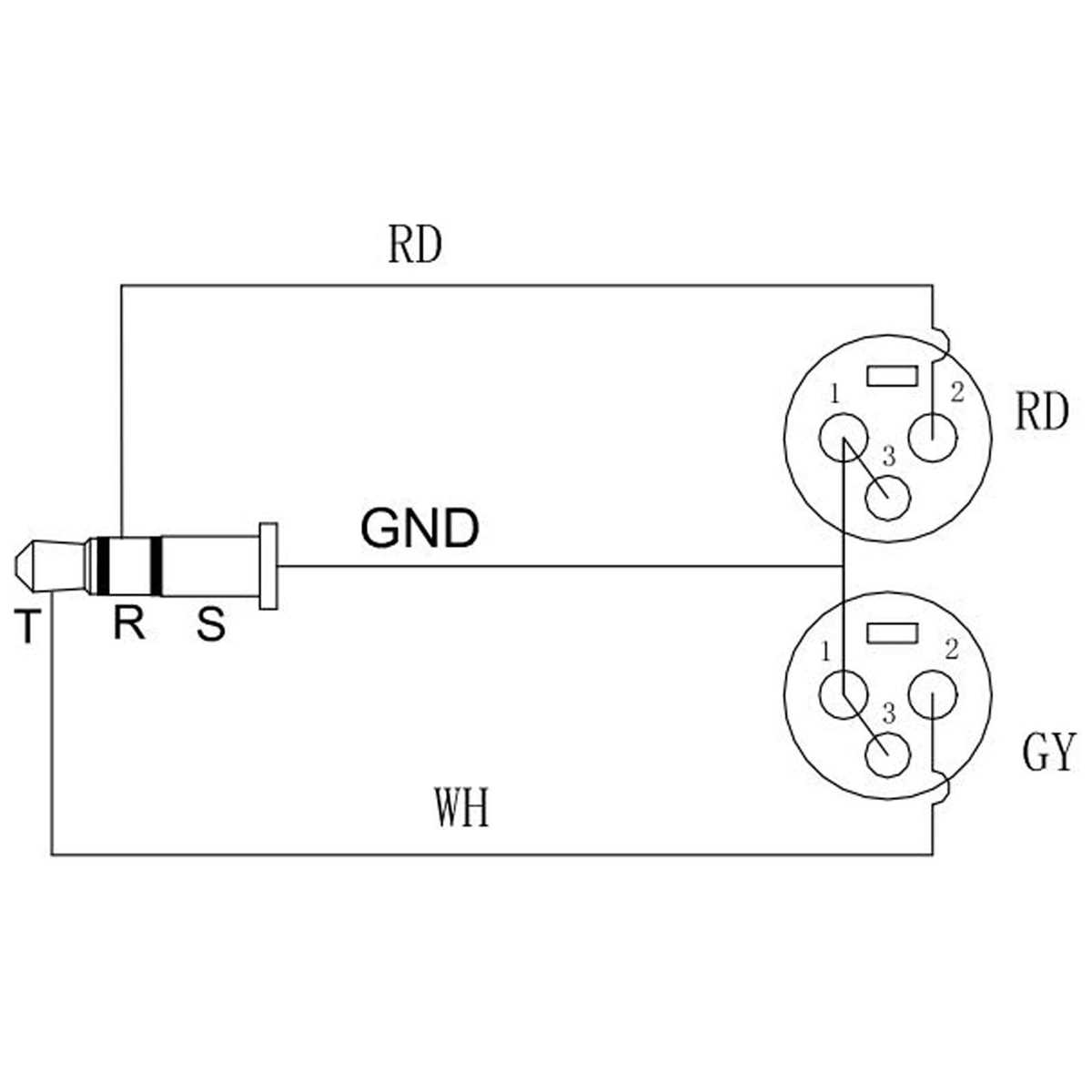

Step-by-Step Guide to Connecting a Balanced Connector to a Quarter-Inch Plug
Begin by stripping 5–7mm of insulation from each conductor on the shielded cable using a precision cutter–avoid nicking the inner wires, as this weakens signal integrity. Shield termination demands careful handling: twist the exposed braided layer into a tight strand, then tin it lightly with solder to prevent fraying. The hot (positive) and cold (negative) wires should be soldered to the plug’s tip and ring contacts respectively, ensuring no stray strands bridge connections. Apply heat-shrink tubing over each joint before soldering to insulate, or use electrical tape if tubing isn’t available–just ensure coverage extends beyond the solder joint by at least 3mm.
For mono compatibility, link the ring and sleeve contacts internally if the target device lacks balanced input; this merges the cold signal to ground, preserving audio quality while sacrificing noise cancellation. Test continuity with a multimeter post-assembly: probe between tip and sleeve, then ring and sleeve–readings should match the cable’s stated impedance (typically 600Ω for pro audio). If resistance exceeds 2Ω above spec, recheck solder joints for cold connections or incomplete adhesion. Secure the connector housing tightly to prevent strain on the internal leads, but avoid overtightening plastic threads that can crack under pressure.
Grounding priority dictates the shield connects to the sleeve last–this order minimizes potential hum during soldering. When terminating, maintain polarity consistency: pin 2 (hot) always aligns with the plug’s tip on standard AES conventions. For environments with heavy RF interference, add a ferrite bead near the connector end to attenuate high-frequency noise. Verify the assembly with an audio signal: introduce a sine wave at 1kHz and monitor for phase cancellation or distortion; imbalance indicates miswired contacts or compromised shielding.

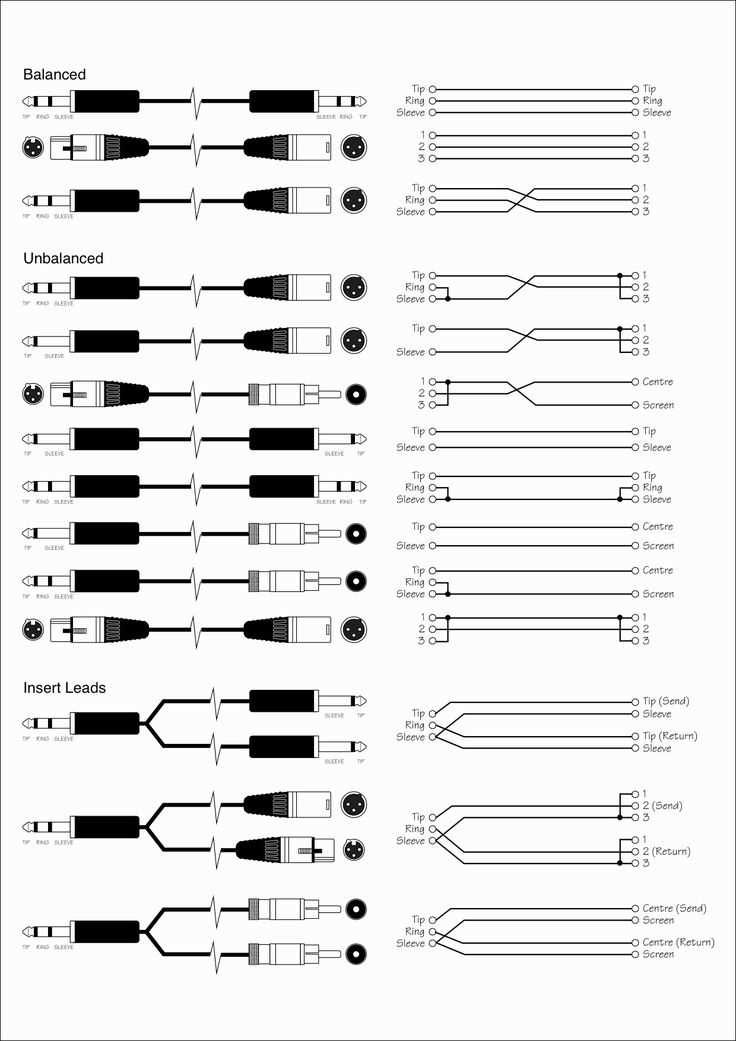

Balanced vs Unbalanced Professional Audio Cable Setups
Opt for balanced interconnects in all signal paths exceeding 3 metres to prevent noise interference. Balanced audio harnesses a three-conductor setup–positive, negative, and ground–and employs phase cancellation to eliminate electromagnetic hum and radio frequency interference. Professional condenser microphones, studio monitors, and high-impedance instruments require balanced connections to maintain signal integrity, especially in environments with multiple electronic devices. For instance, a typical line-level balanced link transmits +4 dBu, whereas an unbalanced analogue signal carries -10 dBV, making balanced variants 11.8 dB louder for superior dynamic range.
Unbalanced cables suit short-distance applications under 3 metres, such as patching guitar pedals or connecting consumer devices. These cables use two conductors–signal and ground–leaving them vulnerable to induced noise. Avoid daisy-chaining unbalanced units, as each additional connection compounds interference risks. When forced to use unbalanced links in longer runs, power conditioners and isolating transformers can mitigate signal degradation, though neither matches the noise rejection of a proper balanced circuit.
Common Pitfalls When Connecting Microphone Cables to Instrument Plugs
Avoid reversing the hot and cold conductors during assembly. Standard condenser microphones typically assign pin 2 as the positive signal lead (hot) and pin 3 as the negative (cold). Swapping these causes phase cancellation, resulting in thin, weak audio. Verify polarity with a multimeter before soldering–set it to continuity mode and touch the probes to each conductor while checking against the pinout schematic.
Insufficient heat application leads to cold joints, which fail under stress. Use a soldering iron rated between 60W and 80W with a chisel tip for adequate thermal transfer. Apply heat to the connection point for 3–5 seconds before introducing solder, ensuring the solder wicks into the joint. A shiny, concave fillet indicates a proper bond; dull or bulbous joints signal poor adhesion and require reheating.
Critical Errors in Ground Handling
| Mistake | Symptoms | Solution |
|---|---|---|
| Ignoring shield continuity | Hum, buzz, or intermittent signal dropout | Solder the shield braid to the cable’s outer sleeve and verify |
| Connecting shield to signal pin | Ground loops, 50/60Hz noise | Isolate shield to the connector’s outer shell; avoid tying it to any active signal path |
| Using thin shield wire | Brittle connections, broken strands under flex | Use stranded copper wire (≥22 AWG) for shields; twist strands tightly before soldering |
Over-tightening strain relief clamps shears conductor strands. Most TRS plugs feature a plastic or rubber grommet–tighten just enough to prevent cable pull without deforming the internal wires. For three-pin connectors, leave 1.5–2 cm of slack between the grommet and solder points to accommodate movement. Test strain relief by gently tugging; the cable should withstand 5 lbs of force without shifting.
Skipping insulation stripping measurements causes shorts or exposed wires. Strip exactly 6 mm of insulation from each conductor–excess length risks contact with adjacent terminals, while insufficient length prevents solder adhesion. Use a precision stripper calibrated for stranded wire (0.5–1.0 mm OD). For balanced connections, trim the shield braid to 8 mm to avoid overlapping signal wires.
Post-Assembly Checks
Conduct a full impedance test post-soldering. Balanced cables should read 50–600Ω between hot and cold conductors, with >1 MΩ isolation to the shield. Use an audio tester set to 1 kHz sine wave: output should measure ≤0.1 dB difference between channels. If phase inversion occurs, recheck polarity. Label each cable immediately to avoid mixing channels during use.
