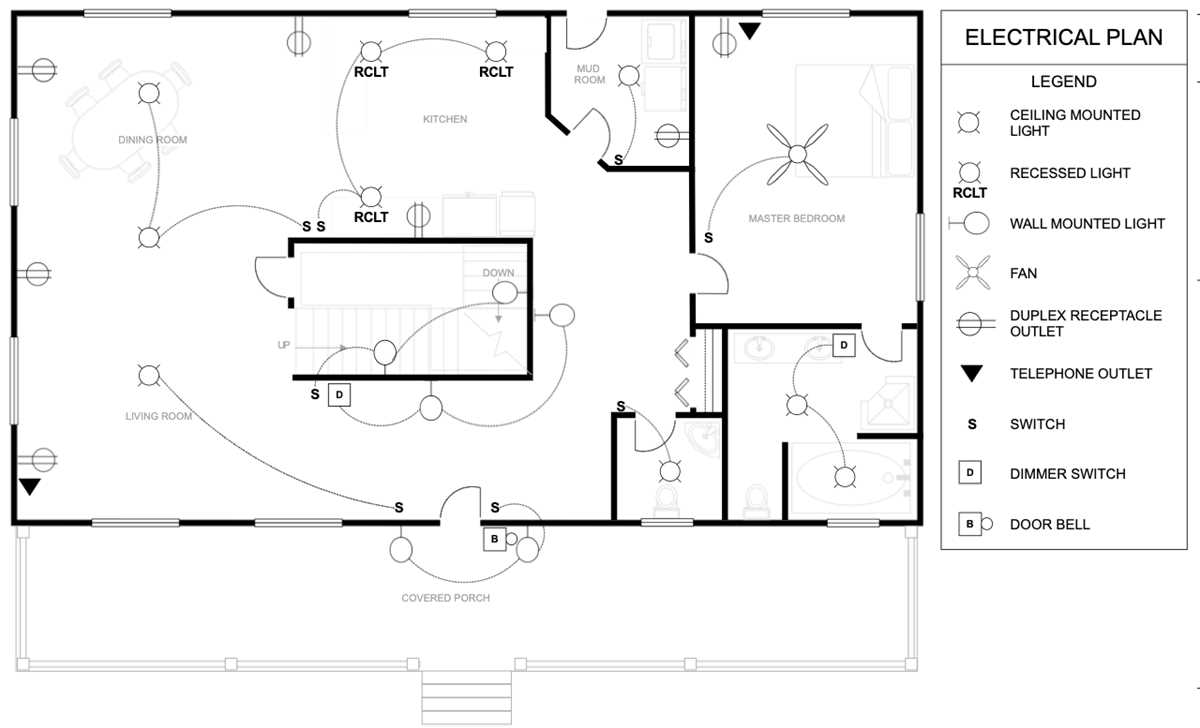

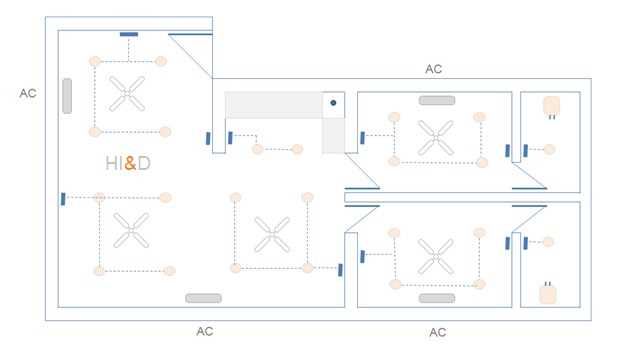

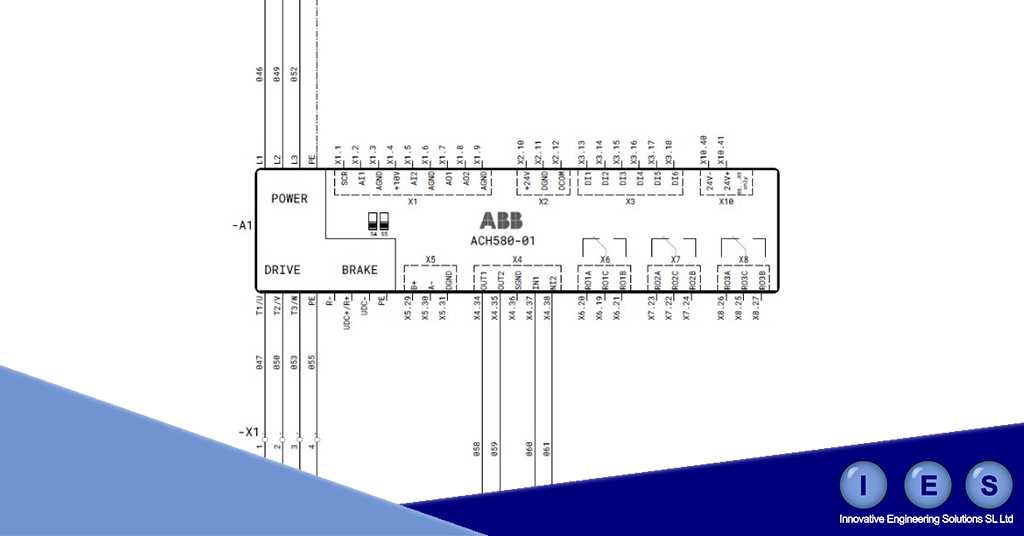

Begin by segmenting the installation into zones–each representing a distinct functional area. Label power sources with exact amperage ratings and wire gauges (e.g., 12 AWG for 20A circuits, 10 AWG for 30A). Mark every connection point with its purpose: outlets, switches, appliances, or junction boxes. Use color-coded lines (black for hot, white for neutral, green for ground) to eliminate ambiguity during troubleshooting or future modifications.
Place symbols for breakers, fuse boxes, and panels at the starting point of each branch. Indicate their trip ratings (15A, 20A, 50A) and include a legend for less common components like GFCIs or AFCIs. For multi-story buildings, create a separate schematic for each floor, aligning outlets vertically between levels to simplify conduit routing.
Add dimension lines between key elements–distance from walls, ceiling heights, and conduit runs–to ensure compliance with local codes (NEC 300.14 for minimum conductor length). Note environmental factors: damp locations require UF cable; high-heat zones need THHN/THWN insulation. Include material specifications in a sidebar: circuit type (series/parallel), voltage drop calculations, and wire length tolerances (3% drop for 120V, 5% for 240V).
Validate the draft against a load calculation worksheet, listing all devices and their wattage. Cross-reference with breaker capacities to prevent overloading. For complex systems, split the layout into sub-sheets–lighting, outlets, dedicated circuits–to maintain clarity. Use dashed lines for proposed expansions or future-proofing (e.g., EV charging stations).
Creating an Electrical Layout: Step-by-Step Execution

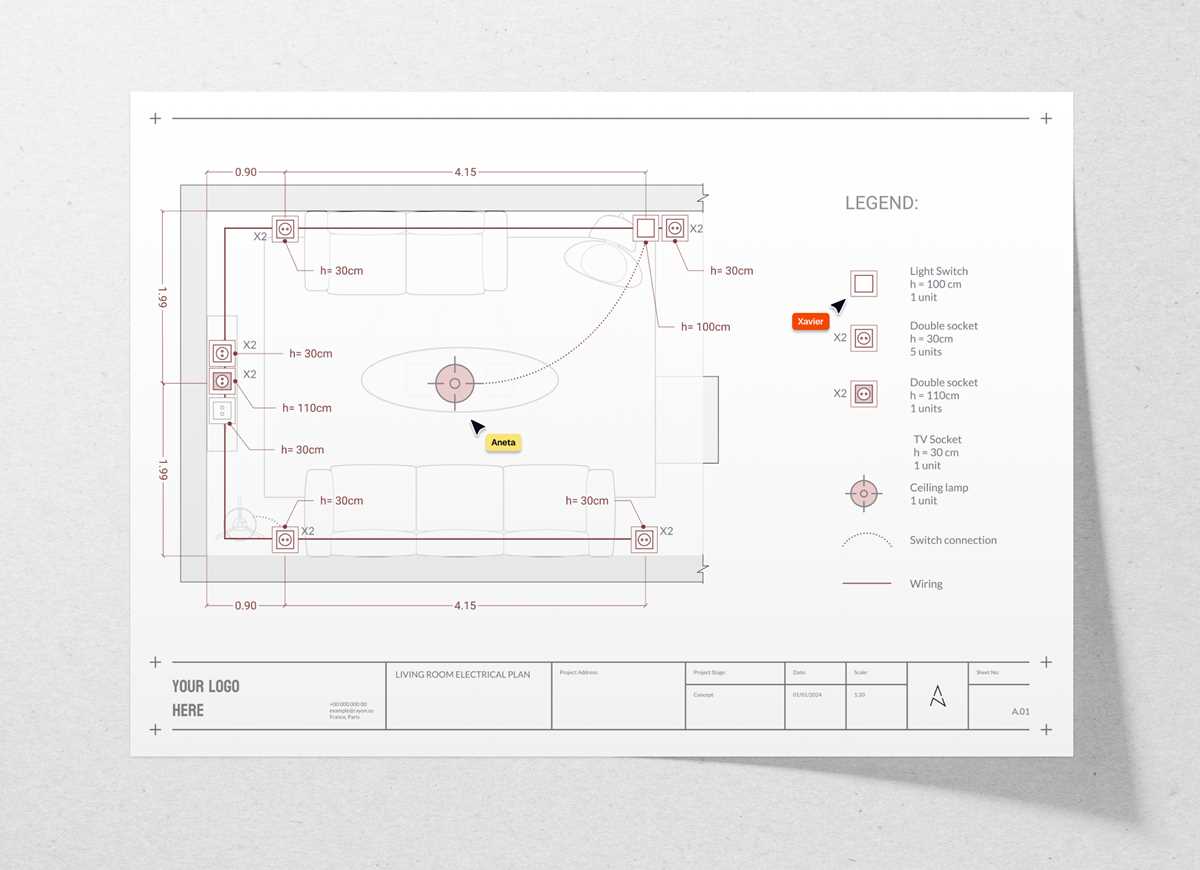

Begin by marking outlet and switch locations on walls using a laser level for precision–deviations exceeding 5mm will misalign installations during drywall or plastering. For residential circuits, follow the 80% rule: a 20-amp breaker should not exceed 16 amps continuous load (1920W at 120V). Use #12 AWG copper wire for 20-amp circuits and #14 AWG for 15-amp; aluminum requires one size larger (#10 AWG for 20A). Label all runs at the panel with permanent tags (e.g., “Kitchen GFI – North Wall”) and photograph connections before enclosing them. Grounding rods must be ≥8ft long, buried at a 45° angle if soil resistance exceeds 25Ω, with a second rod spaced ≥6ft apart if readings remain high.
Critical Conductor Spacing and Conduit Fill
| Conduit Type | Max Conductor Count | Fill Capacity (≤10 AWG) | Clearance (Hot Climates) |
|---|---|---|---|
| EMT (1/2″) | 4 | 25% | 6″ below roof |
| PVC Schedule 40 (3/4″) | 9 | 40% | 12″ below concrete |
| Rigid Metal (1″) | 16 | 53% | 18″ below slab |
Snap bend points for conduits at 90° angles using a hickey bender–avoid pre-fabricated elbows to prevent future wire pulls from jamming. Seal conduit ends with UL-listed duct seal if passing through unconditioned spaces. For multi-gang boxes, add a ½" mud ring to accommodate future expansions. When running NM cable in unfinished basements, secure it ≤12" from termination points and ≤4.5ft horizontally to joists; use nail plates where cables pass ≤1.25" from stud edges.
Key Elements to Spot in Electrical Layout Documentation
Begin by locating the main service panel–typically a metal box with a hinged cover, labeled “Main Breaker” or “Distribution Board”. Verify its amperage rating (e.g., 100A, 200A) as this dictates the entire system’s capacity. Check for subpanels if the setup spans multiple floors or detached structures; these mirror the main panel’s structure but serve localized circuits.
Trace cables from the panel to their endpoints–outlets, switches, luminaires, or appliances. Label each conductor type: NM-B (Romex) for indoor residential runs, THHN/THWN for conduit-protected lines, or UF for direct burial. Note gauge variations (14 AWG for lighting, 12 AWG for outlets, 10 AWG for large appliances) as mismatches create fire hazards.
Identify junction boxes–plastic or metal enclosures where conductors splice. Ensure they’re accessible (no drywall covering) and properly sealed. Count the number of wires entering each box to confirm it complies with fill capacity rules (e.g., a 4×4 box allows 12 conductors of 12 AWG). Mark abandoned wires with wire nuts and tape to prevent accidental contact.
Verify grounding conductors–bare or green-insulated wires terminating at grounding rods, water pipes, or the panel’s ground bus. Absence of grounding warrants immediate correction. For GFCI protection, locate reset buttons near sinks, outdoor outlets, or garages; these devices trip at 5 mA leakage, preventing shocks.
Document load distribution by recording wattage from connected devices. Sum these values per circuit; a 15A breaker shouldn’t exceed 1,440W (80% of 1,800W). High-draw appliances (HVAC, water heaters) often use dedicated circuits–confirm these aren’t shared with general outlets. Use a multimeter to measure voltage at outlets (120V for standard, 240V for dryers); deviations indicate faulty connections.
Cross-reference components against local codes (e.g., NEC Article 210 for branch circuits, Article 310 for conductor sizing). Sketch a rough schematic noting panel locations, conductor paths, and device types. Update this reference whenever modifications occur–mislabelled circuits delay troubleshooting during faults.
Creating a Circuit Schematic from the Ground Up
Begin by listing all components required for the electrical layout. Identify power sources, conductors, switches, outlets, and protective devices like circuit breakers. Use manufacturer datasheets for exact technical specifications–voltage ratings, current limits, and physical dimensions matter. For residential projects, group devices by room to avoid overcomplicating the draft. Industrial layouts demand separation by load type: lighting, motors, and control circuits each follow distinct paths.
Sketch a rough outline on graph paper or digital drafting software like AutoCAD Electrical or KiCad. Maintain consistent spacing between lines–minimum 10mm for readability. Horizontal and vertical lines reduce visual clutter; avoid diagonal connections unless representing specific cable runs. Label each line with conductor size (e.g., 14 AWG, 4 mm²) and purpose (e.g., “L1,” “Neutral,” “Ground”). Use standardized symbols: IEC 60617 for international projects, ANSI Y32.2 for North American layouts.
Assign unique identifiers to every component. For example, tag switches as “SW-LivingRoom-1” and outlets as “OUT-Kitchen-2GFI.” Include a legend in the top-right corner listing all symbols, abbreviations, and color codes (e.g., black for hot, white for neutral, green for earth). Add notes on conduit types if applicable–PVC Schedule 40 for indoor runs, RMC for outdoor or high-stress areas. Specify cable lengths in meters or feet with a 10% tolerance for slack.
Layering the Layout
Start with the main power feed–typically a service panel–and trace downstream. For 120V systems, split phases evenly to balance loads. For 240V, ensure both hot legs terminate at dual-pole breakers. Mark breaker amperages clearly; a 15A breaker requires 14 AWG copper, while 20A needs 12 AWG. Include surge protection devices (SPDs) for sensitive electronics, noting their joule ratings (e.g., 700J minimum for residential use).
Add neutrals and grounds next. In North America, neutrals and grounds remain separate except at the main panel. In TN-S systems (Europe/Australia), combine them only at the supply transformer. Indicate bonding jumpers where metal enclosures require grounding–use 6 AWG bare copper for main bonding conductors. For subpanels, install a 4-terminal grounding busbar. Label all grounding electrodes (e.g., “Ground Rod #1”) if external connections exist.
Verify circuit paths for logical flow. A three-way switch setup, for instance, needs travelers between switches and a single feed to the load. Label travelers distinctly (e.g., “T1,” “T2”) to avoid confusion. For dedicated circuits (refrigerators, microwaves), isolate them from general lighting to prevent voltage drops. Calculate voltage drop using the formula: VD = 2 × K × I × L / CM, where K = 12.9 for copper, I = current, L = length, CM = conductor circular mils.
Final Checks and Documentation
Cross-reference the schematic with local electrical codes. NEC (USA) mandates AFCI protection for bedroom outlets and GFCI for kitchens/bathrooms. BS 7671 (UK) requires RCDs for all circuits under 32A. Update the layout if discrepancies arise–retrofitting later costs 3-5x more. Include a revision table in the bottom-left corner tracking changes (e.g., “Rev 1: Added SPD to Panel A”).
Print or export the schematic in PDF/A format for archival. Use vector-based exports to retain scalability. Attach a bill of materials listing part numbers, quantities, and suppliers. For large projects, split the layout into zones (e.g., “First Floor Lighting,” “Outdoor Circuits”) to simplify installation. Add installation notes: “Mount Panel B at 1.8m AFF,” “Conduit bends: max 4 per run.” Keep a digital backup in cloud storage with access control to prevent unauthorized edits.
Critical Errors in Electrical Circuit Designs and How to Prevent Them
Overloading circuits by exceeding the 80% rule of breaker capacity guarantees premature failure. A 20-amp breaker must not carry more than 16 amps continuously. Calculate total load by summing device ratings, then add 20% headroom. Ignoring this forces breakers to trip unpredictably, risking insulation damage and fire hazards in concealed areas like attics or behind drywall.
Improper Grounding Techniques
Using neutral wires as grounds violates NEC 250.142, creating lethal shock risks. Ground rods must achieve below 25 ohms resistance, tested with a dedicated meter. Aluminum wiring requires anti-oxidant compound at splice points, or oxidation increases resistance, generating heat at connections. Copper-clad grounding electrodes prevent corrosion in humid environments where bare copper fails within years.
Neglecting arc fault circuit interrupters in bedrooms, living rooms, and kitchens leaves circuits vulnerable to undetected faults. AFCI breakers detect low-level arcing–below standard breaker trip thresholds–that ignites nearby combustibles. NFPA data shows 30% of home fires stem from electrical faults, 60% of which AFCIs could prevent. Retrofitting requires replacing standard breakers with dual-function AFCI/GFCI models.
Misjudging conductor gauge leads to voltage drop exceeding NEC’s 3% limit for branch circuits. A 12 AWG wire on a 20-amp circuit spanning 100 feet loses 5.2 volts–nearly 4.5% of 120V–causing dim lights and motor burnout. Use voltage drop calculators accounting for temperature derating, as 90°C-rated THHN wire loses ampacity at ambient temperatures above 30°C.
Skipping conduit fill calculations results in jammed pulls that damage insulation. A single 1-inch EMT conduit allows three 12 AWG THHN wires (40% fill), but exceeds safe limits with four. Sharp bends exacerbate the issue; maintain a radius of at least 6 times the conduit diameter. Pull boxes every 100 feet of straight run prevent conductor strain, which degrades resistance over time.
