Begin by locating the technical manual specific to your model–it often includes the precise layout of circuits. If unavailable, inspect the rear panel of the appliance for a label displaying the serial number; manufacturers frequently provide schematics upon request. For common issues like power failure or erratic cycles, check the door switch first–corrosion or misalignment disrupts the entire circuit flow.

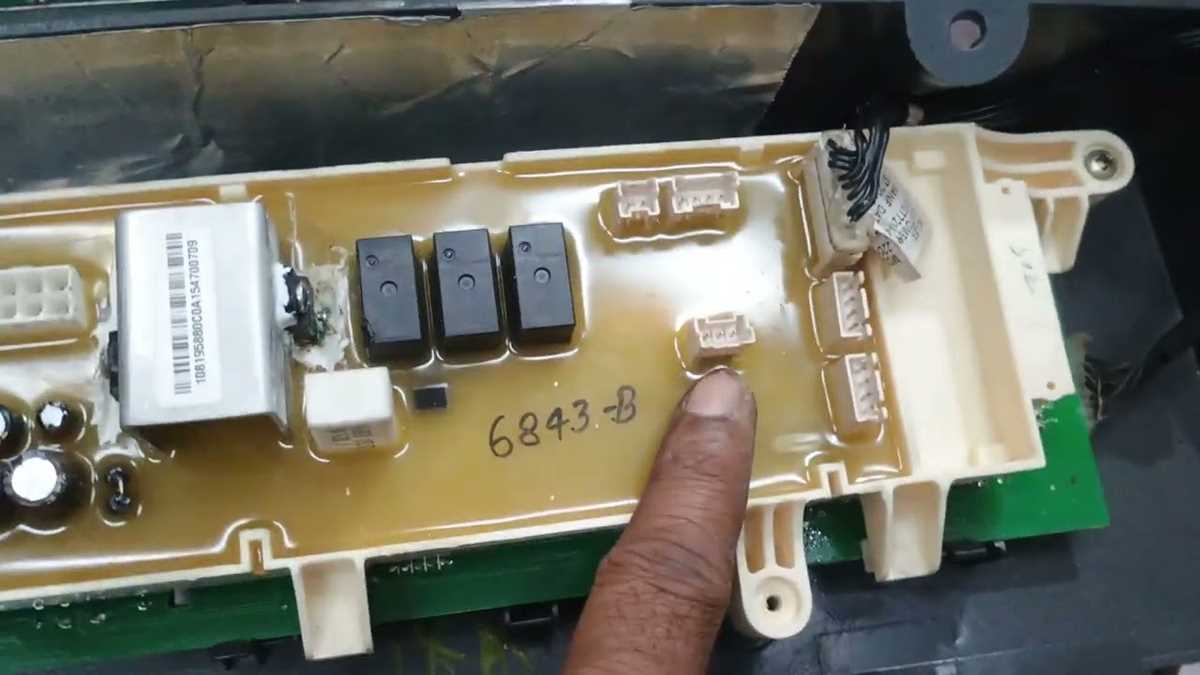

Trace connections starting from the main control board. Identify the motor windings, heater element, and pressure sensor–these are primary failure points. Use a multimeter set to continuity mode to verify paths; a reading above 0.5 ohms suggests an intact line, while infinite resistance indicates a break. Avoid relying on generic diagrams–even minor variations between models can lead to incorrect diagnostics.
The thermal fuse is a common culprit. Situated near the heating coil, it cuts power when overheating occurs. If tripped, replacing it restores function, but investigate the root cause–clogged vents or faulty thermostats often trigger repeat failures. For spin issues, examine the motor relay and capacitor; bulging or leaking components require immediate replacement.
Label each wire before disconnecting–color coding varies, and reversing connections can damage sensitive electronics. Prioritize grounding checks; a faulty ground leads to unpredictable behavior and poses safety risks. If the appliance exhibits slow fill or drain problems, focus on the water inlet valve and pump assembly, testing for voltage at the solenoid (120V AC in North American models).
For advanced repairs, access the service mode by pressing a sequence of buttons (e.g., Start + Temp for 3–5 seconds). This reveals error codes, narrowing the problem to specific components like the tachometer or hall sensor. Always disconnect power before handling any internal parts–capacitors retain charge even when unplugged.
Electrical Schematic for Your Laundry Appliance: Critical Operational Knowledge
Before attempting any repairs, disconnect the power supply at the circuit breaker and verify zero voltage with a multimeter at the terminal block–no exceptions. Even residual capacitance in motors or capacitors can hold lethal charges for hours, particularly in models with inverter-driven spin cycles like the Cabrio or Duet series. Always treat control boards as static-sensitive components; use an antistatic wrist strap grounded to the chassis when handling.
Identify color-coding inconsistencies immediately–generic schematics often clash with OEM wiring. For instance, Whirlpool’s European variants (e.g., AWE, AWO) use brown for neutral, whereas North American counterparts assign it to ground. Cross-reference labels against the service manual’s connector pinouts; a mismatch between the harness diagram and actual terminal block can fry the main board. Below are verified common color assignments for U.S. models:
| Wire Color | Primary Function | Terminal ID (Neutral/Load) | Notes |
|---|---|---|---|
| Black | Line Hot (120V) | L | Brushed motors may use red/black jumper for speed control |
| White | Neutral | N | Often bundled with gray for door lock circuitry |
| Green/Yellow | Ground | GND | Starved ground causes erratic control board resets |
| Blue | Door Switch Signal | DS | Open circuit triggers F20 error (no fill) |
| Red | Motor Field Coil (Auxiliary) | M2 | Voltage drop >5% indicates worn brushes |

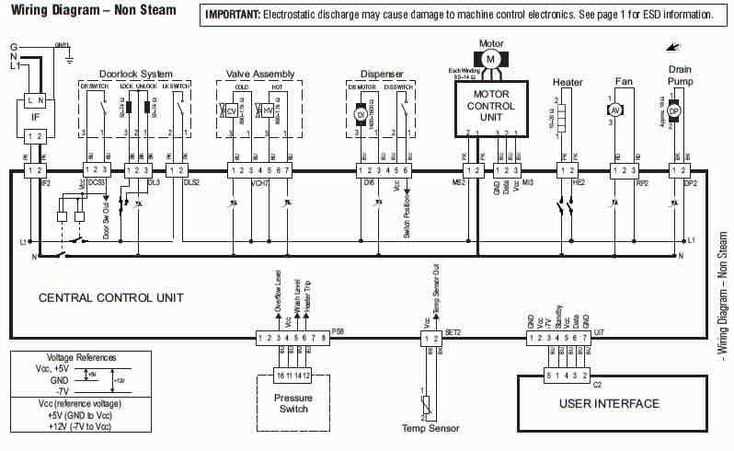

Trace current paths methodically–start from the power inlet, then move through the main relay, thermal fuse (if present), and pressure switch before reaching the motor or valve coils. Use a low-impedance multimeter (≤10Ω/V) to detect ghost voltages masking actual continuity issues. Inverter-style models (e.g., WTW, WFW) require specialized testing; a failing IGBT module mimics symptoms of a faulty motor–check for DC bus voltage at C1/C2 capacitors first.
Inspect harness connectors under load–intermittent faults often hide behind corroded pins or loose crimps masked by insulation. Apply dielectric grease to water-exposed junctions (e.g., door lock, drain pump) after cleaning with contact cleaner. For potted components like the CCU (central control unit), thermal expansion can break solder joints–press suspected areas while powered to confirm intermittent faults.

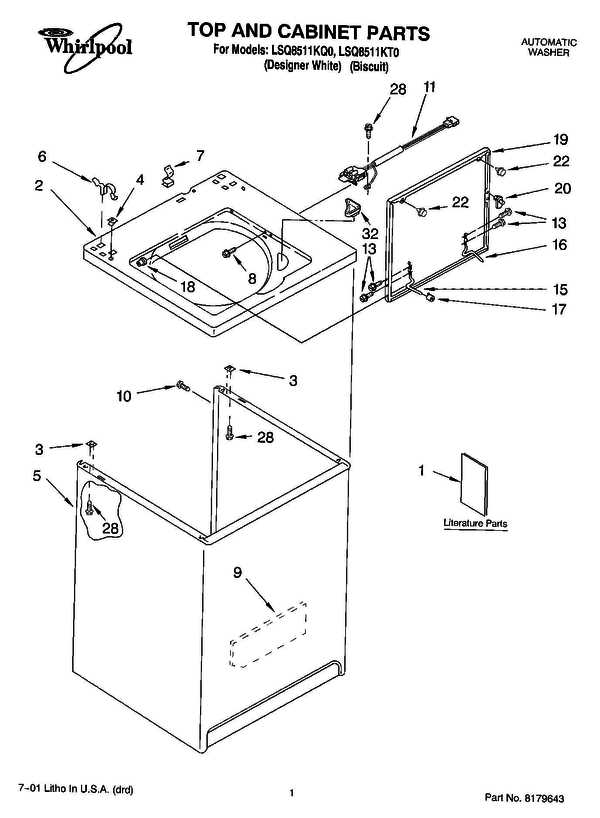

Replace components only with OEM matches or direct equivalents–aftermarket parts introduce risk. A generic water valve may fit but draw 0.2A more than specified, tripping the thermal fuse under sustained wash cycles. Similarly, using a 10A relay where a 7A is required will overheat adjacent traces on the PCB. Cross-check part numbers with the exploded view diagram–variants differ even within the same production year.
Document deviations from standard layouts. Some top-load balancing systems (e.g., WTW8700EC) route the speed sensor through a separate 3-wire harness to the motor, while front-loaders (e.g., WFW9620HW) integrate it into the stator wiring. Misrouting sensor wires causes “LF” errors (unbalanced load) despite mechanical stability. Label all disconnected wires with masking tape and photograph each step before disassembly.
Test safety mechanisms independently–door locks, lid switches, and thermal cutoffs–before assuming electronic failure. A stuck door latch can prevent spin initiation even if the drive motor tests healthy. Use a 9V battery to simulate door switch closure; if the main board responds, the switch is faulty. For thermal protection devices, measure resistance–OL indicates open circuit, requiring replacement, while near-zero ohms confirms operational continuity.
Leverage built-in diagnostics for error code interpretation, but validate findings manually. Error “F09” (overflow) might point to a defective water level sensor, but a clogged pressure tube often triggers the same code. Blow compressed air through the tube to the switch before condemning components. For models without self-diagnosis, monitor live voltages during cycles–unstable 5V logic supply at the MCU’s VCC pin typically indicates a failing power regulator, not a corrupted firmware.
Finding the Electrical Layout for Your Appliance
Check the rear panel of your unit first. Most models stamp the circuit schematic on a sticker inside the back cover near the motor or power inlet. Peel away insulation pads if present–the map is often concealed beneath them. Look for a narrow vertical strip approximately 3 inches wide.
Examine the user manual under the section titled “Technical Specifications” or “Repair Reference.” Digital versions can be searched using keywords like “schematic,” “internal layout,” or “connection plan.” Whirlpool’s official support site archives downloadable guides for discontinued models–enter your serial number for precise matches.
- Serial number plate (usually inside the door frame or on the chassis rim) contains a 12-digit code. The first 4 digits identify the model series.
- Cross-reference this with Whirlpool’s product help portal–filter by category “Laundry” then “Service Information.”
- If no results appear, select the nearest model variant; schematics often share 80-90% similarity.
Remove the top lid by unscrewing two Torx screws at the rear corners. Lift the panel slightly to access the mainboard area–some layouts are printed directly on the metal casing beneath. Use a flashlight if necessary; faint ink markings might require a macro camera for clarity.
Inspect the motor housing next. A smaller version of the connection chart may be molded into the plastic or affixed to the stator. Trace wires physically if the diagram is absent–label each terminal with masking tape to avoid misconnection during reassembly. Common color codes:
- Red/white: power input
- Blue: neutral paths
- Yellow: control circuits
- Green: ground
For models manufactured after 2018, navigate to Whirlpool’s Service Manual Database. Input the exact model identifier found on the serial plate–these documents include exploded views and component locations. Note: PDFs are password-protected; use “access” or the last 4 digits of the serial number as the key.
Third-party repair forums like ApplianceBlog or Electrolux’s archive often host user-uploaded schematics. Search strictly by model number–generic terms yield irrelevant results. Verify file credibility by checking upload date (prior to 2020 = likely obsolete) and cross-comparing connector labels with your unit.
If all else fails, photograph every wire connection before disassembly and sketch a hand-drawn map. Include:
- Component names adjacent to connectors
- Color codes with tolerances (e.g., “red/black stripe ±2mm”)
- Pin arrangements for multi-wire plugs
Store images in cloud storage named with the model number for future reference.
Interpreting Conductor Hues and Terminal Linkages in Electrical Schematics
Start by isolating the power supply lines–typically marked in bold red or black–ensuring they match the L (live) and N (neutral) labels on the appliance’s control board. Verify continuity with a multimeter before reconnecting; mistakes here risk burning out the motor or tripping the circuit breaker.
Neutral conductors often use blue or white striped insulation, but some models incorporate gray or solid white for secondary circuits. Check for hidden junctions–especially in dual-voltage setups–where color codes split after the main connector block.
Grounding and Safety Pathways
Green or bare copper wires demand priority: confirm they terminate at the chassis ground screw, not just the motor housing. A loose ground turns metal surfaces into shock hazards, so tighten screws with torque specifications from the technical manual.
In dual-motor models, the heater circuit may use yellow-with-green-stripe or brown-with-blue-dot, distinct from standard ground lines. Trace each wire back to its origin–mixing them up fuses the heating element instantly.
Signal and Sensor Trails
Temperature probes (NTC sensors) commonly pair with orange or violet wires. Swap these inadvertently, and the control module misreads cold water as boiling–leading to damaged fabrics or flooded floors. Always cross-reference the legend even if colors appear consistent.
Door interlock switches frequently employ purple or pink leads. If the appliance fails to start, test these connections first; corrosion on these tiny terminals causes erratic cycling.
Auxiliary components like drain pumps or solenoid valves often deviate from primary color codes. Label each terminal with masking tape during disassembly–relying solely on memory guarantees errors when reassembling.
Lambda wires (inductive sensors) might use black-with-yellow-striped insulation. These feed critical RPM data to the main board; a broken connection here triggers false error codes, stalling the entire sequence. Measure voltage drop across these before condemning the motor.
