Begin by linking the signal output ports on your radio control unit directly to the input channels of your speed controller–Channel 1 for throttle, Channel 2 for steering. Use high-quality servo cables with 3-pin connectors to prevent signal loss; avoid extensions longer than 30 cm unless absolutely necessary. Verify polarity before securing connections: the black wire (ground) should align with the pin nearest the label, the red wire (power) in the center, and the white or yellow wire (signal) on the outermost position.
For vehicles with auxiliary components like winches, lights, or sound modules, allocate Channels 3 through 8 following the manufacturer’s pinout sequence. Heavy-duty models with dual motors require balancing current draw–connect both electronic speed controllers to separate outputs but synchronize them via a Y-harness if single-channel operation is sufficient. Ensure the voltage rating of all connectors matches the receiver’s operating range (typically 4.8V–6V); exceeding this risks overheating or permanent damage.
Bind the transmitter to the control module only after confirming all connections. Hold the link button while powering both devices simultaneously; the receiver’s LED should flash rapidly, then settle into a steady glow upon successful pairing. Test responsiveness in a controlled environment before field use–check for latency, erratic behavior, or interference from nearby 2.4GHz devices. Adjust fail-safe settings to cut motor power if signal drops beyond 2 seconds to prevent runaway scenarios.
Ground planes matter: route wires away from high-current paths (such as battery leads) to minimize electrical noise. Secure cables with zip ties or low-friction clamps every 10 cm, especially near moving parts. Replace any connector showing signs of oxidation or fraying immediately; a single compromised joint can induce intermittent failures under load. For brushless systems, verify that the sensor cable (if equipped) mirrors the motor’s phase order–swapping even one position reverses rotation and risks catastrophic desynchronization.
Electrical Connection Guide for RC Control System Integration
Connect the servo motor directly to channel 1 on the control module using a pre-crimped 22 AWG silicone wire with male JST connectors–polarity matters, so align the white (signal), red (power), and black (ground) leads precisely to avoid signal interference.
For ESC linkage, use channel 2 with a 16 AWG high-strand-count cable to handle current spikes up to 60A. Strip 5mm of insulation, twist strands tightly, and secure with a 4mm gold-plated bullet connector to prevent voltage drop under load.
Link auxiliary devices like LED controllers via channel 3 using a 3-pin universal interface board–insert the signal wire into the center pin, then solder headers for stable contact without crimping tools. Test continuity with a multimeter before powering on.
Ground loops can distort throttle response; route all negative leads to a single common busbar mounted on the chassis with nylon spacers for insulation. Use 14mm heat shrink over each joint to prevent short circuits from vibration.
Verify signal strength with an oscilloscope at 50Hz refresh rate–clean square waves between 1ms (min) and 2ms (max) pulse widths confirm proper binding without latency.
Locating Control Unit Terminal Layouts for Actuator and Power System Hookups
Begin by examining the signal board’s label side–most modules mark channel terminals with sequential numbering (CH1, CH2, CH3). On models like the TQi and TSM, the first port (CH1) is strictly allocated to the steering actuator, while CH2 handles throttle and braking via the velocity regulator. Verify polarity: center pins carry positive voltage, outer rails ground the circuit.
For dual-motor configurations, CH3 drives auxiliary functions (e.g., winches, lighting kits). If不明确, cross-reference the board’s etched markings or probe with a multimeter–stray connections risk damaging the regulator’s MOSFETs. High-current setups demand AWG 14–12 gauge leads to prevent overheating.
Secure connections with silicone-jacketed cables, which resist vibration and moisture. Avoid twisting bare wires; instead, crimp Gold-Plated connectors for consistent conductivity. For failsafe integration, match the signal lead’s pulse width to 1.5ms (neutral), 1.0ms (full reverse), and 2.0ms (full forward).
Connecting Your TQi or TQ Radio Control System: A Clear Installation Walkthrough
Start by identifying the three primary cables extending from your controller unit’s signal processor: the throttle channel (typically white), steering channel (usually red), and power input (black or brown). Verify their labels against the numerical ports on the module–most modern arrangements label them 1 through 6, though only 2 or 3 are required for basic operation.
Position the electronic signal module in the model’s chassis with the connection ports facing upward to simplify access. Secure it temporarily with double-sided adhesive or a zip tie to prevent movement during the following steps. Ensuring stability now avoids misaligned plugs later.
- Use servo extension leads only if the existing cables are too short–standard pre-assembled wires usually suffice.
- Avoid twisting or coiling excess cable lengths; loop them neatly alongside the module to minimize signal interference.
- Never force connectors; if a plug doesn’t slide in smoothly, check the orientation–most are keyed to fit only one way.
Attach the power input plug (usually black) to the BEC (Battery Eliminator Circuit) output of your speed regulator or voltage distributor. Confirm the voltage matches the module’s requirements–most accept 4.8V to 6V, but check the etched label on the circuit board to avoid damage.
Link the steering servo to the channel marked with a red connector; this is traditionally port 1 on most modules. Push the connector fully until it clicks, then gently tug to confirm it’s seated. Repeat for the throttle actuator or ESC, using the white or yellow connector into port 2.
- If a third auxiliary device (like a gearbox servo or LED controller) is used, connect it to port 3–ensure its settings match the transmitter’s channel assignments.
- For air vehicles, connect the rudder or elevator servos to their respective channels, following the same secure-fit method.
- Power on the speed regulator first, then the transmitter–this sequence prevents erratic movement from sudden signal changes.
Test each function by moving the transmitter sticks gently. Observe for smooth, proportional response–any delay or stuttering indicates a loose connection or incompatible voltage. If issues arise, recheck each plug and the BEC’s output voltage before proceeding.
Once all movements are verified, secure all cables with zip ties or adhesive clips. Route them away from rotating parts, heat sources, and sharp edges to prevent wear during operation. Label any excess cables with tape if sharing the setup across multiple models.
Solving Frequent Connection Problems in RC Control Systems
First, verify channel assignments match the transmitter’s output. Misaligned servo plugs–like a steering mechanism inserted into the throttle port–cause erratic behavior. Swap channels systematically: label each wire with masking tape to track positions. Traxxas controllers default to specific slot functions; deviations lead to unresponsive components.
Check for intermittent signals by lightly tugging cables near the connector. Loose crimps or frayed strands beneath the insulation disrupt power flow without visible damage. Solder joints on modified harnesses require flux reapplication if oxidation forms; heat-shrink tubing prevents future shorts.
Battery-Dependent Failures
Low-voltage supplies produce unexpected shutdowns. Measure input at the ESC with a multimeter–any reading below 7.2V indicates a dying LiPo or poor contact. Reverse polarity protection won’t save smoked electronics if the battery’s red and black leads swap places during installation.
Corroded battery terminals demand cleaning with a wire brush. Even minor buildup creates resistance, dropping RPM under load. Use dielectric grease on clean terminals to deter future oxidation, ensuring consistent conductivity.
Interference and Signal Loss
Metal chassis cause RF interference with 2.4GHz transmitters. Relocate the control board to a plastic mount or use a ferrite choke on the antenna lead. Overlapping frequencies from nearby operators provoke signal dropout; switch channels via the transmitter’s menu.
Lengthy extension leads attenuate signals. Trim excess cable to match the required distance–excess wire acts as an antenna, picking up noise. Secure connections with zip ties to prevent vibration-induced disconnections during high-speed runs.

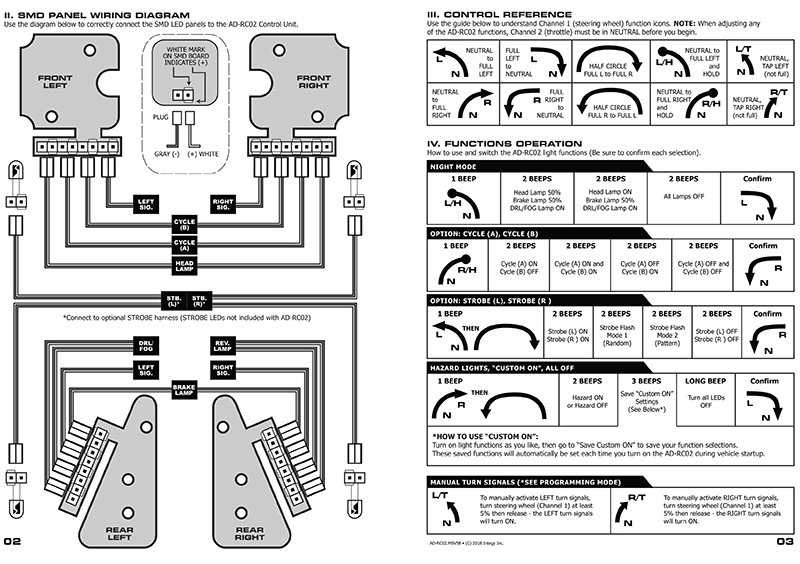

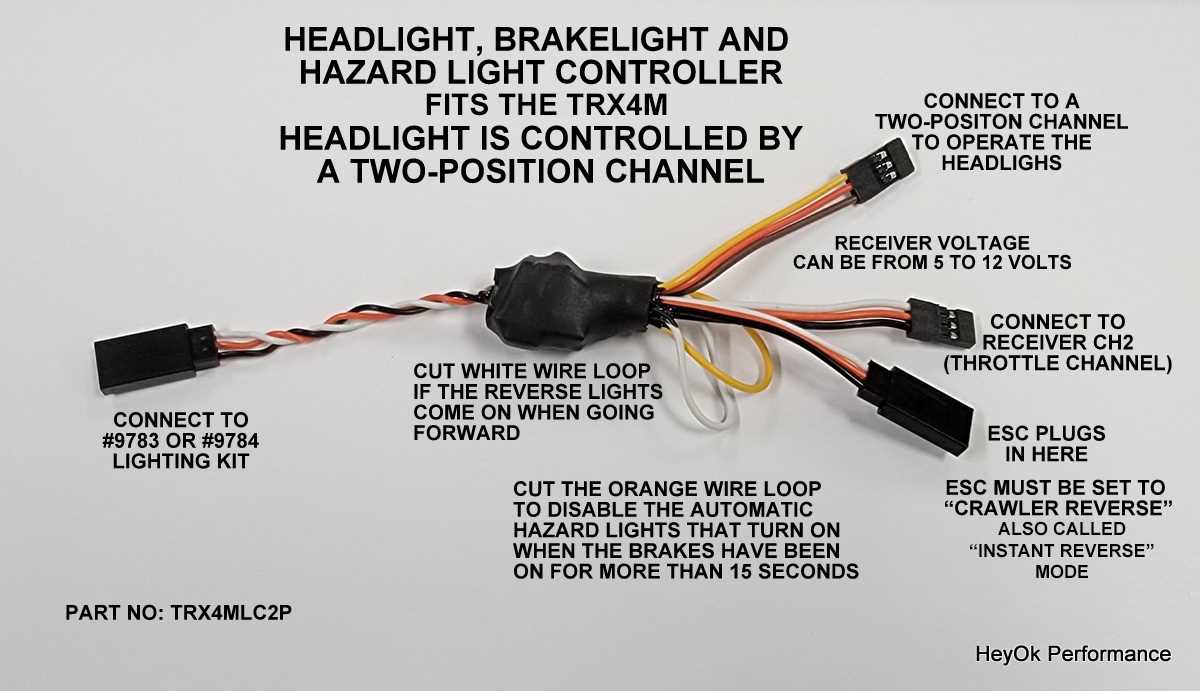

Integrating Additional Control Lines for Aftermarket Accessories on RC Vehicles
Begin by identifying the vacant output ports on your radio control unit–typically labeled CH3 or higher on most advanced transmitters. These ports supply a standard 5V PWM signal, compatible with most LED modules, winch solenoids, or servo-driven attachments. Verify the accessory’s voltage requirements; while 5V is common, some high-output LEDs may demand a dedicated BEC to prevent voltage drop under load. For winches or high-torque servos, connect directly to the vehicle’s power distribution block rather than relying on the controller’s internal regulator.
Use 22AWG silicone-jacketed wire for auxiliary connections to balance flexibility and current capacity–18AWG is overkill for most lighting kits but necessary for winches drawing over 5A continuous. Solder joints should be heat-shrunk immediately after cooling to prevent vibration-induced shorts, especially in off-road applications. For modular installations, incorporate JST connectors or Deans plugs between the control unit and accessories to simplify future upgrades or troubleshooting. Avoid daisy-chaining accessories; parallel connections degrade signal integrity and can cause erratic behavior.
| Accessory Type | Recommended Wire Gauge | Max Current Draw | Ideal Fuse Rating |
|---|---|---|---|
| LED light bars (standard) | 24AWG | 1A | 1.5A |
| Winch motor (medium duty) | 20AWG | 10A | 12A |
| Servo-actuated plow | 22AWG | 3A | 3.5A |
When programming auxiliary channels, assign a dedicated switch or dial on your handheld transmitter rather than piggybacking on existing controls. Most modern radios allow mixing, but this risks interference with primary steering or throttle inputs. For winches, map a three-position switch (up/down/neutral) to avoid accidental activation during high-speed runs. If using a separate controller for lighting, configure failsafe states to default to off–prevents drained batteries if the signal drops mid-operation.
Test all connections under load before finalizing installation. Activate the vehicle’s powertrain and observe accessory behavior during full-throttle acceleration; voltage spikes can reset microcontrollers in LED controllers if not properly decoupled. For winches, verify stall current with a multimeter–some aftermarket units exceed 20A under load, requiring a heavier-duty fuse than the stock 5A. If accessories exhibit pulsing or unreliable operation, add a 1000μF capacitor across the power input to smooth PWM signals from the control unit.
Secure all wiring looms with zip ties to frame rails or shock towers, avoiding suspension travel paths and exhaust outlets. Use spiral wrap for bundles exceeding four wires to prevent abrasion. For exposed installations (e.g., rock crawlers), opt for Teflon-coated wire–its thermal resistance prevents melting near high-heat components like ESC heatsinks. Document your configuration with labeled photos for future reference; note switch assignments and fuse ratings to streamline maintenance.
