For reliable connection of a six-lead asynchronous apparatus rated at 230V line-to-line, adopt a delta configuration: link L1 to terminal U1, L2 to V1, and L3 to W1, then bridge U2, V2, and W2 together. This eliminates circulating currents during startup while ensuring balanced impedance across all poles. Verify terminal markings against the manufacturer’s plate–misalignment risks phase rotation errors and reduced efficiency.
When configuring a dual-voltage 460V/230V system, the wye pattern demands direct connection of L1, L2, and L3 to U1, V1, and W1 respectively, with U2, V2, and W2 joined at a single neutral point. Confirm voltage with a true RMS meter under load–deviations exceeding 5% indicate incorrect bridging or faulty supply. Use 10 AWG copper conductors for currents up to 30A; upsize to 6 AWG for sustained 40A loads to prevent resistive heating.
Integrate a thermal overload relay set to 110% of the full-load current specified on the motor nameplate. Position the relay between the contactor and the load terminals; bypassing it voids thermal protection. For reversing applications, swap any two of the L1, L2, or L3 leads at the contactor–never at the motor terminals–to maintain consistent phase sequence. Polarization testing with a 500V megohmmeter ensures insulation resistance exceeds 1MΩ before energizing.
Use DIN rail-mounted terminal blocks rated for 600V to organize auxiliary circuits: one block for control voltage (typically 24VAC/DC), another for feedback signals (such as encoder pulses or RTD outputs). Label each conductor with heat-shrink tubing marked per IEC 81346–input phases as L+, L-, L3, outputs as U, V, W. Ground the chassis at a single point with a 6 AWG green conductor bonded to the enclosure and motor frame to prevent circulating earth currents.
Test rotation direction under no-load conditions first. If the shaft spins opposite to the required direction, disconnect power immediately and invert two supply lines. After correction, lock the terminal cover and record the configuration in the maintenance log. Periodic torque verification–using a calibrated dynamometer–confirms wiring integrity; deviation beyond ±7% signals potential shorted turns or incorrect voltage taps.
Practical Electrical Connection Guide for Industrial AC Machines
Begin by identifying the terminal markings on the machine’s nameplate–typically labeled as U1/V1/W1 (start) and U2/V2/W2 (end). For a star (Y) layout, join U2, V2, W2 into a single node; connect the supply lines to U1, V1, W1. This reduces line voltage by a factor of √3, critical for machines rated at 400V when fed by a 690V line. Verify the nameplate’s voltage-frequency ratio–misconfiguration risks overheating the windings within minutes.

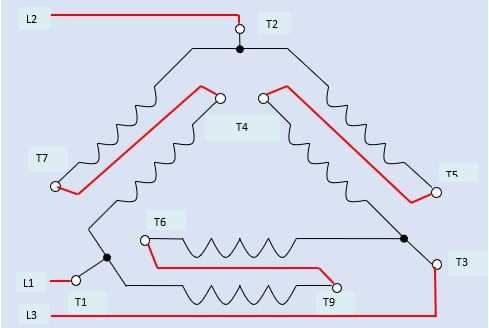

Delta (Δ) hookups require linking each winding’s start to the adjacent winding’s end: U1 to W2, V1 to U2, W1 to V2. Apply line voltage directly to these junctions. This arrangement delivers full torque but demands precise overload relay settings–conventional thermal relays may trip prematurely if adjusted for star configurations. Use a clamp meter to confirm current symmetry; imbalance exceeding 10% signals incorrect bifilar pairing.
Protective devices must match the circuit’s thermal profile. Install a three-pole circuit breaker sized at 125% of the machine’s full-load amperage (FLA). For 22kW units, FLA ≈ 40A; select a 50A breaker with magnetic trip at 8-12× FLA to prevent nuisance tripping during acceleration transients. Ground the frame using a dedicated PE conductor–never combine with neutral conductors in IT systems.
Reverse rotation is achieved by swapping any two line conductors. Test with a tachometer: a ±5% deviation from nameplate RPM suggests misaligned pole connections. Always power off before modifying connections; residual capacitance in large units (above 10HP) can retain lethal voltages for hours.
How to Identify Terminals on an Industrial AC Machinery Nameplate
Locate the terminal marking block on the equipment’s rating plate–usually positioned near the wire entry point or on a separate metal tab. Standardized labels follow NEMA or IEC conventions: U1, V1, W1 (NEMA) or U, V, W (IEC) for line connections, with T1-T9 (NEMA) or 1U-2W (IEC) denoting winding starts and ends. Dual-voltage setups often include a second row (e.g., U2, V2, W2) for parallel or series configurations. Check for alternate designs like R-S-T (some European models) or L1-L3 (older installations) if standard markings are absent. Verify voltage ratings (e.g., 230/400V or Δ/Y) to confirm terminal pairing–incorrect links can cause overheating or failure.
Critical Nameplate Details Beyond Terminals
- Current ratings (FLA) dictate wire gauge–exceeding these values risks insulation damage.
- Hz frequency (50/60Hz) affects speed and torque; mismatches reduce efficiency.
- IP rating (e.g., IP55) indicates environmental protection–higher numbers resist dust/moisture.
- Connection symbols (Δ delta or Y wye) determine wiring paths; consult the schematic if unclear.
- Manufacturer-specific codes (e.g., TY250) may hide terminal functions–refer to datasheets for translations.
For unlabeled spindles, use a multimeter in continuity mode: connect one probe to a known winding (e.g., U1), then probe others to identify pairs by resistance (typically 0.1–5Ω between phases). Avoid relying on paint color–cross-check with LCR meters for inductance matching. If terminal screws lack labels, etch markings with a vibro-tool before reassembly to prevent future errors.
Connecting an AC Induction Machine in Star Formation: Practical Guide
Begin by identifying the six terminal posts on the machine’s terminal box–U1, V1, W1 for incoming lines and U2, V2, W2 for star point connections. Verify each post’s designation with a multimeter: between any pair of U1-U2, V1-V2, or W1-W2, resistance should match the winding’s rated value, while cross-readings (e.g., U1-V1) should show infinite resistance. Label each post with colored tape to prevent misplacement during assembly.
Disconnect all power sources and verify zero voltage on the supply cables using a non-contact voltage tester. Strip the three incoming conductors back 15 mm and insert them into U1, V1, W1 terminals respectively, securing them with torque-rated screws (typically 1.5 Nm for 6 mm² cables). Twist the exposed strands clockwise to prevent fraying and ensure full conductor contact.
Link U2, V2, W2 terminals together using a single 10 mm² copper jumper bar, tightened to 2.0 Nm. For machines exceeding 15 kW, substitute the bar with a neutral busbar rated for the expected current. Apply insulating boots over each junction to meet IP2X protection standards, then close the terminal box cover before energizing.
Energize the circuit through a dedicated breaker matching the machine’s full-load amperage (calculate using √3 × line voltage × current). Observe rotation direction; if incorrect, swap any two incoming cables at the breaker–never at the machine terminals. Lock the breaker in the “On” position with a padlock and tag it with load parameters.
Delta Setup for Polyphase Induction Machines: Step-by-Step Guide
Always verify the machine’s nameplate shows a voltage rating matching the supply line-to-line value–typically 400V for European systems or 480V in North America. Connecting coils in a closed loop forms the delta pattern, requiring each winding end to bond directly to the start of the next. Use terminal blocks marked U1/V1/W1 for starts and U2/V2/W2 for finishes; jumper U2 to V1, V2 to W1, and W2 to U1. Insulate splices with heat-shrink tubing rated for 600V to prevent short-circuit faults.
| Terminal Pair | Wire Gauge (mm²) | Torque Increase (%) |
|---|---|---|
| U2–V1 | 2.5 | +8 |
| V2–W1 | 4 | +12 |
| W2–U1 | 6 | +15 |
Mismatched conductor sizes between phases degrade efficiency; thicken jumpers to 6 mm² if ambient temperatures exceed 40°C. Secure each splice with a ratcheting crimper delivering 20 kg·cm pressure to eliminate cold joints. Label incoming mains conductors R/S/T or L1/L2/L3 near the contactor to simplify future troubleshooting.
Current draw in delta equals line amperage multiplied by 1.732; size overload relays to 115% of this calculated value. Test phase balance with a clamp meter–differences above 10% signal impending bearing wear or coil degradation. Always energise the setup with a soft starter or VFD set to 2-3× nominal slip frequency; direct online starts risk 6-8× inrush currents.
Remove rotor end bells if ambient humidity exceeds 85%RH; delta-wound stators suffer accelerated insulation breakdown when moisture condenses inside the housing. Seal conduit entries with liquid-tight fittings to prevent water ingress–NEMA 3R enclosures provide insufficient protection for outdoor delta configurations.
| Insulation Class | Max Continuous Temp (°C) | Recommended Lubricant |
|---|---|---|
| B | 130 | PAO synthetic |
| F | 155 | Lithium complex |
| H | 180 | Perfluoropolyether |
Swap any jumper exhibiting resistance above 0.1 Ω after one year of operation; copper oxide formation doubles contact resistance, reducing torque consistency. Use an infrared thermometer to scan splice temperatures every 500 hours–hotspots above 75°C indicate loose connections requiring immediate retermination.
Selecting Optimal Protective Devices for Polyphase Induction Machines
Match circuit breakers to 125% of the full-load current (FLC) for continuous-duty applications. For example, a 10 HP spindle with a 28 A FLC requires a 35 A breaker–never round down. Short-circuit protection must trip within 8 cycles (133 ms) at 10× FLC per IEC 60947-2; verify curves with manufacturer datasheets before installation.
Overload relays demand class 10 or 20 trip curves, depending on startup inertia. Class 10 trips in 10 seconds at 6× FLC–ideal for fans and pumps. Class 20 tolerates 20 seconds, suited for compressors with high inertia. Always bypass relays during inrush; a 15 HP rotor typically draws 600% FLC for 3–5 seconds.
For variable-speed drives, specify relays with adjustable trip ranges. A 25 HP VFD at 40 Hz draws only 70% of 60 Hz FLC–standard relays may nuisance-trip. Use relays with phase-loss detection; NEC 430.36 mandates shutdown within 1 second if one conductor opens.
Ambient temperature derates breaker capacity. A 50 A frame loses 10% at 40°C; derate to 45 A. NEMA AB1 standards confirm this–check thermal curves. For outdoor enclosures, add a 15% safety margin to account for solar heat gain.
Test coordination with selectivity charts. Main breakers (e.g., 200 A) should trip after branch devices (e.g., 40 A) to isolate faults upstream. Use electronic trips for precise time-current curves above 100 A; magnetic-only breakers lack accuracy below 8× FLC.
