Begin by identifying the positive and negative terminals on the signaling unit. Most automotive sound emitters require 12V DC for proper operation, but verify the specifications for your model–some heavy-duty or marine-grade units may need 24V. Connect the power lead directly to the vehicle’s battery or a fused ignition-switched circuit to prevent parasitic drain. Use 16-gauge wire or thicker for low-resistance current flow; anything thinner risks voltage drop and weak performance.
Install a 30-amp relay between the power source and the sound emitter to handle inrush current. Without it, the switch contacts–typically a steering wheel button or standalone toggle–will arc and fail prematurely. Wire the relay’s coil to the control switch, ensuring the ground side of the coil connects to the chassis through a self-tapping screw secured in a clean, bare-metal surface. Avoid paint or corrosion, as poor grounding creates intermittent faults.
Fuse protection is non-negotiable: place a 10-amp fuse within 6 inches of the battery connection. Higher-rated fuses (15A) may be warranted for dual-tone or air-powered systems with significant current draw. Route wires away from sharp edges, moving parts, and hot components like exhaust manifolds. Use split-loom tubing or adhesive-backed conduit to prevent chafing. Secure every 12–18 inches with plastic zip ties or mounting clips to reduce vibration-induced failures.
Test the circuit with a multimeter before finalizing connections. Probe for 12.6V at the emitter’s input terminals–any less indicates a voltage drop requiring thicker wire or shorter runs. Check continuity across the relay contacts when activated; a reading above 0.2 ohms signals corroded terminals or loose connections. Finally, operate the system multiple times to confirm consistent sound output and absence of relay chatter or switch bounce.

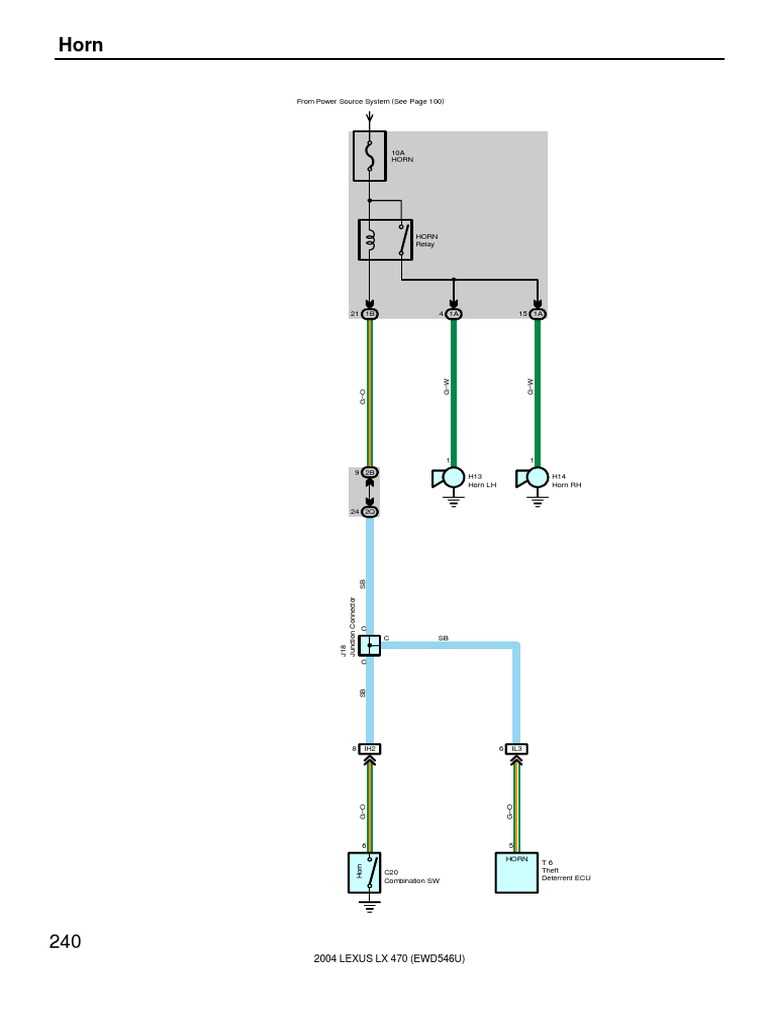

Connecting Your Vehicle’s Audible Alert System
Locate the relay near the fuse box–most cars integrate it within the main electrical distribution center under the dashboard or hood. Verify the relay type: typically a 4-pin SPDT (Single Pole Double Throw) unit, rated for 15-30A. If absent, install a standard automotive relay to prevent overheating the switch contacts, which degrade under sustained current loads above 5A.
Trace the main power feed from the battery terminal–use 12-14 AWG wire, fused at 15A within 7 inches of the battery post. Connect to relay pin 30, then route a fused 14 AWG wire from pin 87 directly to the klaxon’s positive terminal. Avoid daisy-chaining other devices; horn circuits demand dedicated lines to maintain signal integrity during activation.
Ground the klaxon’s negative terminal to the chassis using a 10 AWG wire–clean the mounting point to bare metal and apply dielectric grease to prevent corrosion. Secure the connection with a stainless-steel bolt; loose grounds cause intermittent operation or complete failure under load. Test continuity with a multimeter: resistance should read below 0.5 ohms between the terminal and chassis.
For vehicles with multiple sound emitters, wire them in parallel off the same relay–series connections reduce volume and reliability. Use a momentary contact switch rated for 5A minimum; connect it to relay pin 86 with an 18 AWG wire. Route the switch wire away from high-amperage cables to avoid induced voltage spikes, which can damage the relay coil or trigger false activation.
Core Elements for an Audible Alert Circuit Installation
Begin with a high-amperage relay rated for at least 30A to handle the current draw of most sound emitters without overheating. Choose a relay with a 12V coil voltage compatible with standard vehicle electrical systems. Install the relay within 12 inches of the sound device to minimize voltage drop, using tinned copper wire no smaller than 14 AWG for main power connections.
The control switch should be rated for 20A continuous duty to prevent premature failure. Mount it in an easily accessible location, avoiding areas prone to moisture or excessive vibration. For momentary activation, select a push-button switch with a normally open contact configuration–spring-loaded models provide tactile feedback and reduce accidental engagement.
Essential circuit protection requires a fuse sized 5A above the device’s peak current rating. For example, a 15A fuse protects a sound emitter pulling 10A at full load. Position the fuse holder within 7 inches of the battery’s positive terminal, using a blade-type fuse for reliable contact. Avoid glass tube fuses in high-vibration environments as they may corrode or disconnect under stress.
- Wire terminals must be crimped and soldered for durability, using heat-shrink tubing to seal connections against oxidation.
- Avoid aluminum wire for main power runs–its higher resistance causes voltage loss over distance.
- Ground connections should bond directly to the chassis using a 10 AWG conductor, not relying on paint or coatings for conductivity.
For sound emitters exceeding 120 dB, incorporate a diode across the relay coil to suppress voltage spikes (flyback voltage) when the circuit de-energizes. A 1N4007 diode suffices for most applications. Test the completed setup with a multimeter to confirm less than 0.5V drop under load before finalizing connections.

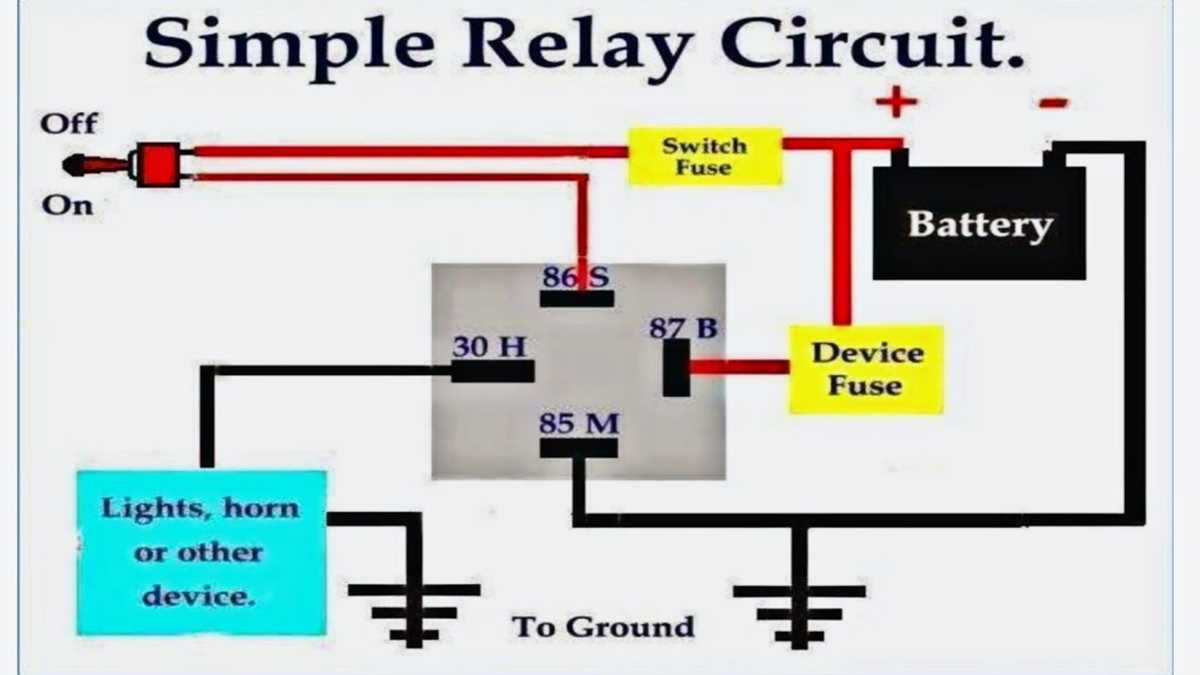

Step-by-Step Guide to Connecting a Sound Signal Relay
Locate the vehicle’s power distribution block and identify a 12V constant source with a 15A or higher fuse–use a multimeter to confirm live current. Strip 5mm of insulation from the relay’s terminal 30 wire (thickest gauge, typically 14–16 AWG) and crimp it to the power source using a yellow butt connector, ensuring no exposed copper remains. Route the relay’s terminal 87 wire (secondary output) directly to the acoustic device, securing it with solder and heat-shrink tubing for vibration resistance, especially near the engine bay. Ground terminal 85 by attaching it to a bare metal chassis point–scrub the surface with sandpaper first to remove paint or oxidation, then fasten with a M6 ring terminal torqued to 10Nm.
Connect the activation switch (terminal 86) to a fused 12V ignition-switched circuit–verify with the multimeter that voltage drops to 0V when the key is off. Use relay socket terminals for solder-free connections if modifying factory harnesses; otherwise, splice into the existing loom with T-taps, avoiding brittle wires near moving parts. Test the circuit by pressing the control–listen for a sharp click from the relay and measure supplemental ground strap to the battery’s negative terminal, reducing resistance losses.
Choosing the Right Conductor Size for Acoustic Signal Systems
For most vehicle acoustic signal circuits, use 16 AWG copper conductors for distances up to 5 meters when the trigger current stays below 15A. This gauge balances voltage drop and mechanical durability while preventing overheating under intermittent loads. Larger installations requiring runs beyond 8 meters or handling currents above 20A demand 14 AWG–verify local OEM specifications as some European standards mandate 12 AWG for enhanced safety margins.
Factory-installed switchgear typically withstands 25A continuous, but aftermarket relays often derate at 30A–never exceed ampacity tables for the selected gauge. For marine or off-road applications exposed to moisture or vibration, step up one size (e.g., use 14 AWG instead of 16) and employ stranded conductors with tin plating to resist corrosion.
DiagnosingFaults in Acoustic Signal Circuits
Check the relay first if the signaling device fails entirely–swap it with a known functional unit of the same type. Relays corrode or weld shut over time; a swap confirms failure without tools beyond a spare. Measure coil resistance across the relay socket: 50–120 Ω signals intact windings, readings outside this band indicate internal breaks or shorts.
Inspect fuses under load; a blown fuse may mask deeper faults. Use a multimeter in continuity mode to bypass visual checks–some filament fractures remain invisible. Compare fuse ratings to wiring gauge: 20 AWG pairs with 10 A fuses, 18 AWG with 15 A, mismatches cause thermal failures upstream.
Test switch contacts with a resistance meter while toggling; readings above 0.5 Ω suggest pitted surfaces or loose connections. Clean contacts with fine abrasive, not lubricants–lubricants attract dust, accelerating oxidation. Replace switches if resistance persists; micro-switches degrade predictably after 80,000 cycles under 3 A loads.
| Fault | Voltage Drop (V) | Action |
|---|---|---|
| Corroded terminal | >0.2 | Sand to bare metal |
| Loose crimp | 0.1–0.2 | Re-crimp or solder |
| Frayed conductor | 0.3–0.5 | Splice 15 mm past damage |
Trace power from the battery to the device using a voltmeter; drops exceeding 0.5 V per meter of cable signal high-resistance junctions. Focus on common failure points: battery clamps, chassis grounds, and multi-pin connectors. Secure ground points with star washers–vibration loosens standard hardware, creating intermittent faults.
