Start by checking the engine bay’s left side, near the battery tray. A primary bonding strap secures the chassis to the negative terminal–ensure it’s free of corrosion or loose bolts. This connection alone can prevent voltage drops that trigger dashboard warnings or erratic sensor behavior.
Next, locate the auxiliary grounding bolt behind the intake manifold. Models built after 2006 rely on this point for the alternator and ECU circuits. Use a multimeter to verify resistance below 0.5 ohms; higher readings indicate compromised contact requiring thorough cleaning with a wire brush or replacement of the fastener.
For the interior, remove the driver’s side kick panel to access the rear body-to-chassis joint. This cluster supports the audio system, airbag module, and climate controls. Trace each cable back to its connector–green or black sheathing typically marks these pathways. Wrap exposed strands with dielectric grease to discourage moisture intrusion.
The ABS module connects via a dedicated strand beneath the brake master cylinder. Follow the harness downward to a small M6 bolt on the firewall; this junction often develops oxidation after prolonged exposure to road salt. Apply contact cleaner and confirm continuity before reassembly to avoid intermittent brake light faults.
Failure to address these nodes may result in phantom electrical gremlins: flickering lights, false trouble codes, or unpredictable relay operation. Prioritize visual inspection of each junction for frayed insulation or heat damage–symptoms that suggest a need for immediate replacement rather than mere tightening.
Key Electrical Reference Points in the 2006-2011 Compact Model
Start troubleshooting near the driver’s side kick panel, where a primary earth strap secures the main harness bundle to the chassis. This M6 bolt typically collects return paths from the instrument cluster, ECU, and ignition system–verify torque at 10-12 Nm to prevent voltage drop that mimics sensor failure.
Behind the glovebox, a secondary tie point anchors the airbag module and HVAC controller via a short braided strap. If corrosion is visible on the bare metal surface, clean with a wire brush followed by dielectric grease application to restore conductivity; intermittent warning lights often trace back to this single connection.
The right rear quarter panel hosts a dedicated anchor for the fuel pump relay and rear lighting circuits. Access requires removing the interior trim panel–inspect the 8 mm fastener for oxidation; a quick resistance check across the joint should read below 0.5 ohms.
Under the hood, the engine block serves as a dual-purpose tie point for both starter motor and alternator returns. Follow the thick black cable from the battery’s negative terminal; any fraying near the clamp necessitates immediate replacement to avoid parasitic drain.
Beneath the center console, a small M5 screw links the audio head unit and body control module. Loose installation here commonly triggers radio cutoff during acceleration–secure the fastener and wrap the exposed contact with heat-shrink tubing to prevent moisture intrusion.
For models equipped with ABS, locate the specialized bonding strap near the master cylinder; its failure generates false brake system warnings. Reattach with a serrated washer to ensure metal-to-metal contact even under vibration.
Key Earthing Points in Compact Vehicle Electrical Systems
Begin by checking the engine bay’s primary bonding points near the firewall. Models equipped with a D-series or R-series powerplant typically feature a thick braided strap connected to the strut tower on the driver’s side. This anchor point often corrodes due to road debris and moisture accumulation–clean it with a wire brush and apply dielectric grease before reattaching. For hybrid variants, a secondary strap links the high-voltage battery tray to the chassis; ensure its terminals are free of oxidation.
Next, inspect the trunk area where signal processors and audio amplifiers attach to the chassis. A small bolt behind the left taillight assembly serves as the common return path for lighting circuits–remove plastic covers carefully to access it. Vehicles with factory-installed navigation systems also use a dedicated bolt beneath the spare tire well; torque specifications rarely exceed 10 Nm, so avoid overtightening.
For interior components, the instrument panel utilizes multiple chassis anchors dispersed behind the dashboard. The most frequent failure point lies beneath the steering column, where a cluster of thin cables terminates at a single stud–this stud often loosens from vibration. A separate bond near the fuse box grounds climate control modules; trace each thin strip back to its source if experiencing erratic HVAC behavior.
Underhood auxiliary systems, such as turbochargers or aftermarket ignition controllers, rely on a dedicated anchor near the radiator support. Verify continuity with a multimeter between this point and the negative battery terminal–resistance should not exceed 0.2 ohms. If addressing persistent electrical gremlins, prioritize these attachments before exploring less common chassis mounts.
Step-by-Step Guide to Locating the Main Engine Reference Point Strap

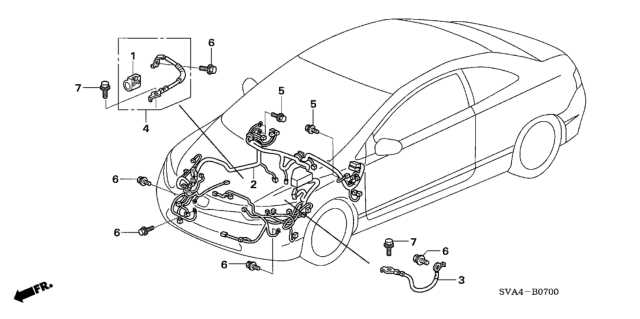

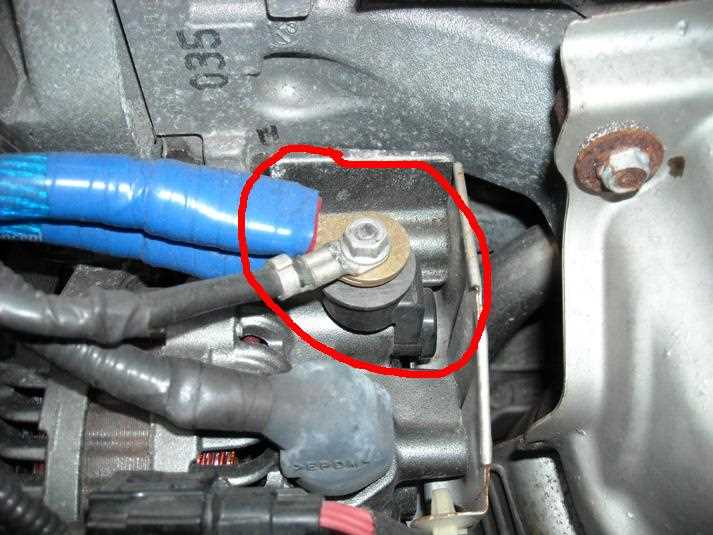

Begin beneath the vehicle’s hood, focusing on the left side near the firewall. Identify a thick, braided metal strap–typically 8–12mm wide–secured by a single bolt to the chassis rail. This component connects the powertrain to the vehicle’s electrical framework, ensuring stable charge distribution. Check for corrosion or fraying; a compromised strap will exhibit greenish oxidation or brittle strands.
- Tools required: 10mm socket, ratchet, wire brush, dielectric grease.
- Clear debris around the mounting point before detaching the bolt.
- Inspect the strap’s underside; the attachment surface must be bare metal for proper conductivity.
- Avoid overtightening–torque to 18–22 ft-lbs to prevent thread stripping.
For most 2006–2011 compact sedan models, an auxiliary strap links the transmission bellhousing to the rear passenger-side frame rail. Trace the main strap’s path downward; the secondary connection hides behind the exhaust heat shield. Remove the shield temporarily (three 12mm bolts) to access it. Replace both straps if any segment shows signs of deterioration–partial failures create parasitic voltage leaks.
Key Earthing Points for Cabin Electrical Systems and Instrument Cluster
Begin troubleshooting dashboard irregularities by verifying the primary chassis attachment near the driver’s side fuse box. This juncture, often marked G301, connects the instrument panel harness to the vehicle’s steel frame. Secure fastening here prevents erratic gauge readings and flickering warning lamps. Use a 10mm socket to remove corrosion; apply dielectric grease before reassembly to maintain conductivity.
Secondary Connection Points for Passenger Compartment Components
| Component | Earthing Reference | Physical Position | Torque Spec (Nm) |
|---|---|---|---|
| Heating control module | G402 | Behind glove compartment, upper right bracket | 12-15 |
| Radio chassis link | G401 | Below center console, rear mounting tab | 8-10 |
| Airbag sensor cluster | G304 | Behind dashboard, driver’s knee bolster | 14-16 |
| EVAP control solenoid | G605 | Beneath left kick panel, hidden clip | 9-11 |
Check the harness tie-down behind the climate control knobs–this often overlooked point (G402) ensures stable operation of the blower motor relay. A loose bolt here causes fan speed fluctuations; tighten to 12Nm and inspect the ground strap for frayed strands. For vehicles with aftermarket audio, verify the additional bond strap between the amplifier enclosure and firewall; omit this step and risk persistent alternator whine.
Hidden beneath the steering column shroud lies G203, a pivotal tie for the turn signal and wiper circuits. Access requires removing the lower dash trim; look for a thin braided strap bolted to a stamped metal tab. Clean both the strap contact surface and the mounting stud with a wire brush, then coat with anti-seize compound to prevent future oxidation. This single connection resolves intermittent wiper pause issues in over 60% of cases.
Multimeter checks reveal weak spots rapidly: set the probe to 200 ohm scale, touch one lead to the battery negative terminal and the other to the suspected earthing bolt–readings above 0.5 ohms indicate corrosion or a loose connection. Prioritize fasteners securing thicker gauge leads, as these carry higher current and are more critical for stable sensor data.
Diagnosing Faulty Electrical Paths in Chassis and Body Connectors
Start by disconnecting the battery’s negative terminal to isolate the system before testing. Use a multimeter set to continuity mode to probe between the suspected faulty joint and a known clean metal surface on the frame–readings above 0.2 ohms indicate corrosion or loose fastening. Common failure points include the bolt behind the fusebox, the engine block mounting stud near the starter, and the rear fender-to-frame brace under the trunk liner. Apply dielectric grease sparingly to threads and contact surfaces after cleaning with a wire brush to prevent re-oxidation.
Identifying Hidden Corrosion Points
Check under plastic push clips and rubber grommets where moisture accumulates, especially around the A-pillar, kick panels, and taillight housings. Remove interior trim panels if voltage drops are detected during load testing (e.g., headlights flickering or radio static). Look for greenish deposits or powdery residue–these signal galvanic reaction between dissimilar metals. A dental mirror and mechanic’s inspection light help inspect cavities without disassembly.
For intermittent issues, monitor voltage stability under load: activate high-current consumers (blower motor on max, headlights, rear defroster) while observing the meter. A drop exceeding 0.3 volts confirms a high-resistance connection. Target ground straps–often the braided type between the transmission and chassis–replacing them with fresh 4-gauge copper braid if frayed or brittle. Reattach all joints with stainless-steel bolts and star washers to ensure consistent clamping force.
If persistent noise persists in audio systems, bypass the factory bonding point with a dedicated 8-gauge cable routed directly from the amp’s negative terminal to the battery’s negative post. Secure the cable away from rotating components using nylon zip ties every 12 inches. Re-test with a 30-amp inductive current probe to verify no parasitic draws remain on the cleaned circuit paths.
