Begin with a 3-pin configuration when assembling balanced audio lines. Pin 1 must connect to the cable shield, serving as a ground reference. Pin 2 carries the positive signal (hot) while Pin 3 handles the negative (cold). This layout minimizes electromagnetic interference in professional audio setups by canceling out noise through phase inversion. For unbalanced signals, link Pin 3 to ground, though this approach sacrifices noise immunity.
Color-code conductors to prevent errors: shield (bare or green), hot (red), and cold (white or black). Use twisted pairs for the signal wires to maintain impedance consistency–typically 110 ohms for AES/EBU digital audio and 45-70 ohms for analog applications. Solder joints must be short and insulated to avoid shorts between pins, especially in high-current phantom power scenarios (48V).

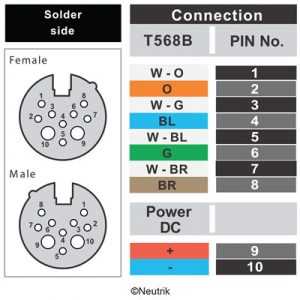

For 5-pin variants, map additional channels as follows: Pin 4 to secondary hot, Pin 5 to secondary cold. This pattern extends balanced audio to dual-channel systems without altering the core layout. Avoid mixing power and signal lines; reserve extra pins for future-proofing (e.g., data control protocols or DC power feeds). Test continuity with a multimeter before final assembly to confirm correct polarity and absence of bridging.
Termination requires strain relief–secure the cable jacket to the connector housing with a clamp or heat-shrink tubing. Poor strain relief leads to internal wire fatigue under repeated bending. For field repairs, carry a pre-trimmed replacement lead; improvised fixes often introduce signal degradation or intermittent failures. Document modifications to your setup, including cable length and impedance, to maintain system coherence.
Pinout Configuration for Professional Audio Interfaces
Start by identifying the three primary terminals on the circular plug: Pin 1 (ground/shield), Pin 2 (hot/positive), and Pin 3 (cold/negative). Always wire Pin 1 to the cable’s shield first to prevent interference, ensuring it connects directly to the chassis ground at both ends if possible. For balanced audio lines, Pin 2 carries the in-phase signal, while Pin 3 transmits the inverted phase–critical for noise cancellation in environments with electromagnetic interference.
Use 22-24 AWG stranded copper wire for signal paths, with tinned copper braid or foil shielding to cover the entire assembly. Avoid solid-core wire unless working in fixed installations, as it risks breaking under repeated flexing. For high-current applications (e.g., microphone powering), upgrade to 18 AWG for reduced resistance and voltage drop over long cable runs.
Standard Pin Assignments by Application
| Use Case | Pin 1 | Pin 2 | Pin 3 |
|---|---|---|---|
| Microphone (balanced audio) | Ground/shield | Positive (+) | Negative (−) |
| Speaker level (unbalanced) | Ground | Signal (hot) | Unused or ground |
| DMX/lighting control | Ground | Data− | Data+ |
| Phantom power (48V) | Ground | +48V | +48V |
For phantom power distribution, connect both Pin 2 and Pin 3 to the +48V supply through matched 6.81 kΩ resistors (±1% tolerance) to maintain balance. Omit the resistors for non-powered devices to avoid damage. Test continuity with a multimeter before applying voltage, ensuring no shorts exist between pins or to the shield–miswiring can destroy microphones or audio interfaces.
When soldering, apply flux to each terminal and heat the joint evenly with a 30-60W iron, using 63/37 solder (0.5-0.7mm diameter) for clean joins. Avoid excessive heat to prevent melting the plug’s insulation or deforming the pins. Secure the cable’s strain relief by crimping the outer shell over the jacket before soldering, preventing internal wires from bearing mechanical stress.
Troubleshooting Common Errors
Hum or buzz in audio lines typically stems from a floating Pin 1–ensure the shield connects at both ends, but avoid creating ground loops by breaking the connection at one end in susceptible systems. Distorted signals often result from reversed polarity (Pin 2 and Pin 3 swapped); verify with an audio signal generator or polarity tester. Intermittent connections suggest cold solder joints–reflow suspect terminals with additional solder and flux.
For extended cable runs (>50m), use active solutions like line drivers with differential outputs to preserve signal integrity. Passive solutions, such as terminating resistors (e.g., 120Ω for DMX), can stabilize reflections in digital pathways. Never exceed the maximum current rating for the plug’s contacts: 7.5A for standard variants, downgrading to 3A for miniature types.
Label both ends of every cable with unique identifiers (e.g., “AES-03”) and document the pinout configuration in a wiring schedule for future reference. Store spare connectors in ESD-safe bags and maintain a kit with shrink tubing (3:1 ratio), heat gun, and silver-bearing solder for field repairs. Shielded twisted pairs (STP) with an overall foil shield offer superior noise rejection over braided shields in environments with strong RF interference.

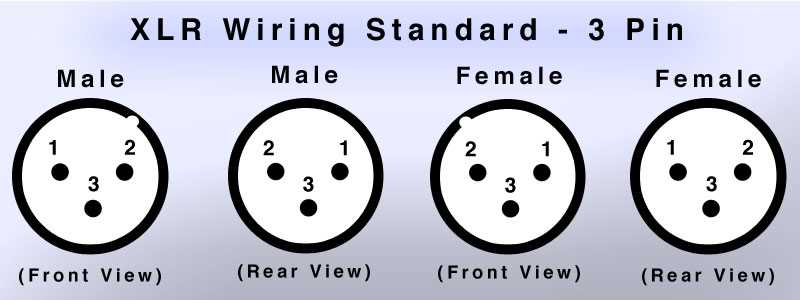

Pin Configuration and Signal Flow in Balanced Audio Interfaces
Always verify the pin assignment of your cable assembly before installation–standard configurations follow a strict pattern, but custom setups may differ. Pin 1 carries the ground reference, ensuring noise rejection through impedance matching with the shield. Pins 2 (hot) and 3 (cold) transmit the differential audio signal, inverted 180° to cancel interference. Reverse polarity on these terminals, and phase cancellation will degrade audio quality, producing weak or muffled output.
Terminate the shield at Pin 1 only on one end of the cable run–ground loops form if both connectors link the shield continuously. For phantom-powered microphones (typically +48V), current flows equally through Pins 2 and 3, returning via Pin 1. Use a multimeter to confirm balanced voltage levels across both conductors; mismatched readings indicate a faulty connection or damaged cable.
- Pin 1: Ground (chassis/braid connection, safety and shielding)
- Pin 2: Positive phase signal (non-inverted, “hot”)
- Pin 3: Negative phase signal (inverted, “cold”)
- Pin 4–7 (where present): Clock/data for AES/EBU or proprietary protocols
Signal flow in a balanced line prioritizes phase coherence–delay between Pins 2 and 3 should stay under 50 nanoseconds to maintain cancellation of common-mode noise. High-impedance devices (e.g., tube preamps) may require an impedance-balanced output, using a transformer or active circuitry to drive both signal pins equally. Avoid soldering mistakes by labeling conductors with heat-shrink tubing–red for Pin 2, black for Pin 3, and bare copper for Pin 1.
Test continuity with a tone generator set to 1 kHz–properly wired cables show near-zero resistance between Pins 2 and 3 at the receiving end when shorted at the source. Intermittent connections often stem from cold solder joints on Pin 3, so reflow solder at 350°C with rosin-core flux. For long cable runs (>50 meters), consider star quad wiring to further reduce induced noise, twisting both signal pairs tightly (6–8 turns per inch).
Replace cables exhibiting capacitance above 100 pF/m–high values attenuate high frequencies, dulling transient response in digital-to-analog paths. Terminate AES/EBU digital signals (Pins 2–3) with 110-ohm resistors across the differential pair to prevent reflections. For multi-channel setups, use color-coded connectors (e.g., Neutrik XX series) to avoid cross-patching errors during live sound reinforcement.
Step-by-Step Guide to Assembling a Professional Audio Link
Secure a high-quality 3-core shielded cable with a minimum gauge of 22 AWG for signal integrity. Strip 15mm of the outer jacket, then unbraid and twist the shielding into a tight strand–avoid loose strands to prevent short circuits. Expose 5mm of each inner conductor, tin all ends immediately with rosin-core solder to prevent oxidation.
Identify the pinout sequence before attaching: pin 1 (ground), pin 2 (hot/positive), pin 3 (cold/negative). Use heat-shrink tubing cut to 10mm lengths for insulation–slide onto each conductor before soldering. Position the ferrule shield connection first, ensuring full coverage on the chassis ground contact to minimize interference.
- Set soldering iron to 350°C for precise heat control.
- Apply flux to the contact points to improve adhesion.
- Hold the tinned conductor against the pin for 1 second before applying solder.
- Use 60/40 lead solder (0.7mm diameter) for reliable joints.
Insulate each joint individually with heat-shrink tubing, overlapping by 2mm. Test continuity with a multimeter–open circuits indicate cold joints requiring rework. Check for shorts between conductors; resistance should exceed 1MΩ. Secure the cable entry with a strain relief clamp to prevent flex fatigue.
- After soldering, tug each conductor with 2kg force to verify mechanical strength.
- Wrap the assembly in PTFE tape before final housing installation.
- Seal the rear enclosure with a gasket to prevent moisture ingress.
For balanced audio applications, verify phase alignment using an oscilloscope–input a 1kHz sine wave, measure pin 2 and 3 voltages. They should mirror with 180° phase shift at 0dB. Calibrate with a reference signal generator if discrepancies exceed ±0.5dB. Store assembled links coiled at 30cm loops to prevent memory effect distortion.
Balanced vs. Unbalanced Audio Signal Routing: Critical Distinctions
Opt for balanced signal routing in all professional audio setups where signal integrity is non-negotiable. Balanced audio interfaces employ three conductors: hot (pin 2), cold (pin 3), and ground (pin 1). The cold conductor carries an inverted duplicate of the hot signal, allowing noise picked up along the cable to cancel out at the receiving end through differential amplification. This architecture ensures immunity to electromagnetic interference (EMI) and radio frequency interference (RFI), critical for microphone preamps, long cable runs (over 6 meters), and high-resolution studio recordings. Unbalanced signals, in contrast, rely on a single conductor plus ground, making them prone to 50Hz hum, buzz from power sources, and degradation over distance–limit them to short patch cables (under 3 meters) or consumer-grade gear.
Prioritize balanced connections for microphone signals to eliminate common-mode noise. A balanced audio path achieves a typical common-mode rejection ratio (CMRR) of 60–90 dB, effectively nullifying interference induced by lighting dimmers, motor controllers, or Wi-Fi routers. Dynamic and condenser microphones, which operate at millivolt levels, are particularly vulnerable; even minor interference can overshadow low-level details. Unbalanced lines, such as those found in TS (tip-sleeve) jack cables, lack this defense mechanism, rendering them unsuitable for professional vocal or instrument recording where clarity is paramount. Always verify that audio interfaces and outboard gear support balanced I/O–many budget mixers and interfaces default to unbalanced inputs, requiring transformers or DI boxes for proper conversion.
Adhere to strict grounding practices when working with balanced systems. Improper grounding–such as connecting chassis grounds to signal grounds–can introduce ground loops, negating the benefits of balanced routing. Use cables with shielded twisted pairs (STP) and ensure the shield is terminated only at one end (preferably the source) to prevent ground loops. For unbalanced gear, avoid daisy-chaining power strips or sharing AC circuits with high-current devices like amplifiers or refrigerators, as these actions exacerbate noise issues. When interfacing balanced and unbalanced components, employ DI boxes with ground-lift switches or transformers to match impedances and isolate grounds.
Balanced configurations demand precise impedance matching. Professional microphones typically have an output impedance of 150–200 ohms, while balanced preamps expect 1–2 kOhms input impedance for optimal signal transfer and frequency response. Mismatches, such as connecting a low-impedance mic to a high-impedance (unbalanced) input, result in signal loss, high-frequency roll-off, and increased susceptibility to noise. In contrast, unbalanced consumer gear (e.g., guitars, keyboards) often operates at higher impedances (10–50 kOhms), requiring DI boxes to bridge the gap to balanced paths. Test all connections with an audio analyzer or oscilloscope to confirm proper signal levels and absence of phase issues–critical for multi-mic setups like drum overheads or stereo recording.
