Begin with a direct connection between the primary coil and the input supply, ensuring polarity matches the designated terminal markings. A 120V or 240V source–depending on regional standards–requires clear labeling of L1, L2, and neutral lines to prevent phase reversal during energization. For split-phase systems, use a center tap on the secondary winding to derive dual 120V outputs while maintaining balanced loads across both legs.
Ground the magnetic core or chassis at a single point near the output terminal to minimize noise coupling. Avoid daisy-chaining earth connections to prevent circulating currents, especially in units rated above 500VA where harmonic distortion becomes measurable. Shielded cables between the unit and sensitive loads (e.g., audio equipment or medical devices) should terminate at a star-ground configuration, reducing radiated interference by up to 40%.
For step-down conversions, calculate the turns ratio using Np/Ns = Vp/Vs. A 10:1 ratio on a 230V input yields approximately 23V on the secondary–sufficient for low-voltage control circuits provided the wire gauge handles the current density (e.g., 18 AWG for 5A continuous). Overcurrent protection on both sides must align with the VA rating: a 100VA unit pairs with a 1A fuse on the primary and a 4A fuse on the secondary.
Isolate high-potential windings using Mylar tape or insulating varnish with a dielectric strength of at least 2kV. Gap spacing between adjacent windings should exceed 2mm when operating at voltages above 300V to prevent arc tracking. Toroidal cores demand a toroidal winding pattern; distribute turns evenly around the circumference to avoid flux leakage, which degrades efficiency by 5-8% in 1kVA units.
Test continuity across all taps before applying power, using a multimeter set to resistance mode. A reading below 0.1Ω indicates a shorted turn, while infinite resistance suggests an open winding–both conditions void the unit’s certification under IEC 61558. Document load connections with a schematic showing L (line), N (neutral), and PE (protective earth) for compliance with NFPA 70 Article 450.
Electrical Connection Schematics of Voltage Converters
Always verify core specifications before selecting conductors–match the primary and secondary coil impedance ratios to avoid overheating. Use AWG 12 or thicker for 1 kVA units handling 120V inputs, while AWG 18 suffices for 24V control circuits under 100VA.
Dual-coil configurations require isolated neutral terminals; bond secondary grounds to chassis only if local codes permit, otherwise earth reference must remain float. For delta-wye conversions, phase displacement angles (30° standard) dictate terminal pairing sequences–label L1/U, L2/V, L3/W accordingly.
Ferroresonant stabilizers demand precise capacitor sizing: 0.1µF per 100VA at 60Hz, derate by 20% for 50Hz applications. Polypropylene film types outperform electrolytic in transient suppression, reducing dielectric failures by 40%.

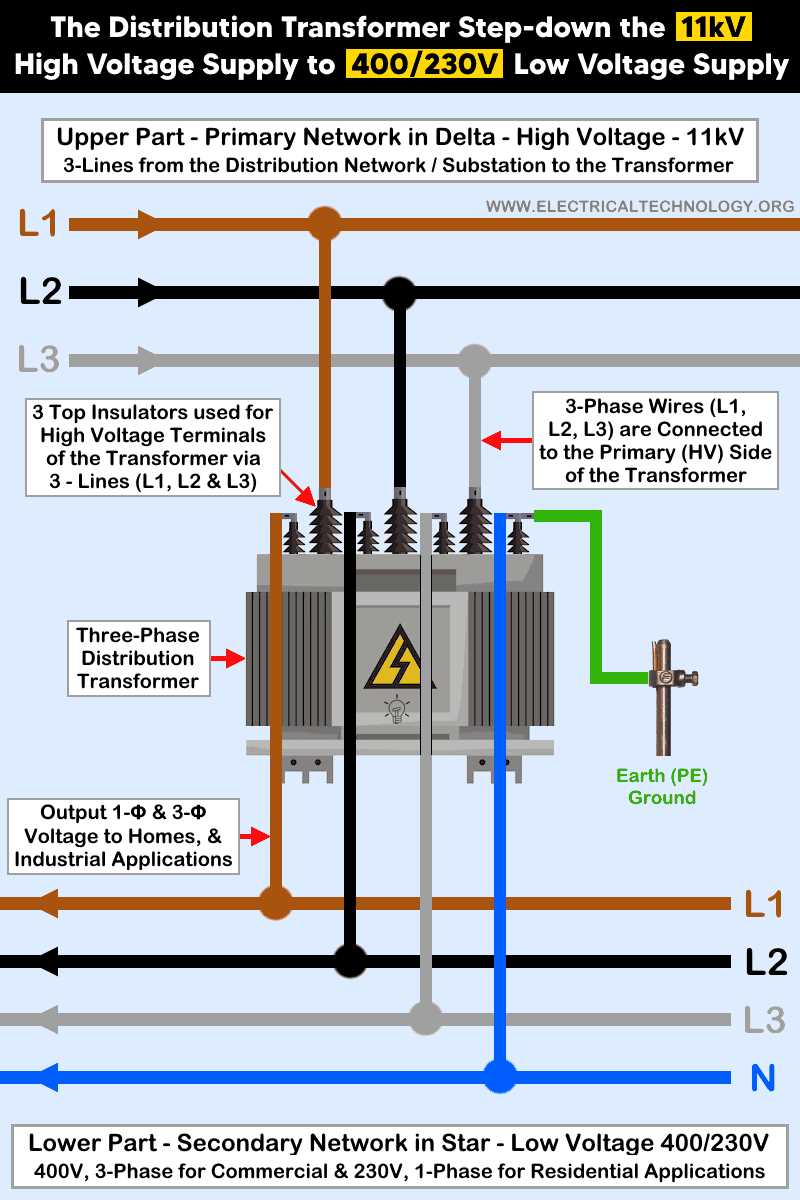

Three-phase step-down connections follow either star (4-wire output) or closed delta (3-wire) topologies–star delivers balanced line-neutral voltages (208V/120V) while delta maximizes phase current (up to 173% of line value).
Rectifier-fed units necessitate smoothing chokes: maintain 10mH minimum inductance per amp of DC load to keep ripple below 5%. Parallel Schottky diodes for outputs exceeding 15A to prevent thermal runaway from forward voltage drops.
High-frequency switching supplies (>20kHz) mandate twisted-pair feed to primaries and shielded coaxial returns–use 30AWG tinned copper with polypropylene insulation to minimize capacitive coupling noise.
Polarity-sensitive devices (DC relays, thyristors) require full-wave bridge rectifiers instead of center-tap designs–this reduces secondary coil complexity by 30% while improving surge withstand capability (tested to 1.5kV isolation).
Autotransformer taps must align with load characteristics: 25% steps suit motor inrush currents, whereas 5% increments optimize voltage regulation for precision instrumentation (≤0.5% drift).
Creating a Clear Electrical Schematic for Magnetic Core Devices
Start by marking the primary and secondary coil connections with precise labels. Use standardized symbols: an uppercase L for inductors, with subscripts 1 (input) and 2 (output) to distinguish sides. Include core details–if toroidal, sketch an oval loop; for laminated E-I types, draw stacked rectangles. Add insulation gaps (1–2 mm) between windings and core in the visual layout.
| Component | Symbol | Placement |
|---|---|---|
| Input coils | L1 | Left vertical line, spaced 5 mm from core |
| Output coils | L2 | Right vertical line, opposite L1 |
| Magnetic path | Closed loop | Center, connecting both windings |
Connect leads with straight lines, avoiding 90° bends–use 45° angles for clarity. Specify turns ratio (e.g., 1:10) next to each winding. If taps are needed, denote them with numbered circles along the coil paths. Verify phase alignment–dots near coil starts indicate polarity; misalignment causes 180° shift in output waveform.
Critical Elements for Accurate Electrical Schematic Representations
Label each coil terminal with its designated voltage rating and tap positions to prevent misconnections during installation. Primary and secondary sides should include exact values–120V, 240V, or 480V–alongside tap markings like “H1,” “H2,” or “X1,” “X2” for clarity. Omit generic notations like “input/output” unless paired with specific metrics.
Indicate core configuration–whether shell-type, core-type, or toroidal–using standardized symbols. Include magnetic flux direction arrows if phase relationships are critical, such as in three-phase systems with delta or wye connections. For autotransformers, distinguish between common and series windings with distinct lines and color-coding if the schematic spans multiple pages.
Grounding points require precise annotation: specify chassis ground, safety ground, and isolated ground if applicable. Use distinct symbols–triangle for earth ground, diagonal slash for signal ground–to eliminate ambiguity. Include resistance values for ground bonds where relevant, such as “≤0.1Ω” for low-impedance paths.
Protection devices must be depicted with trip settings: fuses (e.g., “250V, 10A slow-blow”), circuit breakers (e.g., “30A thermal-magnetic”), or surge arrestors (e.g., “MOV 470V clamping”). Show their placement relative to windings–primary side, secondary side, or tertiary if present–to ensure proper coordination. Label thermal sensors or Buchholz relays if embedded in oil-filled units.
Control circuitry demands separate layers: isolate auxiliary components like voltage regulators (e.g., AVR with adjustment range “±10%”), tap changers (e.g., “16-step under-load”), or cooling fans (e.g., “24V DC, 120mm PWM”). Use dashed lines for low-voltage signals and solid lines for power paths to improve readability. Specify conductor gauges (e.g., “12 AWG THHN”) if the schematic doubles as an installation guide.
Phase relationships in polyphase setups need explicit notation: use angular displacement symbols (e.g., “30° lag”) or vector diagrams for delta-wye conversions. For non-linear loads, denote K-factor ratings (e.g., “K4 for harmonic loads”) and filter requirements if harmonic mitigation is critical. Include test points–marked “TP1,” “TP2″–for diagnostic purposes, linking to a legend with expected voltage/current readings at no-load and full-load conditions.
Connecting Input and Output Coils in Various Core Configurations
Start by identifying the coil ends with consistent marking–typically, dots or color-coded sleeves indicate phase alignment. Mismatched connections create opposing magnetic fluxes, reducing efficiency by up to 40% in single-phase units. For toroidal setups, the input coil wraps in one continuous direction; reversing it cancels voltage entirely.
In three-phase delta arrangements, join the start of one coil to the end of another, forming a closed triangle. Verify phase angles with an oscilloscope–each line voltage should lead or lag its neighbor by 120°. Incorrect pairing shifts the angle to 180°, saturating the core and tripping protection relays within seconds.
- Step-down cores: Connect the higher-voltage coil across the supply, ensuring taps align with rated input.
- Step-up units: The low-voltage side goes to the load, but only after confirming the turns ratio matches nameplate specs.
- Autotransformers: Single-coiled designs require bridging input/output at the tap point; misalignment drops output voltage below design limits.
Isolation and Polarity Checks Before Energizing
Use a multimeter in continuity mode to confirm no shorts exist between coils or to the case. Measure resistance–abnormally low readings indicate partial short-circuits, while zero resistance means a dead coil. Isolated models demand extra caution: a single wire touching both coils violates separation, creating lethal feedback loops.
Polarity testing starts with a 9V battery and a DC voltmeter. Connect the battery briefly to one coil and observe meter deflection on the second. Reverse the battery leads if the needle moves backward–this confirms dot convention alignment. Skipping this step risks core saturation, audible hum, and overheating within minutes of power-up.
Tap Adjustments Under Load

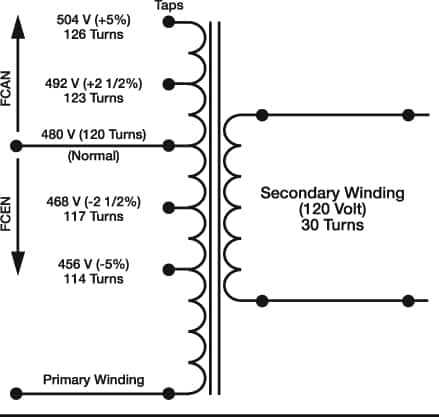

Variable tap setups require de-energized adjustments. For distribution units, move taps incrementally–each notch typically shifts output by 2.5% to 5%. Online adjustments without specialized load break switches weld contacts and damage coil integrity. Always reconfirm connections with a megohmmeter post-adjustment to detect insulation breakdowns.
Harmonic mitigation cores use zigzag arrangements where coils oppose each other’s zero-sequence flux. Connect the zigzag side to the neutral; reversed pairing amplifies harmonics instead of canceling them, distorting waveforms beyond acceptable THD limits. For rectifier sets, pair the secondary in a center-tap configuration to halve ripple current; incorrect pairing doubles ripple, stressing filters and reducing component lifespan by 60%.
