Use a 7-way round connector as the baseline for most commercial setups–pinouts must follow SAE J560 standards to ensure cross-compatibility. Ground (pin E) connects directly to the frame using a minimum 10 AWG solid copper wire with crimp terminals secured by a torque of 12–15 in-lbs. Avoid daisy-chaining grounds; each circuit requires an independent return to the battery’s negative terminal.
Running lights demand 16 AWG twisted pair with shrink tubing over crimped splices–current draw rarely exceeds 2.5A per side, but voltage drop must stay under 0.5V over 20 feet. For brake actuation, install a dedicated 30A circuit breaker within 6 inches of the battery positive, then route 12 AWG wire to a proportional controller set at 5–7 ohms for smooth application without lockup. Surge protection diodes placed across all relays prevent backfeed–use 1N4007 for signals under 10A.
Test continuity with a 12V test light, not a multimeter–probes miss intermittent breaks. Fuse sizes: 5A for markers, 10A for turns, 20A for stop circuits. Conduit must be split loom or braided sleeving; zip ties every 12 inches prevent chafing against sharp edges. Always terminate wires at junction blocks, never solder–cold joints corrode under vibration.
For tandem-axle rigs, parallel brake lines with equal resistance across actuators–mismatch causes uneven wear. Voltage dividers work for LED clusters that require less than 9V; run a 18 AWG sense wire back to the controller to compensate for drop. Remember: regulators fail first in heat–mount controllers with heatsinks or spaced 1 inch from enclosed surfaces.
Electrical Connection Guide for Towing Vehicle Signal Systems
Use a 7-way round connector as the industry standard for heavy-duty applications, assigning each pin a specific function to prevent cross-talk: pin 1 for left turn/stop, pin 2 for auxiliary 12V power, pin 3 for right turn/stop, pin 4 for brakes, pin 5 for reverse, pin 6 for ground, and pin 7 for tail/marker. Match the tow vehicle’s harness gauge to the load–12 AWG for lighting circuits (max 20A), 10 AWG for brake circuits (max 30A)–and avoid splicing; instead, use crimp connectors with heat shrink tubing to seal against moisture. Install a dedicated fuse (20A for lighting, 30A for brakes) within 7 inches of the battery to protect the circuit from shorts, and route cables along the frame’s inner rail, securing with nylon clamps every 18 inches to prevent chafing.
| Connector Pin | Function | Wire Gauge (AWG) | Fuse Rating (A) |
|---|---|---|---|
| 1 | Left turn/stop | 12 | 20 |
| 2 | Auxiliary 12V | 10 | 30 |
| 3 | Right turn/stop | 12 | 20 |
| 4 | Electric brakes | 10 | 30 |
| 5 | Reverse lights | 12 | 20 |
| 6 | Ground | 10 (add 12 for redundancy) | N/A |
| 7 | Tail/marker | 12 | 20 |

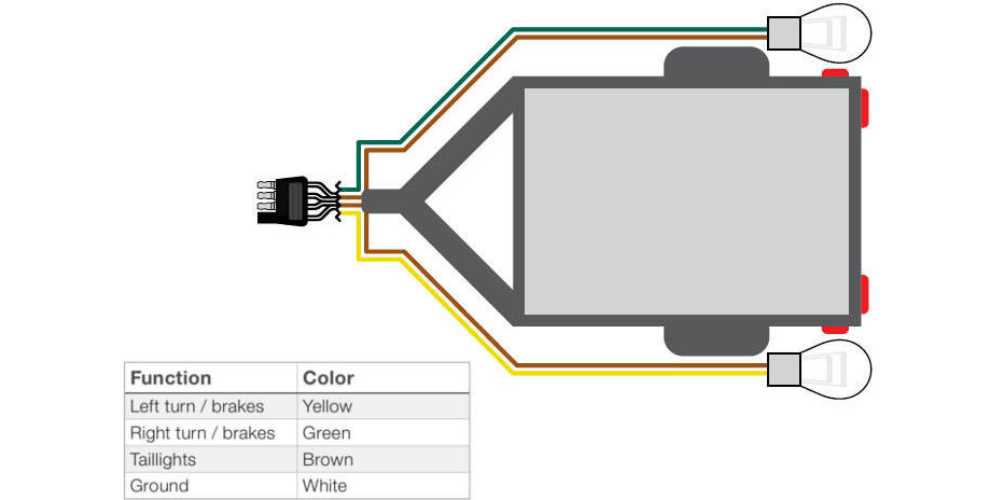

How to Match Electrical Cable Colors in Tow Vehicle Connection Kits
Begin by locating the manufacturer’s specification sheet for both the towing vehicle and the auxiliary unit. Most automakers adhere to standard color coding, but variations exist–especially in older models or custom builds. Verify the pinout layout in the owner’s manual; common configurations include:
- Ground (White): Always returns to the vehicle’s chassis.
- Brake controller (Blue): Activates the auxiliary unit’s stopping mechanism.
- Running lamps (Brown): Illuminates rear clearance and side markers.
- Left-turn/brake (Yellow): Signals left directional and braking.
- Right-turn/brake (Green): Handles right directional and braking functions.
- 12V auxiliary (Red or Black): Powers independent circuits, such as interior lamps.
Use a multimeter to test continuity if labels are missing or faded. Set the device to DC voltage (20V range) and probe each connector while activating the corresponding function–turn signals, brake pedal, or tail lamps. Record voltage readings; consistent 12V output confirms a live circuit. For vehicles with PWM-controlled systems, check for modulated voltage patterns that align with lamp flashing frequency. Disconnect the battery before probing to avoid shorts in sensitive electronic modules.
Label each cable immediately after identification. Apply heat-shrink tubing or color-coded tape matching the standard scheme to prevent misalignment during reassembly. If splicing into an existing harness, use crimp connectors rated for automotive applications; soldered joints risk corrosion in wet environments. For aftermarket components, reference ISO 11748-1:2001 or SAE J2862 for European and North American compliance standards, respectively.
Verify all connections with a functional test before finalizing. Attach the auxiliary unit and cycle through all lighting modes–left/right signals, brake engagement, and running lamps. Observe for flickering or dim outputs, which indicate loose grounds or insufficient wire gauge. Replace damaged cables with tinned copper conductors (minimum 16 AWG for lighting, 12 AWG for braking circuits) to handle current loads without overheating.

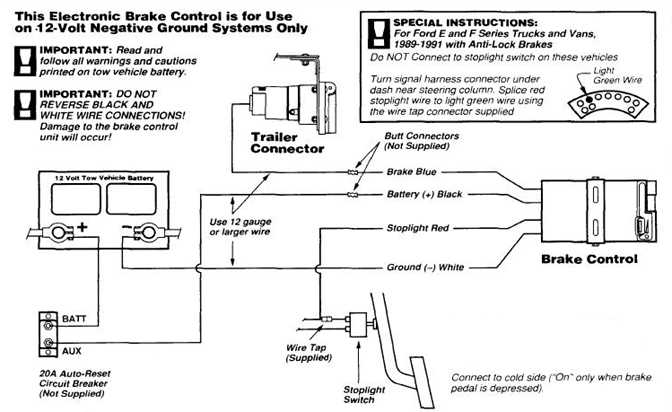

Step-by-Step Guide to Connecting Electric Brake Activation Controls
Locate the vehicle’s brake control harness under the dashboard near the steering column–most trucks and SUVs have a pre-installed plug labeled Brake Controller or Tow Package. If missing, identify the brake signal wire (typically red or white with black stripe) from the brake pedal switch.
Mount the activation unit within easy reach, away from moving pedals or sharp edges. Secure it with screws or adhesive, ensuring the display faces the driver without obstructing visibility. Verify compatibility with the vehicle’s voltage system (12V standard).
Attach the controller’s power lead (black) directly to the battery’s positive terminal using a 40-amp fuse no more than 7 inches from the connection. Ground the unit (white) to a clean, unpainted metal surface on the chassis with a #10 ring terminal.
Route the brake output wire (blue) to the rear of the vehicle through the existing wiring loom, avoiding heat sources like exhaust pipes. Use grommets if passing through sheet metal to prevent chafing. Connect it to the seven-way plug’s center pin or the auxiliary brake circuit.
Test the connection before finalizing. Activate the system and press the brake pedal–adjust gain settings until the trailer’s brakes engage smoothly without locking. Use a multimeter to confirm 12V output at the seven-way plug during braking.
For inertia-based systems, calibrate by driving at 25 mph on a dry, level surface. Gradually press the brake pedal until the trailer brakes activate, then fine-tune the sensitivity to match the load weight. Avoid adjustments on gravel or slopes.
Tape all splices with self-fusing silicone tape to prevent corrosion. Secure loose wires with zip ties every 12 inches, keeping them away from moving parts. Label connections with a permanent marker for future troubleshooting.
For hydraulic or surge-braked trailers, install a breakaway switch in series with the controller’s output. Connect the switch’s battery (sealed lead-acid, 7Ah minimum) in-line, ensuring it meets DOT regulations for emergency braking capability.
Critical Errors in Connecting Vehicle Signal Circuits – Solutions
Skipping voltage verification before installation guarantees corrosion or burnout. Use a multimeter to confirm the tow vehicle’s socket outputs 12-14V; anything below 11V indicates a weak ground or poor connection. Match the amperage draw of LED clusters (typically 2-3A per bulb) with the circuit breaker rating–overloading causes intermittent flickering or complete failure. Replace frayed cables immediately; even minor exposure to moisture accelerates oxidation.
Ground loops create phantom shorts where signals bleed between circuits. Isolate each ground point by attaching them directly to the frame with stainless steel bolts, never to painted surfaces. Ignoring color codes (e.g., white for ground, green for right turn) leads to reversed signals; document each connection with heat-shrink labels before securing terminals to prevent miswiring. Test all functions–brake, turn, and running–before sealing connections.
Assuming all connectors are weatherproof invites water intrusion. Apply dielectric grease to every plug before mating; omit this step and condensation will corrode pins within weeks. Over-tightening wire nuts strips threads; twist conductors firmly then secure with a crimp sleeve for strain relief. Forgetting to fuse each circuit separately risks a single short taking down the entire system–install a 5A fuse for each function at the power source.
Neglecting load balancing causes premature wear on the tow vehicle’s alternator. Calculate total current draw (running + brake + turn signals) and ensure the wiring harness can handle 120% of this value. Cheap Chinese clone harnesses often use undersized gauge wire (22AWG instead of 16AWG); measure cross-section before purchase. Replace corroded sockets with OEM-spec replacements–they’re engineered to withstand vibration and road grime.
DIY soldering without flux leaves cold joints that fail under vibration. Use rosin-core solder and a temperature-controlled iron set to 600°F; excess heat melts insulation. Store spare bulbs and connectors in a moisture-proof case–bulk-bin purchases from big-box stores often lack anti-corrosion coatings. Conduct a final inspection with a scan tool to verify no OBD-II faults are triggered by incorrect voltage drop across the circuits.
Essential Gear and Supplies for Secure Auxiliary Vehicle Connection Setup
Begin with a multimeter rated for at least 20V DC to verify voltage at each connection point before attaching any components. Digital models with auto-ranging simplify troubleshooting.
Select marine-grade copper conductors with a minimum 16 AWG cross-section for tail and marker circuits, while 12 AWG or thicker should handle electric-stop or hydraulic-over-electric auxiliary actuation lines. Avoid aluminum due to corrosion risks.
Heat-shrink tubing in assorted diameters–3/16″, 1/4″, and 3/8″–with adhesive lining ensures moisture-proof seals over splices. Use a heat gun set to 300°F for even shrinkage without scorching insulation.
Self-adhesive dielectric grease applied to every terminal prevents oxidation and maintains conductivity in environments exceeding 95% humidity or under -20°C. Avoid petroleum-based alternatives that degrade PVC jacketing.
An insulated crimping tool with ratcheting jaws ensures consistent compression for ring, spade, and butt connectors. Verify compatibility with the wire gauge to prevent crushed strands or loose fits.
Modular connector kits featuring weather-resistant junction blocks simplify future maintenance. Look for units with integrated fuse holders rated for 10A continuous loads to isolate individual signaling paths.
Electrical tape alone should never rely on for permanent seals; instead, layer it over heat-shrink as redundant protection against chafing. Choose vinyl tape with a minimum 7-mil thickness and UV resistance.
Grounding straps made from tinned copper braid at least 0.5″ wide prevent galvanic corrosion when attaching to dissimilar metals like steel chassis rails. Secure with stainless-steel hardware to avoid rust streaks.
