Connecting a vehicle’s lighting system to an attached load carrier requires precise adherence to a standard 7-way plug configuration. The first step involves identifying each circuit’s function: ground (white), tail lamps (brown), left turn/brake (yellow), right turn/brake (green), electric brakes (blue), reverse lights (purple), and auxiliary power (black). Skipping or misrouting a single wire risks malfunction or permanent damage.
Use stranded copper wire (minimum 16 AWG for lighting, 12 AWG for brakes) to handle vibrations and load demands. Insulate all junctions with heat-shrink tubing–electrical tape degrades over time. Verify voltage at each terminal (12V DC expected) before finalizing connections. Double-check polarity: reversing brake or turn circuits can fry bulbs or controllers.

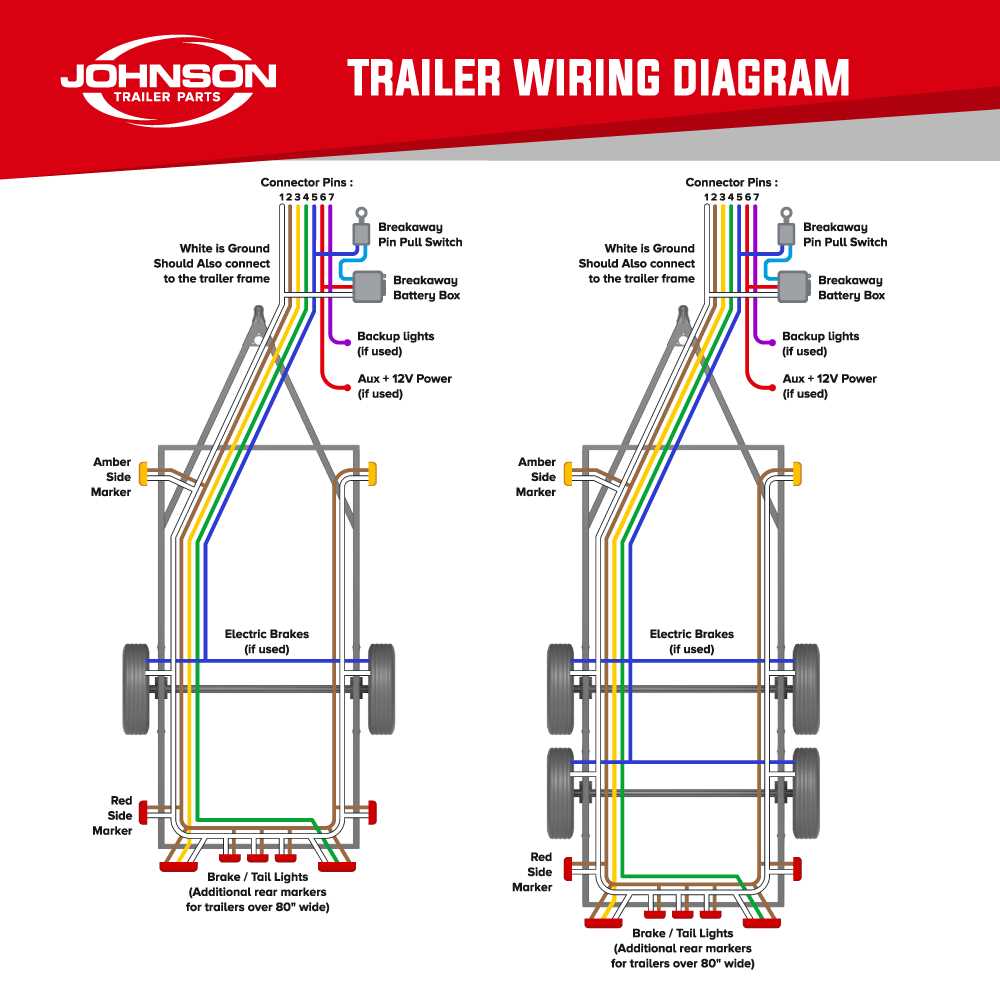

For trailers exceeding 3,000 lbs, integrate a breakaway switch wired to the blue circuit. This engages brakes if the coupling fails. Test brake operation on a level surface before towing; uneven application suggests faulty wiring or controller settings. Replace corroded connectors immediately–resistance leads to voltage drop and dim lights.
Label every lead during assembly to simplify future troubleshooting. A multimeter set to continuity mode confirms unbroken circuits. Store spare fuses and 7-way adapters; mismatched plug types (SAE vs. RV) require conversion cables. Avoid common mistakes: crossing left/right signals, omitting ground, or using undersized wire for auxiliary power.
How to Connect a 7-Way Vehicle Plug Correctly

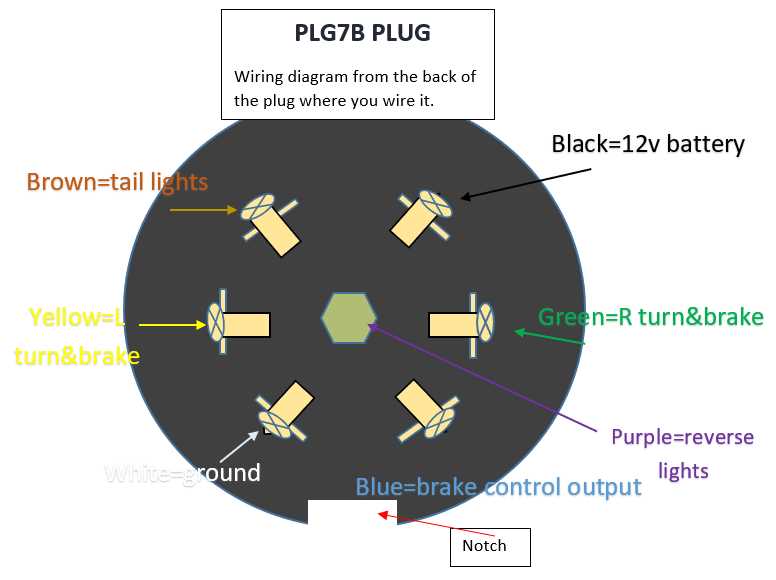

Start by identifying the matching connector terminals on both the tow vehicle and the auxiliary unit. The color coding follows an industry standard: yellow for left turn/brake, green for right turn/brake, brown for running lights, white for ground, blue for electric brakes or auxiliary, black for 12V power, and red or purple for backup lights. Verify each wire’s function with a multimeter before making any connections to prevent shorts or misfires.
Key Steps for Secure Installation
- Strip 1/2 inch of insulation from each wire without damaging the copper strands.
- Crimp connectors using a ratcheting crimper rated for 16-14 AWG wire to ensure a tight, corrosion-resistant joint.
- Apply dielectric grease inside each terminal before inserting the wire to block moisture ingress.
- Test continuity with a circuit tester after securing all terminals to confirm proper signal flow.

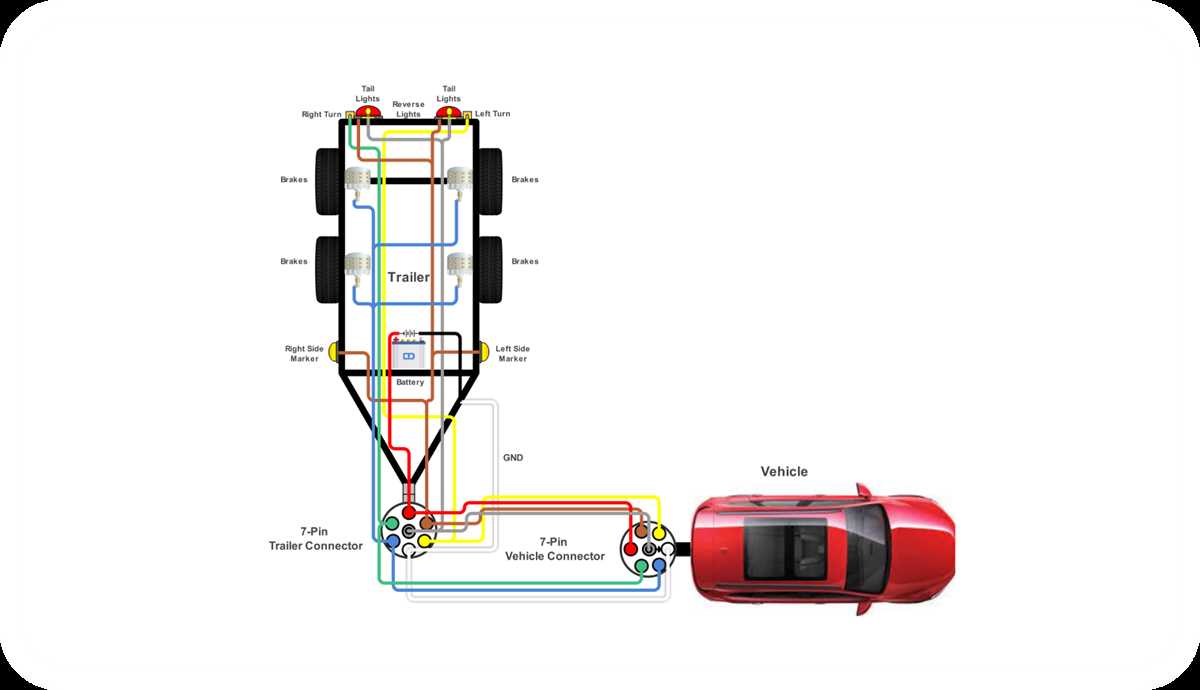

Position the main harness along the chassis hidden from moving parts to avoid chafing. Secure it every 12 inches with nylon zip ties or conduit clamps. Route the brake controller lead (blue) directly to the brake actuator module, bypassing any intermediate connectors that could introduce resistance. A voltage drop exceeding 0.5V at 12A under load indicates a poor connection–retrace and re-crimp suspect joints.
- Attach the white ground wire to the tow vehicle’s negative battery terminal or a clean, unpainted metal surface.
- Connect the black 12V wire to a fused ignition-switched circuit to prevent battery drain.
- Route auxiliary circuits (red/purple) through a relay if the vehicle lacks dedicated backup light outputs.
- Seal exposed splices with heat-shrink tubing containing adhesive lining; avoid electrical tape for outdoor use.

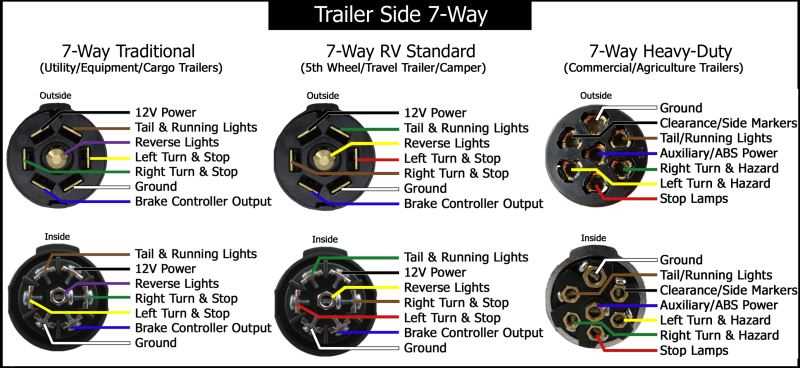

Standard 7-Way Vehicle Plug Configuration and Conductor Color Standards
Begin by verifying the plug terminals match the SAE J560 standard to prevent mismatches during installation. The central post (terminal 1) carries the 12V auxiliary circuit, essential for charging camper batteries or powering accessories. Always test this contact first with a multimeter–voltages below 12.5V indicate a weak alternator output or corroded connections requiring immediate cleaning with a wire brush and dielectric grease application.
The brake control circuit (terminal 2) uses a blue conductor and must connect directly to the vehicle’s brake controller without splicing. Factory wire gauges for this path are typically 12 AWG; substituting with smaller 14 AWG wire risks voltage drop during heavy braking, leading to delayed trailer response. Confirm continuity from the controller to the plug with a load test: apply trailer brakes, measure voltage at the plug–expect 12V under maximum brake pressure.
Ground reliability dictates system performance. The white conductor terminates at the plug’s terminal 3 but must bond to a bare metal chassis point near the tow package, not an engine bolt or painted surface. Resistance exceeding 0.5 ohms between ground and battery negative necessitates tracing the return path–common failure points include rusted trailer frames or loose ring terminals beneath the vehicle.
| Terminal | Function | Color Code | Voltage (Key On) | Max Current (A) |
|---|---|---|---|---|
| 1 | Auxiliary Power | Black | 12.6–14.4 | 30 |
| 2 | Electric Brakes | Blue | 12.0–12.8 (brake active) | 20 |
| 3 | Ground | White | 0.0 | N/A |
| 4 | Left Turn/Stop | Yellow | Pulsing 12V (flasher) | 7.5 |
| 5 | Right Turn/Stop | Green | Pulsing 12V (flasher) | 7.5 |
| 6 | Tail/Marker Lights | Brown | 12V (steady) | 5 |
| 7 | Reverse Lamps | Purple | 12V (gear engaged) | 5 |
Terminals 4 and 5 employ dual-function yellow/green conductors handling both turn indicators and stop lamps. These paths share a common node at the brake pedal switch–verify isolation with a test light: depress the pedal while activating turn signals; light should illuminate only for the selected side. Corrosion on these contacts often manifests as erratic blinker behavior–apply contact cleaner and a microfiber cloth, avoiding sandpaper which degrades gold plating on terminals.
Reverse circuit (terminal 7, purple conductor) remains energized only in reverse gear–integrate a separate fuse rated at 5A to prevent back-feeding into the transmission control module. Tail/running light circuit (terminal 6, brown) distributes power to all trailer clearance lamps; bundle this conductor away from unshielded brake lines to avoid abrasion-induced shorts. Replace any conductor exhibiting nicks or exposure–use heat-shrink tubing instead of electrical tape to ensure long-term insulation integrity.
Building a 7-Connector Vehicle Socket from Ground Up
Gather a 7-way blade socket, multimeter, wire strippers, crimping tool, heat shrink tubing, and color-coded 12-gauge cables matching SAE J2863 standards: brown (running lights), yellow (left turn/brake), green (right turn/brake), white (ground), blue (electric brakes), black (12V auxiliary), red (reverse lights or auxiliary). Verify each wire’s function before cutting to length–measure from the vehicle’s harness junction to the socket, adding 6–8 inches for slack and stress relief. Strip 5/16 inch of insulation from each cable end, twist the strands tightly, and crimp a #10 ring terminal for ground (white) or a 1/4-inch female spade for all others. Slide heat shrink tubing over each connection before crimping, then apply heat to seal.
Mount the socket on a rigid bracket–stainless steel or powder-coated–positioned 18–24 inches above the hitch ball to prevent moisture ingress. Connect the white ground wire directly to the tow vehicle’s chassis using a self-tapping bolt; ensure paint is scraped away for conductivity. Route remaining cables through a grommet-protected hole in the frame, bundling them with split loom tubing every 12 inches to prevent chafing. Test continuity with the multimeter set to ohms–probe each socket blade while activating corresponding functions (e.g., left turn signal, brake controller). Use dielectric grease on each blade before securing the socket cover to inhibit corrosion.
Solving Frequent Electrical Problems in Tow Connections
Check the ground connection first–corrosion or a loose bolt at terminal #7 generates intermittent failures. Use a multimeter to verify continuity between the chassis and this terminal; if resistance exceeds 0.5 ohms, sand the metal surfaces and re-secure with a star washer. Factory primers can act as insulators; a direct metal-to-metal contact eliminates 90% of random flickering lights.
Inspect fuse ratings inside the vehicle’s junction box–most circuits demand 15–20A values. Many truck makers default to 10A fuses, which trip under load spikes. Replace with a slow-blow fuse matching the tow manual specifications to prevent premature cutoff. Keep a spare in the glove box for quick swaps during travel.
Test the turn signal cancellation relay if the towed unit’s left/right indicators stay illuminated after disengaging the stalk. Locate the relay under the dash, swap its position with a known-good relay (typically identical part numbers), restart the engine, and verify off-state indicators. Silent relays are the leading cause of rapid blinker rates.
Clean the plug sockets every 500 miles–the 7-point connector accumulates road grime blocking the middle pins, specifically the brake and reverse circuits. Use electrical contact cleaner on a microfiber swab; avoid compressed air, which pushes debris deeper. Re-test with a trailer simulator before real-world engagement to confirm restored voltage.
Measure voltage drop across each circuit–battery voltage at the connector faceplate should read ≥11.8V during active load. Readings below 10V indicate undersized extension cables or corroded junctions. Upgrade to 12-gauge stranded copper conductors for extensions exceeding 15 ft to maintain signal integrity.
Address dim lighting by verifying the bulb type–LED assemblies need ≤300mA per lamp; halogen fixtures draw 2–3A. Mismatched draws overload the flasher module, causing rapid or erratic flashing. Replace all bulbs simultaneously with OEM-matched values to prevent cascading failures.
