Begin by identifying all terminals on the harness assembly. Most modern circuits use a four-pin configuration for standard brake, reverse, and running lamps. Pin A typically carries 12V power for constant illumination, while Pin B is reserved for brake signals. Verify these connections against the vehicle’s service manual–faulty polarity is the leading cause of premature bulb failure.
Use heat-shrink tubing for all soldered joints to prevent corrosion. Exposed copper oxidizes within 18 months, creating intermittent faults that evade basic diagnostic scans. Secure each joint with 36-gauge marine-grade wire if operating in coastal climates; salt spray accelerates conductor degradation by 400%.
Install an inline fuse no larger than 20 amps for each branch circuit. OEM circuits often omit this safety measure, relying solely on the vehicle’s fuse panel. Without localized protection, a single shorted LED module can drain the battery overnight or melt insulation, leaving telltale charred polypropylene scent. Test continuity with a multimeter before reconnecting the battery.
Route all cables through existing firewall grommets rather than drilling new holes. Misplaced drill bits frequently sever factory wire looms, leading to erratic ABS or traction control malfunctions. Use ty-wrap mounts spaced every 8 inches to prevent chafing against suspension components–vibration-induced wear accounts for 22% of post-modification failures.
Color-code each wire using mil-spec vinyl tape. Standard conventions place brown for ground, red for power, and yellow for reverse signals. Deviations from OEM schemes frequently confuse aftermarket trailers, causing unintended lockouts of trailer brakes during panic stops. Confirm functionality by activating each mode separately with an assistant observing lamp response.
Electrical Layout for Rear Vehicle Lamps
Start by identifying the power source–typically a 12V battery or fuse box–with a dedicated circuit for brake and signal functions. Use a multimeter to verify voltage at the connection points before proceeding; readings should stabilize at 12.6V for a fully charged system. If voltage drops below 12V, inspect the ground connection or corroded terminals.

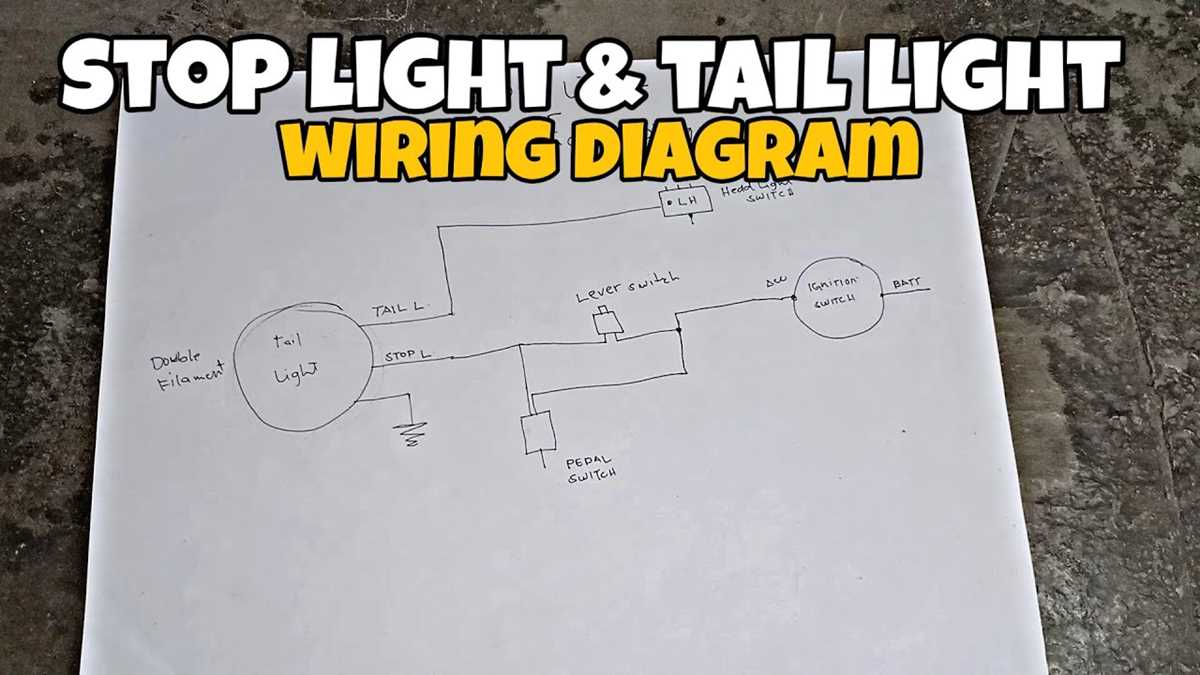

Connect the positive lead from the fuse box to a dual-filament bulb via color-coded cables: red for brake/running lamps, amber or yellow for turn signals. Ensure the gauge matches the load–18 AWG for minimal current draw, 14 AWG for heavier applications like additional LED clusters. Incorrect sizing risks overheating or fuse overload.
Grounding Techniques
Secure a clean, unpainted metal surface for grounding–preferably the chassis near the lamp housing. Remove rust or paint at the contact point and apply dielectric grease to prevent oxidation. A single ground wire can serve multiple lamps if each connection is individually crimped and soldered; avoid daisy-chaining to prevent voltage drop.
- Use heat-shrink tubing to insulate splices–electrical tape degrades over time.
- Test polarity before finalizing connections: reverse polarity may damage LEDs.
- For aftermarket upgrades, integrate a relay if adding high-output lamps (e.g., 5W LEDs) to avoid overloading factory circuits.
Route cables through existing harness channels or protective loom to prevent abrasion from sharp edges. Avoid passing wires near hot components (exhaust, engine block) or moving parts (suspension, steering columns). Secure loose segments with zip ties every 15–20 cm, especially in high-vibration areas like the rear bumper.
Troubleshooting Common Issues
Flickering lamps often indicate a faulty ground or incompatible voltage regulator. Replace factory flasher units with solid-state equivalents if retrofitting LEDs–mechanical flashers cause rapid blinking or hyperflash. For trailer plug compatibility, verify pinouts: standard 4-pin connectors use the following configuration:
- Ground (white)
- Brake/running lamp (brown)
- Left turn/signal (yellow)
- Right turn/signal (green)
When integrating a trailer socket, splice into the vehicle’s rear lamp circuit using T-taps or Scotchlock connectors–avoid soldering directly to factory wires, as this may void warranties. For European or Japanese models, note that some systems combine brake and turn signals (common in two-wire bulbs); additional diodes or resistors may be required to separate functions.
For auxiliary lamps (e.g., third brake light), run a fused lead directly from the brake switch terminal. Use a 7.5A fuse for incandescent bulbs, 5A for LEDs. Label all connections with a permanent marker or heat-shrink labels–ambiguous setups lead to errors during future maintenance. Document the layout with a simple sketch for reference.
Tracing Rear Illumination Circuit Paths
Begin by locating the rear assembly’s primary feed line–typically a thick, red or yellow cable–emanating from the vehicle’s fuse box. Verify its function by probing with a multimeter set to 12V DC; expect readings near battery voltage (12.6–14.5V) when the ignition is active or the parking brake is engaged. If values drop below 11V, inspect the fuse rating (commonly 10–20A) and trace upstream for corrosion or chafing, especially near pinch points like door jambs or undercarriage mounts.
Isolate ground connections next. These appear as black, green, or sometimes brown wires terminating at the chassis or a designated ground stud. Poor grounding–often the root of flickering or dim illumination–can be confirmed by measuring voltage loss across the terminal: a drop exceeding 0.5V signals oxidation or loose fastening. Clean contact surfaces with a wire brush and apply dielectric grease to prevent future degradation, particularly in high-humidity climates.
Wire Gauge and Connector Pinouts
| Function | Color Codes (Common) | Gauge (AWG) | Connector Type |
|---|---|---|---|
| Brake signal | Red, Red/White stripe | 18–20 | Male spade (6.3mm) |
| Turn indication | Yellow, Orange/Yellow stripe | 18–20 | Female bullet (4.8mm) |
| Running lamp | Brown, Brown/White stripe | 16–18 | Weatherpack (sealed) |
| Reverse lights | Light green, Green/Black stripe | 20 | Mini spade (2.8mm) |
Label each conductor with numbered flagging tape before disconnecting harness plugs to avoid cross-matching. Note that late-model vehicles may embed pulse-width modulation (PWM) control for LEDs, requiring an oscilloscope to verify square-wave signals (typically 100–500Hz) on turn and brake circuits. Absence of waveform suggests a failed body control module (BCM) or corrupted CAN bus data.
Check harness sleeves for brittle insulation, a frequent failure point in vehicles exceeding 80,000 miles. Replace damaged segments with heat-shrink tubing and solder joints; avoid butt connectors, which introduce resistance. For splicing, crimp first, then solder, and finish with adhesive-lined shrink tubing to seal against moisture ingress.
Testing Sequence for Fault Isolation
1. Power down the system and discharge capacitors by turning on the rear lamps for 30 seconds.
2. Disconnect the bulb sockets and inspect for carbon deposits, indicating high-resistance failures.
3. Activate each circuit (brake, turn, reverse) individually and measure current draw at the fuse panel: normal values range 1.5–3.5A per filament. Exceeding 4A suggests a short to ground.
4. Use a tone generator to trace hidden wires behind trim panels, particularly around license-plate pockets where chafing occurs.
5. Reassemble only after verifying all circuits with a load tester, ensuring filaments illuminate without voltage sag.

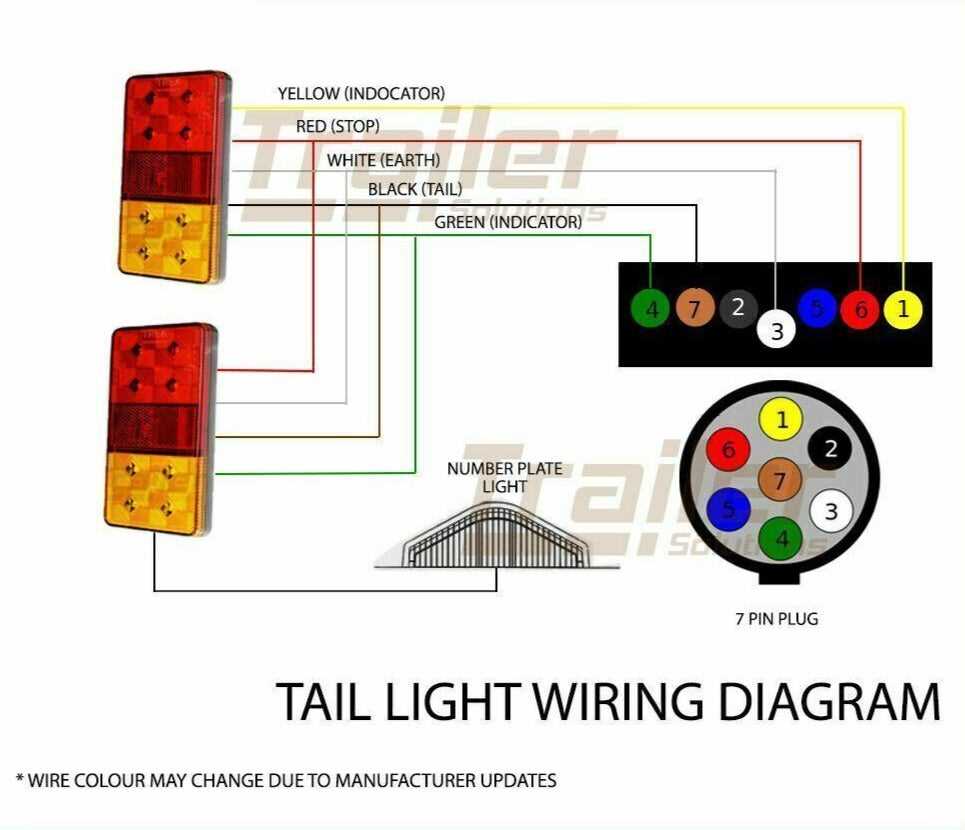

For vehicles equipped with trailer harnesses, prioritize checking the 7-way connector’s center pin (typically purple/yellow), which carries aux power and often corrodes. Apply contact cleaner, rotate the pin 180° to expose fresh surfaces, and reseat. If corrosion persists, replace the entire connector block–aftermarket units often use inferior plating prone to failure within 24 months.
Step-by-Step Guide to Tracing Rear Illumination Circuit Pathways
Begin by locating the main power distribution junction beneath the dashboard or near the vehicle’s fuse box. Identify the specific fuse associated with the rear illumination system–typically labeled with amperage (e.g., 10A or 15A) and color-coded for clarity. Use a multimeter in continuity mode to confirm the fuse’s integrity; a zero-ohm reading signals an intact connection, while an open circuit demands replacement. Verify the fuse’s socket for corrosion or loose contacts, as these can disrupt current flow despite a functional fuse.
Trace the circuit’s primary feed cable from the fuse panel toward the rear of the vehicle. This conduit is often bundled with other electrical lines in a protective sheath, identifiable by its thicker gauge (usually 14-16 AWG) and color (commonly red, brown, or yellow with a stripe). Employ a tone generator and probe to follow the path without removing interior panels–attach the generator’s clip to the fuse socket’s output terminal and sweep the probe along suspected routes to detect the signal’s strength.
Key Connection Points to Inspect
Check the grounding path near the vehicle’s rear; poor grounding is a frequent failure point. The earth terminal is typically a bare wire or ring terminal secured to the chassis or a designated grounding block. Scrape away paint or rust from the contact area and tighten the connection–resistance here should measure near 0 ohms on a multimeter. If voltage drops exceed 0.1V between the ground and the battery’s negative terminal, corrosion or a broken link exists.
Examine splices and connectors en route, particularly where the harness splits to feed individual bulbs. Disconnect each connector and inspect for bent pins, oxidation, or melted plastic (indicators of overheating). Use dielectric grease on restored connections to prevent future degradation. For bulbs that flicker or fail intermittently, insert a fused jumper wire (16-18 AWG) from the input terminal of the bulb socket directly to the battery’s positive post; illumination confirms a break in the upstream circuit requiring further tracing.
