Start with the amplifier’s RCA output–ensure it’s labeled sub out or LFE. Route this signal to the amplifier’s RCA input using shielded cables to minimize interference. For passive bass modules, connect the amplifier’s + terminal to the speaker’s positive lead and the – terminal to the negative lead. Verify impedance matches: a 4-ohm amplifier output must pair with a 4-ohm bass unit; mismatch risks overheating or signal distortion.
For active bass units, confirm the built-in crossover frequency–typically 80–120 Hz. Use a multimeter to check continuity between connections before powering on. Ground the amplifier’s chassis to the vehicle’s frame or a dedicated ground wire, never to an electrical component’s ground. If experiencing hum or noise, reroute signal cables away from power lines and ignition wires.
Adjust gain settings in small increments while monitoring for clipping via an oscilloscope or clipping indicator on the amplifier. A common mistake: setting gain too high, which introduces distortion detectable as a muffled or cracking sound. Use a test tone generator at 50–60 Hz to calibrate volume levels precisely. For bridged amplifier configurations, double-check the manufacturer’s bridging guidelines–incorrect bridging can damage both the amplifier and the bass driver.
Secure connections with crimp connectors or soldered joints, then insulate with heat shrink tubing. Avoid twist-and-tape methods, which can corrode and loosen over time. Label each wire at both ends to simplify future troubleshooting. If power dissipation exceeds 150 watts RMS, add a cooling fan or relocate the amplifier to a ventilated area to prevent thermal shutdown.

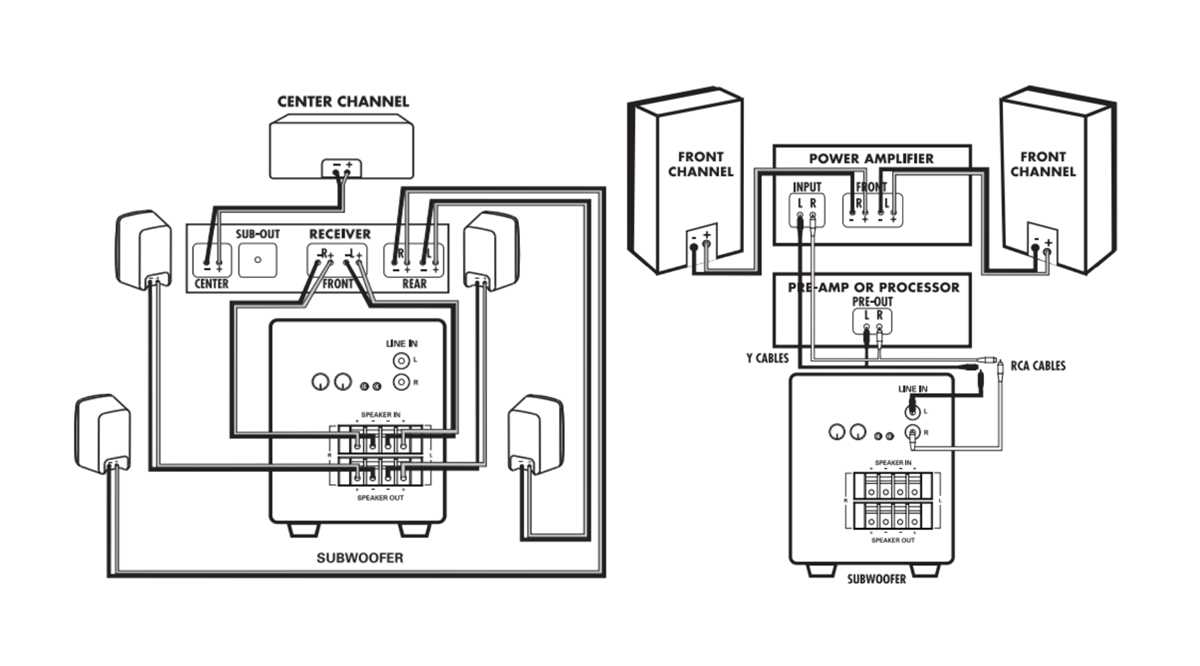

Connecting Low-Frequency Speakers to Power Sources: Visual Schematics
Use 4-gauge oxygen-free copper cables for mono-block amplifiers driving single voice coil bass units. Twist pair leads every 6 inches to minimize electromagnetic interference, especially near ignition wires or alternators in automotive setups. For dual voice coil systems, parallel connections drop impedance to 2Ω, but verify the amplifier’s minimum stable load–modern Class D modules often handle 1Ω without clipping.
Ground each component to a common chassis point, not exceeding 18 inches apart, using star topology. Avoid sandwiching cables between metal surfaces; secure with nylon ties every 12 inches. RCA interconnects should be no longer than 16 feet–beyond that, use balanced XLR lines with shield termination at the source end only to prevent ground loops.
Configuring Bridged Amplifier Outputs
Bridge a two-channel amplifier by connecting positive speaker terminals to Channel A’s positive and Channel B’s negative. Confirm the total impedance doubles–for 4Ω drivers, this yields 8Ω bridged. Check the manual: some amplifiers invert phase on bridged outputs, requiring reversed speaker leads to maintain polarity.
For vented enclosure setups, use a low-pass filter at 80Hz with a 12dB/octave slope. Active crossovers simplify adjustments but add RCA hops–each connection introduces ~0.5dB signal loss. Passive crossovers inside the enclosure avoid this but require 10% higher wire gauge due to internal resistance.
Subsonic filters should engage below 20Hz to protect drivers from unload at high excursions. Test with a 5Hz sine wave: amplitude should drop 30dB or more. Adjust gain only after confirming signal integrity–clipping above 20% total harmonic distortion destroys voice coils faster than thermal overload.
Signal Distribution for Multi-Driver Systems
Split signals with a line-level distribution block for three or more channels. Use gold-plated connectors and dielectric grease to prevent oxidation. For identical drivers, series-parallel wiring maintains load balance: combine two 4Ω coils in parallel (2Ω), then wire two such pairs in series (4Ω total). Label every cable with heat-shrink tags to trace faults under dash panels.
Dampen cable runs using foam or rubber grommets where they pass through bulkheads. Maintain 3-inch clearance from high-current wires (starter cables, etc.) to prevent induced noise. For home theater setups, route AC mains and signal cables perpendicular to each other to reduce 60Hz hum coupling.
Verify final connections with a multimeter: continuity tests for speaker leads, voltage checks at terminals, and insulation resistance above 1MΩ. Power amplifiers require 1-2 minutes of warm-up before signal application to stabilize bias circuits–avoid full-range input during this interval to prevent transient damage.
Selecting the Optimal Cable Thickness for Audio Power Systems
Use 12-gauge copper conductors for amplifiers rated under 500 watts RMS at 4 ohms. This gauge handles up to 25 amps continuous current with minimal voltage drop–critical for maintaining clean low-frequency response. For 2-ohm loads, downgrade to 10-gauge to compensate for increased current demands. Aluminum cables require one size thicker than copper for equivalent performance.
Power delivery suffers when insufficient gauge is applied. A 20-foot run of 14-gauge wire feeding a 400-watt amplifier at 2 ohms loses nearly 0.5V under load, reducing output by 8%. Switching to 10-gauge cuts losses to 0.1V–negligible in practical terms. Measure resistance per foot: 12-gauge copper averages 0.001588 ohms, 10-gauge 0.000999 ohms.
| Amplifier RMS Power | 4-Ohm Load | 2-Ohm Load | 1-Ohm Load |
|---|---|---|---|
| <200W | 14-gauge | 12-gauge | 10-gauge |
| 200-500W | 12-gauge | 10-gauge | 8-gauge |
| 500-1000W | 10-gauge | 8-gauge | 6-gauge |
| 1000W+ | 8-gauge | 6-gauge | 4-gauge |
Oxygen-free copper (OFC) cables prevent oxidation better than standard copper. Pure OFC maintains conductivity at 101% IACS versus 98% for standard. Silver-plated OFC reduces skin effect in high-frequency applications but offers no measurable advantage below 20 kHz–irrelevant for low-pass signals.
Strands count influences flexibility and reliability. A 10-gauge cable with 1,050 strands withstands repeated bending without work hardening better than a 41-strand equivalent. For vehicle installations, prioritize high-strand-count cables to prevent fatigue failures at connection points.
Shielded twisted-pair cables reduce interference in signal cables but serve no purpose for power cables carrying DC or low-frequency AC. Ground loops occur when return paths share inadequate conductors–separate ground cables should match the positive lead gauge exactly.
Battery-to-amplifier runs demand heavier gauge than internal connections. A 1,000-watt monoblock pulling 80 amps continuous requires 2/0-gauge from the battery, with 4-gauge between the amplifier and speaker terminals. Fuse the positive cable within 7 inches of the battery terminal–local regulations specify maximum fuse rating by cable gauge.
Temperature ratings affect current capacity. Standard PVC insulation handles 60°C, while XLPE-rated cables operate at 90°C, allowing tighter spaces near heat sources. Overcurrent protection must match the cable’s temperature-dependent derating curve–fuses must trip before insulation degrades.
Twist power conductors clockwise when running alongside RCA cables to minimize induced noise. Maintain 3-inch minimum spacing between power and signal cables. Terminal crimp quality determines long-term consistency–use hex crimps on copper lugs rated for the cable’s full current capacity.
How to Connect a Mono Speaker Driver to a Power Module
Start by verifying the impedance rating of your single-coil driver matches the amplifier’s output channels. Most mono drivers operate at 4 ohms; ensure the power module supports this load without overheating. Locate the positive (+) and negative (-) terminals on both components–these are typically marked with red and black, or stamped directly on the chassis. Use 12-16 gauge oxygen-free copper wire for minimal signal loss; strip 0.5 inches of insulation from each end for secure contact. Crimp spade connectors onto the wire ends to prevent short circuits and ensure a tight fit under the terminal screws. Secure the connection by tightening the screws firmly, but avoid over-torquing to prevent damaging the terminals.
Verify and Test the Setup
Double-check polarity before powering on–reverse connections will invert the audio phase, degrading bass response. Switch the amplifier to a low-gain setting initially to prevent sudden power surges. Play a 50Hz test tone through the system; a steady, distortion-free output confirms correct installation. If the signal distorts or the amplifier overheats, disconnect immediately and recheck impedance matching. Avoid running the system at maximum volume for extended periods to prevent voice coil damage. For optimal performance, position the enclosure away from walls or corners to reduce unwanted resonances.
How to Properly Link a Dual Voice Coil Speaker to Your Amplifier
Check the impedance specs of both components before making connections. Dual voice coil (DVC) drivers typically list two impedance values–one per coil. Matching these to the amp’s stable load range prevents overheating or clipping. Example: An amplifier rated for 2–4 ohms requires DVC coils wired in parallel (1ohm per coil) to present 2 ohms total. Confirm the amp’s manual for minimum impedance tolerance.
Identify terminal layout on the DVC unit’s basket. Each coil has a positive and negative terminal, often labeled or color-coded. Misalignment–connecting positives to negatives–results in phase cancellation, weakening output. Use a multimeter set to ohms to verify continuity between terminals if labels are unclear.
- Parallel configuration: Jumper positives together and negatives together. Halves impedance, raises current demand from the amplifier.
- Series configuration: Link the positive of one coil to the negative of the second. Adds impedance, reduces current draw.
- Separate channels: Feed each coil from an independent amplifier channel. Allows precise gain staging per coil.
Use oxygen-free copper wire gauge suited to current flow. For 500W at 2 ohms, 12–14 AWG handles 50–100A without voltage drop. Thinner wire causes resistance, dissipates power as heat instead of acoustics. Solderless connectors–spade or banana–secure fast, reversible joints.
Critical Testing Before Final Mount
Power up with no signal–listen for hiss or distortion. Test each channel individually with a 50Hz tone at half gain. Verify cone excursion remains linear and symmetrical. Sudden noise or uneven movement signals reversed polarity or shorted connections. Recheck continuity and retraced path before remounting.
Temperature monitoring during playback reveals impedance mismatches. Infrared thermometer aimed at voice coil former should read
Ground loops manifest as hum or buzz. Isolate signal return paths–run RCA shields to a single chassis point. Separate power grounds for amplifier and head unit. Star grounding at the battery eliminates common impedance paths.
Adjust low-pass crossover slope and frequency to match enclosure tuning. Aggressive slopes (>24dB/oct) demand precise phase alignment between coils. Measure acoustic output with an SPL meter–phase differences >90° reduce bass impact. Trial different slopes (12dB–24dB) and listen for smooth transitions between midbass and ultra-low frequencies.
