Start by isolating the battery bank from all circuits when modifying or inspecting connections. Disconnect the negative terminal first–this prevents accidental shorts while working near live wires. Use a #10 AWG cable for 30-amp service and #6 AWG for 50-amp systems to handle the current without voltage drop. Label each conduit with the circuit it serves (lights, outlets, inverter) before routing wires to avoid confusion later.
Install a 12-circuit distribution panel rated for marine or RV use–standard residential panels lack corrosion resistance. Anchor the panel firmly; vibrations from travel will loosen unsecured connections over time. Ground the chassis directly to the negative battery terminal using a bare copper #4 AWG wire at least 6 feet long to ensure proper safety bonding. Avoid daisy-chaining grounds–each component should have its own path back to the battery.
Fuses must match the wire gauge: 20-amp for #12 AWG, 30-amp for #10 AWG, and 50-amp for #6 AWG. Place fuses within 7 inches of the battery on all positive leads to comply with ABYC standards. For 12V circuits feeding sensitive electronics (like inverters or lithium chargers), add a 15-amp slow-blow fuse to protect against transient spikes. Never substitute circuit breakers for fuses in high-current paths–they’re slower to trip and degrade under vibration.
Color-code every conductor: red for positive, black for negative, white for neutral (if using 120V AC), and green or bare copper for ground. Deviate from standard colors only if documenting changes in a detailed legend. Trace all junctions with a multimeter before powering up; insulation damage from sharp edges inside walls or under floors is a common failure point. Seal splices with adhesive-lined heat shrink and strain-relieve wires near moving parts (doors, slide-outs) using spiral wrap or nylon braid.
Test every outlet and fixture under load before finalizing the layout. A 12V LED light should draw less than 0.3 amps; higher readings indicate a short or incorrect bulb. 120V AC circuits require a shore power detector relay to automatically switch between external power and generator/inverter–manual switching risks back-feeding and damage. Verify polarity at each outlet; reversed hot and neutral wires fry unshielded electronics. When in doubt, revisit the schematic–even a single misrouted wire can drain batteries overnight or create a fire hazard.
Electrical Schematics for Recreational Vehicles: Key Insights
Start by mapping all power sources with color-coded cables–12-gauge red for positive, 14-gauge black for negative, and 10-gauge green or bare for ground connections. Use a multimeter to verify no voltage drop exceeds 0.2V between the battery bank and the furthest appliance. Label every connection point with heat-shrink tubing and embossed tags to prevent misidentification during troubleshooting.
Install a 150-amp main breaker within 18 inches of the battery terminals to protect the primary circuit. Secondary circuits for lights, outlets, and appliances should branch through individual 20-amp breakers, fused at 150% of the expected load. Avoid daisy-chaining circuits; each branch must run directly from the distribution panel to maintain consistent power delivery.
Use marine-grade tinned copper wire for all connections exposed to moisture or vibration. Secure cables every 12 inches with nylon clamps and route them away from sharp edges, exhaust systems, and moving parts. For 120V AC circuits, employ dual-pole breakers and ground fault circuit interrupters (GFCIs) within 6 feet of any wet location, such as sinks or showers.
Integrate a smart battery monitor showing state-of-charge, amperage draw, and voltage in real time. Place the shunt on the negative terminal of the battery bank for accurate readings. Configure low-voltage disconnects at 11.8V to prevent deep discharge, and set high-voltage cutoffs at 14.6V for lithium batteries or 14.2V for lead-acid to avoid overcharging.
For solar panel arrays, size the charge controller at 125% of the panel’s short-circuit current. Use 4-gauge wire for runs exceeding 10 feet to minimize power loss. Mount the controller near the batteries to reduce voltage drop, and ensure it supports both PWM and MPPT modes for versatility in varying light conditions.
Test all connections with a thermal imaging camera after assembly to detect hotspots, which indicate loose or corroded terminals. Apply dielectric grease to all exposed connectors to prevent oxidation, and inspect every six months for signs of wear or heat damage. Replace any cable showing frayed insulation or discoloration immediately.
Isolate the chassis ground from the negative bus bar to prevent stray current corrosion. Bond all metal components–frames, tanks, and appliance casings–to the chassis ground using 6-gauge wire. Verify continuity with a megohmmeter to ensure resistance below 0.1 ohms between any point and the ground rod.
Document the full layout in a digital schematic with measurements, wire gauges, and breaker ratings. Store a printed copy in a waterproof enclosure inside the RV and an offline backup on a USB drive. Include emergency shutdown procedures–marking the main breaker and battery disconnect clearly–and train all users on their location and operation.
Critical Elements for Your Recreational Vehicle Electrical Schematic
Begin with a detailed layout of the battery system–identify primary and auxiliary power sources, their voltage ratings (typically 12V, 24V, or 110V), and physical placement. Mark fuse sizes for each battery connection, ensuring protection ratings align with manufacturer specs (e.g., 100A main fuse for house batteries, 30A–50A fuses for branch circuits).
Outline the converter/charger unit, specifying its amperage capacity (commonly 30A, 50A, or 70A) and input/output requirements. Note compatibility with shore power–whether it supports 30A or 50A plugs–and include a bypass mode if applicable. Label voltage drop calculations for long runs to prevent undervoltage issues.
Map the distribution panel with individual circuit breakers: 15A for lights, 20A for outlets, 30A for high-draw appliances (microwave, AC). Use color-coded cables (red for positive, black for negative, yellow/blue for specific loads) and annotate wire gauge per circuit (e.g., 10 AWG for 30A circuits, 12 AWG for 20A).
Incorporate the transfer switch if an inverter is present–indicate its wattage (e.g., 2000W–3000W pure sine wave) and whether it’s automatic or manual. Show grounding pathways, separating chassis ground from neutral at the main panel to prevent stray currents.
List all 12V DC loads separately: LED lighting (3–5A per fixture), water pump (8–10A), vent fans (5A), and USB outlets. Include wire lengths and voltage drop percentages (target

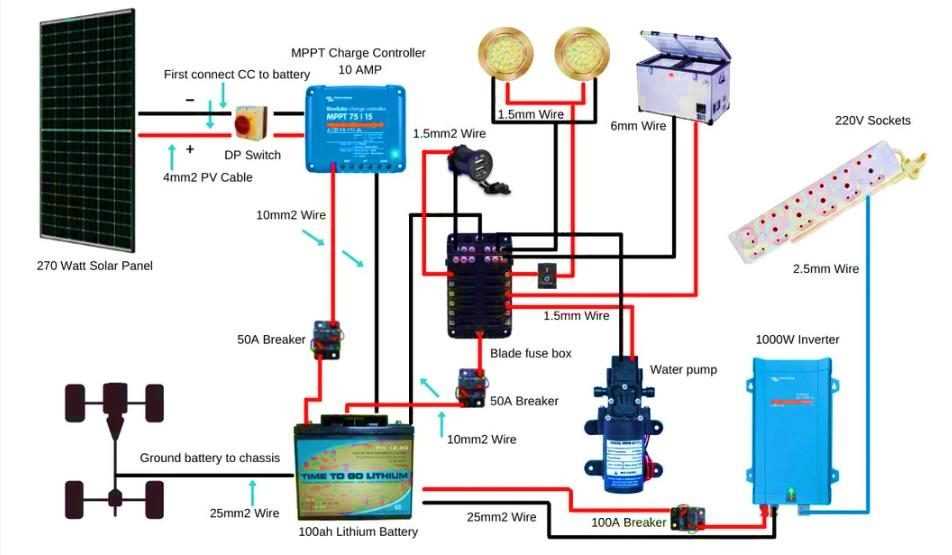

Add solar components if used: panel wattage (e.g., 200W–400W), charge controller type (MPPT vs. PWM), and battery bank capacity (Ah rating). Label disconnect switches for maintenance safety and surge protectors for sensitive electronics.
Highlight the brake controller if towing is involved–specify whether it’s proportional or time-delayed, its calibration settings (typically 10–12V output), and connection to the tow vehicle’s 7-way plug. Include trailer lighting circuits (running, brake, turn) with separate 4-way connectors.
Document emergency cutoffs: battery disconnect, propane detector shutdown, and carbon monoxide sensor integration. Verify all connections comply with RVIA standards, particularly for polarity and load balancing. Use a legend to explain symbols and abbreviations (e.g., “CB” for circuit breaker, “SPD” for surge protector).
Creating a 12V Recreational Vehicle Power Scheme from Scratch
Begin by sketching your RV’s floor plan on graph paper, allocating 1 square inch per foot of length to maintain proportional distances between components. Mark each appliance’s fixed location–refrigerator, water pump, furnace–before proceeding, as these dictate circuit routes.
List all 12V devices with their current draw in amperes. Use Ohm’s Law (I = P/V) for unlabeled units; a 60W light at 12V pulls 5A. Add 20% overhead to total amperage for future-proofing, rounding up to the nearest 10A to size fuses and conductors.
- Fridge (compressor): 8A
- LED lighting circuit: 12A
- Water pump: 6A
- Furnace blower: 5A
- USB charging ports: 3A
Select cable gauge using the ABYC marine standard table for 12V circuits: 10A over 10 feet requires 14 AWG, but 20A over 20 feet demands 10 AWG. Label each conductor pair–red for positive, black for negative–and tag ends with permanent marker codes matching a legend in the top-right corner.
Route main feeds from the battery bank along the RV’s frame rails, securing cables every 18 inches with nylon straps to prevent chafing. Branch circuits should sprout perpendicularly at 90-degree angles, minimizing sharp bends that increase resistance. Use grommets where cables pass through aluminum walls to avoid galvanic corrosion.
Install a fuse block within 7 inches of the battery’s positive terminal, populated with blade-style fuses sized to each circuit’s amperage calculation. Place a 200A Class T main fuse upstream for catastrophic protection. Mount a bus bar nearby to consolidate negative returns, ensuring all ground wires terminate here for a single path to the chassis.
Draw a parallel circuit for lighting with three-way switches at entry doors, allowing control from multiple points without additional relays. Incorporate a 10A step-down converter for USB outlets to isolate low-voltage electronics from transient spikes. Separate the furnace blower from intermittent loads like the water pump to prevent voltage sag during startup.
Annotate switch functions and fuse ratings directly on the layout using 3mm text. Use colored highlighters–green for power, blue for returns–to differentiate paths at a glance. Cross-reference each appliance’s manual for any manufacturer-specific connection requirements, such as the Dometic fridge’s pulse-width modulated signal wire.
Verify continuity with a multimeter before energizing: probe between positive feeds and chassis ground to confirm infinite resistance, indicating no shorts. Power up sequentially–lights first, then pumps–to isolate any faults immediately. Update the layout in permanent ink after finalizing connections, storing a laminated copy beneath the RV’s dinette for future reference.
