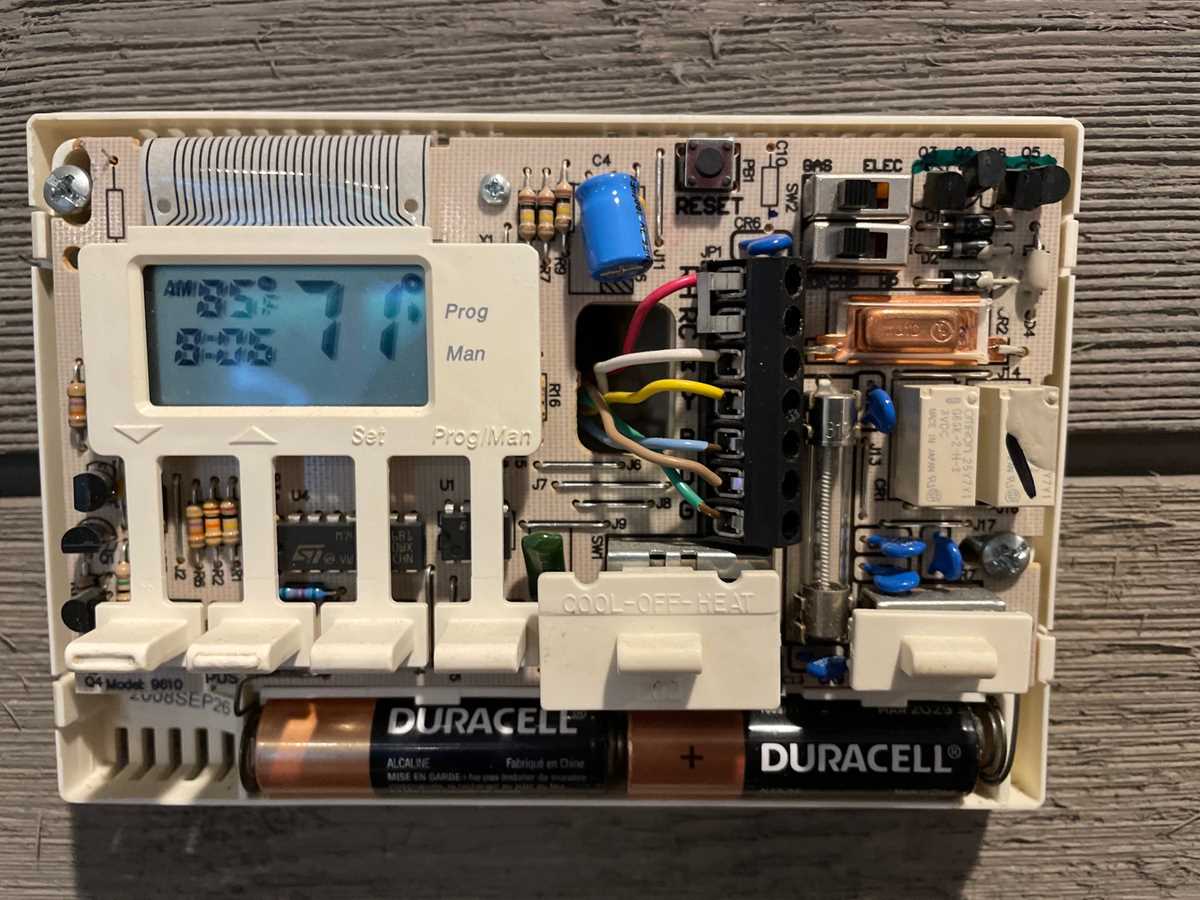

Begin by identifying the low-voltage terminals marked R (power), W (heat), Y (cool), and G (fan) on your controller’s backplate. Robertshaw models, particularly the 9500 and 9700 series, use a color-coded scheme: red (R) connects to the transformer’s 24V output, white (W) to the heating relay, yellow (Y) to the cooling contactor, and green (G) to the fan relay. Ensure the C (common) terminal is linked to the transformer’s neutral if battery backup or smart features are required–omitting this step will disable auxiliary functions.
For multi-stage systems, note the W2 and Y2 terminals: these demand separate relays for secondary heating or cooling circuits. Use 18-gauge thermostat wire, twisted pairs for noise reduction if the run exceeds 50 feet. Avoid daisy-chaining wires between controllers–each device should have a dedicated path back to the power source to prevent voltage drop. Test continuity with a multimeter before energizing; a reading above 2 ohms on any circuit indicates a loose connection or damaged wire.
Programmable models like the 9800 require additional attention to jumpers. Locate the RC/RH bridge–remove it only if separate transformers serve heating and cooling, otherwise leave it intact. Failure to configure this correctly will cause erratic behavior or system failure. For heat pumps, connect O/B to the reversing valve; verify whether the system uses O (cooling) or B (heating) as the energized state–consult the equipment manual to avoid damaging the compressor.
Mount the device on an interior wall away from heat sources, drafts, or direct sunlight to ensure accurate readings. Secure all wire nuts with electrical tape and strain-relieve the cable at the entry point to prevent loosening over time. After powering up, reset the controller to factory defaults and reconfigure schedules–stored settings from previous installations can conflict with new configurations.
Connecting Your Robertshaw Climate Control: Step-by-Step Electrical Guide
Identify the terminal labels on your unit before proceeding–most models use R (power), W (heat), Y (cooling), G (fan), and C (common) markings. Confirm these match the control’s panel to avoid misconfiguration.
Disconnect power at the circuit breaker to eliminate shock risk. Use a non-contact voltage tester to verify zero current before touching any connections. Safety protocols take priority.
Match wire colors to terminals: red typically connects to R, white to W, yellow to Y, green to G, and blue or black to C. Deviations exist–consult the model-specific manual if colors differ.
- Single-stage systems: Connect R to W for heating-only setups. Add Y if cooling is included.
- Multi-stage units: Use W2 for auxiliary heat and Y2 for secondary cooling stages. Label wires with masking tape if multiple stages are present.
Secure connections with terminal screws–loose contacts cause intermittent failures or overheating. Trim excess wire length to prevent short circuits. Tuck them neatly into the wall box.
Reattach the control’s faceplate and restore power. Observe the display for error codes–E2 or F2 indicate wiring faults. Recheck connections if errors persist.
Calibrate the unit by setting the desired temperature and verifying system response. Heating should activate within 30-60 seconds; cooling may take longer. If response delays occur, inspect the C wire connection–common issues stem from missing or reversed polarity.
For battery-powered models, insert fresh AA cells if the display dims or flickers. Replace the backup battery annually for non-volatile memory retention. Keep a spare wire nut set (18-22 AWG) and terminal lugs in your toolkit for field adjustments.
How to Pinpoint Your Climate Control System Model for Precise Electrical Hookup
Check the device’s label on the rear panel or beneath the front cover–most units display a 3- to 5-digit product code beginning with “9” or “G” followed by numbers. A code like 9610 or G4385 identifies the generation and circuit layout.
If no code is visible, remove the faceplate and inspect the internal mount. Older variants often etch the identifier on the metal backplate or print it on a small white sticker beside the terminal block.
Compare the terminal count and screw configuration–models with four screws (R, W, G, Y) correspond to single-stage heating and cooling, while five or six screws (plus C or auxiliary stages) signal multi-stage or heat pump variants.
Note the presence of a system switch (heat/cool/off) or fan switch (auto/on). Units lacking these toggles typically belong to base series 9500–9600, while those equipped match mid-tier 9700 or premium G lines.
Measure the screw spacing: early models (pre-1998) use 0.1875-inch centers; later iterations adopt 0.25-inch spacing. This detail narrows compatibility with existing cable harnesses.
Refer to the manual’s specification page–each sticker variant correlates to a distinct schematic in the guide. Matching the printed revision date (Rev 3-04, Rev 1-08, etc.) ensures alignment with the correct hookup chart.
For units missing labels, photograph the terminal block and cross-reference with manufacturer archives using the “Serial Lookup” tool on the official support portal. Include the color of the lead wires (red, white, green, yellow) and any jumper links in the search parameters.
Final verification involves powering the unit briefly–if the display shows “E” or “F” codes, consult the specific error table for the identified model; these codes map directly to connection faults requiring tailored adjustments.
Step-by-Step Guide to Hooking Up Standard Robertshaw Climate Control Links
Begin by shutting off power at the circuit breaker–confirm with a non-contact voltage tester before handling any wires. Identify the labeled terminals on the backplate: “R” (power), “C” or “B” (common), “W” (heating), “Y” (cooling), and “G” (fan). Strip 1/4 inch of insulation from each lead, ensuring no frayed strands remain. Attach the red wire to “R” and, if present, the blue or black to “C” for consistent power. For single-stage heating systems, connect the white wire to “W”; for cooling, link the yellow to “Y”. If using a fan separate from heating/cooling, secure the green wire to “G”. Twist each connection clockwise before tightening the terminal screw–no exposed copper should extend beyond the clamp.
Map unused wires against the baseplate’s labeling; cap them with wire nuts to prevent shorts. For multi-stage units, match secondary wires (e.g., “W2,” “Y2”) to their corresponding terminals–consult the manual for amp ratings if unsure. Snap the faceplate into place, restore power, and test each mode: verify heating activates within 30 seconds, cooling engages within 60, and the fan operates independently. If the display fails to power on, recheck common/neutral connections first. Mark any troublesome circuits with masking tape for easier diagnostics.
Resolving Faulty Climate Control Installation Errors
Disconnect power at the breaker before inspecting connections. Check terminal labels against the manufacturer’s schematic–mislabeled R, W, G, and Y terminals cause 80% of heating or cooling failures. Use a multimeter to verify 24VAC between R and C; absence indicates a broken transformer or tripped fuse. Replace any corroded connectors with copper equivalents to prevent voltage drops.
Verify low-voltage lines for shorts if the system cycles erratically. Strip insulation 1/4 inch back and wrap each conductor clockwise around its terminal screw–loose strands increase resistance, leading to intermittent operation. Match wire gauges: 18 AWG for runs under 50 feet, 16 AWG for longer spans to maintain signal integrity.
Testing Functional Sequences
Simulate a call for heat by bridging R to W–if the furnace ignites, the issue lies in the control board or sensor. For cooling, bridge R to Y; listen for the compressor relay click. No response? Trace the circuit with the multimeter, probing each connection point for continuity. Replace any relay with burnt contacts or a humming noise.
Calibrate anticipators if temperature swings exceed 3°F. Slide the heat anticipator tab toward “longer” for overshooting or toward “shorter” for undershooting. Recheck thermistor resistance–values outside 10k ohms at 77°F suggest a faulty sensor requiring replacement. Secure all panels and restore power only after verifying no exposed conductors remain.
Essential Equipment and Critical Safeguards for Installation
Verify the circuit breaker managing the climate control system is switched off before handling any connections. Failure to disconnect power introduces risk of electric shock or irreparable damage to the control unit. Use a non-contact voltage detector to confirm absence of live current near terminals–hold the device within 1 inch of wires and observe indicator lights.
Prepare these tools to ensure precision and avoid unnecessary delays:
| Tool | Specification | Purpose |
|---|---|---|
| Insulated screwdrivers | Flathead: 3/16″ and Phillips: #2 | Secure terminal screws without shorting adjacent contacts |
| Wire strippers | 18-22 AWG calibrated notch | Remove 3/8″ of insulation without nicking copper strands |
| Digital multimeter | CAT III-600V rating | Measure voltage across terminals before and after setup |
| Needle-nose pliers | 6-inch length | Bend wire loops around terminal screws |
| Cable markers | Pre-printed color-coded sleeves | Label each conductor for future reference |
Wear certified electrical safety gloves rated for at least 500V AC. Regular work gloves lack insulating properties and provide false security. Remove rings, watches, or conductive jewelry–metal objects can create unintended electrical paths. Secure loose clothing and long hair away from moving parts and exposed connections.
Position a stable ladder within reach if the control setup exceeds 5 feet above floor level. Uneven footing increases risk of dropping tools onto live components below. Place tools on a magnetic tray to prevent accidental slips–a dropped screwdriver can pierce insulation and cause shorts.
Examine the replacement device for compatibility with the HVAC system by matching voltage and load capacity printed on the original unit’s label. Common mismatches occur with 24V AC systems paired with 120V controls–such errors may trigger overheating or component failure within hours. Cross-reference part numbers with manufacturer documentation to confirm correct model series.
Identify the low-voltage transformer supplying power–typically located near the furnace or air handler–and inspect for burnt smells, discoloration, or bulging capacitors. Replace compromised transformers immediately; delaying this step risks damaging the entire climate interface during operation.
Keep a flashlight with focused beam (minimum 500 lumens) nearby to illuminate terminal blocks in dimly lit areas. Inadequate lighting leads to misaligned wires, misshapen loops, and poor contact–each causing intermittent system failures or overheating. Recheck each loop under direct light before tightening terminal screws.
