Begin by locating the ignition harness beneath the dashboard–typically a bundle of colored wires exiting the steering column. Identify the accessory (ACC), ignition (IGN), and starter (ST) circuits using a multimeter: ACC registers 12V when the key is turned to the first position, IGN activates at the second, and ST spikes briefly during crank. Cross-reference these with the vehicle’s service manual to avoid miswiring, as incorrect connections risk damaging the ECU or blowing fuses.
Install a bypass module if the security system triggers anti-theft relays upon remote activation. Common models include the Fortin or Directed units; connect them to the immobilizer’s data line (often a thin white or yellow wire) and ground. Test before finalizing: trigger the system and verify the bypass engages within 3 seconds, allowing the starter to crank without error codes.
Run heavy-gauge wire (minimum 14 AWG) from the remote starter’s output to the ST terminal, fusing it within 7 inches of the battery with a 30-amp fuse. Route the ACC/IGN wires through a relay if the starter unit’s built-in outputs lack sufficient current capacity–standard relays handle 30A at 12V, exceeding most factory ignition switches. Secure all connections with heat-shrink tubing or solder to prevent corrosion or short circuits from vibration.
Program the remote’s buttons for two-stage operation: first press sends ACC power, second engages the starter after a 2-second delay (adjustable via the starter’s control module). Confirm the tachometer wire (usually brown) receives a signal from the ignition coil or crankshaft sensor–this ensures the engine cuts off if it fails to start after 3 attempts, preventing drain on the battery.
For diesel engines, add a glow plug timer wired in parallel to the ignition circuit. Activate it for 10-15 seconds before cranking, ensuring proper fuel combustion in cold conditions. Verify all grounds (bare metal chassis) are free of paint or rust–poor grounding causes intermittent failures or radio interference.
Electrical Schematic for Automobile Ignition via Keyless Activation
Connect the keyless control module’s ignition output to the vehicle’s starter solenoid using 10-gauge wire to handle current spikes during cranking, ensuring minimal voltage drop across 15 feet of run. Avoid splicing into factory harnesses near the steering column–locate the ignition switch’s Violet/White or Pink wire instead, as these typically carry the 12V ignition signal.

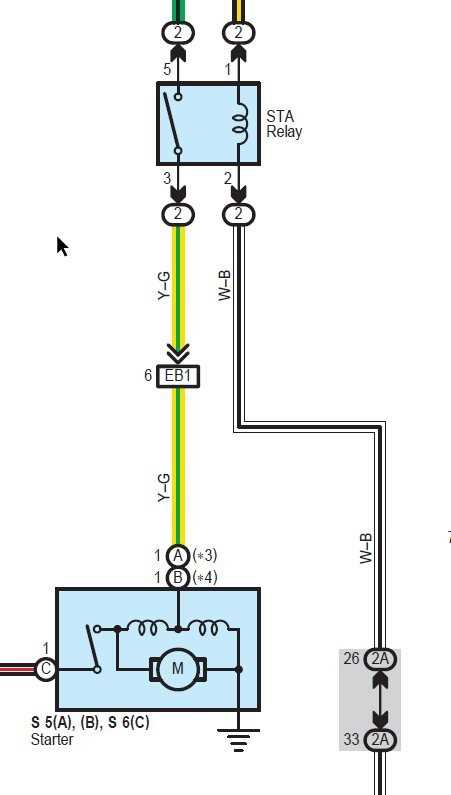

Use a 30-amp relay between the control unit and the starter motor to prevent direct high-current draw through the module’s small contacts. Wire the relay coil to the module’s trigger output, with the switched side connected to the starter solenoid’s B+ terminal. Include a 10-amp fuse within 6 inches of the battery connection to protect against shorts.
For vehicles with manual transmissions, integrate a neutral safety switch into the circuit. Wire the switch in series with the starter relay coil, ensuring the engine can only crank when the gearshift is in neutral. Test continuity across the switch contacts before finalizing connections to avoid false triggers.
Ground the keyless module directly to the chassis using an 8-gauge wire, avoiding painted or coated surfaces–bare metal near the firewall yields the most stable reference. Poor grounding causes erratic behavior, including failed starts or premature shutdowns. Verify resistance between the module’s ground point and the battery negative terminal–it should not exceed 0.1 ohms.
Install a momentary push-button override near the driver’s seat, wired parallel to the keyless module’s ignition output. This serves as a failsafe if the remote fails. Use a waterproof switch rated for 20A to handle transient loads during engine turnover. Seal all connections with adhesive-lined heat shrink tubing to prevent corrosion in humid environments.
For vehicles equipped with immobilizers, bypass modules like the Compustar DAS or Directed 5X必须 be integrated. Follow the module-specific pinout: typically, the data wire (white/blue) connects to the vehicle’s immobilizer feed, while the ignition and starter outputs mirror the keyless control unit. Skip this step only if the vehicle lacks factory security systems.
After assembly, perform a load test by measuring voltage at the starter solenoid during a simulated start cycle. Expect 9.5V or higher at the solenoid terminal; lower readings indicate excessive resistance. If flickering dashboard lights occur during cranking, reroute power leads closer to the battery to eliminate voltage sag from shared circuits.
Critical Parts for Autostart Installation Setup
Begin with a compatible control module–ensure the model matches your vehicle’s make, year, and engine type. OEM modules like those from Directed Electronics (Viper, Avital) or Compustar often include necessary relays, bypasses for immobilizers, and harnesses pre-configured for specific car models. Aftermarket units require additional verification: a 2015 Ford F-150 with push-button ignition, for example, needs a data interface to emulate the factory key signal. Skip universal modules unless the vendor confirms direct compatibility with your ignition and security system.

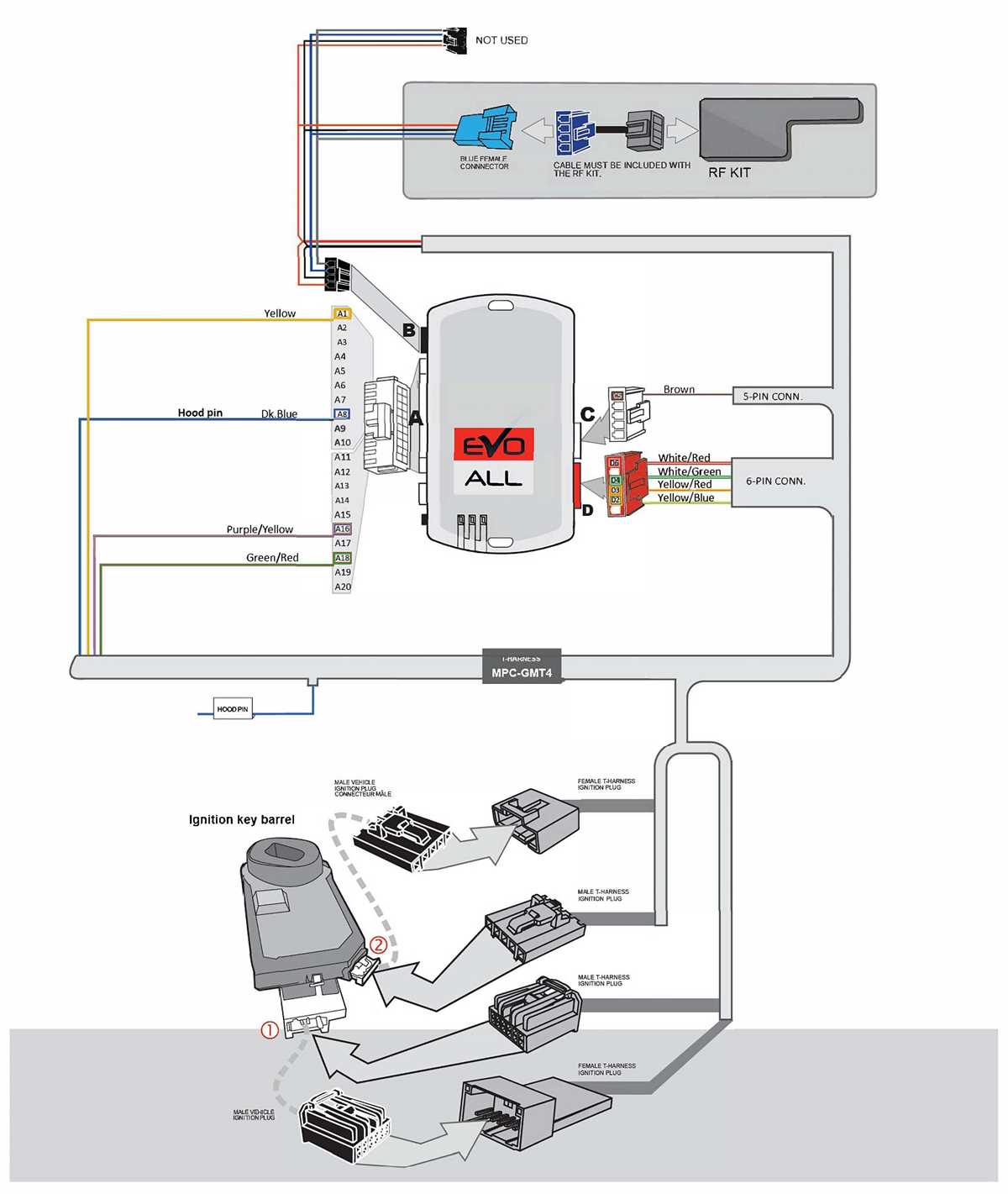

The bypass module is non-negotiable for vehicles with immobilizers. Opt for units with built-in transponder emulation, such as the BD-007 or Fortin EVO-ALL, to eliminate manual key placement during activation. Below are minimum voltage and current ratings the module must handle:
| Component | Voltage (V) | Current (A) |
|---|---|---|
| Starter relay | 12 | 30+ |
| Ignition relay | 12 | 20 |
| Accessory relay | 12 | 10 |
Use relays with at least 10 A above the stated ratings to prevent overheating during extended cranking or aftermarket audio loads. For diesel engines, add a dedicated glow plug timer; a factory tachometer signal wire must feed into the autostart module for engine sensing to function. Without this, the system may repeatedly crank or shut off prematurely.
Wire gauge selection directly impacts reliability: 18 AWG suits low-current signals (hood pins, door triggers), but 14 AWG is mandatory for power delivery to the starter and ignition circuits. Solder and heat-shrink all connections–crimp terminals alone risk corrosion or disconnection under vibration. Fuse every power input parallel to the module’s internal protection; a 5 A fuse on the constant 12 V line shields against shorts, while a 20 A fuse on the switched ignition output prevents overheating the factory wiring.
Final verification involves bench-testing the logic sequence: the autostart should activate accessories for 5 seconds (adjustable via module settings), then ignition for 2–3 seconds, and finally the starter. If the engine doesn’t start within 1.5 seconds, most modules abort to protect the starter. Program the module’s tachometer input to match your engine’s baseline RPM–common values are 400 RPM for gas engines, 600 RPM for turbocharged, and 700 RPM for diesels. Failure to set this correctly may cause the module to disengage immediately after cranking.
Step-by-Step Ignition Control Circuit Assembly
Identify the vehicle’s ignition switch harness by locating the ACC, IGN1, and IGN2 terminals. Use a multimeter to test each wire–ACC should show 12V when the key turns to accessory mode, IGN1 at “run,” and IGN2 only when cranking. Trace these leads back to the harness connector to confirm continuity, ensuring no interference from fused links or anti-theft modules. Replace generic wire labels with vehicle-specific data from the repair manual if discrepancies arise.
Connect the first relay to the ACC circuit by splicing into its wire–preferably at a junction point like the fuse box or behind the dashboard. Run a 16-gauge wire from the relay’s coil output to the remote activation module’s designated ACC trigger. For IGN1, use a second relay, grounding its coil through the remote system’s START output only after verifying no voltage spikes occur during cranking. Avoid direct battery connections; instead, tap into switched power sources to prevent parasitic drain.
Route the IGN2 lead through a 30-amp fuse directly to a heavy-duty relay controlled by the remote module’s crank trigger. Use 12-gauge wire for this path to handle starter motor amperage. Add a diode across the relay coil to suppress voltage spikes that could damage the module. Test all connections with the key in the “off” position–no power should flow until the remote command is sent, confirming proper isolation from the vehicle’s native ignition system.
Final Validation Checks
Recheck every splice with a crimp connector or solder joint insulated with heat-shrink tubing. Probe all relay contacts under load to verify no voltage drop exceeds 0.2V. If the engine hesitates during remote cranking, downgrade to 10-gauge wire for IGN2 or relocate the relay closer to the starter solenoid. Document each connection’s color code and pinout for troubleshooting to avoid miswiring during future repairs.
Integrating the Auto Ignition Controller with Factory Alarm Circuits
Connect the auxiliary activation output from the vehicle’s immobilizer to the starter module’s security input using a relay or direct splice–verify compatibility with the brand’s antitheft protocol first. Chrysler systems (e.g., Sentra, Cruze) often require tapping the door trigger wire (typically a 1 kΩ resistor-equipped white/black stripe) at the BCM, while Ford models demand a clean signal from the PATS module located behind the dashboard near the steering column.
Bypassing Factory Transponders Without Permanent Deactivation
Use a dual-line bypass harness for systems with a rolling-code transponder; one line carries the 12V ignition feed (pink/black on GM), the second bridges the antitheft data pin (yellow/black) to simulate key presence–avoid splicing into the antenna loop as this destabilizes radio-frequency sync. For push-button start vehicles, locate the proximity sensor’s low-reference wire (gray/red on Toyota RAV4) and route it through a 1A fuse before linking to the module’s antenna input.
Secure the module’s ground to a bare chassis bolt near the fuse box–avoid painted surfaces and test conductivity with a multimeter to prevent voltage drop exceeding 0.2V under load. Chrysler Jeeps (2015+) have known ground interference issues at the TIPM; bypass by running an 8-gauge cable directly to the battery negative terminal and bonding with dielectric grease.
Program a 3-second delay on the module’s starter output to account for security handshake latency–Honda’s immobilizer (8-pin connector at ECU) requires this to prevent premature crank abort, while European models (VAG group) often need a CAN bus emulator to mimic the original key fob data stream during remote engagement.
Validate all splices with a pinout tester–set to continuity mode–before restoring power; false positives on Hyundai’s immobilizer wire (blue/black at 16-pin diagnostic port) are common and can brick the ECU if shorted during installation. Keep solder joints under 15W iron time to prevent melting adjacent wire insulation; use heat-shrink tubing with adhesive lining for moisture resistance in under-hood environments.
