Begin by selecting 12-gauge copper wire for 20-amp circuits or 14-gauge for 15-amp configurations. Ensure the breaker matches the wire gauge–20A breaker for 12-gauge, 15A for 14-gauge. Use NM-B (Romex) cable for residential installations, strip the outer sheath to expose 6 inches of conductors, and remove ½ inch of insulation from each wire end.
Connect the hot (black or red) wire to the brass terminal on each receptacle. Secure the neutral (white) wire to the silver terminal. Attach the ground (bare or green) wire to the green grounding screw–ensure continuity by looping it through each device or bonding with a pigtail splice. For dedicated circuits, run separate cables from the panel to each outlet. For daisy-chained setups, use backstab connections (not recommended) or side terminals for reliability.
Test continuity with a multimeter before energizing. Set the device to Ω (ohms) and probe between the ground screw and neutral screw–readings should be near zero. Probe hot to neutral for ~120V (U.S.) or ~240V (split-phase). If voltage drops below 110V, check for loose connections or undersized wire. Label each breaker with the connected outlets using permanent ink on adhesive tags.

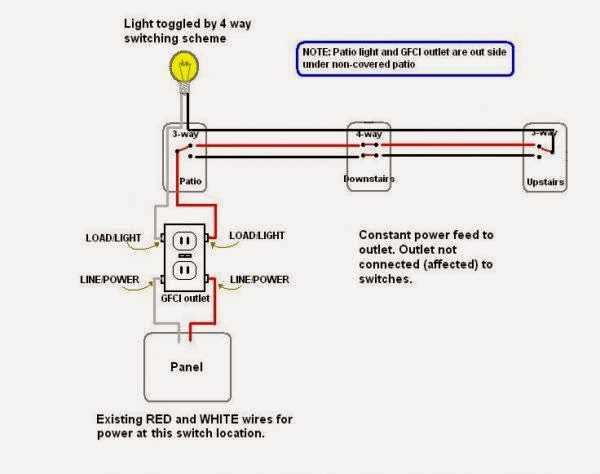

For GFCI-protected outlets, connect the load side only to downstream receptacles requiring protection. Leave the line side for the incoming power. Use weatherproof covers for outdoor installations and tamper-resistant (TR) receptacles in living spaces. Avoid overloading by calculating total wattage–1,800W max for 15A, 2,400W for 20A circuits. Distribute high-draw appliances (microwaves, space heaters) across separate branches.
In unfinished basements or garages, use conduit (EMT or PVC) instead of Romex to prevent rodent damage. Secure cables every 4.5 feet with staples or straps, keeping them 1¼ inches from stud edges. For metal boxes, bond the box to ground with a green grounding pigtail. In multi-gang boxes, bundle wires with zip ties and leave 6 inches of slack for future modifications.

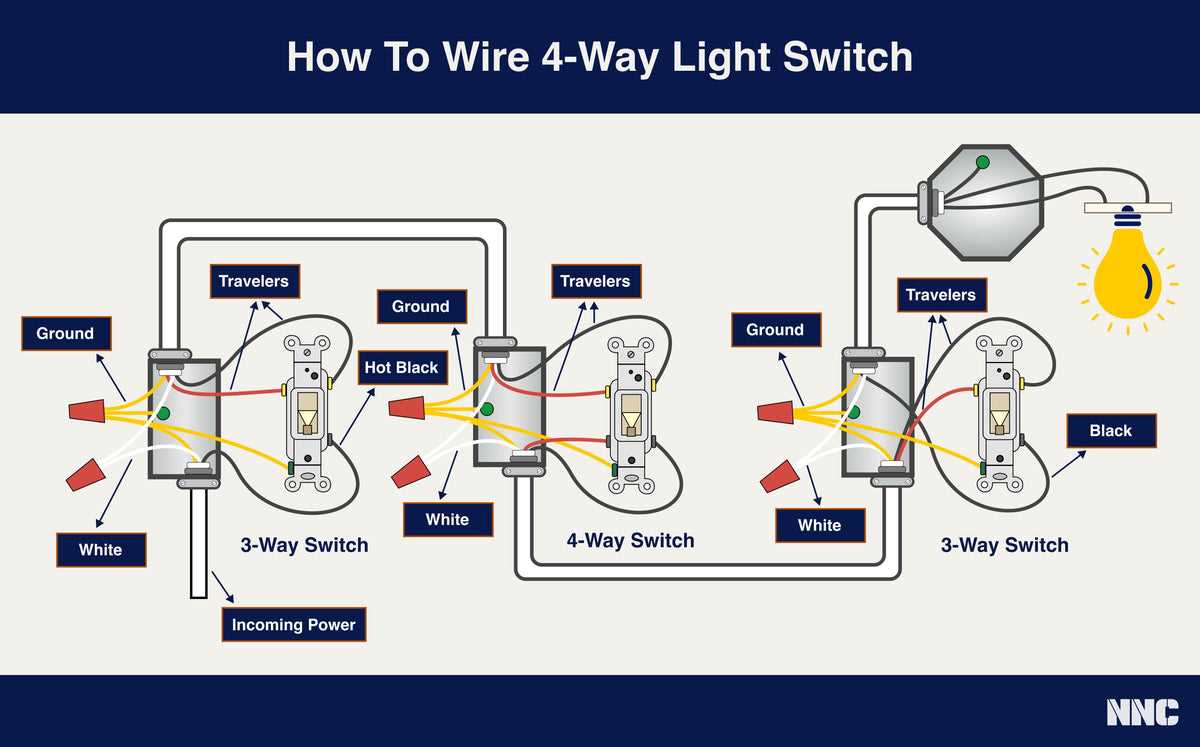

Schematic Layout for Parallel Socket Connections
Use 12 AWG copper conductors for 20-ampere circuits; 14 AWG suits 15-ampere lines. Connect the brass screw to the ungrounded (hot) conductor, the silver screw to the grounded (neutral) conductor, and the green screw to the equipment grounding conductor. For a series-parallel configuration, splice each conductor to the corresponding terminal of the next receptacle using pigtail connectors; ensure all joints are secured with wire nuts rated for the conductor size. Test continuity with a multimeter after installation–open circuits indicate improper connections or damaged cables.
Load Distribution Strategies
Split receptacles into two separately controlled circuits by breaking the metal tab between brass screws on the same side; leave neutral tabs intact. Install arc-fault circuit interrupters (AFCIs) at the first outlet of each branch to meet NEC 210.12 requirements. Distribute loads evenly: avoid exceeding 12 devices on a 20-ampere circuit or 8 on a 15-ampere circuit to prevent nuisance tripping. Label each circuit breaker with the corresponding outlet locations using a permanent marker–this simplifies troubleshooting and future modifications.
Gear and Supplies for Installing Electrical Connection Points
Start with a non-contact voltage tester (CAT III 600V or higher) to verify live circuits–never trust breaker labels or visual inspections alone. A Klein Tools NCVT-3 or Fluke 1AC-A II detects voltages down to 12V AC, critical for ground-fault or backfeed risks. Pair this with a multimeter (e.g., Fluke 87V) set to 10A DC/AC to confirm continuity, resistance, and proper grounding. Keep insulated screwdrivers (VDE-certified, 1000V) in sizes #1, #2, and #3 for terminal access; avoid standard Phillips or flathead as they lack dielectric protection.
Core Components Checklist
| Item | Specification | Quantity per 4-Unit Run |
|---|---|---|
| 12 AWG NM-B Cable | CU, THHN/THWN, 90°C, 20A rating | 25 ft (add 10% for slack/waste) |
| Dual-Gang Boxes | 4″ x 4″ x 1.5″, 21 cu. in., steel | 5 (1 spare) |
| Receptacles | NEMA 5-20R, 20A/125V, tamper-resistant | 4 |
| 1/2″ EMT Conduit | Galvanized, 10 ft lengths | 3 (if surface-mount required) |
| Wire Nuts | Red (32-18 AWG), UL-listed | 15 |
Use fish tape (3/16″ steel, 25 ft) to pull conductors through stud cavities; lubricate with silicone-based wire pull lube (not soap) to reduce friction by 60%. For deep or obstructed runs, opt for a flexible conduit rodder (e.g., Gardner Bender GRT-16) to navigate 90° bends. Label each conductor at both ends with pre-printed wire markers (e.g., Brady BMP71)–color-coding hot (black/red), neutral (white), ground (green)–to eliminate misconnections. Store connectors in a magnetic tray to prevent loss during installation.
Equip a 12″ hacksaw with 24 TPI blade for cutting conduit; apply anti-sieze compound to threads before assembly to prevent galvanic corrosion. Verify torque on all terminal screws (12 in-lbs for receptacle screws, 20 in-lbs for breaker terminals) using a calibrated driver (e.g., Wiha 32610). Keep a heat gun (120V, 1500W) on hand to shrink dual-wall adhesive-lined tubing (3:1 ratio) for splices exposed to moisture–standard electrical tape degrades under UV or repeated flex.
Step-by-Step Guide to Building Parallel Connections for Socket Networks
Turn off the main breaker before handling any conductive paths–verify absence of current with a non-contact voltage detector. Identify the source feed from the distribution panel, ensuring it’s a dedicated 15- or 20-amp circuit capable of handling the total load of connected devices. For residential installations, use 12-gauge copper wire (rated for 20 amps) or 14-gauge (15 amps) as specified by local electrical codes. Label each conductor at both ends: black (hot), white (neutral), green or bare (ground).
Route and Terminate Conductors
- Run a continuous hot wire from the source to the first receptacle, then splice a pigtail to connect the next fixture in sequence. Repeat for every additional socket.
- Neutral lines must follow the same parallel path–never bridge them directly between sockets, as this creates a series dependency and risks overload.
- Ground conductors must bond all metallic components: outlets, boxes, and the panel. Use insulated green wire for isolated ground applications where required.
Strip ⅝ inch of insulation from each wire end, loop clockwise around terminal screws (brass for hot, silver for neutral, green for ground), and tighten to 12–15 lb-in torque. Over-tightening damages threads; under-tightening causes arcing. Verify connections with a torque screwdriver calibrated to manufacturer specs.
Test and Validate Installation
- Restore power at the breaker and check each socket with a plug-in tester–confirm correct polarity and ground integrity.
- Measure voltage between hot-neutral (110–125V) and hot-ground (110–125V); neutral-ground should read 0V (±1V). Deviations indicate wiring errors.
- Load-test by connecting devices totaling ≤80% of circuit capacity (e.g., 16A on a 20A circuit). Monitor for excessive heat at terminals or conductors–discontinue use if temperatures exceed 140°F.
Secure all receptacles into boxes with mounting screws, ensuring faceplates sit flush against the wall. Use tamper-resistant outlets for households with children; arc-fault circuit interrupters (AFCIs) are mandatory in bedrooms, living rooms, and hallways per NEC 210.12. Document the circuit layout on blueprints or labeling tape inside the panel door for future reference.
Safely Linking Several Socket Points to One Electrical Feed
Use 12-gauge copper conductors for circuits carrying up to 20 amperes; 14-gauge suffices only for 15-ampere lines. Verify the breaker rating matches the conductor size–overloading risks overheating and fire. Curved-back boxes allow deeper wire bends without violating the 15 cm (6-inch) minimum bend radius. Strip insulation precisely to the terminal screw depth; excess bare wire invites short circuits.
Daisy-chain connections in a single run by attaching the incoming and outgoing cables to opposite sides of each socket’s binding screws. Avoid back-stab terminals–they loosen under thermal cycling. Instead, use screw-secured or clamp-style connectors rated for 90 °C wire. Secure each joint with a torque screwdriver to NEC-specified inch-pounds: 12–14 in-lb for 15–20 A circuits.
Grounding and Insulation Checks
Ensure every outlet shares a continuous grounding path; splice grounds with a copper pigtail tied to the box if metal, or bond directly to plastic boxes with listed clamps. Test each connection with a multimeter–open-ground readings above 1 ohm mandate rework. Cover splices inside junction boxes with solid, non-conductive plates; never bury splices behind drywall.
Limit the circuit to 12 socket points per 20 A feed or 10 per 15 A to prevent voltage drop exceeding 3 %. Keep horizontal runs under 30 m (100 ft) and vertical drops under 15 m (50 ft) from the breaker panel. Use arc-fault circuit interrupters (AFCI) at the origin for circuits serving living areas; install ground-fault circuit interrupters (GFCI) at the first outlet in wet zones to guard downstream connections.
Selecting Correct Wire Sizes and Overcurrent Protection for Receptacle Circuits
Install 12 AWG copper conductors for 15-amp and 20-amp branch circuits supplying standard 120-volt receptacles in residential settings. This gauge safely handles 20 amperes at 60°C–matching the maximum continuous load permitted on a 20-amp circuit breaker without overheating insulation or terminals. For 30-amp circuits, use 10 AWG copper; this size carries 30 amperes at 75°C, satisfying NEC 220.14 requirements for fastened-in-place appliances.
Avoid sizing conductors based on device faceplate amperage alone. A single 15-amp receptacle accepts up to 20-amp pass-through currents when fed by a 20-amp branch circuit–common in kitchen small-appliance circuits. Verify minimum conductor ampacities using NEC Table 310.16 and adjust for ambient temperatures exceeding 30°C: reduce rated ampacity 6% per 5°C increment above 30°C, critical in attics or enclosed luminaires where heat accumulation accelerates insulation degradation.
Circuit breaker trip curves must correlate with conductor thermal limits. A 20-amp breaker protects 12 AWG copper against sustained overloads up to 240% of its rating, allowing temporary inrush currents without nuisance tripping. Never substitute breakers: a 20-amp breaker installed on 14 AWG copper risks overheating insulation below its 15-amp capacity, violating NEC 240.4(D)(3). For multi-wire branch circuits shared by ungrounded conductors, use handle-ties to ensure simultaneous disconnect, preventing neutral overload.
Grounding conductors require separate sizing rules. For circuits up to 60 amperes, 12 AWG copper suffices; above 60 amperes, match grounding conductor size to the ungrounded conductor per NEC Table 250.122. Aluminum conductors demand upsizing: 10 AWG aluminum handles 20 amperes at 75°C–equivalent to 12 AWG copper–while reducing oxidization risks with terminal compounds. Conductors feeding detached garages or pools require GFCI protection independent of breaker rating; size conductors at least 8 AWG for long branch circuits exceeding 50 feet to minimize voltage drop below 3%.
Verify terminal compatibility before terminating. Receptacle screw terminals rated 75°C accept 12 AWG copper at 20 amperes, but stranded wire requires crimped terminals to prevent loosening. Circuit breakers marked “CU-AL” accept copper-clad aluminum; pure aluminum requires CO/ALR-rated devices to prevent galvanic corrosion. Test continuity after installation: a megohmmeter set to 1000 volts should read above 1 megohm between conductors and ground to confirm insulation integrity before energizing.
