Use a 14-gauge (or thicker) three-conductor cable between the control unit and the first illumination point if the setup includes a neutral wire for smart devices. For traditional installations, a two-conductor cable suffices, but ensure the conductor diameter matches or exceeds the circuit’s breaker rating–20 amps requires 12-gauge minimum.
Install the control device at the beginning of the loop, not the end. All fixtures must connect in parallel, never daisy-chained in series, to prevent voltage drop across the chain. Strip 1/2 inch of insulation from each cable end and secure with wire nuts, twisting clockwise before capping to avoid loose connections.
Ground all metallic junction boxes and fixture casings, even in low-voltage setups. Use green or bare copper wire for grounding, bonding it to the box’s grounding screw or pigtail. Verify continuity with a multimeter–readings should show near-zero ohms between the ground wire and metal components.
For circuits exceeding 800 watts total load (e.g., six 100W bulbs), split the load across two separate control units to avoid overheating the conductors or tripping the breaker. Label each cable run at both ends to simplify future maintenance.
Test the setup before finalizing wall finishes. Activate the circuit and measure voltage at the last fixture–it should match the source voltage (typically 110–120V). Dim lighting or flickering indicates a loose connection or insufficient conductor gauge.

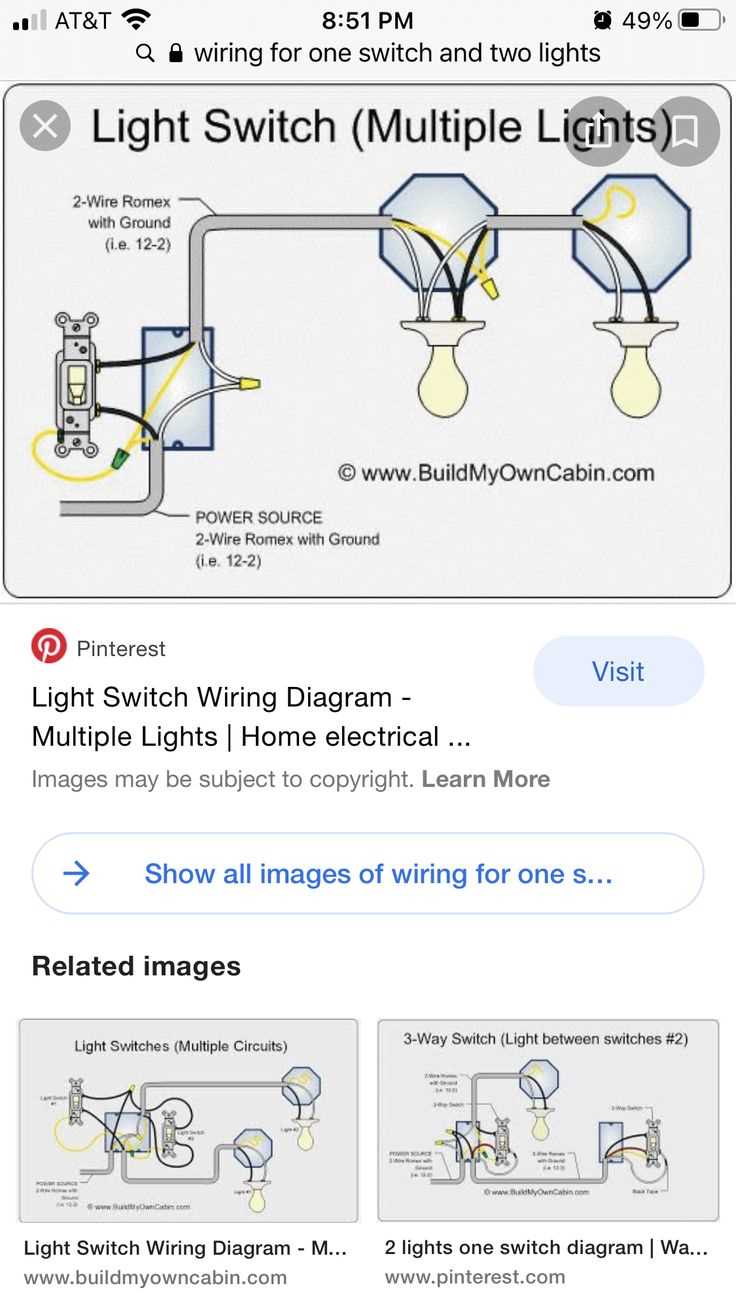

Connecting Several Fixtures to a Single Control
Use a parallel circuit layout to ensure each luminaire operates independently. Run a live conductor directly from the breaker panel to the control element, then split it into separate branches–one for every fixture. Neutral and grounding wires must follow the same branching pattern, connecting to each unit before looping back to the panel. This prevents voltage drop and maintains consistent brightness across all bulbs.
Choose 12-gauge copper conductors for installations under 20 amperes to handle the cumulative load without overheating. If the total wattage exceeds 1,200 watts on a 15-amp circuit, downgrade to an upgraded 20-amp breaker paired with 10-gauge wire. Label each branch at the junction box with heat-shrink tubing to simplify future troubleshooting or modifications.
Install a weatherproof enclosure for outdoor setups; seal all entry points with silicone gaskets to block moisture. Inside junctions, twist wire ends clockwise before securing them with ul-listed wire nuts, then wrap each connection in electrical tape. Avoid daisy-chaining more than three fixtures on a single branch–long runs increase resistance, dimming distant units.
Test continuity with a multimeter before restoring power: probe the live terminal against each fixture’s live input while the control is engaged. Readings should match the circuit’s rated voltage (±5%). If any fixture fails, inspect for loose connections first; corroded terminals or partial strands inside wire nuts often cause intermittent failures.
Keep all conductors at least 12 inches from high-voltage lines and separate low-voltage control cables by minimum 4-inch spacing to prevent electromagnetic interference. Mount the control within 6 feet of the door frame, but outside damp zones; bathroom fixtures require a GFCI-protected control, while dimming switches mandate compatible LED drivers.
Essential Equipment and Supplies for Installing a Grouped Illumination Setup
Select a 14-gauge NM-B copper cable for circuits under 15 amps or 12-gauge if the breaker exceeds this threshold–verify local codes to confirm approved conductors. Gather wire nuts (minimum 3/8″ for secure connections), cable staples (u-shaped, 1/2″ for 14/2 NM), and a voltage tester (non-contact type with LED indicator). Include junction boxes (4″ square for shared connections, 3.5″ octagonal for individual fixtures), ensuring they meet NEC 314.16 volume requirements based on conductor count. A stripping tool with 12-20 AWG notches prevents nicked wire insulation, while lineman’s pliers (8″ lever-lock) handle heavy-gauge splicing without slippage.
Opt for switch-rated wire connectors (e.g., lever nuts) if retrofitting dimmers–standard twist-on types risk overheating under LED loads. For overhead runs, use flexible conduit (1/2″ LFNC-B) with strut clamps to safeguard runs through joists; rigid options like EMT require reamers to deburr cut ends. A fishing tape (at least 50 ft) tackles walls without damage, while a multimeter (auto-ranging, CAT III 600V) confirms circuit integrity post-installation. Avoid cheap staples with sharp edges–they pierce jacket insulation over time.
Step-by-Step Configuration for a Unified Control Point
Start by cutting power at the circuit breaker to eliminate risk–verify absence of voltage with a non-contact tester on both the live (hot) conductor and neutral before proceeding. Strip 6–8 mm of insulation from each conductor end using wire strippers calibrated for the gauge (typically 14 or 12 AWG for residential installations). If the existing circuit lacks a grounding path, install an 8-gauge bare copper grounding conductor connected to the switch’s grounding terminal and bonded to the junction box if metallic. Join the incoming live conductor to the switch’s bottom terminal, ensuring the connection is secure enough to withstand a 10 Nm torque–most modern switches specify this requirement with a label near the screw.
Connecting Loads and Finalizing
Route the switched conductor from the top terminal to the first fixture’s junction box, terminating excess length with insulated twist-on connectors (listed for the conductor count and rated at least 600 V). For sequential connections, splice an additional conductor from each fixture’s load terminal to the next, maintaining consistent polarity–match neutral-to-neutral and live-to-live at every junction. Cap unused pigtails with a 30 mm insulation tape sealant to prevent oxidation. Re-energize the circuit and test each load point individually using a voltage tester to confirm consistent 120/240 V (or applicable) across all terminals before securing switch plates and fixture covers–torque plate screws to 1.5 Nm to prevent loosening from thermal cycling.
Secure Cable Routing Between Fixtures and Control
Start by selecting cables rated for the load and environment. Use 14 AWG copper conductors for 15-amp circuits handling up to 1,800 watts, and 12 AWG for 20-amp circuits supporting 2,400 watts. Verify insulation type: THHN for dry, indoor spaces; THWN or XHHW for damp or exterior runs. Avoid aluminum wiring unless using dual-rated connectors explicitly approved for such connections.
Plan paths that minimize sharp bends and avoid proximity to heat sources, water pipes, or HVAC ducts. Keep horizontal runs at least 12 inches below ceiling joists or 18 inches above floors, maintaining 6-inch clearance from studs when drilling through framing. For outdoor connections, use direct burial cable (UF) or conduit-rated wire (GRC or PVC Schedule 40) buried 18 inches deep, rising to 8 inches if protected by conduit.
- Drill holes ⅛ inch larger than cable diameter to prevent sheath damage.
- Staple non-metallic cables every 4.5 feet and within 12 inches of junction boxes.
- Use nail plates on studs where cables pass within 1¼ inches of the edge.
- Pull tension not exceeding 0.7 lbs per foot for 14 AWG, 1.0 lbs for 12 AWG.
Group circuits by designated colors per NEC Table 590.3(C): black for hot, white for neutral, green or bare for grounding. Label both ends of each conductor with heat-shrink tubing or permanent marker, noting origin and destination points. Where splices unavoidable, use listed junction boxes with removable covers, sized per 314.16(B) fill calculations–minimum 18 cubic inches for two 12 AWG conductors plus devices.
- Junction boxes: 4-inch square for ≤4 conductors, 4-11/16-inch octagon for >4.
- Twist wire nuts designed for the gauge (e.g., yellow for 12-10 AWG, red for 14-12 AWG).
- Secure connections with UL-listed push-in connectors if compression not preferred.
- Test continuity post-installation using a multimeter set to ohms: infinite resistance indicates interruption,
Seal penetrations through fire-rated assemblies with intumescent caulk or putty rated for the specific fire-resistance rating. Install bushings on conduit ends where cables exit or enter enclosures to prevent abrasion. For suspended ceilings, secure cables to structural supports with zip ties or metal hangers, avoiding reliance on ceiling tiles for support. Where running parallel to pipes, maintain 6-inch horizontal and 1-inch vertical separation unless cables are conduit-protected.
Terminate excess cable with service loops measuring 6 inches inside boxes, allowing room for future modifications without requiring new cable pulls. Ground all metallic junction boxes and fixtures using a separate grounding conductor, not relying on conduit alone unless specifically permitted by local code interpretations. Verify installations with a torque screwdriver calibrated to manufacturer specifications–typically 10-18 lb-in for terminal screws–then apply tamper-evident covers or blank plates to complete the task.
Critical Errors to Evade When Connecting Several Illumination Sources
Overloading a circuit breaker by failing to calculate total wattage is reckless. Each fixture’s power draw must be summed before connecting to a control device. For instance, a 20-amp breaker at 120V supports roughly 2,400 watts–exceeding this risks tripping or fire. Always verify breaker ratings against total load, accounting for inrush currents during startup, which can temporarily spike 20-30% above nominal wattage. Use a multimeter to confirm actual voltage at the junction box; variations from 115-125V affect power consumption calculations.
Neglecting proper grounding invites electrical shock hazards. Every metallic component–enclosures, mounts, even decorative metal trim–must bond to the grounding conductor. Use a dedicated ground wire (bare or green-insulated) running directly to the breaker panel’s ground bus. If retrofitting older installations, check for knob-and-tube or aluminum conductors; these require pigtailing copper wire with anti-oxidant compound to prevent corrosion. Never trust a grounding screw in a plastic junction box–always run a continuous ground path back to the panel.
| Component | Minimum Wire Gauge (CU) | Max Current (Amps) | Typical Wattage Capacity |
|---|---|---|---|
| 14 AWG | 15 | 1800W @ 120V | LED fixtures, low-voltage strips |
| 12 AWG | 20 | 2400W @ 120V | Incandescent clusters, halogen |
| 10 AWG | 30 | 3600W @ 120V | High-output HID, commercial spots |
Daisy-chaining fixtures without evaluating voltage drop leads to dimming at the tail ends. Copper conductors exhibit resistance–0.012 ohms per meter for 14 AWG–which compounds over distance. For a 50-foot run with 10A load, expect a 6V drop, reducing lumen output by 15-25% on distant units. Combat this by upsizing conductors (e.g., 12 AWG instead of 14 AWG) or injecting power at multiple points. Use this formula: Vdrop = (2 × Length × Resistance × Current) / 1000. For 12 AWG, 0.005 ohms/meter; plug in values to determine exact losses.
Mixing incompatible dimmer types with fixtures creates flickering or buzzing. Leading-edge dimmers suit incandescent and halogen; trailing-edge models work with LEDs. Check manufacturer specs–some LED drivers tolerate only specific dimmer curves. Replace generic “universal” dimmers if flicker persists; opt for models tested with your specific driver (e.g., Lutron’s CL series for Cree LEDs). Never splice dimmer wires to a standard toggle control; the phase-cut circuitry requires dedicated connections.
Skipping junction box fill calculations violates NEC 314.16, risking overheated connections. Each conductor, clamp, and device counts toward fill limits: 14 AWG needs 2.0 in³ per conductor; 12 AWG needs 2.25 in³. A 4-inch square box with 12.5 in³ capacity fits four 12 AWG wires and one device (e.g., switch or pigtail), totaling ~11.25 in³–anything beyond requires upsizing. Always derate fill by 20% for splices; use push-in connectors only with stranded wire to avoid loosening.
