Start by connecting the primary power source directly to the electromagnet assembly. Use a 24V DC adapter as the standard input–higher voltages risk overheating the coil, while insufficient current weakens holding force. A circuit breaker rated at 2A should be installed upstream to prevent short-circuit damage. Avoid daisy-chaining multiple units; each lock requires dedicated wiring to maintain consistent performance under load.
Bridge the control module with a NO (Normally Open) relay for fail-secure operation. The relay’s coil must match the lock’s voltage specs–mismatches cause delayed response or erratic disengagement. For redundant safety, wire a backup battery (12V, sealed lead-acid) in parallel, ensuring uninterrupted operation during power failures. Test voltage drop across the entire loop; readings below 22V indicate excessive resistance, often from undersized wire (use 18 AWG or thicker for runs exceeding 10 meters).
Integrate a magnetic reed switch as a feedback signal for door status monitoring. Position it precisely–misalignment by even 3mm introduces false triggers. For multi-door systems, isolate each circuit with fuses (1.5A fast-blow) to localize faults without cascading shutdowns. When interfacing with access panels, prioritize low-voltage contacts (e.g., Wiegand, RS-485); direct 24V connections to logic outputs can damage sensitive controllers.
Ground the assembly via a separate earth wire–never rely on metal frames alone, as oxidation introduces resistance. For outdoor installations, apply waterproof heat-shrink tubing to all exposed joints and seal junction boxes with silicon-free dielectric grease to prevent corrosion. Verify pull strength after wiring: 1,200 lbs minimum for commercial-grade units; values below 800 lbs suggest poor contact or reversed polarity.
Electrical Connection Guide for Electromagnetic Access Control
Begin by identifying the power supply unit (PSU) voltage requirements–typically 12VDC or 24VDC–matching the solenoid’s specifications. Verify the manufacturer’s datasheet for exact tolerances; deviations beyond ±10% may cause erratic behavior or permanent damage.
- Locate the positive (+) and negative (-) terminals on both the PSU and the actuating device.
- Use 18-22 AWG stranded copper wire for signal transmission; solid core may lead to premature failure under mechanical stress.
- Ensure the earth ground connection is clean and directly bonded to the chassis or dedicated grounding rod, avoiding shared neutral paths.

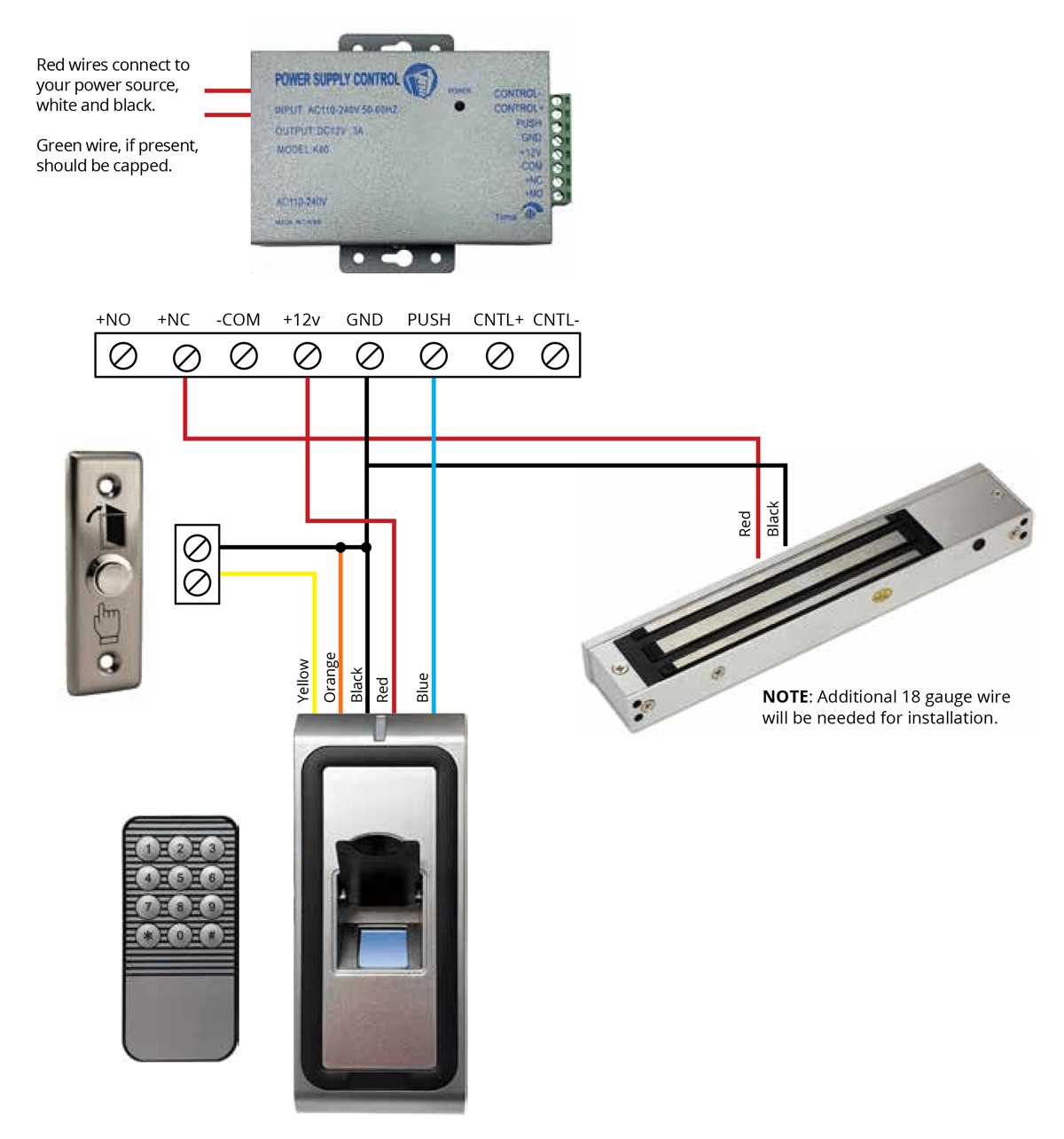

Connect the release switch or access control panel (ACP) in series between the PSU and the holding device. Most systems require a normally open (NO) relay contact interfacing with the ACP; consult the ACP manual for specific relay coil voltage (often 5VDC or 12VDC).
Test continuity before energizing. Use a multimeter to confirm 0Ω resistance across closed contacts and infinite resistance when open. A 1kΩ resistor in parallel with the holding coil can protect against voltage spikes if not already integrated into the design.
- Mount the release solenoid on a rigid, non-ferrous surface (e.g., aluminum or stainless steel) to prevent magnetic flux leakage.
- Align the strike plate within 3mm tolerance of the solenoid’s face to ensure full engagement; misalignment reduces holding force by up to 40%.
- Secure all wiring with cable ties at 15cm intervals, avoiding sharp edges or moving parts that could abrade insulation.
For fail-secure configurations, route the PSU through a UPS with a minimum 30-minute runtime. Fail-safe designs demand a supervised circuit: monitor the circuit with an EOL (end-of-line) resistor (typically 1kΩ) to detect tampering or faults.
Configure the ACP to trigger the relay for 1-3 seconds–extended activation risks overheating. Some solenoids integrate a thermal cutout; if absent, add a 1A fuse in line with the positive lead to prevent fire hazards.
Document every connection with labels (e.g., “PSU+ → ACP NO,” “ACP COM → SOLENOID+”). Use color-coded wiring per IEC 60446:
- Red = +12VDC/24VDC
- Black = Common/Ground
- Blue = Signal Input (NO/NC)
- Yellow = Supervisory (if applicable)
Audit the setup quarterly: re-torque terminals to 0.5 Nm, inspect for oxidation, and re-test holding force with a dynamometer (minimum 250 kgf for commercial-grade units).
Core Elements for Electromagnetic Access Control Assembly
Begin with a 12V to 24V power supply rated at least 2A output; underpowered units cause intermittent release failures. Select a fail-secure strike plate–models like the HES 5000 series withstand 1,200 lbs of holding force while remaining dormant during power cuts. Include a control relay (SPDT) with 10A contacts; generic relays may weld under inductive loads from strike coils.
Mount an access reader compatible with your credential type–proximity cards demand Wiegand readers pulling 50mA @ 12V, biometric scanners need an additional 500mA. Connect fire alarm override contacts; NFPA 72 mandates instantaneous unlocking during alarm states to meet egress compliance. Route stranded 18AWG cables for signal paths, avoiding solid-core wire which fractures under repeated door movement.
Install a diode across the strike coil (1N4007) to suppress voltage spikes exceeding 30V; omit this and risk damaging the relay. Place a 1A fuse inline with the positive supply–failures in cheap knockoffs draw 4A transient current on activation. Test holding force with a pull-gauge; budget models often advertise 600 lbs yet deliver ≤350 lbs under real door frame flex.
Installation Guide for 12V Electromagnetic Latching Systems
Begin by securing the power supply unit (PSU) within 1.5 meters of the strike plate to minimize voltage drop. Use 18 AWG stranded copper cable for all connections–solid core wires may fatigue under mechanical stress. Test the PSU output with a multimeter before proceeding; it must deliver 12V DC (±0.5V) under load. If the system includes a controller, connect the positive lead to terminal NO (Normally Open) and the negative to GND, ensuring polarity matches the manufacturer’s labeling.

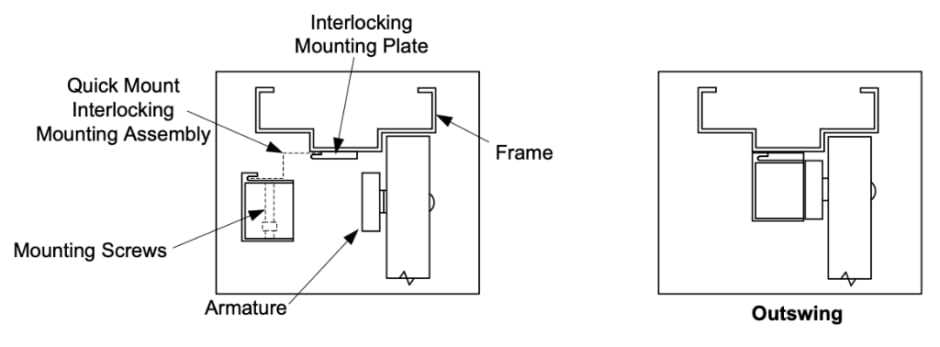

- Mounting: Position the strike plate on the door frame using alignment jigs–misalignment exceeding 3mm reduces holding force by 40%. Secure with M6 bolts; washers prevent surface compression damage to the electromagnetic plate.
- Cabling: Run cables through 16mm conduits if exposed, or staple them at 30cm intervals if concealed. Avoid sharp bends (radius < 5cm) to prevent wire insulation cracks. For outdoor installations, use IP67-rated glands at entry points.
- Fail-Secure/Fail-Safe: Wire the release mechanism to the COM terminal. Fail-secure setups require a closed circuit to engage; fail-safe disengages when power is cut. Verify the mode before energizing the system.
Finalize by connecting auxiliary components–door sensors (if present) must interface with the controller’s SIG terminal. Use a 1kΩ resistor across sensor wires to suppress noise. After completing all connections, energize the system and measure holding force with a dynamometer; values below 280kgf indicate incorrect wiring or misaligned surfaces. For distributed loads (e.g., multiple strikes), use a relay panel–never parallel strikes directly to a single PSU output.
Proper Power Supply Integration for Electromagnetic Access Control
Connect the system directly to a dedicated 12V or 24V DC power source with a minimum 1A capacity–check the device’s technical specifications for exact requirements. Use stranded copper wire (18-22 AWG) to minimize voltage drop over distances exceeding 5 meters; for longer runs, increase wire gauge or add a secondary power relay near the installation site. Install a fuse (1.5-2x the lock’s rated current) between the power supply and the lock to prevent damage from power surges or short circuits.
Ensure the power supply’s input matches the local mains voltage (110-240V AC) and verify polarity before making final connections. For continuous-duty applications, select a power adapter with built-in overload protection and dual-output regulation (e.g., linear or switching mode) to maintain stable voltage under varying loads. Avoid shared circuits with inductive loads like motors or fluorescent lighting, which can cause electromagnetic interference and reduce holding force consistency.
Test voltage at the lock’s terminals before securing connections–use a multimeter to confirm values within ±5% of the manufacturer’s specified range. If the system includes fail-safe/fail-secure modes, verify the power supply can handle the inrush current during switching events (typically 2-3x the nominal current). For outdoor installations, use a sealed power supply rated for the environmental conditions (IP65 or higher) and include lightning surge protection if the area experiences frequent electrical storms.
Seamless Integration of Security Electromagnetics with Centralized Access Networks
Begin by selecting a fail-secure electromechanical holding device rated for at least 600 lbs holding force if securing entry points with high-traffic or heavy-duty requirements. These units must be paired with a power supply delivering 12VDC or 24VDC, ensuring continuous current output of no less than 1.2A per unit. Undervoltage conditions compromise retention strength, risking unintended release during power fluctuations.
Connect the solenoid staging terminals to a dedicated control circuit that isolates release commands from auxiliary systems. Use a double-pole relay or solid-state switch with a response time under 15ms to prevent latency-induced breaches. The control input should accept dry contact closure from access panels, biometric scanners, or networked management software. Avoid single-point dependency by dual-sourcing the command signal through redundant pathways.
Implement auxiliary feedback loops for operational verification. A status indicator LED or low-power reed sensor wired in series with the primary coil confirms energization state. Log these events through an RS-485 interface to an access controller, capturing timestamped actuation logs for audit trails. Below is a minimal integration matrix for common interface types:
| Interface Type | Voltage Compatibility | Maximum Cable Run | Recommended Conductor Gauge |
|---|---|---|---|
| RS-232 | ±5V to ±15V | 15m | 24 AWG twisted pair |
| RS-485 | +5V or +12V | 1200m | 22 AWG shielded |
| Dry Contact | 24VDC max | 300m | 18 AWG stranded |
| Weigand | +5V | 150m | 26 AWG twisted pair |
Surge suppression is non-negotiable. Install transient voltage suppression diodes across coil terminals rated for 350V or higher clamping voltage. For outdoor installations, place gas discharge tubes adjacent to the entry panel and ground them to a dedicated earth rod with resistance below 10Ω. Shared ground paths introduce noise, corrupting signal integrity.
Adopt power redundancy using dual-transformer configurations or uninterruptible power units with automatic switchover. Calculate battery backup duration based on worst-case scenario draw: 1.2A consumption per holding device multiplied by 1.3 safety margin. For 24-hour autonomy at 12VDC, provision at least 36Ah capacity per unit. Test failover weekly under simulated outage conditions.
Migrate legacy standalone deployments to IP-based supervisory software that correlates lock states with badge reader events. Prioritize controllers supporting POE+ (IEEE 802.3at) to eliminate separate power runs. Ensure the API layer exposes real-time status endpoints for third-party integrations, allowing emergency override through mobile push notifications or alarm panel triggers. Latency in remote disengagement must not exceed 500ms, measured from command initiation to physical release.
