Begin by disconnecting the power at the circuit breaker to eliminate any risk of shock. Verify absence of voltage with a multimeter before proceeding–never assume the panel label is accurate. Identify the hot wire (typically black or red), neutral (white), and ground (bare or green) in the junction box. Use wire nuts to secure connections and wrap them clockwise with electrical tape for added stability.

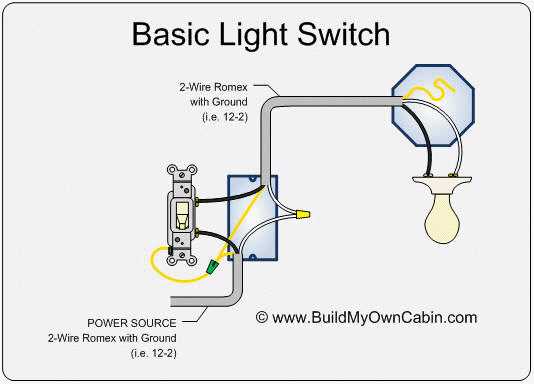

Single-pole setup: Attach the hot wire from the power source to the brass terminal on the controller. Connect the outgoing conductor to the remaining brass screw. Link neutrals from both the source and load together if required by modern models. Ground wires must join to the green or bare screw, ensuring a continuous path to the panel.

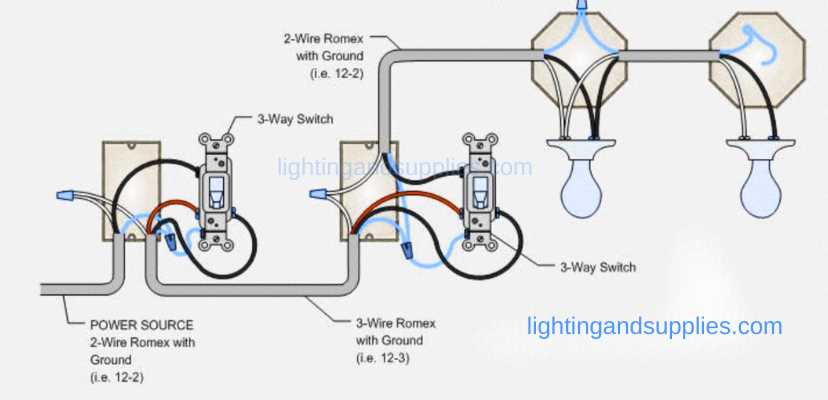

For three-way configurations, mark the common terminal (usually darker) on both units. Connect the incoming hot conductor to this terminal on the first unit. Use traveler wires (typically red and black) to link the remaining screws between the two controllers. The second unit’s common terminal carries current to the luminaire. Ground and neutral connections follow the same principles as single-pole, with neutrals bonded only if code permits.
Test all connections before securing the controller in the box. Restore power and cycle the mechanism multiple times–flickering or failure indicates loose wires or incorrect pairing. For dimmable variants, ensure the fixture’s bulb is compatible with the controller’s rating; incandescent, LED, and halogen each require specific configurations to avoid damage or poor performance.
Electrical Circuit Schematics for Controlling Illumination
Start by identifying the control mechanism’s terminals: common (C), normally open (NO), and normally closed (NC) if present. Single-pole setups require connecting the live conductor to C, while NO carries current to the fixture. Dual-pole variants demand parallel connections–C to incoming phase, both NO outlets linked to separate luminaires. Always verify terminal labels; misalignment risks short circuits or non-functional outputs.
Use 14 AWG copper conductors for standard 15-amp circuits, reserving 12 AWG for 20-amp configurations. Grounding remains non-negotiable: attach a bare or green-insulated lead from the switch’s ground screw to the junction box’s grounding busbar. For metal boxes without pre-grounded outlets, run an additional ground wire to the nearest grounded surface, such as a water pipe or dedicated grounding rod.
| Configuration | Hot Wire | Traveler Wires | Neutral | Ground |
|---|---|---|---|---|
| Single-pole | Single (C → NO) | None | Not required | Mandatory |
| Three-way | None (via travelers) | Two | Optional | Mandatory |
| Four-way | None | Four | Required if present | Mandatory |
Prioritize arc-fault circuit interrupters (AFCIs) for bedroom and living area installations. Install them at the panel or combine with dual-function breakers covering both AFCI and GFCI protection. Test AFCIs monthly using the integrated test button; failure to trip indicates immediate servicing needs. Skip cheap models–opt for certified brands like Leviton or Eaton, adhering to UL 1699 standards.
Smart switches demand neutral conductors for consistent low-voltage power. Locate the neutral bundle in the junction box–often white-sheathed–and connect it to the neutral terminal marked “N” or left blank. Powerline carriers (e.g., Lutron Caséta) eliminate this requirement but limit wireless range to 30 feet from the hub. Verify compatibility with LED drivers; some dimmable models flicker or fail without a neutral.
Mark unused conductors with heat-shrink tubing or color-coded electrical tape to prevent accidental energization. Label switch plates with permanent ink, detailing circuit purpose (e.g., “Kitchen Overhead”). For multi-gang boxes, stagger wire entry points to avoid crowding; use cable clamps rated for the conductor gauge. Final step: tighten all terminal screws to 12-15 in-lbs torque using a calibrated screwdriver–over-torquing strips threads, under-torquing causes arcing.
Essential Gear for Installing a Control Device
Start with a non-contact voltage tester–preferably one with both audible and visual alerts, such as the Klein NCVT-3 or Fluke 1AC-AII. This tool detects live circuits without physical contact, reducing risk of accidental shorts or shocks. Pair it with insulated screwdrivers rated for 1000V (VDE-certified) to handle terminal screws safely. For multi-gang configurations, a magnetic screwdriver speeds up alignment of mounting plates without dropping screws into wall cavities.
A wire stripper with calibrated notches ensures clean cuts without nicking conductors; models like the Irwin VISE-GRIP 2078300 strip 12-10 AWG solid or stranded cores precisely. Include needle-nose pliers for bending loops around screw terminals and a small fish tape or bent coat hanger to retrieve dropped wires from electrical boxes. A flashlight with a headband frees both hands for working in dim junction boxes, while a multimeter (set to continuity mode) verifies proper circuit completion before energizing.
For materials, use 14-2 NM-B cable with ground for 15A circuits or 12-2 for 20A loads, securing it with UL-listed ¾-inch staples every 4.5 feet. Choose a Decora-style toggle in thermoplastic (not phenolic) to resist heat and cracking, paired with a matching wall plate in polycarbonate rather than brittle plastic. If retrofitting older boxes, install gasketed plates to prevent drafts, and use twist-on connectors (red or tan, depending on conductor count) instead of push-in terminals for reliability.
Step-by-Step Guide to Identifying Hot, Neutral, and Ground Conductors
Begin by confirming power is disconnected at the circuit breaker. Use a non-contact voltage tester to verify absence of current–hold the probe near each wire before handling. Hot conductors typically carry black or red insulation, but older installations may deviate: red could indicate a traveler for multi-way setups, while black often serves as the primary live connection.
Examine the cable sheathing for markings. Modern NM cables label conductors with printing: “HOT”, “NEUTRAL”, or “GROUND”. If absent, look for brass-colored screws on devices–these terminate hot wires. Neutral connections attach to silver screws, while ground wires fasten to green screws or bare metal terminals.
Use a multimeter set to AC voltage to distinguish roles. Probe between suspected hot and ground–expect 120V (US) or 230V (EU). Test hot to neutral next; same voltage confirms correct identification. Zero volts between neutral and ground indicates proper bonding at the panel. Reverse polarity (hot/neutral swapped) risks shock and device damage.
Trace wires to the service panel for definitive identification. The hot conductor routes to a breaker, neutral connects to the bus bar with white wires, and ground terminates to a separate bar or metal enclosure. In conduit systems, bare copper or green-insulated wires are always ground. Split-phase systems in North America may show two hot conductors (black + red) sharing a neutral.
Troubleshooting Unmarked Conductors
For cables without standard coloring, note texture differences: hot wires often feel slightly stiffer due to thicker insulation. Ground conductors may be bare or wrapped in green/yellow striped sheathing (EU standard). In knob-and-tube wiring, hot wires appear secured by porcelain insulators, while neutral wires run closer to joists.
Check terminal screws on existing devices. Switches typically interrupt hot conductors–if a single pole device controls the circuit, the wire feeding power to it is hot. Neutral wires bypass switches, running directly to fixtures. For outlets, the narrower slot connects to hot, the wider to neutral; ground attaches to the round hole or U-shaped slot.
Document findings with labels or a sketch before modifying connections. If voltages read incorrectly–such as 0V between hot and neutral but 120V between hot and ground–the neutral may be disconnected upstream. Never assume wire functions based on cable position alone; always verify with a meter.
Proper Installation of a Basic Electrical Toggle
Begin by confirming the circuit breaker is off–test the terminal screws with a non-contact voltage detector before handling. Strip 3/8 inch of insulation from each conductor, ensuring copper strands remain intact. Insert black (hot) wires into the brass screws: one from the power source, the other leading to the fixture. Fasten screws clockwise until tight–no slack should remain. Secure the neutral (white) conductors with a wire nut, joining them directly unless the toggle requires a ground path. For switches with grounding screws, attach the bare or green wire firmly to the green screw.
- Use 12-gauge wire for 20-amp circuits or 14-gauge for 15-amp.
- Avoid back-stab connections–screw terminals provide more reliable contact.
- If using push-in connectors, verify compatibility with the wire gauge.
- Inspect for exposed copper after tightening–no more than 1/16 inch should protrude past the screw.
- Fold wires neatly into the box, ensuring no pressure is placed on terminal connections.
- Restore power and test–if the fixture fails to energize, recheck screw tightness and wire continuity.

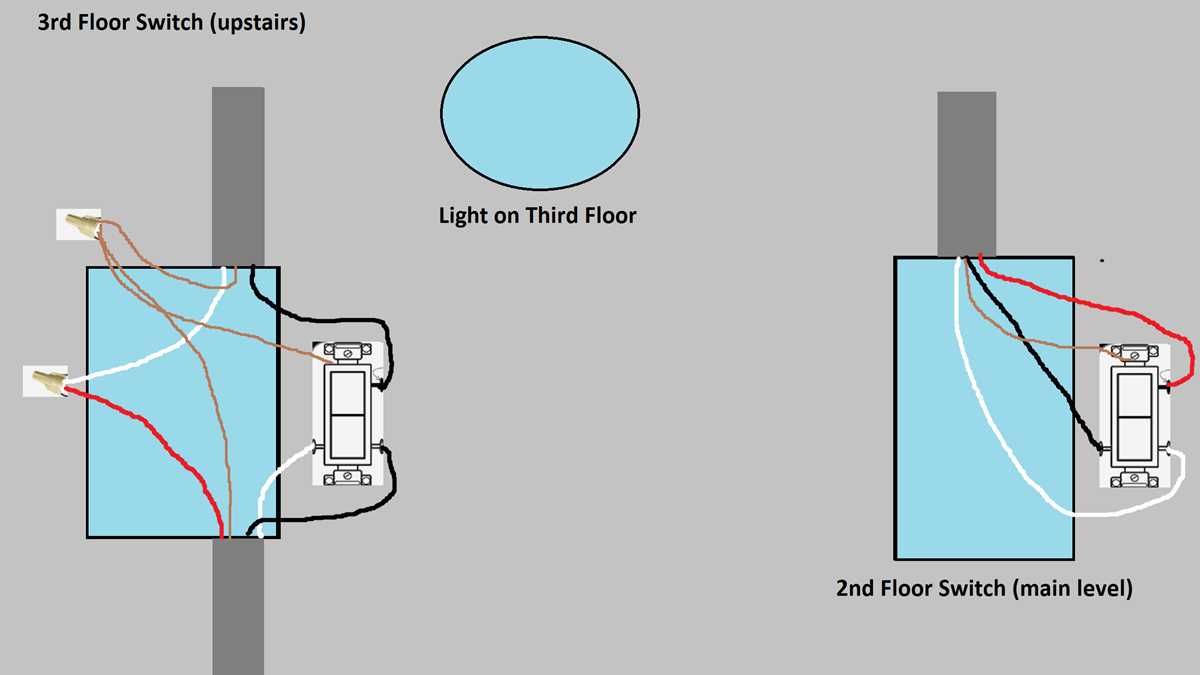

Connecting a Three-Pole Control Setup: Essential Links
Use 14/3 or 12/3 NM cable between both control points to carry the traveler conductors and ground. Label the brass-colored screws on each device–these always receive the red and black traveler wires. The dark-colored screw (common terminal) must connect to the hot feed at one box and to the fixture at the other; mixing these causes erratic operation or failure.
At the first box, connect the incoming hot conductor (black or marked) to the common terminal. Run the red and black traveler wires through to the second box, attaching them to the brass terminals there. Ground wires splice together with a pigtail to the green screw on each control. Test continuity before securing the devices–misplaced traveler wires will prevent proper toggling.
Critical Terminal Identification
The common terminal on many brands sits opposite the mounting yoke–check for a small stamp or finish difference. If absent, use a multimeter in continuity mode to identify it: clamp one probe to the device’s metal frame and touch the other to each screw. The single screw without beep is the common; mark it instantly with tape.
Leave a six-inch loop of slack at each connection for future servicing. Secure cables with clamps within 12 inches of box entry, then staple every 4.5 feet outside boxes. Tuck excess neatly behind devices, avoiding sharp bends–acute angles risk insulation damage over time. Double-check torque values: 12-15 lb-in for #14, 18-24 lb-in for #12; over-tightening cracks terminal bases.
