Begin by isolating the low-voltage control circuit–typically 24V–from the power distribution network. Use a multimeter to verify voltage between the R (red) terminal and C (common) terminal on the thermostat subbase. A reading outside the 23–28V range indicates transformer stress or corroded connections, requiring immediate replacement. High-voltage lines (120V/240V) should be traced from the breaker panel to the condenser and air handler, ensuring wire gauge compliance: 10 AWG for 30A circuits, 12 AWG for 20A.
Label each conductor at both ends: Y1 (cool call), W1 (heat call), G (fan), O/B (reversing valve). Mislabeling O/B to Y1 in heat pump configurations forces the system into defrost mode prematurely, spiking energy consumption by 18–22%. For multi-stage systems, observe the staging delay–typically 5–7 minutes between stages–to prevent cycling losses. Use shielded twisted pair for humidity sensor wiring to eliminate EMI-induced false readings.

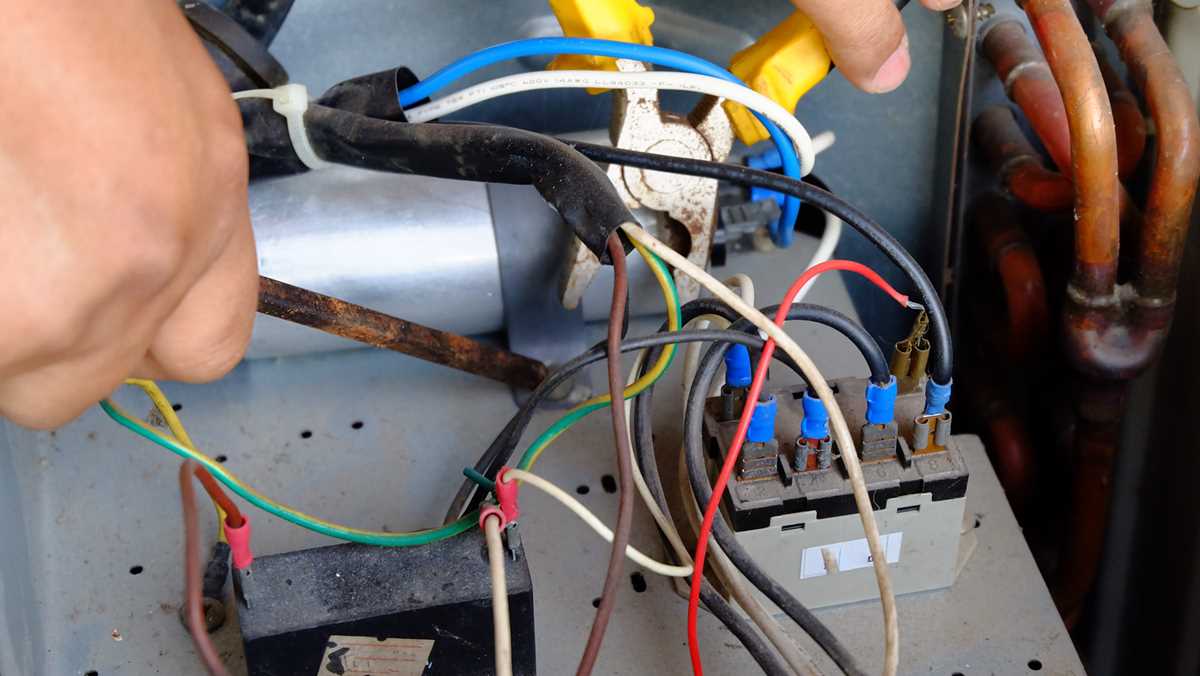

Test relays and contactors under load. A humming contactor with pitted contacts demands replacement to avoid voltage drop exceeding 3%. For variable-speed ECM motors, confirm the control module’s PWM signal (1–10V DC) aligns with manufacturer specs–deviation beyond ±0.2V triggers fault code E1 (Motor Overload). Grounding errors manifest as erratic compressor operation; ensure the grounding lug on the condenser unit connects to a dedicated ground rod with resistance below 25 ohms.
Sequence testing should follow this order: thermostat → control board → blower motor → compressor. Bypass the thermostat temporarily to verify the control board responds to direct 24V input. If the blower fails to engage, inspect the run capacitor–replace if capacitance falls below 90% of rated value. For dual-fuel systems, prioritize the electric heat strip’s interlock with the gas valve to prevent simultaneous operation.
Electrical Schematics in Climate Control Systems
Begin connection mapping by isolating the low-voltage control circuit from the power supply network. Identify transformers rated at 24VAC–commonly 40VA–and verify primary-to-secondary coil resistance with a multimeter: typical readings range between 0.5Ω and 1.2Ω. Label every terminal, including C (common), R (24V hot), Y (cooling call), G (fan activation), and W (heating command), using heat-shrink tubing color-coded per ANSI standard: red (R), white (C), yellow (Y), green (G), and orange (W).
Trace line-voltage feeds (120/240VAC) back to the disconnect switch, ensuring lockout/tagout protocols before probing. Confirm conductor gauge: 12 AWG for 20A breakers, 10 AWG for 30A circuits, and check insulation integrity–look for nicks or brittleness indicating potential arc faults. Utilize a megohmmeter to test dielectric strength: minimum 1 MΩ at 500VDC between conductors and ground.
Common Control Board Terminal Assignments
| Terminal | Function | Typical Voltage (AC) | Wire Gauge |
|---|---|---|---|
| R | Power feed | 24 | 18 |
| C | Ground reference | 0 | 18 |
| Y | Compressor relay | 24 (when active) | 18 |
| G | Air handler blower | 24 (when active) | 18 |
| W | Furnace relay | 24 (when active) | 18 |
| O/B | Heat pump reversing valve | 24 (when energized) | 18 |
Map inductive loads–compressor contactors draw 3.5A inrush current; use dedicated relays rated at 30A/240VAC with silver-cadmium contacts to prevent pitting. Snap-action switches on thermostats must close within 3 seconds to avoid delaying lockout timers. Check defrost board terminals: DF (defrost sensor), TT (temperature termination), and DE (defrost enable), calibrating thermistors to ±2°C tolerance via decade box simulation.
Sequence multi-stage equipment: first-stage compressor engages at 68°F, second stage at 72°F; verify staging via step controllers–solid-state boards trigger stage 2 after 120-second delay if demand persists. Condensing units require single-point grounding: 6 AWG copper strap from chassis to earth rod, tested at
Integrate safety interlocks: high-pressure cutout (300 PSIG), low-pressure cutout (10 PSIG), and freeze stat (≤35°F) upstream of all relays. Check oil failure switches on scroll compressors–timers must allow 60-second start delay before shutdown. For variable-speed ECM motors, verify 0-10VDC control signal integrity using a precision voltage source, ensuring linearity within ±0.5VDC at full RPM (typically 1500 RPM/VDC).
Power Feed Protection Requirements
| Circuit | Breaker Rating (A) | Wire Gauge (CU) | Fuse Type |
|---|---|---|---|
| Disconnect to condensing unit | 30 | 10 | Class RK5 |
| Air handler | 20 | 12 | Time-delay |
| Furnace | 20 | 12 | Dual-element |
| Heat pump auxiliary heat | 40 | 8 | Class T |
Validate communication buses on smart thermostats: Emerson’s EIM module requires 18-4 shielded cable, daisy-chaining up to 32 devices with
Critical Elements to Spot in Climate Control Electrical Schematics
Begin by locating the power supply lines–typically marked with identifiers like L1, L2, or numbers indicating voltage (120V, 240V). These connections originate from the breaker panel and feed the system’s main switchgear, often a disconnect or fuse box. Verify the amperage rating on these lines to ensure compatibility with the unit’s requirements; mismatches risk tripping breakers or overheating components.
Next, trace the thermostat cables, which usually consist of four to six colored leads (common colors: red for power, white for heat, yellow for cooling, green for fan, blue or brown for auxiliary). Confirm the thermostat’s subbase matches the system type–single-stage, multi-stage, or heat pump–by checking jumper settings. Incorrect wiring here disables functions or causes erratic cycling.
Sequential relays and contactors demand attention. These control high-amperage devices like compressors and blower motors. Inspect coil labels (e.g., 24VAC for thermostat-triggered relays, 120/240V for line-voltage contactors). Note the difference between normally open (NO) and normally closed (NC) contacts; reversing these can damage equipment or prevent operation. Capacitors wired in series with motors–start or run types–require verification of microfarad (µF) ratings; deviations shorten motor lifespan.
Identify safety switches, often embedded in low-voltage loops. Pressure cutouts (high/low), overflow sensors, and flame rollout switches (in gas systems) interrupt circuits upon detecting anomalies. Check their placement in the schematic–some systems wire them in series with thermostat calls, others in parallel branches. Bypass these only for testing, never permanently; doing so voids safety certifications.
For heat pump configurations, isolate the reversing valve solenoid (labeled O/B) and defrost controls. The valve shifts refrigerant flow between heating and cooling modes, while defrost timers or thermistors prevent coil icing. Incorrect wiring here results in reversed modes–cooling in winter, heating in summer. Additionally, compare indoor and outdoor unit models; mismatched components (e.g., incompatible expansion valves) render the schematic inaccurate.
Document transformer outputs. Climate systems rely on step-down units converting line voltage (e.g., 120V/240V) to 24VAC for controls. Locate the transformer’s primary and secondary windings, noting fuse ratings (typically 3-5A) on the primary side. Weak transformers–indicated by voltage drops below 22VAC under load–cause intermittent failures. Use a multimeter to measure outputs under load; readings should stabilize within ±5% of rated voltage.
- Check grounding paths: Dedicated ground wires (green or bare copper) must connect to both the unit’s chassis and the main panel. Floating grounds create shock hazards or electrical noise that disrupts thermostat communication.
- Verify motor winding labels: Compressor common (C), start (S), and run (R) terminals must match the schematic. Swapping S and R burns out windings.
- Inspect relay coils for voltage compatibility: 24V coils control high-voltage compontents; mixing these (e.g., 120V coil on a 24V circuit) causes burnout.
- Cross-reference manufacturer-specific symbols (e.g., Carrier’s unique fan relay notation). Generic labels (e.g., “FAN”) may omit critical details like delay-on-break or delay-on-make functions.
How to Decode Low-Voltage Climate System Control Schematics
Locate the transformer first. Trace its secondary coil outputs to identify the 24V power lines–these are thinner, often red and blue, and feed all control circuits. Confirm voltage with a multimeter; readings should stabilize between 22V and 28V AC. Any deviation signals transformer failure or load imbalance.
Identify the thermostat terminals. Marked R, C, Y, G, W, and O/B, each connects to specific components. R (power) and C (common) form the power loop. Y triggers cooling, G activates blower, W initiates heating, while O/B toggles heat pump reversing valve. Label these with tape before disconnecting.
Follow the color-coded conductors from terminals to their destinations. Red (R) typically links to the transformer’s hot output, while blue (C) grounds the circuit. Yellow (Y) runs to the outdoor condenser, green (G) to the air handler’s fan relay, white (W) to the furnace or electric heat strip, and orange/purple (O/B) to the heat pump’s valve coil.
Check relay coils next. Low-voltage circuits activate relays–small rectangular boxes with wiring tabs–by energizing their coils. When a thermostat calls for cooling, the Y wire feeds 24V to the condenser relay coil, closing contacts to start the compressor. Use a continuity tester to verify relay operation; a silent click indicates failure.
Inspect safety interlocks. Pressure switches, float switches, and flame sensors insert breaks in the control path. A tripped high-pressure switch (usually near the condenser) cuts power to the Y circuit, halting operation. Locate these in-line components and test with a jumper–temporarily bypassing confirms if they’re faulting.
Map the defrost board if present. Heat pumps cycle into defrost mode via a dedicated control module. Two sensor wires (thermistors) monitor outdoor coil temperature and ambient air. The board interprets these readings, sending voltage to the O/B terminal to reverse refrigerant flow. Trace sensor wires back to their connectors–resistance should change with temperature.
Test sequence operation manually. With power applied, jump R to Y to simulate a cooling call. The condenser and fan should start within 3-5 seconds. Next, jump R to W for heating–expect a 15-30 second delay as gas valves or strips energize. Use a non-contact voltage probe to verify each step; absence of voltage at any point reveals opens or shorted components.
Document every connection as you proceed. Sketch a rough schematic on paper, noting wire gauge, terminal labels, and component locations. Photograph connectors before unplugging anything–polarized plugs (like those on ECM motors) mate only one way. Store notes digitally; reference these for future troubleshooting to avoid re-learning the system layout.
