Begin by identifying the low-voltage terminals on your HVAC unit–typically marked R, C, Y, W, and O/B. Match these to the corresponding labels on your climate regulator. For dual-fuel setups, an additional E terminal may appear, requiring a separate connection to auxiliary heating stages. Misalignment here disrupts defrost cycles and emergency heating activation.
Use 18-gauge solid copper wire for all connections, ensuring tight screw terminals to prevent voltage drops. Shield wires with flexible conduit if routing through walls with sharp edges or high-heat zones. Never combine R (power) and C (common) wires–they must remain separate to avoid short-circuiting the transformer, which could damage integrated circuit boards.
For variable-speed compressors, verify compatibility with your control device. Some advanced models require a dedicated Y2 terminal for staging, while others rely on pulse-width modulation. Check the manufacturer’s technical sheet for amperage ratings–exceeding 2.5A on low-voltage circuits risks overheating and component failure.
If integrating a smart regulator, confirm backup battery requirements. Some units draw constant power for Wi-Fi connectivity, necessitating a C-wire or power adapter. Without this, frequent cycling or erratic behavior may occur, particularly in extreme outdoor conditions.
Label each wire before disconnecting existing connections. Photograph the original setup for reference–incorrect reattachment can reverse cooling and heating modes, leading to inefficiencies or compressor overload. Test the system in both heating and cooling modes before finalizing the installation.
Connecting Climate Control Systems: A Practical Guide
Begin by identifying the terminals on your environmental regulator. Most models use a standard labeling system: R (power), C (common return), O/B (reversing valve), Y (compressor relay), W (backup heat), G (fan control), and E (emergency heat). Check manufacturer specifications–some units combine O/B or split Y into Y1/Y2 for staged operation. Incorrect mapping risks short circuits or system failure.

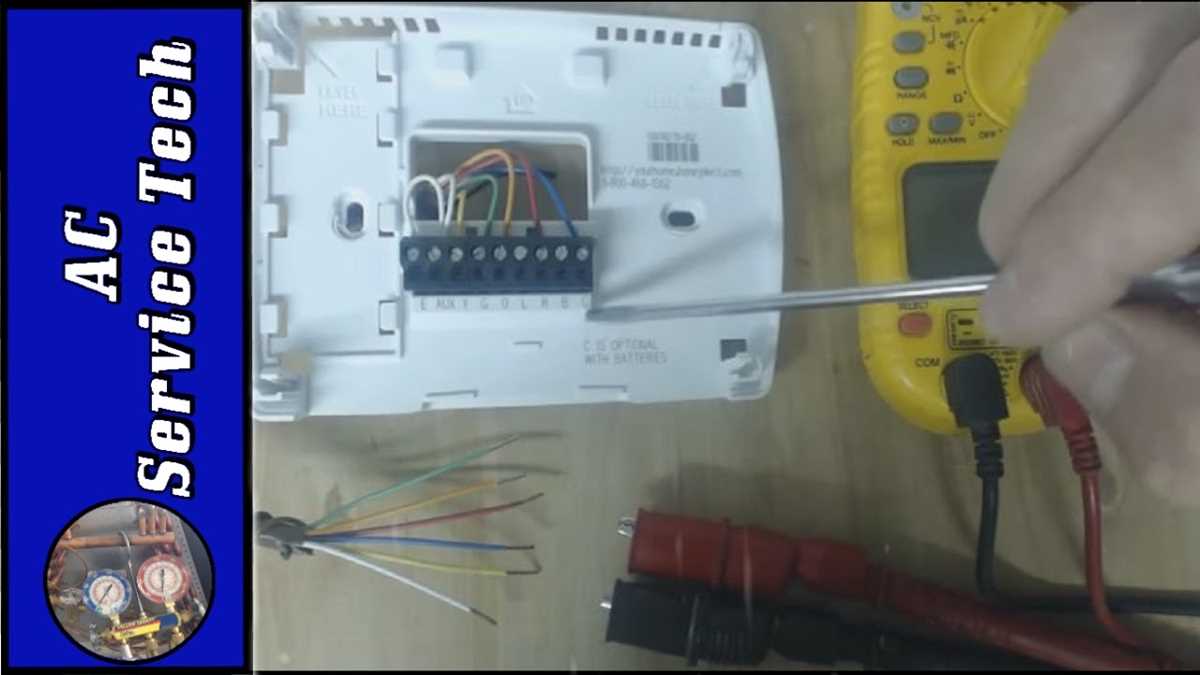

Use a multimeter to verify circuit integrity before attaching leads. Set the device to continuity mode and probe each terminal pair. A reading below 0.5 ohms confirms a safe connection path. Higher resistance indicates corrosion, damaged wiring, or loose fittings–address these before proceeding. For smart regulators, ensure the power supply meets voltage requirements (typically 24V AC for residential systems).
| Terminal | Function | Wire Gauge (AWG) | Color Code (Standard) |
|---|---|---|---|
| R | Power input | 18 | Red |
| C | Neutral return | 18 | Blue |
| O/B | Valve switch | 18 | Orange/White |
| Y | Compressor activation | 18 | Yellow |
| W | Auxiliary heating | 18 | White |
| G | Fan relay | 18 | Green |
Label wires at both ends with heat-shrink tubing or adhesive markers. Misidentification during troubleshooting causes irreversible damage to components. For dual-fuel systems, connect W to a dedicated auxiliary heating source (electric strips or gas furnace) and isolate E for emergency override. Use crimp connectors for outdoor leads to prevent moisture ingress–solder alone fails under temperature cycling.
Stage regulators (e.g., Ecobee, Nest) require additional calibration. Link Y2 to the second compressor stage for variable-speed units. Smart regulators often auto-detect terminal assignments, but manual override ensures compatibility with legacy equipment. Always power down the main breaker before looping through conductors. Test each stage independently: compressor, fan, and backup heating.
Secure all connections with terminal blocks rated for 600V and 20A current. Avoid daisy-chaining conductors–each lead should terminate directly to its designated terminal. For wall-mounted units, route low-voltage cables away from 120V/240V lines to prevent interference. If the system includes humidity control, separate the humidistat’s H terminal and pair it with a 24V transformer.
Final steps include restoring power and verifying operation through a heating-cooling cycle. Monitor the display for error codes (e.g., “Open Y circuit” indicates a disconnected compressor lead). If the reversing valve defaults to cooling mode, reverse the O/B polarity. Log terminal assignments in the equipment manual for future reference–skipping this step complicates repairs.
Decoding Standard Climate Control System Cable Colors and Roles
Start by locating the R (red) cable–it carries 24V power from the air handler to activate the control panel. Confirm this wire connects to the RC or RH terminal; some dual-transformer systems split these, but older unified units often merge them. If both labels exist, check for a jumper linking them–removing it incorrectly disrupts power distribution.
Y (yellow) governs compressor operation. Trace this cable back to the outdoor unit; if cooling fails, verify it isn’t shorted to the C (common) wire. For staged cooling, Y2/YL (second-stage yellow) often handles auxiliary modes on variable-speed units, requiring dedicated relays in the air handler. Test continuity with a multimeter if the system cycles erratically.
- G (green): Fan control. Directly energizes the blower motor; if airflow issues persist, inspect the air handler’s relay board for burnt contacts.
- O/B (orange/light blue): Reversing valve signal. O (orange) typically activates in cooling mode, while B (light blue) switches to heating–brand-specific deviations occur (e.g., Trane uses O for heating).
- W2/AUX (brown/white): Emergency or secondary heating circuit. On two-stage furnaces, this engages when primary heating (W) maxes out. Miswiring here risks overheating.
Neutral cables (C, blue/black) complete the circuit but vary by manufacturer. Goodman and Rheem often use blue; Carrier and York may default to black. Never assume–label each wire during disconnection, as reversed polarity causes erratic behavior or component burnout. For smart controls, check if the C wire aligns with the unit’s transformer amperage (usually 40VA).
Auxiliary wires like E (dark blue) for emergency heat or L (gray) for fault detection appear on advanced models. Priority: isolate these during troubleshooting. For example, if the system locks into emergency heat, examine the E wire for voltage spikes. Always power down before probing terminals–24V may seem safe, but shorts damage control boards.
Step-by-Step Guide to Linking Control Device Cables with Climate Systems
Power down the electrical circuit at the breaker panel before handling any cables. Verify the absence of voltage using a multimeter on the terminals where connections will be made–faulty verification risks short circuits or system damage. Label each wire with colored tape matching the manufacturer’s schematic to avoid misalignment, especially critical for low-voltage control lines (typically 24V).

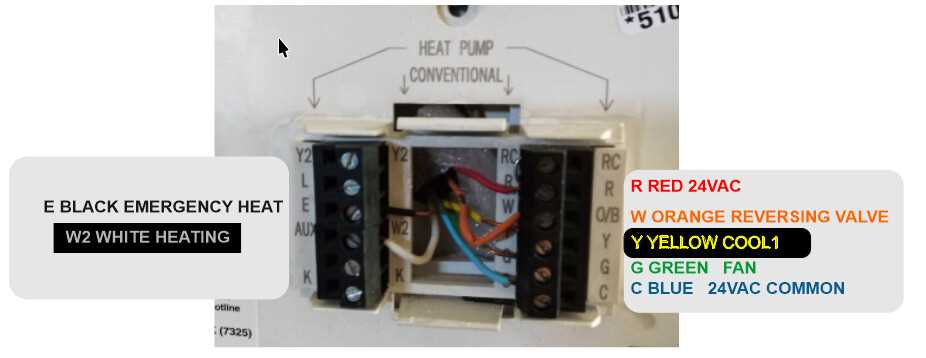

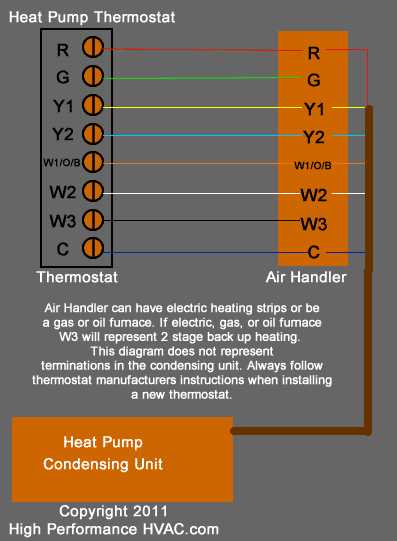

Identify the Y (cooling), O/B (reversing valve), G (fan), W2/AUX (secondary stage), and C (common) terminals on both the climate unit’s control board and the wall-mounted regulator. For dual-fuel setups, an additional E terminal may require linking to emergency electric coils. Secure each strand with a wire nut or terminal block, ensuring no exposed copper extends beyond the connector–partial contact causes intermittent failures or overheating.
Route the cables through the designated channel in the air handler, keeping them separated from high-voltage lines (120V/240V) to prevent electromagnetic interference. Use cable clips or tie wraps every 12 inches to prevent sagging, which can lead to chafing against sharp edges. For systems with variable-speed compressors, confirm the correct polarity of the R (power) and C wires–reversed polarity may trigger diagnostic error codes.
Restore power and test each function: activate cooling (Y-O/B), heating (W2), and fan (G) modes sequentially while observing the climate unit’s response. Check for unusual noises or delayed startups–these indicate loose connections or incompatible voltage. If the system fails to engage, re-examine the labeled links against the equipment’s technical documentation, focusing on the O/B terminal’s default state (O for cooling, B for heating).
Resolving Common Connection Errors in Climate Control Units
Check the low-voltage circuit breaker if the control panel fails to power on–many installations mistakenly connect the 24V transformer to a switched circuit, cutting power when unused. Test voltage at the transformer terminals with a multimeter; readings below 23V indicate a loose terminal screw or undersized wire gauge (18 AWG minimum). Verify the neutral return path–reversing polarity between R and C cables causes intermittent faults, often misdiagnosed as a defective board.
Swapped O and B terminals reverse defrost cycles, forcing auxiliary heating instead of compression cooling. Label these contacts before disconnecting–yellow (O) activates cooling mode, while blue (B) triggers reverse-cycle operations. If the system runs continuously, confirm the Y terminal isn’t bridged to R; this shorts the compressor relay, bypassing temperature regulation. Examine jumper wires on dual-fuel systems–incorrect placement between W1 and W2 overrides emergency heating lockouts.
Verifying Stage Sequencing
Delay timers between first and second-stage heating often misfire due to crossed E and L wires–this energizes relays prematurely, spiking energy consumption. Replace any corroded contacts on the defrost control board; oxidation disrupts the 10-minute cycle interval, leading to ice buildup. For variable-speed units, ensure the V terminal connects to the inverter drive–missing this link drops airflow by 40%, tripping high-pressure limits.
Diagnose erratic fan behavior by tracing the G terminal to the blower relay–ground faults here mimic thermistor failures. Use a clamp meter on the fan motor leads; current draw exceeding 1.8A on high speed signals a seized bearing or improperly sized capacitor (8 μF minimum). If the reversing valve hums but doesn’t shift, suspect a defective solenoid coil–voltage checks should show 24VAC across both ends when energized; readings below 18VAC confirm a shorted winding.
Misrouted drain lines cause condensate backups, triggering overflow sensors–route piping with a ¼” per foot downward slope to prevent standing water. Check refrigerant charge immediately if subcooling exceeds 15°F; overcharging suppresses suction pressure, starving the compressor. For dual-compressor models, ensure separate contactors engage–shared contacts overload the high-stage unit, reducing lifespan by 35%.
Sensor and Safety Circuit Checks
Calibrate the return air sensor by comparing readings to an external thermometer–discrepancies above 3°F invalidate control feedback, causing false shutdowns. Inspect the high-pressure switch wiring: a loose wire on the NC terminal prevents compressor startup, while a shorted NO terminal risks rupture. Replace frayed leads on the auxiliary limit switch–arcing here melts plastic housing, creating fire hazards. For zoned systems, confirm each damper actuator cycles fully; stuck dampers starve downstream coils, freezing supply lines.
Test the freeze stat by spraying evaporator coils with a mist bottle–unit should shut down within 2 minutes. If not, replace the sensor; factory-tolerance resistors (±1°F) drift over time, skewing cutoff thresholds. Log compressor runtimes–cycles shorter than 8 minutes suggest a faulty start capacitor (50 μF nominal) or a weak run capacitor (15 μF recommended). For rooftop units, seal all conduit entries with silicone; moisture intrusion corrods contactor points, doubling resistance after six months.
