Begin by connecting the power feed to an ignition-switched fuse rated at 15 amperes–position 87 on the control module. Use 14-gauge stranded copper wire for all high-current paths to prevent voltage drop exceeding 0.5 volts under full load. Ground the low-side trigger, terminal 85, to the chassis via a dedicated 12-gauge return secured with a serrated washer and zinc-plated bolt.
Mount the switching unit within 30 centimeters of the auxiliary beam assembly; prolonged runs degrade signal integrity. Route the output, terminal 87a, through a weatherproof Deutsch connector to each emitter’s dual-filament socket–verify polarity before securing retaining clips. Include a 20-ampere inline fuse within 20 centimeters of the module to isolate faults without compromising upstream circuits.
Test for continuity across each segment before energizing; a multimeter should read 0.2 ohms or less on ground paths and infinite resistance to power rails with the system deactivated. Activate the ignition, toggle the dash switch, and confirm both emitters draw no more than 12 amperes combined–excess current indicates incorrect bulb wattage or shorted harness.
Seal all splice joints with adhesive-lined heat shrink tubing; standard insulation invites corrosion within six months in humid climates. Secure harness bundles every 20 centimeters using spiral wrap–avoid plastic ties at stress points where vibration accelerates fatigue. Inspect the entire installation under simulated rain exposure before finalizing trim panels; water ingress at terminals causes intermittent failures detectable only during night operation.

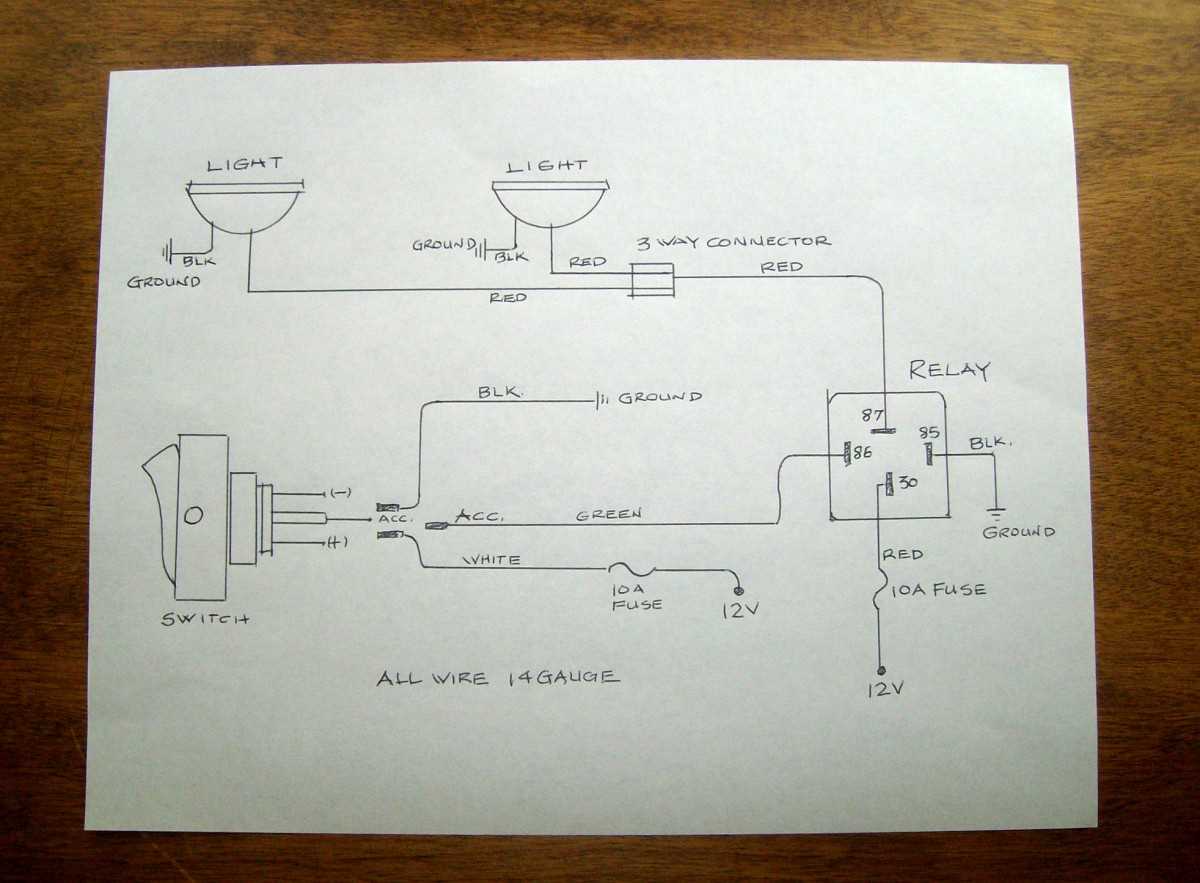

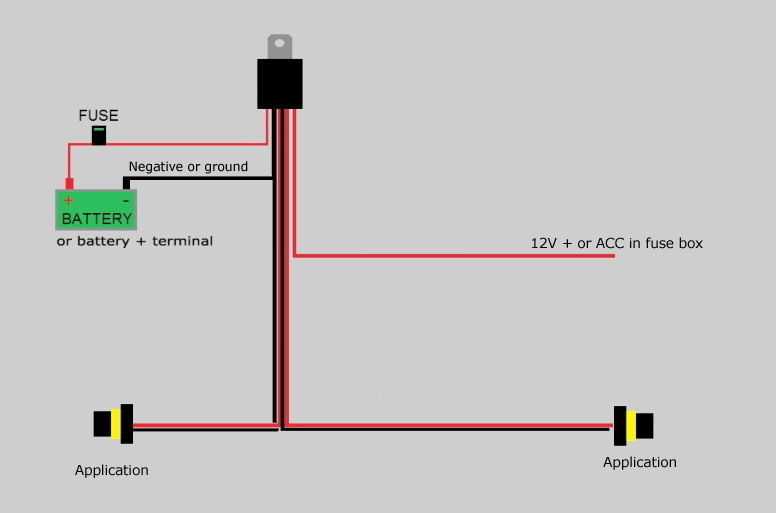

Electrical Schematic for Auxiliary Beam Setup Using a Switching Device
Connect the power source directly to the relay’s 30-terminal, ensuring a 15A fuse is within 15 cm of the battery positive. Use 12-gauge wire for this segment to handle current without voltage drop. Ground the 85-terminal to the chassis via a clean, unpainted metal surface to avoid resistance issues that cause flickering.
Route the control circuit from the dash-mounted activation button to the relay’s 86-terminal, using a lightweight 18-gauge wire–this path carries minimal current, so durability isn’t critical. For the load side, link the 87-terminal to the auxiliary beams’ positive terminals with 14-gauge wire, maintaining consistent color-coding (e.g., red) to simplify troubleshooting later. Secure all connections with heat-shrink tubing rather than electrical tape to prevent corrosion.
Test the circuit with a multimeter before finalizing: check for 12V at the 87-terminal when the switch is engaged and zero volts when off. If voltage is present during off-state, revisit the relay’s pinout or ground connection immediately.
Essential Gear and Parts for Auxiliary Beam Installation
Select a 14-gauge automotive-grade copper cable for the main power run–any thinner risks voltage drop under load, especially in longer runs (over 3 m). For ground connections, use an 8-gauge strand directly to chassis metal, stripped of paint and corrosion. Include a weatherproof fuse holder with a 15 A blade fuse between the battery terminal and relay coil to prevent fire hazards if the circuit shorts. A sealed relay rated at 30 A/12 V (ISO standard 280) ensures reliable switching; avoid open-frame relays susceptible to moisture ingress.
Component Checklist
| Item | Specification | Quantity |
|---|---|---|
| Primary conductor | 14 AWG GXL copper, red insulation | 5 m |
| Ground strand | 8 AWG bare copper | 1 m |
| Sealed relay | SPDT, 30 A coil resistance 80 Ω | 1 |
| In-line fuse | 15 A, female spade, waterproof housing | 1 |
| Connector terminals | Crimp-style, 6.3 mm female | 4 |
| Heat shrink tubing | 4:1 ratio, 12 mm diameter, adhesive-lined | 10 pieces |
| Toggle switch | Single pole, single throw, 10 A rated | 1 |
Use dielectric grease on every crimp and terminal connection to block oxidation; even a 0.1 Ω resistance can degrade beam intensity. Tinning copper strands before crimping ensures corrosion resistance, particularly for the chassis ground. Verify relay pin layout–wrong pin assignments (e.g., swapping 85 and 86) instantly destroy the coil. Test the circuit with a multimeter before final assembly: measure 12 V across the relay coil when the switch closes, and confirm
Precise Relay Integration Guide for Auxiliary Beam Systems
Select a 40-amp automotive relay with a five-pin configuration (SPDT) to handle current demands up to 30 amperes per circuit–any lower risks overheating under sustained loads. Verify pin assignments using the relay’s datasheet: terminals 30 and 87 deliver power, 85 and 86 manage the control coil, and 87a serves as the normally closed contact.
Mount the relay within 12 inches of the power source–a battery or fused ignition-switched terminal–to minimize voltage drop. Use 10-gauge copper wire for power feeds and 16-gauge for control circuits, securing all connections with solder or crimped terminals sealed with heat-shrink tubing to prevent corrosion.
Connect the control input (terminal 85) to a switched 12V source–either the ignition circuit or a dedicated switch–ensuring the relay activates only when the vehicle’s electrical system is live. Attach terminal 86 to chassis ground, using a star washer beneath the bolt to guarantee a low-resistance path.
Route the load output (terminal 87) to the auxiliary beams via a fused link: a 20-amp fuse protects the circuit from short circuits, positioned no farther than 7 inches from the battery’s positive terminal. For installations exceeding 15 amperes per beam, split the load across dual relays to avoid exceeding the relay’s switching capacity.
Test the assembly with a multimeter before finalizing connections: set the meter to continuity mode, probe terminals 30 and 87–they should show open circuit until the control switch is engaged. Verify voltage at the beam connectors matches the battery’s reading (±0.5V), confirming minimal resistance in the supply path.
Secure all harnesses with adhesive-backed clamps every 12 inches, avoiding sharp edges or moving components. Apply dielectric grease to the relay’s socket terminals before insertion to repel moisture and prevent oxidation, particularly in under-hood environments where temperature fluctuations are frequent.
For dual-beam setups, integrate a diode (1N4007) across the control coil terminals (85–86) to suppress voltage spikes when deactivating, safeguarding the switch and adjacent electronics. Confirm the diode’s polarity: the cathode (striped end) must align with the positive control input.
Selecting Proper Fuse Ratings and Cable Thickness
Install a 10A to 15A fuse for auxiliary illumination circuits drawing 8–12 amps continuous. Halogen bulbs rated at 55W each (4.6A per bulb) leave little overhead; upgrade to a 20A fuse if running HID capsules or LED arrays exceeding 7W per emitter. Fuse holders should sit within 15 cm of the battery positive terminal to minimize unswitched cable runs.
Route cables sized no smaller than 18 AWG for 5-meter stretches, switching to 16 AWG for runs beyond 8 meters or when environmental temps exceed 50 °C. Strip insulation with precision–expose 8–10 mm of copper, then crimp terminals using a ratcheting tool rated for the specific gauge. Avoid twisting strands before crimping, as micro-fractures reduce current capacity by 12–15%.
- 18 AWG: max 10A (ideally 8A) indoors, 5A outdoors
- 16 AWG: max 15A short-run, 10A for 10+ meters
- 14 AWG: required for 20A constant loads
Tinning solder is optional but recommended only if strands are immobilized; flux-core wire can introduce corrosive residue if overheated. Always verify crimp integrity with a multimeter set to continuity–readings above 0.2 ohms indicate compromised conductivity.
Optimal Grounding Methods to Ensure Stable Auxiliary Beam Performance
Directly attach the negative terminal to a bare metal chassis point within 12 inches of the lamp housing. Factory-painted surfaces create poor conductivity–grind away paint down to shiny steel using a 60-grit disc, then apply a zinc-rich primer before securing the ring terminal with a stainless-steel M8 bolt torqued to 12-15 ft-lbs. A single strand of corroded wire increases resistance by up to 2.4 ohms, dimming brightness by 30%; clean all connection surfaces with a wire brush and dielectric grease.
For vehicles with composite body panels, run a dedicated 10 AWG grounding strap from the lamp base to the battery negative post rather than relying on the vehicle frame. Use an oversized crimp connector filled with anti-oxidant paste and shrink-wrapped over the joint to prevent moisture ingress. A short, thick conductor reduces voltage drop: 18 inches of 14 AWG loses 0.12V at 10A, whereas 8 AWG loses only 0.03V–critical for halogen or HID bulbs requiring precise voltage.
- Identify the thickest available chassis ground near the front bumper; avoid thin fender panels and trim screws that strip under vibration.
- Sand the contact area to at least 1 cm² of clean metal; any residual rust or paint adds 0.3–0.5 ohms per square millimeter.
- Apply nickel-plated copper ring terminals crimped with a ratcheting tool set to 2000 psi–cheap crimps fail after 50 thermal cycles.
- Route all secondary connections through a common bus bar mounted directly above the relay, eliminating multiple ground paths that cause ground loops.
Test continuity with a multimeter set to milliohms: probe between the bulb socket base and the main battery terminal. Values above 0.2 ohms indicate corrosion or loose hardware requiring immediate attention. After reassembly, energize the system and measure voltage at the socket terminals–any drop below 11.8V suggests a high-resistance ground necessitating a thicker conductor or additional attachment point.
A dedicated star grounding system improves reliability under pulse-width modulation. Centralize all primary and auxiliary grounds at a single heavy-gauge terminal block mounted adjacent to the vehicle’s main negative battery cable. Bolt directly to the engine block or transmission bellhousing using an M10 stainless fastener; these points exhibit less than 0.05 ohms resistance. Seal each connection with heat-shrink tubing containing adhesive lining to prevent wicking of road salt solutions–maintenance-free grounds last 8–10 years versus 18–24 months for unprotected steel.
