Begin by selecting a Cat 5e or Cat 6 cable–these standards support Gigabit speeds and future-proof your setup. Avoid older Cat 5 unless absolutely necessary; it lacks the bandwidth for modern applications. Strip the outer jacket carefully, exposing 8 twisted pairs without nicking the internal wires. Use precision strippers or a sharp blade, maintaining a 1.5-inch length of exposed conductors.
Arrange the wires in the T568B sequence for consistency with industry standards: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Flatten the conductors and trim evenly to 0.5 inches to ensure snug contact when inserted. A single misaligned wire can degrade performance or introduce interference–verify each position twice before proceeding.
Insert the prepared ends into the keystone modular plug. Apply firm pressure until you hear a click, confirming the wires seat fully against the gold contacts. Poor termination leads to crosstalk or signal loss; press hard enough to compress the jacket slightly but avoid crushing the connectors. Use a punch-down tool with 110-blade for keystone jacks, ensuring each conductor cuts cleanly against the IDC slot.
Test continuity with a network cable tester before mounting. A single failed pair requires retermination–do not assume minor issues resolve themselves. Label both ends clearly with port location and VLAN assignments if applicable. Secure the mounted jack with screws, avoiding overtightening to prevent cracking the faceplate. Route excess cable loosely in the wall cavity to allow future adjustments.
Connecting Network Ports: A Technical Guide
Use the T568B standard for terminating twisted-pair cables to ensure compatibility with most modern networks. Arrange the conductors in this sequence: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. Verify each connection with a cable tester before securing the keystone module to the faceplate–misaligned pairs can degrade signal integrity.
- Strip 1.5 inches of outer insulation from the cable sheath.
- Untwist pairs no more than 0.5 inches to minimize crosstalk.
- Insert wires into the keystone connector until they bottom out.
- Punch down each conductor firmly using a 110-style impact tool.
For environments requiring PoE (Power over Data Lines), select Cat 6 or higher-grade cables. The thicker conductors reduce resistance and prevent overheating under sustained loads. Avoid using solid-core cables longer than 90 meters for gigabit speeds–attenuation becomes a limiting factor beyond this distance.
Label each port on the rear of the faceplate with its corresponding patch panel designation. Record port assignments in a centralized network inventory system, noting cable type, length, and termination date. This documentation expedites troubleshooting and future expansions.
Choosing the Optimal Network Cable Standard for Socket Installation
Cat 6 cables support speeds up to 10 Gbps over 55 meters and include better shielding to reduce crosstalk, making them ideal for most residential and office setups. Verify the existing switch and endpoint hardware–if they max out at 1 Gbps, Cat 6 remains cost-effective without sacrificing real-world performance. Shielded variants (STP) are worth the extra expense in areas with heavy electrical interference, such as near power conduits or industrial equipment.
For future-proofing, Cat 6a doubles bandwidth to 500 MHz and maintains 10 Gbps over 100 meters, eliminating the length restrictions of earlier standards. Its thicker gauge and tighter twists prevent alien crosstalk, critical in environments with bundled cables or high-density deployments. Though pricier and stiffer during installation, Cat 6a eliminates the need for re-termination when upgrading switches or network appliances, saving labor and downtime.
Cat 7 and Cat 8 cables offer diminishing returns for socket applications–Cat 7’s 600 MHz bandwidth and Cat 8’s 2 GHz are overkill unless connecting servers or backbone infrastructure requiring 25–40 Gbps. Both require specialized GG45 or TERA connectors, which are incompatible with standard RJ45 ports, complicating field modifications. For most permanent mounts, stick with Cat 6 or Cat 6a unless project specs explicitly demand the higher categories.
Avoid mixing cable types in the same run; impedance mismatches degrade signal integrity even if connectors fit. Standard T568A or T568B termination applies universally across Cat 5e and above, but Cat 6a and higher often benefit from tool-assisted termination due to thicker conductors. Budget for a quality cable tester–cheap models misread Cat 6a shielding defects, risking intermittent faults later.
Step-by-Step Guide to Stripping and Preparing Network Cable Conductors
Measure 3 cm from the cable end and score the outer jacket lightly with a sharp utility knife–press just enough to penetrate the insulation without damaging the.internal pairs. Rotate the blade around the circumference once, then flex the cable at the score line to split the jacket cleanly. Peel it back and trim excess material flush with the twisted pairs.
Unravel the four conductor pairs carefully, maintaining their existing twist down to within 12 mm of the jacket cut; sever any loose threads or splintered foil shielding immediately. Arrange the pairs in their T568-A sequence–white-green/green, white-orange/orange, white-blue/blue, white-brown/brown–without stretching the copper strands.
Handling Delicate Strands
Inspect each strand for kinks or fraying; if any are found, snip the flawed section and re-strip the jacket no more than 2 mm farther back. Use precision strippers calibrated for 24-26 AWG solid copper to expose 5 mm of bare conductor per wire–avoid nicking the copper, as even micro-abrasions degrade signal integrity at gigabit speeds.
Hold the stripped ends between thumb and forefinger, slide a fine-grit abrasive pad along each strand once to remove oxidation, then wipe with isopropyl alcohol (99% concentration) on a lint-free cloth. Let dry for 10 seconds before termination; residue left behind causes intermittent connectivity issues detectable only under sustained load testing.
Final Inspection Standards
Verify no conductor exceeds 13 mm of exposed copper past the jacket; excess length introduces crosstalk measurable with a Cat 6 certifier. Pair alignment must remain within 0.5 mm of ideal twist pitch–deviation amplifies alien near-end crosstalk beyond TIA/EIA-568-C.2 tolerance thresholds. Secure prepared cables with Velcro straps every 30 cm to prevent tension-induced deformation during installation.

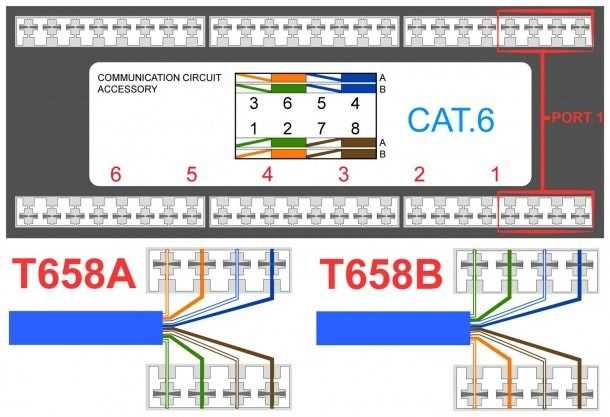

T568A vs. T568B Standards: Choosing the Right Connector Pinout
Use T568B as the default standard unless existing infrastructure, regional regulations, or compatibility requirements dictate otherwise. T568B dominates commercial and residential installations in North America and most global markets due to broader adoption by manufacturers and installers. Exceptions exist in government facilities, older European networks, or mixed-media systems where T568A remains prevalent.
The functional difference between the two schemes lies in the pairing of green and orange conductor pairs. T568A swaps pins 1–2 and 3–6 (green/white-green with orange/white-orange), while T568B maintains a sequential color progression from pins 1 through 8. Despite this inversion, both configurations deliver identical electrical performance when implemented consistently, as the same twisted pairs transmit and receive signals.
Consistency trumps personal preference. Mismatched termination at opposing ends of a cable–one T568A, the other T568B–creates a crossover link, forcing manual negotiation in switches or NICs. This scenario, while functional for direct device connections, disrupts auto-MDI/MDIX in modern equipment, causing speed degradation or connection failure in Gigabit implementations where all four pairs must align perfectly.
| Pin | T568A Pair/Color | T568B Pair/Color |
|---|---|---|
| 1 | White-Green | White-Orange |
| 2 | Green | Orange |
| 3 | White-Orange | White-Green |
| 4 | Blue | Blue |
| 5 | White-Blue | White-Blue |
| 6 | Orange | Green |
| 7 | White-Brown | White-Brown |
| 8 | Brown | Brown |
Retrofit projects warrant an audit of existing terminations before adopting either scheme. Networks originally deployed with T568A–common in telecom upgrades where voice ports preceded data–should maintain that pinout to avoid re-terminating hundreds of outlets. Migrations to PoE or higher bandwidth applications (2.5GBASE-T/5GBASE-T) benefit from preserving existing pairs, reducing labor costs and minimizing downtime.
Regions governed by strict cabling codes, such as Germany’s DIN EN 50173, mandate T568A for new installations. Certification bodies in these markets will reject T568B terminations, risking compliance violations. Always verify local codes or client specifications before finalizing any installation plan.
Patch panel labeling often reflects the chosen standard; replacing or expanding installations requires synchronizing patch cords, keystone modules, and horizontal cabling. A single mismatched cord between a switch port (T568B) and a wall plate (T568A) collapses Gigabit connectivity to 100 Mbps, as only two pairs communicate. Pre-terminated assemblies from reputable suppliers specify their pinout, eliminating termination errors but requiring vendor alignment.
Testing procedures should validate the pinout using a certification tool rather than relying on visual color checks. Fluke Networks’ DSX series or SignalTEK testers map pair continuity and confirm the absence of split pairs–a subtle but disruptive misconfiguration where conductors from different twisted pairs occupy a single pair slot. Such faults escape visual inspection but surface as impedance mismatches or crosstalk during qualification tests.
