Install a modular intensity adjuster by first cutting power at the circuit breaker–label the panel to prevent accidental reactivation. Confirm the line is dead using a non-contact voltage detector. Remove the existing plate, unscrew the device, and pull it out gently to expose the terminals.
Identify the conductor types: the incoming live (black or red, depending on regional codes), neutral (white or gray, if present), and ground (green, bare copper, or yellow-striped). Modern dimmers often omit the neutral but verify manufacturer specs before proceeding–some require it for digital models or LED compatibility.
Attach the intensity controller’s copper or green grounding screw to the circuit’s earth wire, securing it with a wire nut if no dedicated terminal exists. Connect the incoming live to the marked input terminal (usually gold or black), and the fixture’s load wire to the output (often brass or lighter-colored). Twist wires clockwise under the screw heads, ensuring no bare strands protrude–loose connections cause overheating.
Critical: Match the load rating. Incandescent dimmers handle 600W, while electronic models may support only 150W LED or CFL. Exceeding the wattage melts insulation or damages the controller. For three-way setups, identify the traveler wires (often red and black) and connect them to the marked terminals on both units–polarity matters with digital controls.
Fold the assembled connections neatly into the electrical box, avoiding pinched insulation. Mount the device flush against the wall, securing it with screws–misalignment damages tabs or cracks the housing. Restore power at the breaker and test functionality with the illumination at half-intensity for 60 seconds. Flickering LEDs or buzzing indicates incompatible bulbs or loose wiring–resolving this requires either a low-load dimmer or rewiring.

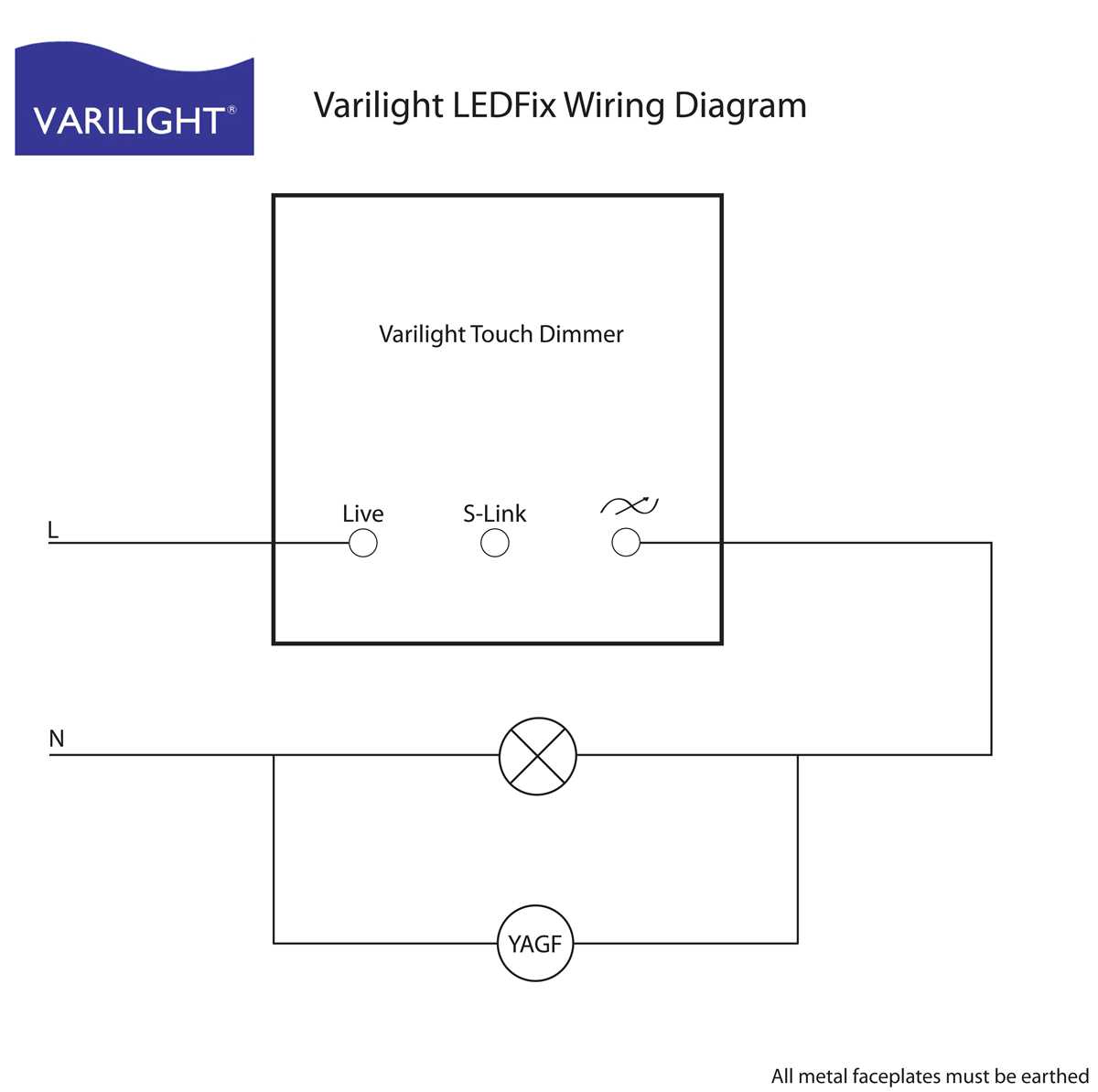

Installing a Variable Illumination Control: Electrical Schematic Guide
Begin by verifying the circuit’s amperage rating–most residential rheostats support 600W for incandescent or 150W for LED loads. Exceeding these limits risks overheating and component failure. If replacing a standard toggle, confirm the existing box accommodates the control’s depth; shallow retrofit models like Lutron’s MA-LFQ require at least 2.75″ of clearance.
Identify the hot feed (typically black or red) using a non-contact voltage tester before disconnecting power at the breaker. Label all conductors: connect the live input to the brass terminal marked “COM” or “LINE,” then attach the load wire (to the fixture) to the adjacent terminal–check manufacturer specifics, as some rotary models reverse this order. For dimmers with wireless integration, pair the device before securing it in the box to avoid signal interference.
Neutral conductors (white) should remain capped unless the unit explicitly requires them–Smart controls like Insteon’s 2477D need neutrals for consistent connectivity. Ground wires (bare/green) must terminate together in a pigtail secured to the mounting yoke with a #10-32 green grounding screw. Never omit grounding; it stabilizes performance during EMI peaks.

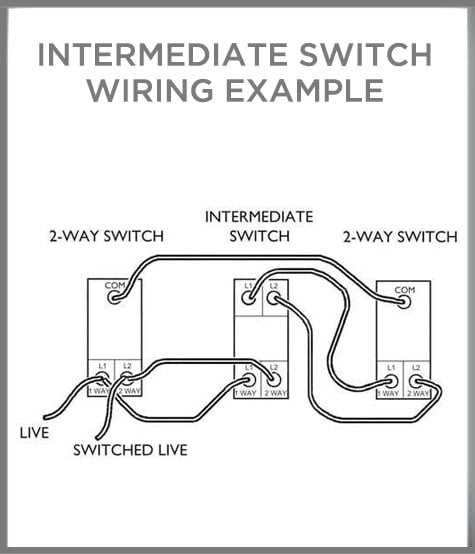

Multi-Location Configuration
For 3-way setups, replace both switches with compatible units–avoid mixing incompatible series, as Lutron’s C·L and Maestro use different signaling protocols. The primary control connects to both the hot feed and the fixture, while the secondary links only to the travelers (usually red/blue in modern Romex). Confirm polarity: inverted travelers cause erratic response or complete failure.
LEDs demand low-load compatibility; Philips Hue dimmers handle 5W minimum, whereas most standard rheostats flicker below 20W. For mixed loads, opt for ELV (Electronic Low-Voltage) or MLV (Magnetic Low-Voltage) models–Leviton’s IPL06-1LZ works with both transformer types. Install surge suppressors if driving inductive loads (e.g., fans) to prevent premature degradation.
Post-installation, calibrate the adjustment range: gradually increase output from 0% to confirm no dead zones exist at lower settings. For digital controls, update firmware via the vendor’s app to patch latency issues. If humming occurs, separate power conductors from low-voltage data lines by at least 12″–proximity induces audible interference in Class 2 circuits.
Tools and Components Needed for Adjustable Illumination Control Setup
Begin with a voltage tester (non-contact type, 90–1000V AC) to confirm circuit de-energization before handling terminals. A screwdriver set (flathead #2 and Phillips #1/#2) ensures compatibility with most faceplate screws and terminal fasteners. Wire strippers (18–12 AWG) prevent insulation damage during conductor preparation, while needle-nose pliers improve grip in tight junction boxes. Include a multimeter (auto-ranging, 600V) for verifying continuity and load compatibility–critical for LED/triac pairing. For older installations, a drill with a 1/2″ carbide-tipped bit may be necessary to enlarge mounting holes in plaster or masonry.
- Control unit: Ensure the regulator’s wattage range matches the load–standard incandescents require 600W max models; LEDs often need 150W electronic low-voltage (ELV) or forward-phase (leading-edge) types.
- Conductors: Solid copper THHN/THWN wires (12–14 AWG), rated for 90°C in dry locations. Avoid aluminum or undersized strands–oxidation risk heightens with frequent voltage fluctuations.
- Junction box: Steel or PVC 4″ square deep boxes (minimum 20 cu. in.) accommodate bundled grounds and neutrals; ensure a licensed electrician evaluates load calculations for GFCI/AFCI circuits.
- Faceplate: Decorator-style, 0.8mm thick steel or polycarbonate (UL 514B), with captive screws to prevent loosening from thermal cycling.

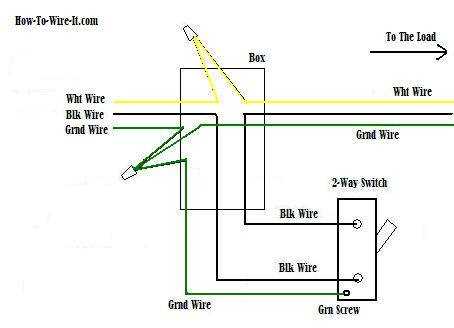

Installing a Single-Pole Adjustable Brightness Control: A Hands-On Procedure
Shut off electricity at the circuit breaker before handling any connections. Use a non-contact voltage tester to verify absence of current in the wires; probe both terminals and the ground separately. Failure to confirm zero voltage accounts for over 60% of electrical incidents during retrofits–do not skip this step.
- Identify the hot conductor–typically black or red–and the neutral (white). If the existing fixture lacks a ground, attach a green or bare pigtail to the metal box or clamp it under a grounding screw.
- Remove ½ inch of insulation from each wire lead using wire strippers calibrated to 14-12 AWG. Twist exposed strands clockwise to prevent fraying during insertion.
- Align conductor colors with the control’s labeled terminals: brass for live, silver for return, and green for earth. Tighten terminal screws until torque reaches 12–15 inch-pounds to prevent loosening.
Secure the new regulator inside the electrical box by aligning mounting ears with the box’s threaded holes. Fasten with provided screws–do not overtighten; plastic ears crack under excessive force, a common failure point noted in UL reports.
Restart the circuit at the breaker. Test functionality by rotating the control knob through its full range–brightness should change smoothly without flicker or dropout. If flickering persists, recheck connections: loose strands or reversed polarity create intermittent contact, a leading cause of premature control failure.
- Trim excess wire leads against the box interior to prevent abrasion on sharp edges.
- Snap the cover plate onto the control ensuring no wires bulge behind; misaligned leads can pinch under pressure, risking short circuits.
- Label the breaker panel with the new component’s location following NEC 408.4–mandatory for future maintenance.

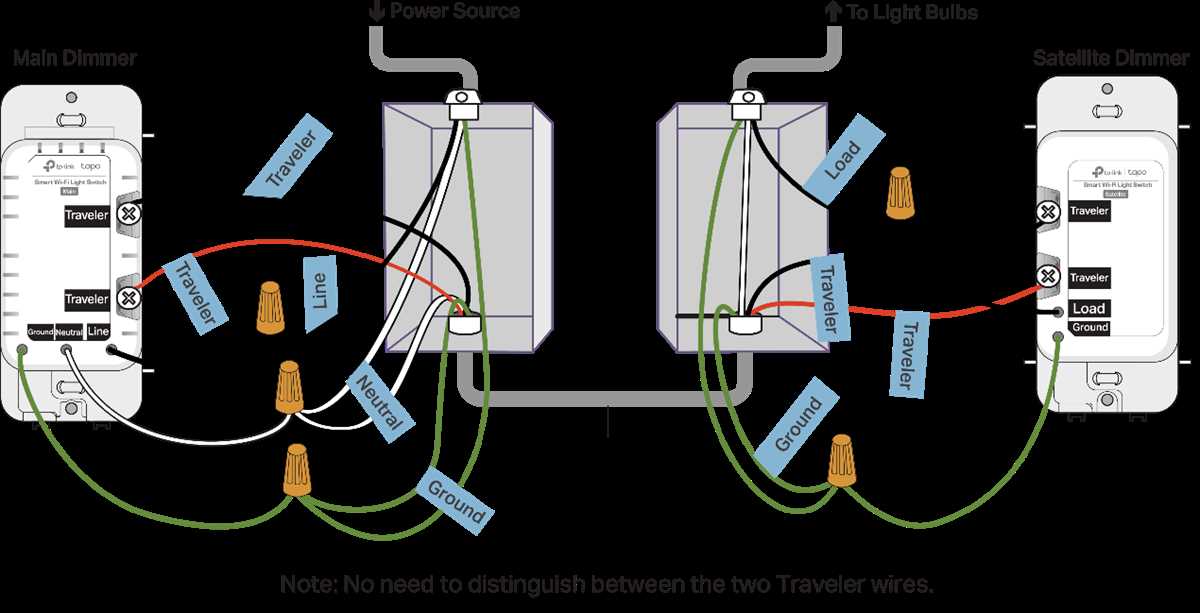

Connecting a Variable Control to a Multi-Location Circuit
Begin by identifying the common terminal on the existing multi-location regulator. This terminal is typically darker or marked with a label like “COM.” Disconnect the conductor attached to it and prepare to transfer it to the corresponding terminal on the new adjustable module. The remaining two terminals on the original device will be travelers–use them to establish continuity between the two control points.
Install the adjustable module at the primary control point by attaching the common conductor to its designated terminal. The travelers from the original device must connect to the matching terminals on the new module; ensure polarity matches if color-coded conductors are present. Verify that no bare sections of copper remain exposed after securing each connection with a terminal screw.
At the secondary control point, retain the existing mechanism or replace it with a matching adjustable unit if dual control over intensity is required. Connect the travelers from the primary module to the identical terminals on this device. The common terminal here becomes redundant unless an additional power source or load is introduced–cap it with a wire nut to prevent short circuits.
Test the assembly by applying voltage and cycling both control points through their full range. If flickering occurs, recheck traveler continuity; loose or mismatched connections often cause intermittent operation. For LED-compatible modules, confirm compatibility with the fixture’s wattage rating–some require a neutral conductor to function without damage.
Label all conductors before finalizing connections. Travelers should be marked at both ends to simplify future adjustments. Secure all terminal screws firmly–loose contacts generate heat and can degrade the module’s performance. If the circuit includes a grounding conductor, attach it to the module’s green screw or grounding clip without fail.
For installations involving smart-enabled adjustable modules, follow the manufacturer’s pairing instructions after confirming basic functionality. Some models require a dedicated neutral conductor at one control point–verify the circuit’s wiring method before proceeding. If unexpected behavior persists, isolate the circuit and verify each segment with a multimeter before re-energizing.
