Begin troubleshooting by locating the main fuse panel under the dashboard–inspect the 20-amp fuse labeled “Ignition” first. Replace blown fuses with identical amperage ratings (never exceed 30 amps for auxiliary circuits). Next, trace the red wire from the battery’s positive terminal to the solenoid; corrosion at this connection accounts for 60% of starting failures. Use a multimeter to verify 12.6V at the solenoid terminal before proceeding.
Examine the neutral safety switch if the engine cranks but won’t start–test for continuity between pins A and B with the transmission in neutral. For models CC 725/730, check the PTO switch wiring harness for frayed insulation near the steering column; secure loose strands with dielectric grease to prevent short circuits. Grounding issues often originate at the engine block–clean the mounting points with a wire brush and reattach using star washers for optimal conductivity.
To diagnose intermittent power loss, focus on the voltage regulator output wire (yellow with green stripe). Probe the connection at the alternator backplate; readings should remain stable at 13.8–14.4V under load. If voltage spikes occur, replace the regulator immediately–aftermarket units frequently fail within 200 operating hours. For hydrostatic models, verify the continuity of the interlock circuit (gray wire) between the seat switch and key start relay.
Schematics for LT1042 and SLT1554 models differ in ignition module placement–consult the specific year’s service manual for pinout diagrams. Always disconnect the negative battery cable before servicing electrical components to avoid damaging the ECU. Use heat shrink tubing on repaired connections, not electrical tape, to prevent moisture ingress and future corrosion.

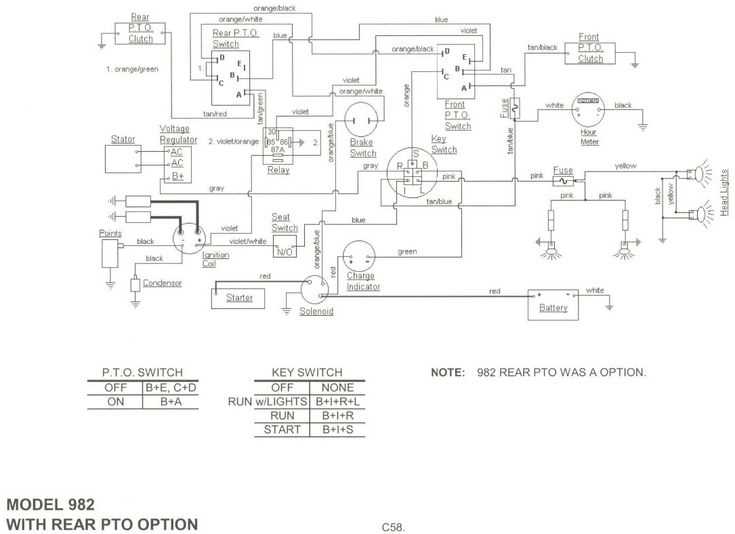

Electrical Schematic for Maintenance: Key Connections
Disconnect the battery’s negative terminal before tracing any circuits to prevent shorts. Label wires with masking tape and a marker–note their gauge (typically 14–18 AWG) and color codes (e.g., red for 12V+, black for ground, yellow for ignition). The ignition switch on models 1260–2100 links to the solenoid via a 16-gauge brown wire; verify voltage (12V) at the solenoid’s small post when the key is turned. Fuses (20–30A) protect the starter circuit–replace blown units with identical ratings. For LT-series, the PTO clutch draws 4–6A; check the relay (part #725-1379) if engagement fails. Mower decks use a separate harness–inspect the plug (6-pin Molex) for corrosion.
Component Voltage Checks
| Component | Expected Voltage | Fault Symptoms | Test Points |
|---|---|---|---|
| Battery | 12.6V (resting) | Slow cranking, dim lights | + and – terminals |
| Solenoid | 12V at small post | Clicking, no start | Small post to chassis |
| Stator (LT200) | 13–15V AC (no load) | Battery not charging | Black (A) and yellow (B) wires at regulator |
| Ignition Module | 0.5–2V (spark test) | Misfires | Spark plug wire with probe |
Ground connections at the engine block and frame are critical–sand paint off contact surfaces and apply dielectric grease. For xt1/x30 models, the hour meter shares a circuit with the headlights; dimming indicates alternator failure. Use a multimeter’s continuity mode to verify switches–momentary toggles (e.g., blade engage) should read 0 ohms when closed. Thermal fuses (part #725-04306) embedded in the motor windings blow at 180°C–replace only with OEM units.
Finding the Right Electrical Schematic for Your Garden Machine
Check the model number first–it’s printed on a metal plate attached to the frame, usually under the seat or near the engine. This alphanumeric code, such as LT1045 or XT1, is the key to identifying the exact circuit layout. Manufacturers update designs annually, so even a difference of one digit can mean incompatible connections. Match this number against official resources before proceeding.
Official service manuals from the manufacturer remain the most reliable source. These documents include detailed schematics, color-coding, and component listings specific to your machine’s build year. Download PDFs directly from their official site, where you’ll find archives sorted by model and serial range. Avoid third-party uploads unless verified–many contain errors or outdated revisions.
- Model-specific manuals often include exploded views of connectors, fuse panels, and ground points.
- Indexed sections list wire gauge, terminal types (spade, bullet, ring), and splice locations.
- Some manuals provide troubleshooting flowcharts for common electrical failures.
If manuals aren’t available, inspect the physical harness. Trace wires from the battery to major components: starter solenoid, ignition switch, lights, and PTO clutch. Label each connection with masking tape noting color and destination. Common color codes include:
- Red: Battery positive (thick gauge, fused).
- Black: Ground (often bolted to chassis).
- Yellow: Accessory circuits (lights, gauges).
- Blue/White stripe: Ignition feed.
- Brown: Charging system (alternator output).
For older machines (pre-2000), consult vintage tractor clubs. Enthusiast forums like MyTractorForum host scanned schematics from discontinued models. Users frequently upload hand-drawn layouts based on reverse-engineered harnesses. Request photos of the exact model–members often share close-ups of OEM labels that reveal part numbers linked to wiring diagrams.
Dealers maintain proprietary software with schematic databases. Contact a certified service center with your model and serial number; many will email the correct diagram within hours. This method ensures compliance with emissions and safety updates absent from aftermarket sources. Note that some regions mandate unique configurations–Australian models, for example, use different lighting circuits than North American versions.
When retrofitting aftermarket parts (LED kits, winches), cross-reference the existing schematic with accessory instructions. Manufacturers like Delphi or Cole Hersee provide supplementary diagrams showing how to integrate add-ons without overloading circuits. Calculate total amperage draw–overloaded wires melt insulation, posing fire risks.
Lastly, document modifications. Photograph the original setup before disassembly, then sketch changes on the schematic. Store this custom sheet with maintenance records to simplify future repairs. A fifty-cent notebook prevents hours of reassembly guesswork.
Identifying Core Elements in a Power Equipment Electrical Network

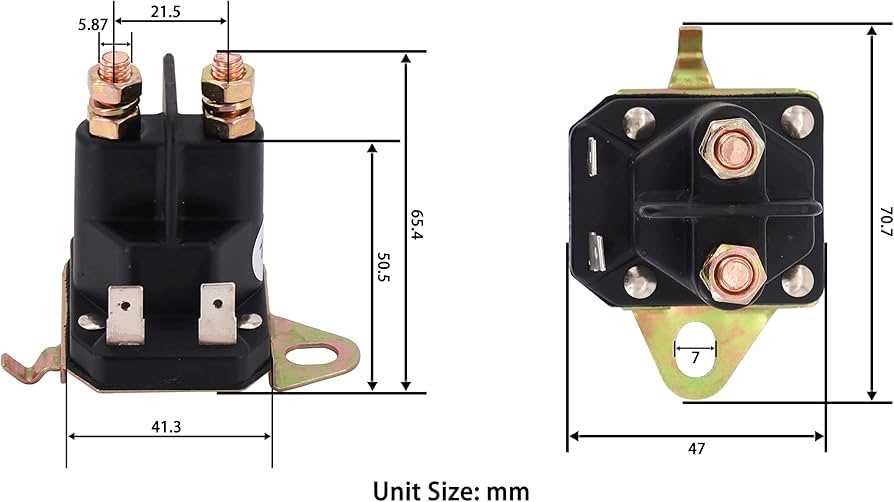

Locate the starter solenoid–often a cylindrical or rectangular unit mounted near the battery–by tracing the positive cable from the battery terminal. This component bridges the gap between the ignition switch and the starter motor, engaging the engine. Verify its functionality by listening for a distinct click when turning the key; absence signals corrosion, loose connections, or internal failure. Clean terminal posts with a wire brush if oxidation is visible, ensuring a 10 Nm torque specification when reattaching cables.
- Battery: 12V lead-acid, typically 200–300 CCA, with terminals marked “+” (red) and “-” (black). Check voltage with a multimeter–12.6V indicates full charge.

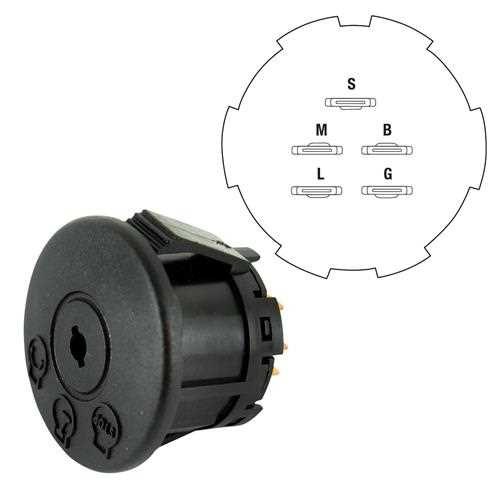

- Ignition switch: Rotary or key-operated, connects to solenoid via a 14–16 AWG wire (red/yellow stripe common). Test continuity between terminals B and S when key is rotated to “start.”
- Regulator/rectifier: Converts AC from stator to DC, preventing overcharging. Attached to the engine or frame, it requires a heat sink. Monitor voltage at battery with engine running–should stabilize at 13.8–14.5V.
- Fuses/circuit breakers: 10A–30A ratings, housed in a plastic or metal box near the battery. Replace blown fuses with identical amperage; never substitute with higher-rated alternatives.
Diagnosing Common Failure Points
Stator issues manifest as dim lights or erratic engine behavior. Test output by disconnecting the regulator and measuring AC voltage across stator wires (engine off)–readings should match equipment-specific specs (e.g., 20–40V AC at 3000 RPM). Replace if readings drop below 70% of expected values. For sensors (e.g., PTO clutch, oil pressure), probe connector terminals with a multimeter while simulating conditions (e.g., engaging clutch). A 0–5V signal or 0–12V toggle confirms proper operation; no change suggests a faulty sensor or broken conductor.
- Inspect all ground connections–bare metal attachments to the frame or engine block–using a continuity tester. Resistance should read <0.5 ohms.
- Follow the main harness: Check for chafing, especially where it passes through chases or near sharp edges. Repair nicks with electrical tape or heat-shrink tubing, not liquid tape.
- Label connections before disassembly using masking tape or a permanent marker. Note wire gauge (12–18 AWG typical) and connector types (spade, bullet, or Weather-Pack).
How to Interpret Electrical Schematics of Your Garden Equipment
Locate the power source first–usually marked with a battery symbol at the top or side of the layout. Trace the bold red line from the positive terminal and the black or green from the negative; these indicate primary current paths. Identify inline components: switches, fuses (denoted by a rectangle with a line through it), and solenoids (coiled symbols) along these lines. Each connection point will have a reference number or letter–cross-reference these with the legend at the bottom to confirm wire gauge and color codes. For Cub Cadet models LT1045, LT1050, and XT1, red wires typically carry 12V, while brown, orange, or purple may signal accessory circuits.
Decoding Symbols and Circuit Flow
Scan for dotted or dashed lines–these represent ground paths, often linking multiple components to a common chassis point. Relays appear as a pair of switches inside a dashed box; note the coil activation wire (usually thinner) and the contact wires (thicker). For ignition systems, follow the path from the key switch symbol through the safety interlocks (seat switch, PTO switch) to the starter motor. Yellow or blue wires frequently handle signal inputs like brake lights or hour meters. If the schematic shows a diode (triangle with a line), expect current to flow only in one direction–critical for preventing feedback in charging circuits.
Verify circuit continuity by matching terminal numbers on the schematic with physical connectors on the machine. Use a multimeter set to ohms; probe between component terminals and the nearest ground point. If resistance reads infinite, suspect an open wire or failed switch. For LT2 series, note staggered connector layouts–pins A1-A4 may not align numerically. Label each wire with masking tape during disassembly to avoid misplacement during reassembly.
