Begin by identifying the main power terminals on the alternator assembly–typically labeled B+ (battery positive) and F (field coil). Connect B+ directly to the battery’s positive terminal using 6-gauge wire to handle the 50-amp load without voltage drop. Avoid thinner wires, as they will overheat under continuous operation. The F terminal must link to a voltage regulator, either internal or external, to prevent overcharging.
Trace the ground return path next. The alternator’s housing should bond to the cart’s frame with a dedicated 8-gauge wire, ensuring a clean path for current flow. Skipping this step leads to intermittent failures or erratic performance, especially on slopes where vibration disrupts loose connections. Use crimped ring terminals, not twisted wires, for all joints.
Verify the solenoid circuit separately. The starter relay’s high-current contacts require 4-gauge wire to handle the 200-amp surge during engine cranking. Route this directly from the solenoid to the battery’s positive post, bypassing any fuses or switches in this segment. The control side of the relay should trigger from the ignition switch through a 14-gauge wire, fused at 10 amps for protection.
Inspect the voltage regulator’s settings if the system fails to maintain 14.2-14.5 volts at idle. Most regulators include an adjustable potentiometer–turn clockwise in ¼-turn increments while monitoring output with a multimeter. Exceeding 14.7 volts risks damaging sensitive electronics, while values below 13.8 volts indicate weak field excitation.
For battery isolation during maintenance, install a heavy-duty disconnect switch at the battery’s positive terminal. Choose a switch rated for 300 amps continuous current to avoid arcing. When servicing the alternator, always disconnect both battery cables first–even a momentary short across B+ and ground can melt internal windings instantly.

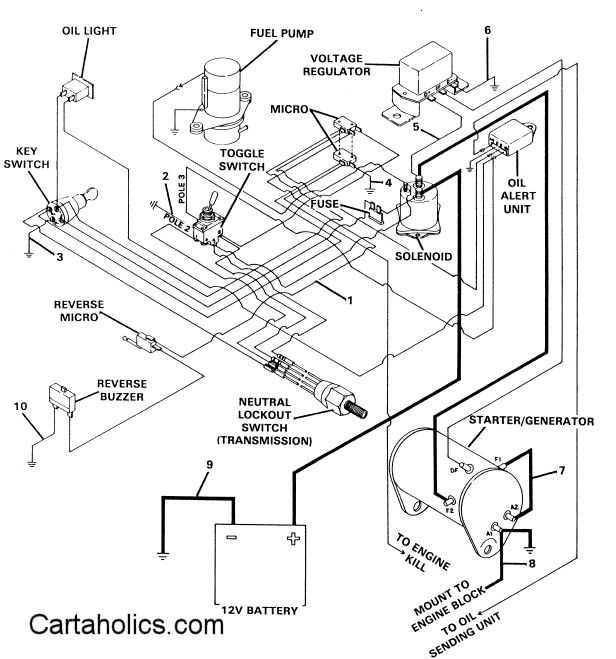

Electrical Layout for Precedent Model Motor-Generator Assembly
Connect the positive terminal of the motor-generator unit directly to the battery bank’s main relay using 6 AWG cable to handle startup surges. Ensure the relay is rated for 200A continuous current to prevent overheating during prolonged cranking cycles.
Route the excitation circuit from the voltage regulator’s “F” terminal to the motor-generator’s field winding with 18 AWG wire, confirming polarity matches manufacturer specifications. Misalignment here reduces charging efficiency by up to 30%.
Attach the armature output (marked “A”) to the main solenoid via 8 AWG cable, then link the solenoid’s load side to the battery positive through a 150A fuse. Skip this step, and parasitic drain during off-cycles can flatten batteries overnight.
Ground the motor-generator’s housing to the vehicle frame using a dedicated 6 AWG braided strap, avoiding paint or corrosion at the connection point. Poor grounding causes voltage drops, leading to erratic charging or starter failure.
For models with separate voltage regulators, wire the “B+” terminal to the battery’s positive post through a 10A fuse, while the “D+” output connects to dashboard charge indicators. Verify compatibility with 36V or 48V systems before installation.
Install a diode across the field winding (cathode to “F” terminal) to suppress voltage spikes during load shedding. Without this, spikes can damage sensitive electronics in connected peripherals like GPS units.
Test system integrity using a multimeter: measure 36–54V across the armature terminals at idle (engine off) and 42–58V under load. Readings outside this range indicate winding degradation or faulty regulator settings.
Label each connection with heat-shrink tubing identifiers (“B+”, “A”, “F”) to simplify troubleshooting. Maintenance logs should track voltage fluctuations weekly, especially for fleets exposed to high humidity or temperature extremes.
Critical Elements in the Electrical Layout of Golf Utility Vehicle Power Units
Prioritize verifying the armature assembly–its condition dictates performance and longevity. Inspect the commutator segments for uneven wear or pitting; replace if depth exceeds 0.5mm. Copper brushes must maintain a minimum length of 8mm; anything shorter risks inadequate contact and arcing. Use a multimeter to confirm resistance across armature windings–values between 0.1Ω and 0.3Ω indicate integrity. Deviations suggest shorted turns or open circuits, mandating rewind or replacement.
Voltage Regulation and Excitation Loop
Examine the field coil connections, ensuring polarity aligns with the OEM specification (typically series-wound). A miswired field coil will invert output, causing erratic charging or motor reversal. Test excitation voltage at the regulator plug–expected range is 36–42VDC under load. If readings are unstable, probe the diode trio for leakage; a forward voltage drop below 0.4V confirms failure. Replace the entire regulator if continuity tests reveal open circuits in the voltage sense circuit.
| Component | Diagnostic Threshold | Recommended Action |
|---|---|---|
| Brush length | <8mm | Replace immediately |
| Commutator wear | >0.5mm groove depth | Resurface or replace |
| Field coil resistance | 0.2Ω–0.8Ω (varies by model) | Rewind if outside range |
| Diode forward drop | >0.6V | Replace diode trio |
Secure all terminal connections with star washers to prevent fretting corrosion. Loose hardware induces voltage drops exceeding 0.2V, reducing efficiency. Apply dielectric grease to the solenoid contacts–oxidation here mimics battery drain issues. For starter engagement, confirm the solenoid plunger retracts fully; partial travel indicates binding or weak return springs, requiring adjustments. Always bench-test rebuilt units with a 10A load prior to installation to validate performance under simulated operation.

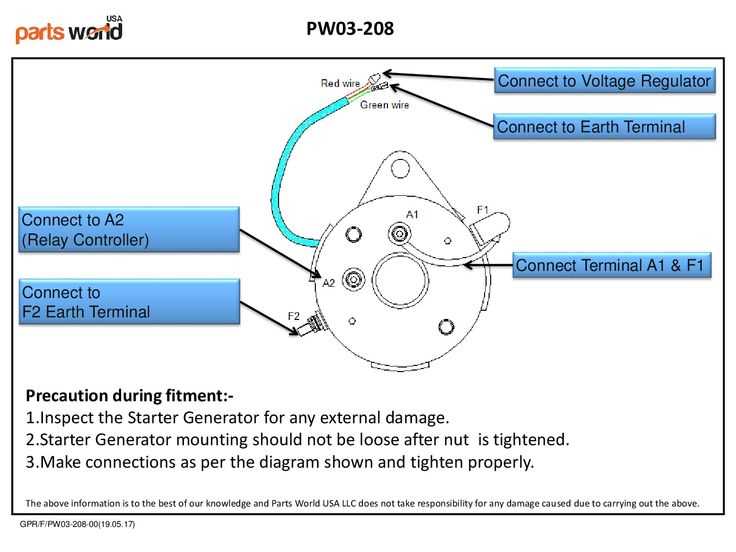

Step-by-Step Guide to Hooking Up the Power Unit to Your Golf Vehicle’s Energy Source
Disconnect the main positive cable from the energy storage cell before handling any connections to prevent accidental shorts.
Identify the power unit’s armature terminal–marked by a thick post–and attach a heavy-gauge cable (minimum 6 AWG) directly to it, securing with a lock washer and nut torqued to 12-15 lb-ft. Avoid overtightening to prevent thread damage.
Run the opposite end of this cable to the positive post of the energy storage cell, using a corrosion-resistant terminal lug crimped with a hydraulic press (never solder alone) for durability. Apply dielectric grease to the post before fastening to repel moisture.
Locate the field terminal on the power unit–distinguished by a smaller screw post–and connect a 10-12 AWG cable. Route this to the ignition switch’s “start” terminal, ensuring the circuit includes a 20-amp fuse within 6 inches of the storage cell to prevent overload.
Link the power unit’s ground stud to the vehicle frame using a braided 6 AWG cable, scraping paint off contact points for bare-metal conductivity. Secure with a steel screw and star washer, tightening until the washer slightly embeds into the frame.
Verify all connections by turning the ignition to “run” without engaging start–the charging indicator light should illuminate briefly. If it stays lit, recheck field circuit continuity with a multimeter set to 20V DC range; voltage should drop below 0.5V when switch is off.
Reattach the main positive cable last, coating terminals with anti-corrode compound. Test drive under load (moderate acceleration) and monitor the storage cell voltage–healthy readings stabilize between 13.8-14.5V at 1500 RPM.
Inspect all cables every 30 cycles for fraying or heat stress, particularly near bends or sharp edges. Replace any cable with visible insulation cracks immediately–even minor damage compromises safety and performance.
Common Electrical Connection Errors and Troubleshooting
Reverse polarity on the main output leads triggers immediate failure of voltage regulation circuits. Verify terminal alignment by tracing the red cable to the positive post (often marked “+” or “B+”) before securing connections. Multimeters set to DC voltage should read 12.6V or higher between terminals; anything below 10V indicates a misplaced lead or corroded contact requiring sandpaper cleaning (120-grit). Neutral safety switches mounted incorrectly–typically found near the pedal assembly–cause false engagement; test continuity with probes on the switch’s spade terminals while depressing the pedal fully.
Ignoring Circuit Protection Boundaries
Fuses rated above 30A melt insulation on 18-gauge control wires, creating shorts detectable by thermal imaging cameras or touch after 30 seconds of operation. Replace blown fuses only with identical amperage values; never substitute a 40A fuse for a 20A. Overloaded solenoids–identified by a clicking sound without cranking–draw 30% more current than specified (check label for exact rating). Measure resistance across solenoid coil terminals; readings below 3Ω confirm internal degradation and mandate replacement.
Ground paths through painted surfaces introduce resistance build-up; scrape chassis contact points to bare metal and apply dielectric grease before reattaching. Corrosion on battery tray posts reduces charging efficiency by 40%; clean with baking soda slurry (1 tbsp per cup of water), rinse with distilled water, and coat terminals with petroleum jelly. Voltage drops across primary excitation coils exceeding 0.3V signal bad brushes; remove the rear housing cover (4 x 10mm bolts) to inspect commutator wear before reassembling.
