For reliable operation, begin by identifying the R (power) terminal–this is your 24V source from the heating or cooling system. Connect it first to ensure all subsequent steps proceed without voltage mismatches. If your control board includes separate Rc (cooling) and Rh (heating) terminals, bridge them with a jumper wire unless the equipment manufacturer specifies otherwise.
Attach the W (heat) terminal to the heating relay, typically labeled on the furnace as HEAT or W/W1. For heat pumps, link W2 (or Aux/E) to the emergency heat relay if present. Verify polarity–reversed connections can trigger erratic cycling or failure to engage. For cooling systems, route the Y (compressor) terminal to the outdoor unit’s Y/Y1 contact. If the unit supports staging, Y2 handles secondary cooling demands.
Ground the G (fan) terminal to the air handler’s fan relay. Some advanced setups split this into G1 (low-speed fan) and G2 (high-speed), requiring separate relays. Omit the jumper between R and C (common) unless the system includes a dedicated power supply for accessories like humidifiers. Always measure voltage across R and C before proceeding–readings outside 22-28V AC indicate a transformer issue.
For multi-stage equipment, confirm terminal designations against the manufacturer’s schematic–confusing W2 with Y2 can damage compressors or heating elements. Use 18-gauge solid copper wire for all connections, twisted to reduce interference. Secure each termination with a screw terminal, avoiding backstabs, which degrade over time. Label each wire at both ends with pre-printed sleeves or heat-shrink tubing to simplify future diagnostics.
Test the setup by setting the control to heat and observing the furnace’s response. If the fan runs but heat doesn’t activate, recheck the W connection. For cooling failures, verify Y and air handler relay engagement. If the display dims or flickers, inspect the C terminal’s grounding. Never leave connections loose–even minor resistance can cause overheating and system lockouts.
Connecting Your Climate Control System: A Step-by-Step Guide
Begin by identifying the low-voltage terminals on your HVAC unit–these are typically labeled R, C, W, Y, and G. Match each terminal to the corresponding color-coded wire from the control panel: red (power), white (heat), yellow (cooling), green (fan), and blue or black (common). Verify the voltage rating of your system–most residential setups operate at 24V AC, but industrial models may require 120V or 240V wiring.
Disconnect power at the circuit breaker before handling any connections to avoid electrical shock or damaging sensitive components. Use a multimeter to confirm zero voltage at the terminals as an extra precaution. Twist together bare wire ends with needle-nose pliers, securing each junction with a wire nut rated for the gauge of your cable (typically 18-22 AWG for standard installations).
For heat pump configurations, locate the O/B terminal–this controls the reversing valve. If your system includes emergency heat, connect an additional wire to the E terminal. Label each connection with masking tape to simplify future troubleshooting or upgrades. Avoid stretching wires taut; leave slight slack to prevent tension that could dislodge connections over time.
Install a fuse or circuit breaker inline with the power supply wire (R terminal) to protect against current surges. For systems with manual changeover between heating and cooling, ensure the control panel’s switch operates smoothly–misalignment can cause inconsistent temperature regulation. Test each mode separately before finalizing the setup.
Ground all metallic components to the HVAC chassis using a dedicated green or bare copper wire. This step is critical in high-humidity environments or areas prone to static discharge. For smart-enabled panels, pair the device with your home network *after* confirming stable power–interruptions during pairing can corrupt firmware.
Use crimp connectors instead of wire nuts for outdoor installations where moisture or vibration may loosen connections. Apply dielectric grease to terminals exposed to the elements to prevent corrosion. For multi-stage heating/cooling systems, connect auxiliary wires (W2, Y2) to the corresponding secondary terminals–ensure compatibility with your unit’s stage sequencing.
Check local electrical codes for specific requirements–some regions mandate dedicated neutral lines for certain setups. If integrating with a zoned system, verify that dampers or zone valves align with the control panel’s logic. Run a diagnostic test by setting the panel to call for heat, then cool, monitoring the HVAC unit’s response time and noise levels.
Document every connection in a schematic for future reference. Store a backup copy of this record near the main unit and digitally (if applicable). Replace any frayed or discolored wires immediately–these indicate potential fire hazards or compromised performance. Periodically inspect tightness of connections, especially after seasonal temperature changes that may cause expansion/contraction of wires.
Understanding the Terminal Labels on a Control Unit Installation
Identify the key connection points before handling any electrical setup. Most models use standardized markings: R (red, power input), C (common, often blue or black for 24V completion), W (white, heating call), Y (yellow, cooling activation), G (green, fan operation). Verify the correspondence with the HVAC system’s documentation–some legacy or hybrid setups may label O/B (reversing valve) for heat pump modes instead of separate outputs. Mismatches risk damaging relays or rendering climate controls inoperative.
Follow these steps to prevent errors during linking:
- Power down the circuit breaker–24V lines carry low voltage but can spark if shorted.
- Label each conductor at both ends using colored tape–prevents confusion during reattachment.
- Tighten terminal screws to 0.5 Nm torque–loose connections cause intermittent faults or overheating.
- Test continuity with a multimeter before restoring power–ensures no crossed or broken paths.
- Avoid combining R with C unless confirmed compatible–some older gas furnaces lack the neutral pathway, relying solely on battery backups.
Advanced Terminal Configurations
Certain multi-stage units introduce additional contacts like W2 (secondary heating), Y2 (auxiliary cooling), or E (emergency heat). Heat pumps often repurpose O/B–O activates cooling mode, B reverses for heating. Verify the system’s default state: some models require jumpering O/B to R during installation. Failure to configure these correctly results in reversed operation or compressor lockout. Always cross-reference with the equipment’s schematic–mismatched staging leads to inefficient cycling or premature wear.
Step-by-Step Guide to Connecting Electrical Leads for HVAC Setups
Turn off the power at the circuit breaker before handling any electrical connections to prevent short circuits or shocks. Verify the supply is cut using a non-contact voltage tester on the mounting plate screws and terminal screws.
Remove the existing control device faceplate by gently pulling it forward if it’s snap-mounted or unscrewing the retaining clip. Label each lead with masking tape and a marker–record the terminal letter (R, C, W, Y, G) and wire color to avoid confusion during reinstallation.

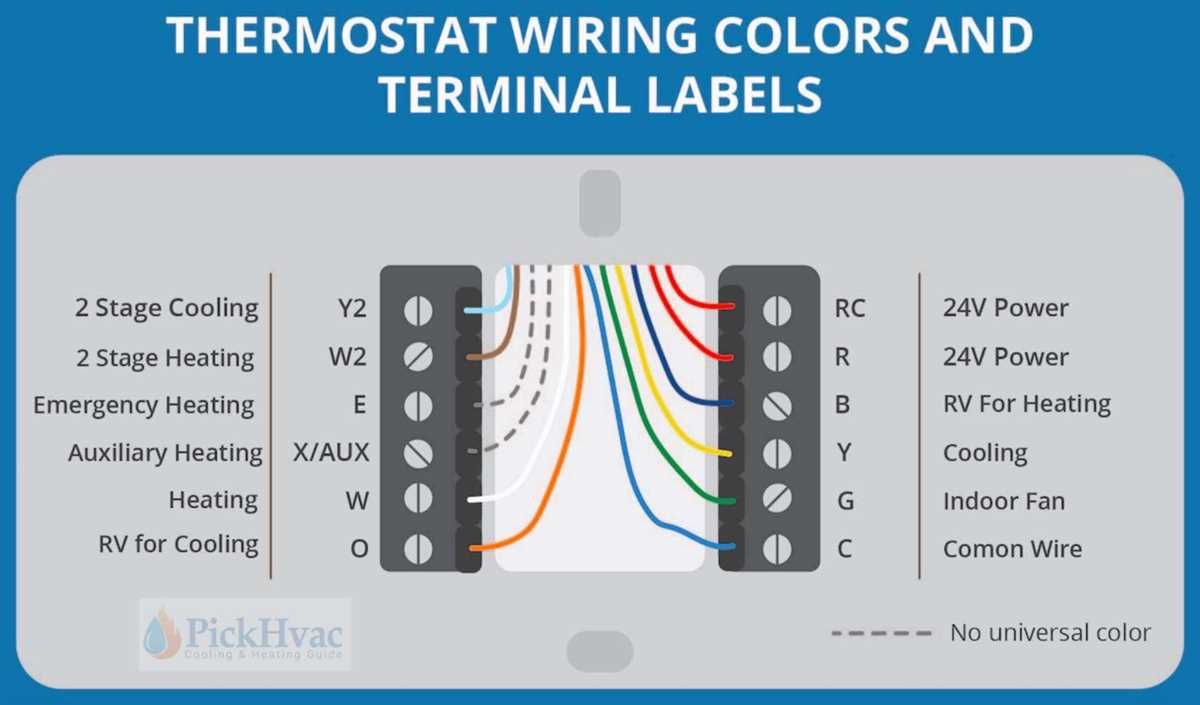

| Terminal | Function | Common Wire Colors (North America) |
|---|---|---|
| R | 24VAC power (heating) | Red |
| C | Common (24VAC return) | Blue, Black |
| W | Heat relay | White |
| Y | Cooling relay | Yellow |
| G | Fan relay | Green |
Strip each lead to expose 3/16″ of copper conductor using wire strippers. Twist the strands gently to prevent fraying before inserting them into the matching terminals. Secure the leads by tightening the terminal screws with a flathead screwdriver–ensure no insulation is pinched.
For heat-only systems, connect the red (R) wire to the R terminal and the white (W) wire to the W terminal. Add the common (C) wire if powering a smart control device. Cooling systems require the yellow (Y) wire to the Y terminal and green (G) wire to the G terminal for fan operation.
Verify each connection resists a gentle tug–loose leads can cause intermittent failures. Reattach the faceplate and restore power at the circuit breaker. Test the system by setting the control device to heat mode; listen for the furnace to ignite within 30 seconds. Switch to cooling mode–wait for the outdoor compressor to activate.
If the fan operates continuously in auto mode, check the G terminal connection–it may be shorted to the R terminal. Reset the circuit breaker and retest if no response is detected. For battery-backed control devices, replace alkaline cells if the display dims.
Seal unused terminals with wire nuts to prevent accidental shorts. Secure excess lead length with cable ties and route them neatly behind the mounting plate to maintain clearance for future maintenance. Avoid routing near sharp edges or moving components.
Document the setup by photographing the connections with the faceplate removed and saving the image to a phone or cloud storage. Include a summary of terminal assignments in the device’s manual for quick reference during fuse box upgrades or system expansions.
Preventing Installation Errors in Climate Control Systems
Label each conductor before disconnecting the old control unit. Use masking tape or removable markers to note terminal positions–R (power), W (heat), Y (cool), G (fan), and C (common). Reversing R and C during reconnection will cause immediate system failure, often tripped by internal safety relays. Verify labels against the schematic included with the replacement unit, cross-referencing color codes if provided.
Recognizing Incorrect Terminal Assignments
If the unit powers on but fails to activate heating or cooling, the issue frequently lies in swapped W and Y inputs. Heat pumps may exhibit erratic cycling or refuse to start; standard furnace setups might remain unresponsive entirely. Check connections with a multimeter–R to W should show 24VAC in heating mode, R to Y in cooling mode. No voltage indicates an open circuit, likely from incorrect placement.
Incompatible configurations, such as connecting a single-stage control to a multi-stage system without adapters, will result in partial functionality. Two-stage furnaces require separate W1 and W2 outputs; merging them can damage the control relays. Consult the equipment’s technical manual to confirm compatibility before attaching conductors.
Humidity control modules or auxiliary features like emergency heat must be wired to dedicated terminals if available. Ignoring these can void warranties or trigger error codes. For example, attaching an outdoor sensor to the incorrect input may generate erroneous temperature readings, causing the system to overheat or short-cycle. Always isolate each function to its designated pin.
