Begin by matching pin configurations to your vehicle’s specifications–consult the manual for exact wire colors. Most 7-pin arrangements follow this standard: yellow (left turn/brake), green (right turn/brake), brown (tail lights), white (ground), blue (auxiliary/electric brakes), black (12V power), and red (reverse lights). Verify each connection with a multimeter before securing clamps to prevent corrosion or shorts.
For 13-pin connectors, note the additional circuits: fifth pin (fridge/accessory), sixth pin (battery charge), and seventh pin (common return). European models often merge functions–test continuity between pin 1 (left indicator) and pin 4 (right indicator) before linking. Use heat-shrink tubing on splices to avoid moisture ingress, especially in heavy-duty applications.
Label each wire during disassembly to avoid miswiring. Replace any frayed cables immediately–compromised insulation under 24V loads risks fire. Ground the white wire directly to the chassis using a 10-gauge minimum; inadequate grounding causes flickering lights or intermittent failures. For older vehicles, add a relay to reduce voltage drop over long cable runs.
Check local regulations–some jurisdictions require separate brake controllers for trailers over 3,000 lbs. Polarize the blue wire if integrating surge brakes; reverse polarity engages brakes prematurely. Test all functions with a helper while stationary before road testing to identify loose connections without hazard.
Electrical Connections for Vehicle Towing Plugs
Ensure the ground pin (typically white) connects directly to the chassis or a dedicated metal frame point. Avoid relying on painted or coated surfaces–scrape clean to bare metal for reliable conductivity. A corroded or loose ground is a common failure point, leading to flickering lights or intermittent signals.
For 7-pin configurations, the brown wire represents running lights. Route it to the side marker and tail lamps, maintaining consistent wire gauge (typically 14-16 AWG) to prevent voltage drop over longer cable runs. Test continuity with a multimeter before finalizing connections.
Use a relay for circuits carrying higher loads, like electric brakes (blue wire). Direct battery connections via a relay reduce strain on vehicle wiring harnesses and prevent overheating in smaller-gauge wires. Fuse the relay input at 20-30 amps to protect the system.
Pin Assignment Best Practices
Label each connector lead before splicing. Standard color codes may vary by manufacturer–verify against the vehicle’s manual rather than assuming compatibility. For 13-pin European variants, the black wire (battery charge) requires thicker insulation (12 AWG minimum) due to longer distances to the tow vehicle’s power source.
Apply dielectric grease to terminals after assembly. This prevents moisture ingress and corrosion, particularly in pins exposed to road spray or salt. Recheck connections after 100 kilometers of towing to tighten any loosened crimps or screws.
For auxiliary functions (e.g., reversing lamps on pin 6), add an inline fuse (5A) close to the power source. This isolates faults without compromising other circuits. Use waterproof heat-shrink tubing over splices to maintain integrity in harsh conditions.
Troubleshooting Common Issues
If turn signals pulse irregularly, inspect the flasher relay in the tow vehicle’s system. LED trailers often require a load-resistor module to mimic bulb resistance. Check for voltage drop across the yellow (left turn) and green (right turn) wires–anything above 0.5V indicates resistance in the circuit.
Selecting the Optimal Connector Plug for Your Towing Setup
Begin with the 7-pin round connector if hauling standard cargo in North America–it handles lighting, brakes, and basic functions without unnecessary complexity. European vehicles or heavier loads demand a 13-pin Euro variant; its additional circuits power reverse lights, charging lines, and stability controls directly through a single compact interface.
Off-road or utility trailers benefit from the heavy-duty 6-way square design. Its robust terminals resist vibration and corrosion, making it ideal for farming or construction equipment where durability trumps multimedia needs. Avoid this type for recreational setups–its bulk adds nothing beyond raw reliability.
Matching Compatibility to Your System
- Light-duty towing (bikes, small campers): 4-flat or 5-way flat connectors suffice; simple polarity ensures quick hookups.
- Mid-range loads (boats, small RVs): 7-pin round balances simplicity and capability–no adapter required for most domestic vehicles.
- Oversized rigs (horse trailers, car haulers): 13-pin Euro offers sealed connections and auxiliary power for hydraulic lifts or interior lighting.
Prioritize IP67-rated connectors for marine or agricultural use–water ingress destroys cheaper models within weeks. For vintage vehicles, verify if the existing harness supports modern multi-function plugs; retrofitting a 7-to-13-pin adapter saves rewiring costs but introduces potential failure points at each conversion.
Critical Features to Demand
- Gold-plated contacts: Prevent oxidation in humid climates or winter road salt exposure.
- Snap-lock housing: Eliminates accidental disconnects under braking or torque loads.
- Integrated wire grommets: Guards against chafing at the connection point where wiring exits the plug body.
- Color-coded terminal guides: Reduces installation errors during DIY setups.
For hybrid or electric tow vehicles, confirm the chosen plug supports regenerative braking systems–Sae J2863 compliance ensures compatibility with energy recovery demands. Australian-market vehicles may require a distinct 7-pin flat variant (AS 2513) for legal compliance; mixing types triggers faults in modern CAN bus systems.
Test every connector with a 12V circuit tester before first use–mislabeled pins cause immediate short circuits or gradual controller damage. Replace multi-plugs every 3–5 years under heavy use; UV degradation cracks housing seals, inviting moisture that corrodes internal connections invisibly until total failure occurs.
Color Standards for Electrical Pin Configurations: 7-Way and 13-Way Plugs

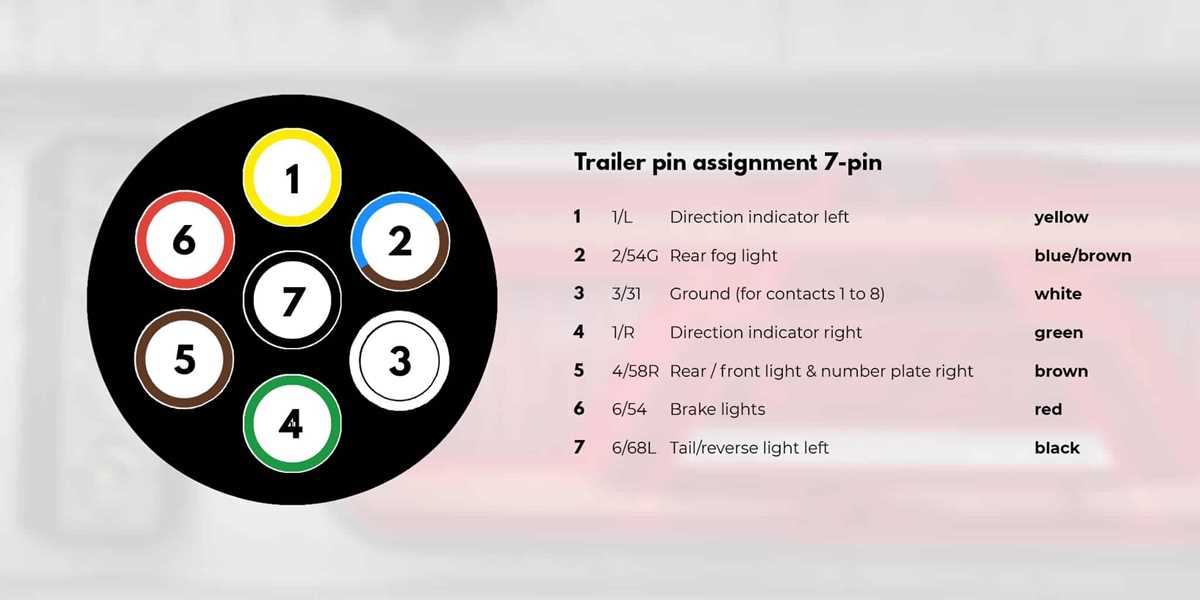

Begin by identifying the pin layout before making connections. A 7-pin circular plug follows this sequence (viewed from the rear, clockwise):
- Pin 1 (Yellow): Left turn/brake light
- Pin 2 (Blue): Reverse lamps or auxiliary power
- Pin 3 (White): Ground
- Pin 4 (Green): Right turn/brake light
- Pin 5 (Brown): Tail lamps and marker lights
- Pin 6 (Red): Brake signal (alternative)
- Pin 7 (Black): Battery charge or 12V power
The 13-pin variant expands functionality with these additions:
- Yellow/White stripe: Left reverse lamp
- Blue/Green stripe: Reverse lamp supply
- White/Black stripe: Secondary ground
- Green/Yellow stripe: Right reverse lamp
- Brown/Yellow stripe: Rear fog lamps
- Red/White stripe: Permanent 12V power
Verify wire gauge before splicing; 16-14 AWG suits standard lighting, while 12-10 AWG handles charging circuits. Strip insulation 5-7mm, twist strands, and apply solder for corrosion resistance. Crimp terminals securely–loose fits cause voltage drops or shorts.
Test continuity with a multimeter set to ohms. Probe each contact against the ground pin (white or white/black stripe); readings should show near-zero resistance. Check voltage under load: activate brake lights, indicators, and auxiliary circuits individually to confirm 11-13V at each terminal.
Seal completed joints with adhesive-lined heat shrink tubing or dielectric grease to block moisture. Avoid electrical tape–it degrades under UV exposure and vibration. Label cables at both ends with colored sleeves matching the pinout for future diagnostics.
European 13-pin plugs swap some functions: brown handles tail lights instead of fog lamps, while red/white delivers switched power. North American setups prioritize black for continuous power. Cross-reference vehicle documentation if retrofitting connectors–the risk of mismatched current paths damages ECUs or charging systems.
Essential Gear for Connecting Vehicle Electrical Plugs
Start with a multimeter rated for 20V DC to verify circuit integrity. Use crimp connectors–pre-insulated variants in 16-12 AWG for secure, corrosion-resistant joints. A wire stripper capable of handling 12-10 AWG ensures clean cuts without nicking conductors. Heat-shrink tubing (3:1 shrink ratio) provides superior sealing compared to electrical tape; select sizes to match cable diameters. A 12V test light confirms live circuits without risking damage to sensitive electronics. For soldering, lead-free rosin-core solder (60/40 alloy) and a temperature-controlled iron prevent brittle joints.
Recommended Components
| Item | Specification | Quantity |
|---|---|---|
| Stranded copper cable | 12 AWG, 16 AWG (color-coded: yellow, green, brown, white, blue) | 5m each |
| Circuit breaker | 20A thermal type, blade-style | 1 |
| Relay module | 5-pin SPDT, 12V coil, 30A contacts | 2 |
| Mounting hardware | Stainless steel self-tapping screws (#10 x 1/2″) | 6 |
| Weatherproof enclosure | Nylon junction box, IP67 rated, 6″ x 4″ x 2″ | 1 |
Include dielectric grease for terminal protection against moisture ingress. A cable loom (split corrugated tubing) safeguards wires from abrasion; choose diameters accommodating bundled cables. Ground connections require an 8 AWG bare copper wire and a die-cast zinc grounding stud for chassis attachment. For modular setups, a pre-wired harness with locking connectors reduces errors–ensure compatibility with the vehicle’s existing port.
