Install a minimum 60-amp double-pole breaker in the main service box to feed any secondary breaker assembly. Use 6 AWG copper or 4 AWG aluminum conductors rated for 75 °C inside schedule-40 conduit; derate to 55 A continuous loads. Keep the neutral bus isolated from the grounding bus in the auxiliary box–bonding should occur only at the primary service entrance.
Grounding electrode requirement: drive an 8-ft copper-clad rod at least 6 ft away from the main rod, then connect it to the auxiliary ground bus with 6 AWG bare copper. Label every conductor at both ends with heat-shrink tubing marked “FEEDER LINE,” “NEUTRAL,” and “GROUND” to comply with NEC 2023 section 215.12.
Calculate conductor ampacity by multiplying the continuous load times 1.25; for 48 A sustained draw, select wire rated at 60 A. Fuse the auxiliary box’s main breaker at the same or lower rating as the feeder breaker–never exceed 60 A unless the feeder wire is upsized to 4 AWG copper or 2 AWG aluminum for 70 A protection.
Cold sequence: shut off the main breaker before landing conductors. Strip exactly 5/8 in of insulation; use torque screwdrivers calibrated to manufacturer specs–typically 25 lb-in for 6 AWG terminals. Double-check polarity with a multimeter: neutral to ground should read 0 V, hot to neutral 120 V, hot to hot 240 V.
Conduit fill: 1-in EMT accommodates four 6 AWG THHN conductors plus one 6 AWG bare ground. Pull tensions must not exceed 35 lb for copper or 50 lb for aluminum–use calibrated dynamometer and lubricant approved for 90 °C conductors. Secure conduit every 5 ft where exposed and within 3 ft of every junction box.
Electrical Layout Guide for Secondary Distribution Boards
Begin by identifying a minimum 100-amp breaker in the main service unit to feed the auxiliary circuit. Ensure the chosen breaker matches the load requirements of the downstream equipment, with calculations based on National Electrical Code (NEC) Article 220. Overcurrent protection must align with the feeder cable’s ampacity–typically 2/0 AWG copper or 4/0 AWG aluminum for 100-amp service.
Route the feeder conductors from the main disconnect to the auxiliary board using schedule 40 PVC conduit (minimum 1.25-inch diameter) or rigid metal conduit for exposed installations. Secure conduits every 4.5 feet with strap clamps, maintaining a 6-inch clearance from parallel electrical lines to prevent electromagnetic interference.

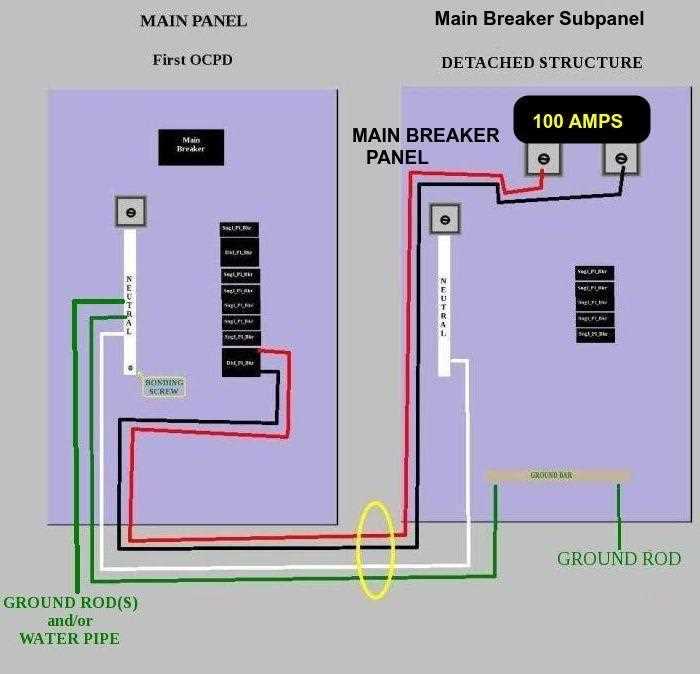

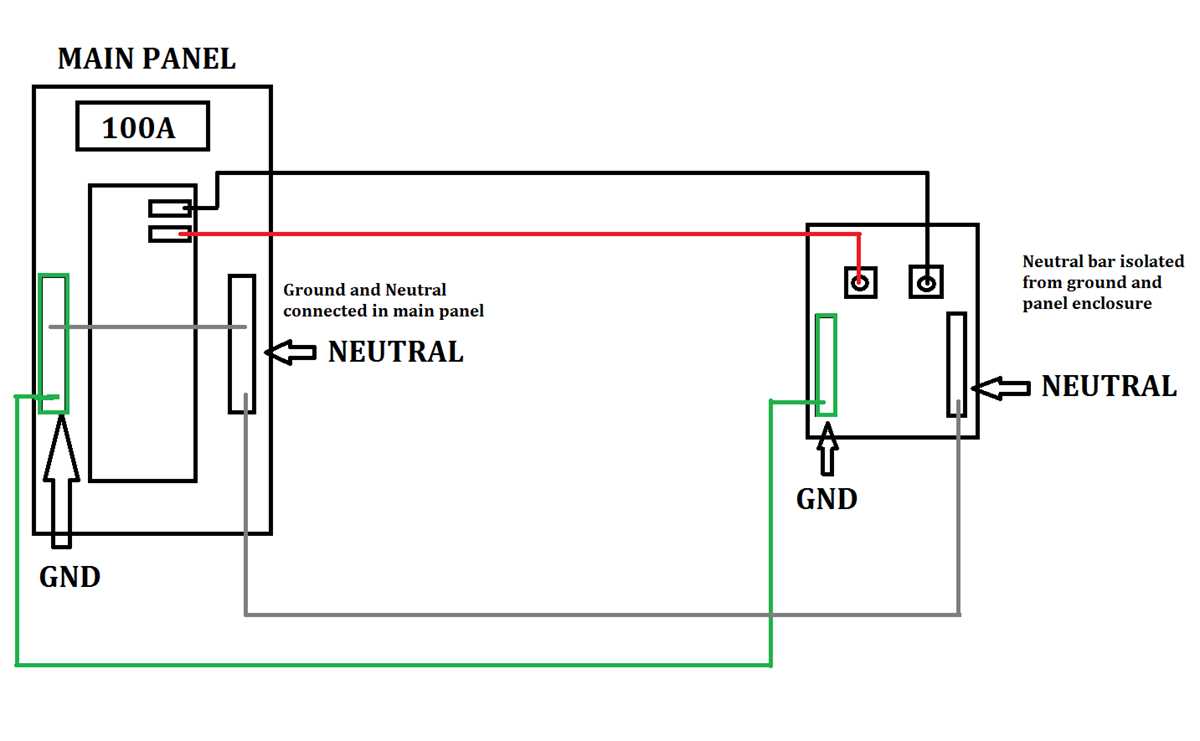

Install a grounding electrode conductor (minimum #6 AWG copper) between the auxiliary board and the nearest grounding electrode. Bond the neutral busbar to the enclosure only at the primary service, isolating it in the secondary unit to comply with NEC 250.32(B)(1). Verify torque specifications (NEC Table 250.126) for all terminations to prevent loose connections.
Label all breakers and conductors with heat-shrink tubing or embossed tags, including circuit numbers and load descriptions. Use blue for neutral, green for grounding, and black/red for hot conductors–consistency reduces diagnostic time during faults. Photograph the layout before energizing for troubleshooting reference.
Position the auxiliary board no closer than 3 feet from combustible materials unless protected by a 1-hour fire-rated barrier. Ensure ventilation gaps (minimum 12 inches) around the enclosure if installed in a confined space to dissipate heat from high-load circuits, such as EV chargers or machine tools.

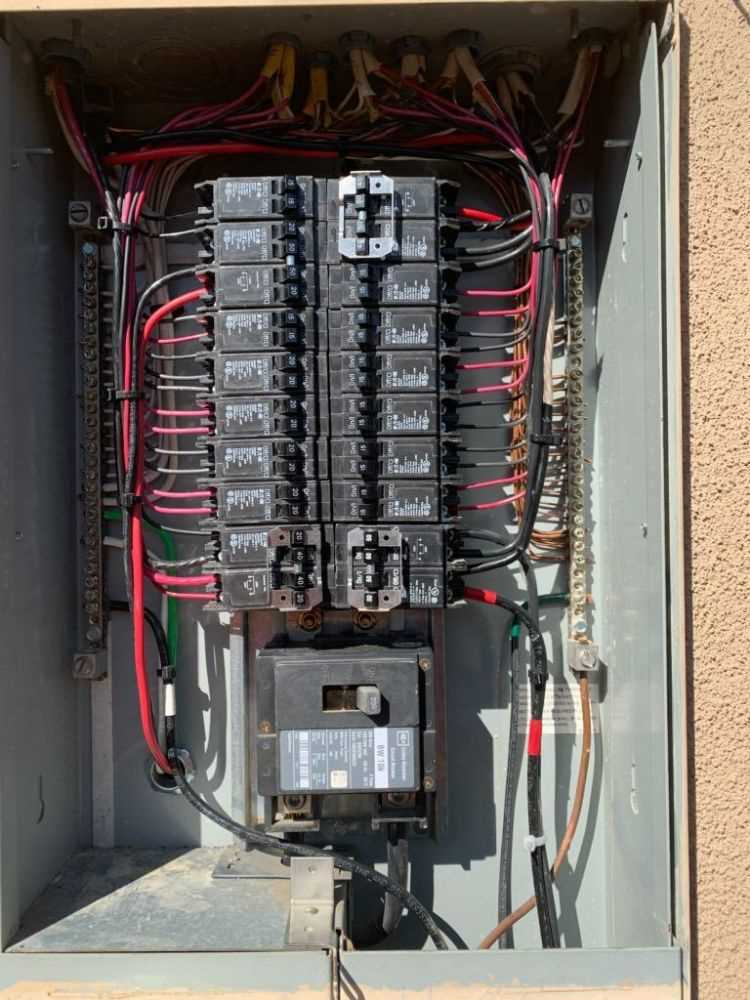

Avoid mixing single-pole and double-pole breakers on the same busbar phase; separate them into distinct vertical columns to minimize cross-phasing hazards. Dedicate a spare 20-amp breaker at the top of each column for future additions–this prevents overloading during modifications.
Test continuity with a multimeter (resistance ≤ 0.5 ohms) before energizing. Confirm voltage readings (120V/240V) match the configuration (split-phase or three-phase). Document amp draw under load for each circuit using a clamp meter, comparing results against the initial load calculations to identify overburdened branches.
Selecting Optimal Conductor Size and Material for Auxiliary Power Distribution
Use 6 AWG copper for circuits up to 50 amps at 120/240V when the run length does not exceed 50 feet. This gauge balances cost, performance, and compliance with NEC 310.15(B)(16) for ambient temperatures below 30°C. For aluminum, step up to 4 AWG under identical conditions to compensate for its 61% conductivity versus copper.
For 60-amp service, 4 AWG copper or 2 AWG aluminum becomes mandatory. Verify voltage drop; at 240V, a 1% loss occurs over 80 feet with 4 AWG copper, but aluminum requires recalibration due to its higher resistivity. Employ the formula VD = (2 * L * I * K)/CM where L is length, I current, K 12.9 for copper/21.2 for aluminum, and CM circular mil area from NEC Chapter 9 Table 8.
Critical Factors Beyond Gauge
- Temperature ratings: Conductors listed as 75°C (THHN/THWN-2) permit higher ampacity than 60°C types (TW). Always reference the 90°C column in NEC Table 310.15(B)(16) then derate to terminal temperature limits of 75°C.
- Conduit fill: Three 6 AWG THHN conductors require ½-inch EMT; exceeding four conductors triggers derating per NEC 310.15(B)(7). Use fill tables in Chapter 9 for precise sizing.
- Grounding: Size equipment grounding conductors per NEC 250.122; a 60-amp feeder demands 10 AWG copper or 8 AWG aluminum.
For 100-amp service, 2/0 AWG copper or 4/0 AWG aluminum are non-negotiable. These sizes deliver 120A at 75°C, accounting for 80% continuous load derating. Voltage drop calculations dictate maximum safe distances: 150 feet for copper, 120 feet for aluminum before exceeding 3% loss at 240V. Install a separate neutral busbar if unbalanced loads exceed 50A.
Underground installations necessitate USE-2 or XHHW-2 insulation rated for direct burial. Conduit protects from physical damage but increases thermal resistance; derate ampacity by 30% for buried cables under concrete. Above-ground outdoor runs require UV-resistant jacketing; UF cable suffices for short exposures, while RHH/RHW-2 resists prolonged sunlight.
Termination and Protection
- Terminate copper to aluminum lugs with anti-oxidant compound; torque all connections to manufacturer specs.
- Protect conductors with dual-element fuses or type D breakers sized 125% of continuous loads per NEC 210.20.
- Label all conductors at both ends with permanent markers: feeder phase (L1/L2), neutral (N), and ground (G).
- Inspect busbar joints for thermal expansion gaps; improper spacing causes oxidation.
Oversizing conductors by one gauge reduces voltage drop by 20% while adding minimal cost. For example, 3 AWG copper instead of 4 AWG extends 60-amp service range from 80 to 110 feet at 240V. Always cross-reference AHJ amendments–some municipalities enforce stricter derating for parallel runs exceeding three circuits.
Step-by-Step Guide to Installing Feeder Lines from the Primary Service Box
Shut off power at the primary service box using the main breaker before handling any conductors. Verify the circuit is dead with a non-contact voltage tester at both the breaker terminals and the bus bars. Failure to confirm de-energization risks severe shock or arc flash hazards.
Match the feeder gauge to the anticipated load using the NEC Table 310.16. For example, a 60-amp branch requires 6 AWG copper or 4 AWG aluminum conductors, sized for 75°C terminals. Overlooking derating factors–such as conduit fill or ambient temperature–can lead to overheating and insulation failure. Use the following reference for standard ampacity:
| Conductor Size (AWG) | Copper (Amps) | Aluminum (Amps) |
|---|---|---|
| 8 | 50 | 40 |
| 6 | 65 | 50 |
| 4 | 85 | 65 |
| 2 | 115 | 90 |
Route the feeder through approved paths–conduit, cable trays, or direct burial–based on location. For indoor runs, Schedule 40 PVC or EMT works; outdoor or underground installations demand Schedule 80 or RMC for mechanical protection. Secure conductors every 4.5 ft in horizontal runs and within 12 in of boxes to prevent sagging or stress on terminals.
Land hot wires on the dedicated breaker in the primary box, grounding conductor to the ground bus, and neutral to the neutral bus–checking torque specifications per the breaker manufacturer. Label all conductors and breakers clearly; use a permanent marker to note the destination circuit on the breaker faceplate. Re-energize only after confirming all connections are secure, conduits are sealed, and no exposed conductors remain.

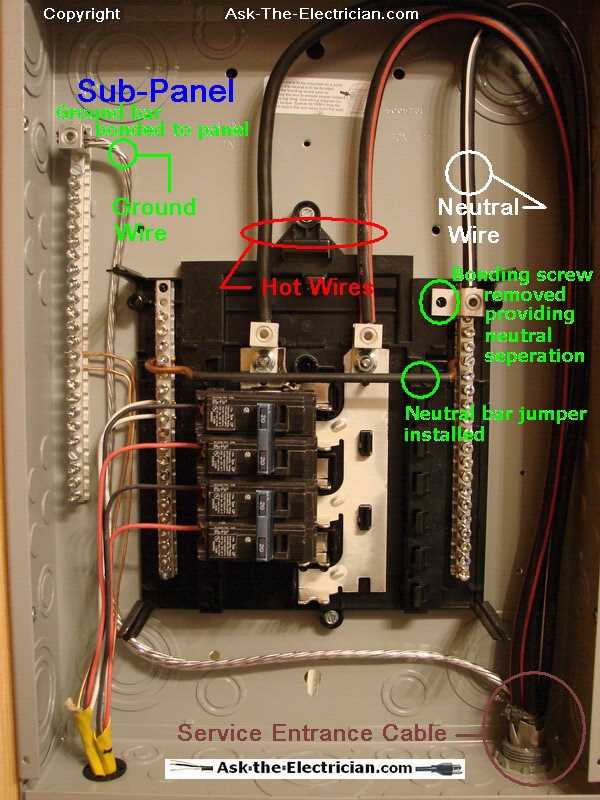

Grounding and Neutral Busbar Best Practices in Auxiliary Electrical Boxes

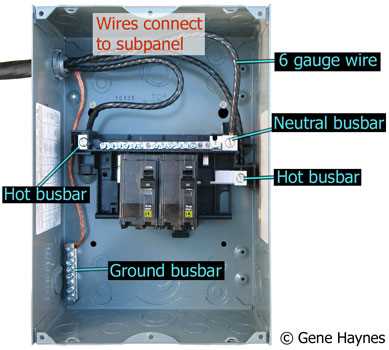

Install separate grounding and neutral busbars in detached service enclosures. NEC 250.32(B) mandates isolation unless the feeder originates from the main service disconnect, where a shared conductor is permitted. Use copper bars rated for 125% of the maximum continuous load–minimum 3/4″ x 1/8″ for 100A services, 1″ x 3/16″ for 200A. Secure busbars to non-flammable mounting surfaces with stainless steel hardware spaced no farther than 6″ apart. Pre-drill holes to match conductor size: #14 AWG requires 0.19″ diameter, #2/0 AWG needs 0.42″.
Conductor Termination Protocols
Strip insulation precisely to the busbar’s clamping surface–no bare wire should extend beyond the screw terminal. Apply an anti-oxidation compound to aluminum conductors prior to termination. Torque tightening to manufacturer specifications: 10-12 in-lbs for #14 AWG, 30-35 in-lbs for #2/0 AWG. Arrange conductors radially from each terminal to prevent overlapping. Grounding busbars must accommodate both feeder equipment grounding conductors and branch circuit grounds, sized per NEC Table 250.122. Neutrals require identical sizing to phase conductors.
Bond metallic enclosures to the grounding busbar using a minimum #6 AWG bare copper conductor, connected via a listed lug. Verify absence of voltage between neutral and ground busbars post-installation–readings should not exceed 1V AC. Label each busbar with permanent, weather-resistant tags: “GROUND” and “NEUTRAL” in 1/4″ tall letters. Maintain a 1/4″ air gap between neutral and enclosure to prevent unintended paths. For outdoor installations, seal busbar enclosures with listed NEMA 3R gaskets.
