Begin with a dedicated 240V circuit protected by a double-pole breaker rated for at least 125% of the unit’s maximum current draw. For most residential systems, this means a 30-50A breaker depending on compressor size–check the manufacturer’s specifications for exact values. Connect the black (L1) and red (L2) leads from the breaker to the corresponding terminals on the outdoor condenser, ensuring no wire gauge below 10 AWG for distances under 50 feet. Longer runs require thicker wire: 8 AWG at 100 ft, 6 AWG at 150 ft.
Install a disconnect switch within three feet of the outdoor unit, mounted at eye level for easy access. Wire the switch inline between the breaker and condenser, using the same gauge as the main circuit. The switch must include a fused or non-fused pullout–but verify local codes, as some jurisdictions mandate lockable disconnects. Ground the system with a green or bare copper wire (minimum 10 AWG) connected to the unit’s grounding terminal and the nearest earth ground rod or service panel bus.
For indoor air handlers, run a separate 14-2 or 12-2 NM cable from the furnace or air handler to a 24V control transformer, typically located in the air handler’s blower compartment. Match the transformer’s VA rating to the system’s requirements–most residential units need 40-75VA. Connect the R (red) and C (common/blue) wires to the transformer terminals, then route them to the thermostat. Use shielded 18-gauge thermostat wire for runs exceeding 50 feet to prevent signal interference.
Label every wire at both ends with heat-resistant tags, noting terminal designations (R, Y, G, W, C) to avoid misconnections during troubleshooting. Test continuity with a multimeter before energizing the system–shorted wires or reversed polarity will damage control boards. If the system includes auxiliary heat, wire a sequencer to stage heating elements, ensuring they activate only after the compressor reaches stable operation. Never bypass safety controls like high-pressure switches or thermal overloads–they prevent catastrophic failure.

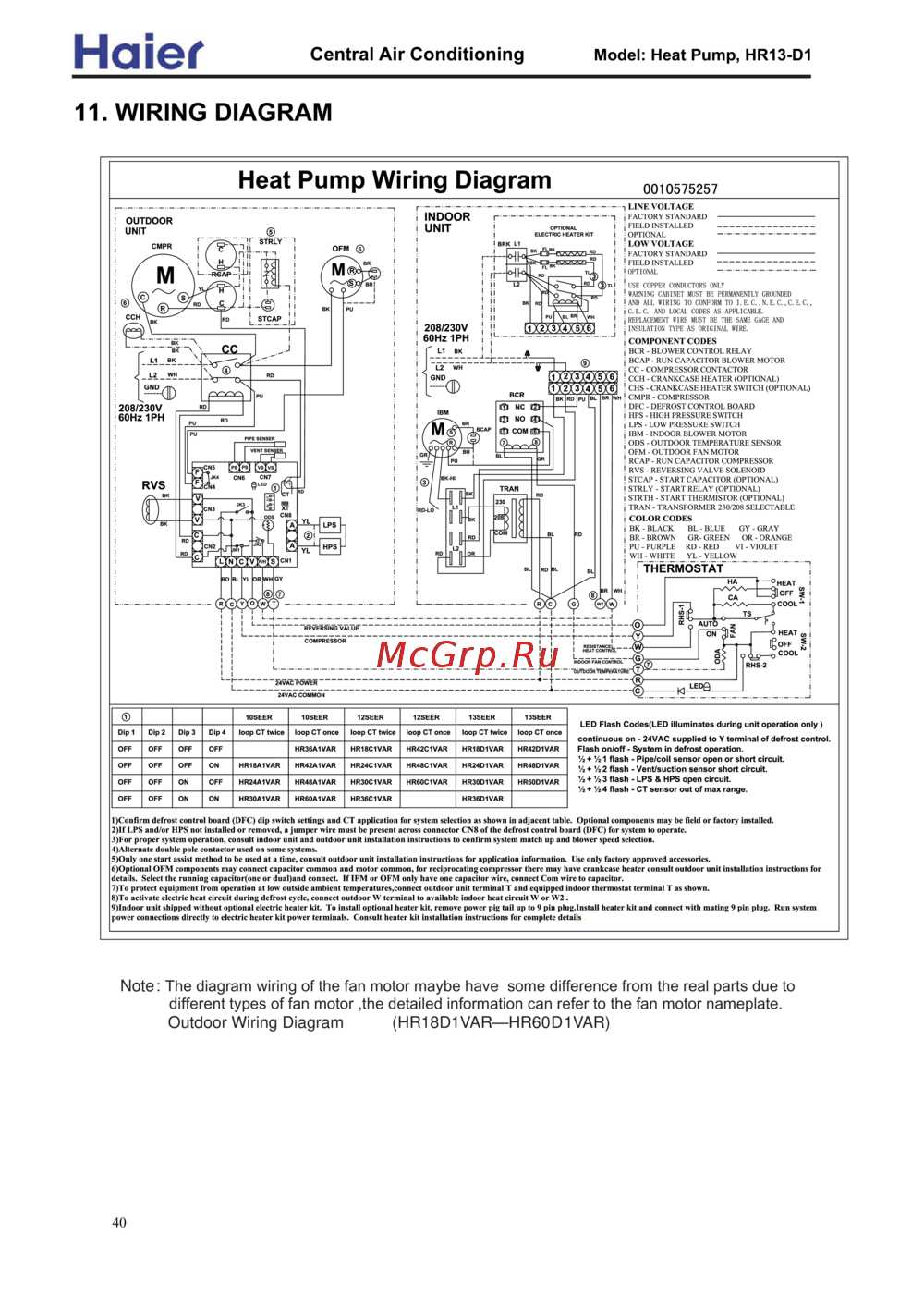

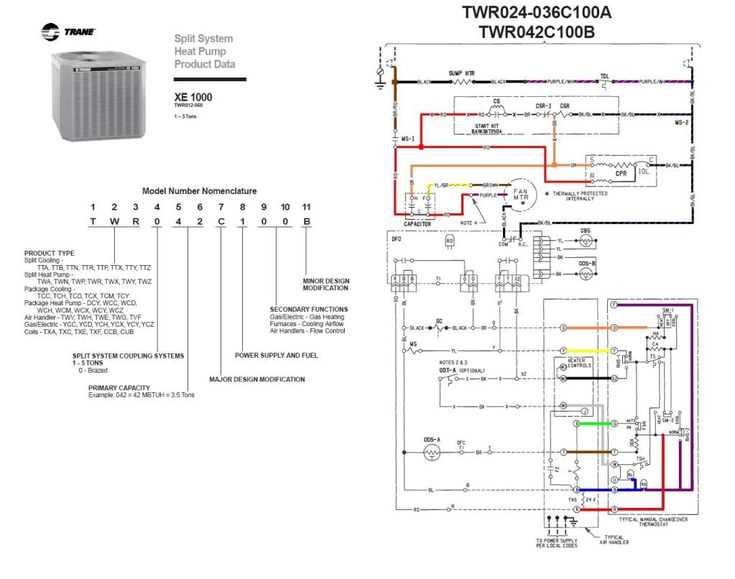

Electrical Schematic Guide for Climate Control Systems
Start by identifying the main components in the installation: compressor, indoor coil, outdoor coil, blower motor, and control board. Each element requires a dedicated circuit with proper voltage matching–typically 240V for the compressor and 120V for auxiliary components. Confirm wire gauge specifications: 10 AWG for the compressor, 12 AWG for the blower, and 14 AWG for thermostats and sensors. Undersized conductors cause excessive heat buildup, reducing efficiency.
Connect the compressor to a double-pole breaker rated for 30–50 amps, depending on system capacity. Use a fused disconnect between the breaker and the unit for safety isolation. Label all cables distinctly–L1 (red), L2 (black), neutral (white), and ground (green)–to prevent miswiring. Mislabeling leads to phase imbalance, damaging the motor windings.
| Component | Voltage | Wire Gauge | Breaker Rating |
|---|---|---|---|
| Compressor | 240V | 10 AWG | 30–50A |
| Blower Motor | 120V | 12 AWG | 15–20A |
| Thermostat | 24V | 18 AWG | N/A |
Integrate a defrost control module if operating in sub-freezing conditions. This module requires a separate 120V circuit with a dedicated 20A breaker. Wire it in series with the reversing valve solenoid to prevent ice formation on the outdoor coil. A faulty defrost cycle results in compressor overload and increased energy consumption.

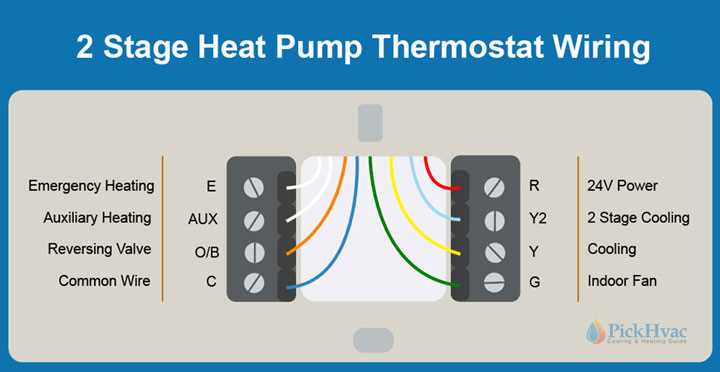

Thermostats demand low-voltage wiring (18–22 AWG) with twisted pairs to reduce interference. Connect R (power), C (common), Y (cooling), W (heating), O/B (reversing valve), and G (fan). Omit the C-wire only if using battery-powered models–otherwise, voltage drops cause erratic operation. Test each terminal with a multimeter before finalizing connections.
Grounding is non-negotiable. Attach a copper grounding lug to the unit’s chassis and connect it to the service panel’s grounding bus. Neglecting this step risks electrical shock and voids manufacturer warranties. Use star washers on grounding screws for a secure mechanical bond.
Before energizing, verify all connections with a continuity tester. Check for short circuits between live terminals and the chassis. Record voltage readings at the compressor terminals–expect 230–240V ±5%. Deviations indicate wiring errors or breaker issues. Finally, secure all cables with strain relief clamps to prevent chafing against metal edges.
Critical Parts to Recognize Before Connecting Your Climate Control System
Locate the outdoor compressor unit first–it houses the refrigeration cycle core and requires dedicated power lines, typically 240V for residential models. Verify the amperage rating on the nameplate to match circuit breaker capacity; mismatches risk tripping or component damage. Note the required wire gauge–#10 AWG suffices for most 3-ton units, but consult NEC tables for exact sizing based on distance and load.
The indoor air handler contains blower motors, relays, and auxiliary heat strips. Identify whether it operates on single-phase power (usual for homes) or three-phase (common in commercial setups). Check for a built-in transformer supplying 24V control voltage–this powers thermostats and defrost boards. Label all low-voltage wires before disconnecting; reversing connections can short control circuits.
Examine the thermostat subbase carefully–modern units often include advanced features like humidity control or variable-speed blowers. Look for terminals marked R (power), C (common), Y (cooling/first stage), W2 (emergency heat), O/B (reversing valve), and G (fan). Smart thermostats may require an additional “C” wire for continuous power; retrofit kits exist if absent.
- Outdoor unit capacitor stores energy for compressor/motor startup; failure prevents operation. Test with a multimeter: a reading below 10% of labeled μF rating requires replacement.
- Defrost board governs coil freeze protection. Locate it near the coil sensor–malfunction causes ice buildup, reducing efficiency.
- High-pressure and low-pressure switches act as safety interlocks. Trip points vary (e.g., 450 PSI high-side cutoff); bypassing them voids warranties.
Refrigerant linesets impact performance–measure suction line diameter (usually 3/4″ for standard units) and ensure insulation thickness meets R-6 minimum. Trace lines from outdoor coil to indoor coil; kinks create pressure drops, forcing the system to overwork. Identify the reversing valve actuator–it directs refrigerant flow for heating/cooling modes and may hum audibly during switching.
Auxiliary heat strips (electric or gas) activate during extreme cold or defrost cycles. Confirm their kilowatt rating matches the nameplate–underpowered strips fail to maintain temperature, while oversized ones waste energy. Gas backup models require additional safety checks: flame sensors, pressure switches, and venting compliance per local codes. Label all disconnects to prevent miswiring during maintenance.
Ground connections demand attention–outdoor units often use grounding rods driven 8′ into soil, bonded to the equipment with #6 bare copper wire. Verify polarity at all terminations; reversed live/neutral leads can energize chassis surfaces. For split systems, ensure J-boxes seal tightly against weather; corrosion accelerates with exposure. Final step: perform a lockout/tagout procedure before energizing–startup surges can exceed normal current draw by 3-5x.
Step-by-Step Guide to Linking Climate Control Components
Locate the terminal blocks on both the indoor and outdoor sections. Identify L (live), N (neutral), and S (signal) ports–markings may vary by manufacturer, so cross-check with the provided technical sheet. Use a multimeter to confirm absence of voltage before handling connections. Strip 6–8 mm of insulation from copper conductors, avoiding frayed strands that could cause shorts. Secure wires with terminal screws, ensuring no exposed wire extends beyond the fastening point.
Match cable gauges to the system’s power requirements: 1.5 mm² for signal lines, 2.5 mm² for 220V circuits, and 4 mm² for units exceeding 5 kW. Route cables through designated conduits, keeping them separated from refrigerant tubing to prevent thermal interference. Label each wire at both ends with adhesive sleeves–green/yellow for ground, brown for phase, blue for neutral–to streamline troubleshooting. Avoid sharp bends; maintain a minimum 5 cm radius to prevent insulation damage.
Connect the signal cable first. Link the S port on the indoor module to its counterpart on the external unit, verifying polarity with a phase tester if terminals are unlabeled. Next, attach neutral lines, then live wires–always completing the outdoor connection last to minimize risk of accidental current. For systems with auxiliary heaters, wire these in parallel, ensuring the dedicated breaker matches the heater’s wattage (typically 16A for 3.5 kW elements).
Activate the main circuit breaker and observe the control panel. If the system fails to initialize, disconnect immediately and recheck: misaligned signal wires often cause communication errors, while reversed phase/neutral may trigger safety locks. Once operational, verify temperature sensors’ readings via diagnostic mode–deviation beyond ±2°C indicates poor contact or damaged wiring. Seal conduit entries with waterproof tape and secure excess cable with UV-resistant ties at 30 cm intervals.
Critical Electrical Connection Errors and Safety Precautions
Always confirm the circuit breaker is fully OFF before handling terminals. A partial trip can leave residual current, risking arcing or shock. Use a non-contact voltage tester to verify absence of power–multimeters alone may miss phantom voltages in poorly grounded systems. Label each conductor immediately after disconnecting: standard colors (black, red, blue) vary by manufacturer, and misidentification causes 60% of installation failures.
Never ignore torque specifications for terminal screws. Loose connections generate heat–2 Nm is typical for 14-12 AWG copper, but check the equipment manual for deviations. Over-tightening deforms strands, reducing conductivity by up to 30%. Use a calibrated torque screwdriver; “hand-tight” is not reliable. Replace stripped screws or terminals–reusing damaged hardware guarantees overheating within 100 operational cycles.
Separate low-voltage control cables from line-voltage runs by at least 2 inches. Induced currents from parallel high-voltage lines disrupt thermostat signals, causing erratic cycling. If spacing is impossible, use shielded cable grounded at a single point–grounding both ends creates ground loops. Avoid sharp bends: minimum 8x cable diameter for 600V-rated conductors, 6x for low-voltage, to prevent insulation cracks that invite moisture.
Grounding clamps must bite clean metal–paint, oxidation, or debris increases resistance, nullifying protection. Sand surfaces to bare metal before attaching grounding wires, then apply antioxidant compound. Verify ground continuity with an ohmmeter: under 1 ohm is acceptable. Never combine equipment ground with neutral downstream of the service disconnect; this violates NEC Article 250.24(A)(5) and exposes non-current-carrying metal parts to lethal potential.
Key Component-Specific Pitfalls
Defrost board connections often use 28-24 AWG wires–standard crimp connectors crush these. Use ferrules or solder sleeves instead; standard wire nuts strip strands, causing intermittent failures. Capacitor leads must be insulated with heat-shrink tubing rated for 105°C–exposed leads corrode in humid environments, reducing capacitance by 15% within three months. Torque compressor contactor screws to 3.5 Nm; loose contacts arc, degrading ozone-friendly refrigerants.
Pressure switches require precise adjustment: 250-300 PSI cut-out, 10-15 PSI differential. Exceeding this narrow band cycles the system too frequently, stressing bearings and reducing compressor lifespan by 40%. Calibrate using dry nitrogen at 75°F ambient; refrigerant pressures fluctuate with temperature. Sensor locations matter–mount on a straight pipe run, 6-8 diameters from bends or valves, to avoid turbulent readings.
Thermal overload relays trip between 1.15-1.3x FLA, but inadequate cooling air fools them. Ensure 20+ CFM airflow across relays; blocked vents cause nuisance trips, forcing bypass use that accelerates motor burnout. Replace relays if contacts stick–oxidation increases resistance, generating heat that warps bimetallic strips. Test with a thermocouple probe: overheated relays (above 180°F) indicate wiring errors, not component failure.
Environmental and Procedural Safeguards
Condensation leads to short circuits in outdoor units. Route drain lines away from electrical components, sloping 1/4″ per foot to prevent standing water. Seal conduit entries with silicone: water migration through threads corrodes terminals within weeks. In coastal areas, use tin-plated copper conductors–aluminum oxide from salt air increases resistance by 50% over five years. UV-resistant insulation prevents brittleness; PVC-rated for 60°C fails under direct sunlight.
Test all connections with a megohmmeter before energizing. Minimum 1 MOhm between conductors, 0.5 MOhm to ground–lower values indicate moisture ingress or damaged insulation. Record readings for trend analysis; a 20% drop over six months signals impending failure. Never energize a system without a functional ground-fault circuit interrupter: NEC 440.22(A) mandates it for all single-phase units over 240V, regardless of local amendments.
