Start with a 500K audio taper potentiometer for volume control to preserve high-frequency response while rolling off excess gain. Pair it with a 250K linear taper tone control to maintain clarity without sacrificing adjustability–avoid using 500K here, as it muddies the midrange. Bridge the tone capacitor between the pot and the middle lug using a 0.022µF polyester film type; ceramic capacitors introduce unwanted noise under compression.
Ground the sleeve of the output jack directly to the bridge plate, not the control cavity shield, to minimize interference. Route pickup selector leads with shielded wire rated for at least 20 AWG to prevent signal degradation over long cable runs. For the neck position, install a 1MΩ resistor in parallel with the pickup to tame excessive brightness without compromising output.
Use a three-way switch with gold-plated contacts to ensure reliable conductivity over time–cheaper nickel-plated variants oxidize rapidly, causing intermittent dropouts. For hum cancellation in positions 2 and 4, link the middle pickup’s start and end coils in series with a phase-reversed connection; this cancels interference while retaining the classic quack.
Seal all solder joints with heat-shrink tubing, not electrical tape, to prevent short circuits from loose wire strands. Test continuity between each component before reassembling the body–resistance between the input jack and volume pot should read near 6.8KΩ (assuming stock pickups). Replace factory wiring harnesses older than 15 years; insulation brittleness causes microphonic feedback.
Modifying Your Guitar’s Electrical Layout: A Strat-Style Guide
Replace the standard 0.047µF capacitor with a 0.022µF polypropylene film unit to sharpen high-frequency roll-off while preserving midrange clarity–critical for cutting through mix muddiness during bridge-pickup solos. Install a push-pull potentiometer (500K audio taper) in place of the middle tone control, wiring the switch lugs to split the bridge humbucker into single-coil mode when engaged, unlocking quack tones reminiscent of a vintage ’72 configuration without permanent modifications.
Solder the pickup selector’s ground wire directly to the volume pot casing–bypassing the traditional bridge ground point–to eliminate 60-cycle hum induced by loose shielding or corroded jack plates. Use tinned copper braid for all grounding paths, especially between the control cavity and output jack, ensuring a continuous 360-degree conductive shield with less than 1 ohm resistance. Avoid aluminum foil–a common DIY mistake–as its oxide layer increases impedance over time.
For players demanding coil-tap versatility, integrate a mini-toggle between the neck and middle pickups, routing the middle position to an independent 0.01µF capacitor (ceramic dielectric) to create a resonant peak at 3.2kHz. This discrete mid-boost circuit enhances harmonics without altering the stock tone stack, requiring only 18-gauge solid-core wire and a reamed chassis punch for clean installation.
Test every joint with a multimeter in continuity mode: probe from the output jack’s tip to each pickup lug–readings should match the resistance specified on the manufacturer’s data sheet (±5%). If readings deviate, reheat the connection and apply rosin-core solder (60/40 alloy, 0.7mm diameter) within 3 seconds to prevent cold joints; flux residue must be removed with isopropyl alcohol (99% purity) to prevent corrosion delaying signal transfer.

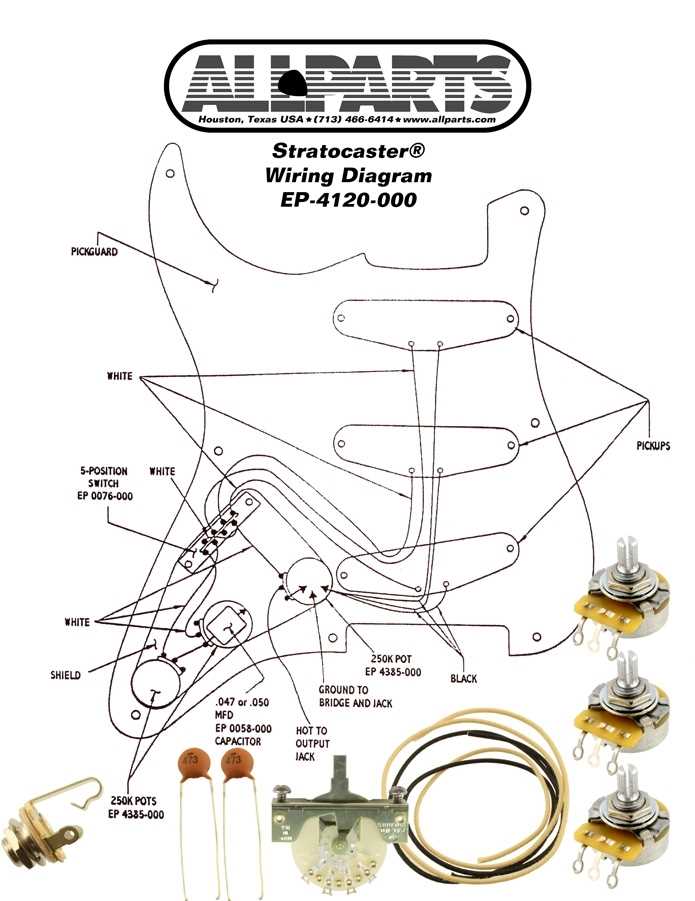

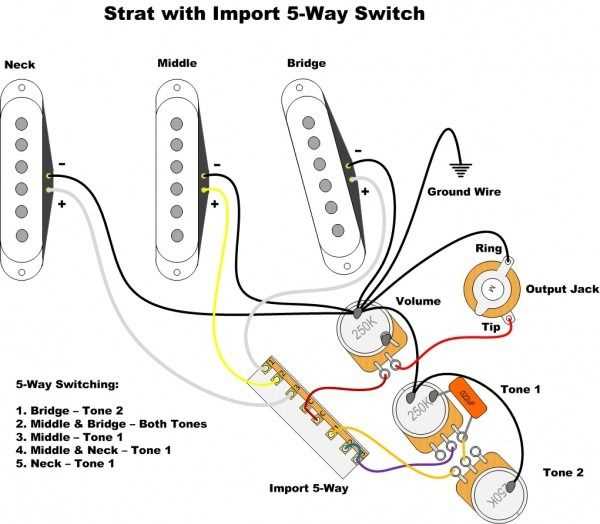

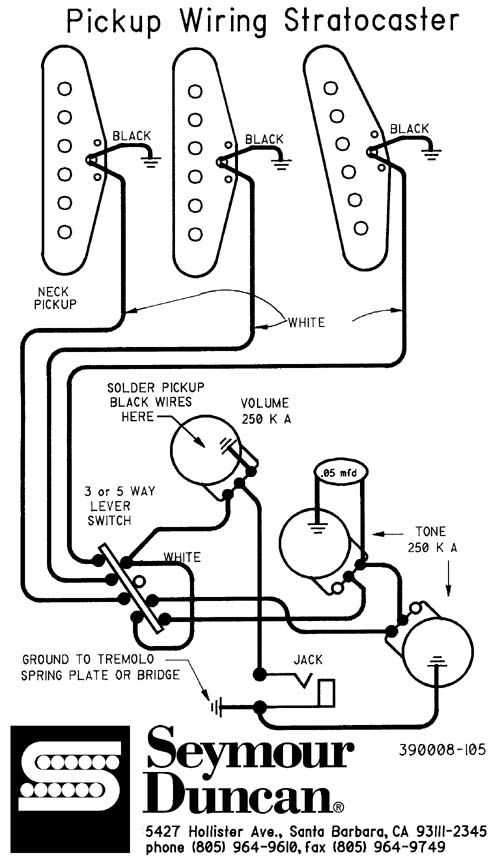

Step-by-Step Guide to Standard 5-Position Switch Electric Guitar Circuit Assembly
Begin by securing the instrument’s electronic cavity cover plate and unscrewing it to access the control area. Position the guitar face-down on a non-scratch surface, ensuring the pickguard remains aligned for reattachment. Identify the three pickups–bridge, middle, and neck–along with their corresponding hot wires (typically white) and ground wires (typically black or bare). Label each wire with masking tape if colors vary from standard configurations.
Connect the bridge pickup’s hot wire to the first lug (nearest the pickguard edge) of the 5-position switch using a soldering iron preheated to 600°F (315°C) and rosin-core solder. Apply solder sparingly–excess can create brittle joints. Twist the ground wire (bare or black) around the back of the volume potentiometer’s casing or a designated ground node, then secure with solder. Repeat this process for the middle pickup, attaching its hot wire to the second lug and grounding to the same node.
The neck pickup’s hot wire attaches to the third lug. At this stage, bridge the fourth and fifth lugs with a jumper wire to ensure proper switching behavior. This bridge enables the combined middle and neck pickup selection in the switch’s fourth position and bridge-plus-middle in the second position. Verify all connections with a multimeter set to continuity mode–probe the pickup lug and its ground point; silent open circuits indicate faulty soldering.
Install the master volume potentiometer by soldering its outer lugs to the switch’s common output lug (usually labeled “output” or marked with an arrow) and the remaining ground node. Attach the tone control potentiometers similarly, linking their input lugs to the corresponding pickup lugs via the switch. For standard configurations, wire the tone capacitor (typically 0.047µF) between the tone pot’s center lug and its grounded outer lug–ensure polarity matches the capacitor’s markings if electrolytic.

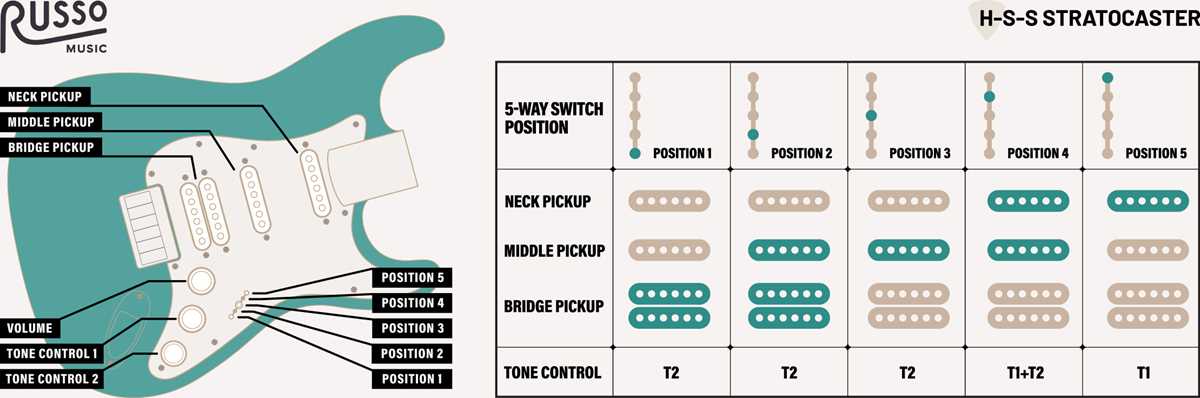

Before reattaching the pickguard, test each switch position sequentially: bridge (position 1), bridge-plus-middle (2), middle (3), middle-plus-neck (4), and neck (5). Listen for consistent output levels and absence of hum or crackling. If anomalies occur, recheck solder joints for cold connections or stray wire strands causing shorts. Use heat-shrink tubing or electrical tape to insulate exposed wires, preventing accidental contact with the pickguard or metal cavity edges.
Reinstall the cavity cover plate and string the instrument. Fine-tune intonation and string height, then re-test the circuit. Document any deviations from factory behavior, such as excessive noise in specific switch positions–common culprits include misaligned pickups, loose grounding, or incorrect capacitor values. Replace components incrementally, testing after each change to isolate issues. Finalize by applying shielding paint or copper tape to the electronic cavity if persistent interference exists.
Modifying a Push-Pull Potentiometer for Humbucker Coil-Splitting on a Strat-Style Guitar
Choose a 500K push-pull potentiometer with a DPDT switch–this allows separate control over volume adjustment and coil-split activation. Disconnect the pickup’s four-conductor cable from the original wiring setup. Solder the humbucker’s north coil (positive lead) to the pot’s input lug and the south coil’s positive lead to the DPDT’s middle lug. Ground the remaining negative leads by twisting them together and attaching to the back of the pot or a dedicated ground point on the guitar’s cavity.
- Cut a small notch in the pickguard or control cavity to accommodate the push-pull shaft if space is tight–Standard Strat cavities often require slight modification.
- Use heat-shrink tubing on all solder joints to prevent shorts, especially near the pot’s casing where leads cross.
- Test the switch in both positions before final assembly: pulling the pot should disengage one coil, dropping output and altering tone.
For a cleaner install, route the DPDT’s selector wires through the existing control cavity rather than bundling them with other components. If using a master volume pot, ensure the coil-split wires bypass the tone circuit to avoid capacitance interference. Avoid excessive heat when soldering to the pot’s switch terminals–these connections are fragile and prone to damage if overheated.
After installation, verify functionality with a multimeter: measure resistance between the output jack and ground with the pot pulled and pushed. Pulled position should show ~7.5KΩ (single coil), pushed ~15KΩ (full humbucker). Fine-tune string grounding by adjusting the wire connecting the bridge to the ground–poor grounding causes unwanted hum in single-coil mode.
Detailed Color Codes and Soldering Points for Strat-Style Single-Coils
Use 22-24 AWG stranded copper wire for pickup connections to minimize signal loss–avoid solid core. Pre-tin both ends of each lead to prevent fraying during installation. For standard CRL or Oak Grigsby switch configurations, label wires with masking tape before cutting to length; retain at least 3 inches of slack for future modifications.
| Pickup Type | Internal Color Code (Lead) | Solder Point (Potentiometer) | Solder Point (Switch) | Ground Path |
|---|---|---|---|---|
| Neck | White (Hot), Black (Ground), Red/White (Coil Split, if present) | Volume pot lug 1 (input) | 5-way switch lug 1 | Back of volume pot casing (via black wire) |
| Middle | Yellow (Hot), Black (Ground), Brown/White (Coil Tap) | Volume pot lug 1 (input) | 5-way switch lug 2 (parallel) or lug 3 (series) | Back of tone pot casing (via black wire) |
| Bridge | Green (Hot), Black (Ground), Blue/White (Phase Reversal) | Tone pot lug 3 (if using master tone) | 5-way switch lug 4 (solo) or lug 5 (combined) | Bridge baseplate (via ground lug on bridge PU) |
For Lindy Fralin or EMG-SA pickups, note deviations: Fralin’s hot lead is black with a red tracer; EMG uses a bare shield wire as ground, requiring soldering to the back of the potentiometer before connecting the main ground bus. Always verify pickup manufacturer’s datasheet–some boutique coils reverse the polarity of white/yellow leads.
When soldering to CRL 5-way switches, use rosin-core solder (60/40 Sn-Pb) at 700°F max to avoid damaging phenolic switch contacts. Apply flux to lugs before soldering; excess flux can attract dust and create microphonics. For noiseless Strat replacements (e.g., Kinman AVn or Seymour Duncan SSL-5), the gray lead replaces the traditional black ground–route it directly to the volume pot’s ground tab to maintain shielding.
Isolate the bridge ground wire from pickup leads with heat-shrink tubing (minimum 2:1 ratio) to prevent shorts against the tremolo cavity. For out-of-phase tones (positions 2 and 4 on a 5-way), the bridge and middle pickups’ phase reversal wires (blue/white for bridge, brown/white for middle) must connect to the same lug–failure results in weak output in those positions. Test continuity with a multimeter before reassembly.
Critical notes for modern SSS builds: Active pickups (e.g., Fishman Fluence) replace the traditional 4-wire scheme with a single JST connector–neck/middle/bridge each use a dedicated 3-pin plug labeled VHB, VOUT, and GND. Solder VOUT to the switch’s respective lug, but connect VHB to a stable 9V source via a mini toggle if coil-tapping is desired. Ground all potentiometer casings together using a star grounding technique to reduce hum.
