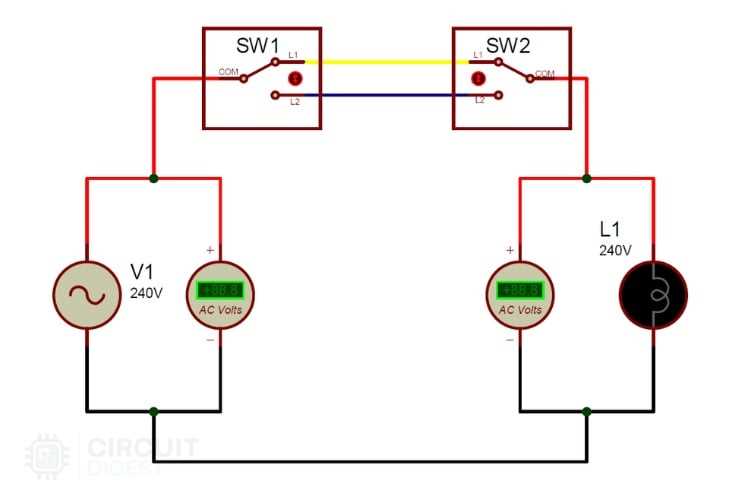

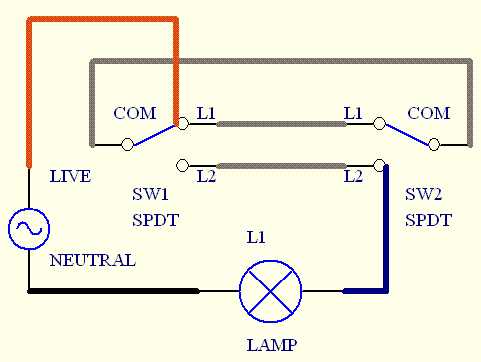

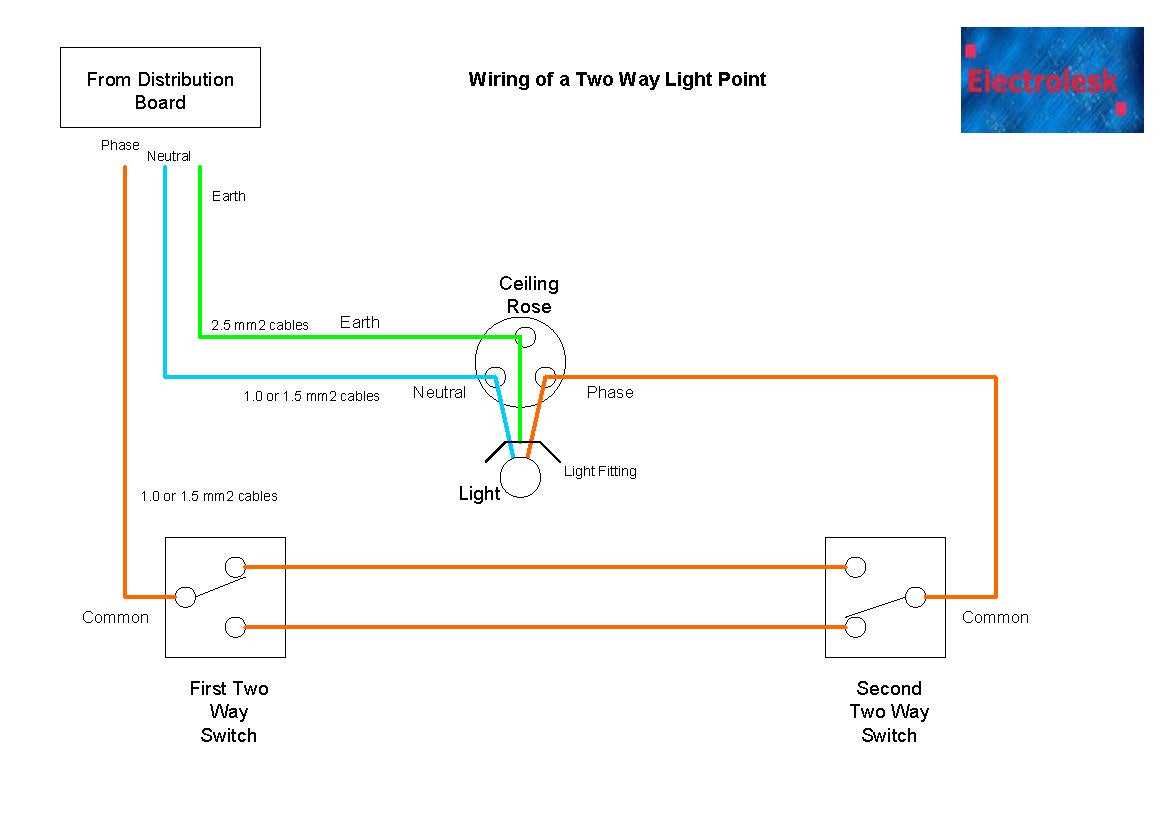

Use a 14/3 or 12/3 NM cable between the two control points to carry both the common circuit conductor and the travelers. Mark the common terminal on each device–it’s usually darker or brass-colored–then attach the white wire from the supply line to this post on the first unit. Route the black wire from the same cable to the matching terminal on the second switch. The red and remaining black wires link the traveler pairs.
Strip 5/8 inch of insulation from each conductor before wrapping it clockwise around the terminal screws. Tighten each screw to 12–15 inch-pounds; overtightening can snap the brass clamp. Place a wire nut on any bare copper pigtail and twist it onto the grounding screw inside the box. Ensure the bare equipment ground wire bonds both switches and the box if metallic.
Label non-standard conductors with colored tape–wrap the white wire entering the first common terminal with black tape to denote a hot conductor. Cap unused wires with insulated twist connectors; never leave exposed copper inside the enclosure. Apply 120 volts at the panel and toggle both controls individually to verify the light toggles without flicker or arcing.
Secure each device with mounting screws–use a torque screwdriver set to 8 inch-pounds to prevent cracking the plastic yoke. Install wall plates only after confirming no stray strands touch adjacent terminals. Check continuity with a multimeter set to ohms; travelers should show zero resistance when both switches are in the same position and infinite when opposite.
Dual-Control Circuit Layout Essentials

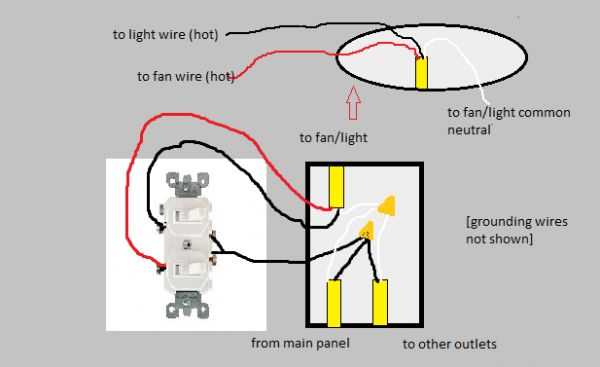

Identify the power source conductor–typically marked in black or red–and route it to the common terminal of the first control mechanism. From there, split the live feed into two separate branches, each leading to the individual toggles. Ensure these branches terminate at the dedicated outputs of the combined unit, avoiding crossover connections that could disrupt functionality. For standard configurations, a 12-gauge copper conductor suffices, but verify local codes for ampacity requirements, especially in high-load applications.
Ground the installation by securing a bare or green-insulated conductor to the metal junction box or the designated grounding point on the device. This step prevents stray currents and ensures safety compliance. If the dual toggles control separate fixtures, connect neutrals (white conductors) directly to the corresponding circuit paths without splicing through the control unit–unless the manufacturer explicitly allows shared neutral arrangements.
Use a multimeter to verify absence of voltage at all terminals before handling any conductors. Polarize connections strictly: terminate input leads to the brass-colored screws, while outputs attach to silver or darker-colored terminals. Label all wires before disconnecting existing setups to prevent miswiring during reinstallation.
Essential Components and Equipment for Dual-Control Installation
Select a 20-ampere-rated modular control unit compatible with 12-gauge conductors to handle simultaneous loads without overheating. Verify the device’s IP44 ingress protection rating if mounting in damp locations like basements or outdoor utility areas. Brands such as Legrand’s Mosaic series or Schneider Electric’s Unica line offer recessed boxes with integrated grounding clamps, eliminating the need for separate pigtail connections.
Acquire a voltage tester with a non-contact detection range of 50–600 VAC to confirm circuit isolation before handling terminals. Opt for insulated needlenose pliers with a 0.8–1.2 mm jaw thickness for securing loops on brass screws without deforming strands. For stripping, use calibrated automatic strippers preset to 12 mm insulation removal to avoid nicking copper filaments, which can reduce ampacity over time.
Prepare a torque screwdriver with a 0.5–1.5 Nm setting to comply with NEC 110.14(D) requirements for terminal tightening. Loose connections generate micro-arcing, increasing resistance by up to 40% and accelerating oxidation. Include a set of rubber-grip diagonal cutters for trimming excess conductor length–leave no more than 6 mm of exposed copper beyond the terminal screw to prevent shorting against adjacent components.
Consumables and Safety Gear Breakdown
| Item | Specifications | Quantity |
|---|---|---|
| Copper conductor (stranded) | 12 AWG, THHN/THWN-2, flame-retardant nylon jacket | 10 ft (3 m) per run |
| Plastic wire nuts | Red (#8–10 AWG), UL-listed, antioxidant compound | 6 units |
| Electrical tape | Vinyl, 19 mm width, 0.15 mm thickness, 5 kV dielectric strength | 1 roll |
| Outlet box extender | PVC, 1-gang, 12.7 mm depth for drywall thickness > 16 mm | 2 units |
| Arc-fault circuit breaker | 20 A, dual-function (AFCI/GFCI), 120 VAC, compatibility with load center | 1 unit |
Equip yourself with flame-resistant gloves rated for 600 V CAT III environments when working inside service panels. Side-cutting knives with ceramic blades block accidental shorts across live terminals–a common hazard when modifying existing circuits. For concealed projects, use a hole saw with a 63.5 mm diameter bit to create precise openings, reducing drywall debris by 70% compared to spiral bits.
Specialized Aids for Efficiency
Deploy a stud finder with deep-scanning capability (up to 38 mm) to locate obstruction-free mounting zones and avoid snagging conductors on metal brackets or plumbing. A magnetic torpedo level ensures perfect alignment of the control plate; even minor tilts cause mechanical stress on internal contacts, shortening lifespan. For final testing, employ a plug-in receptacle analyzer displaying wiring errors via LED patterns–commercial models like Klein RT210 provide instant diagnosis without meter probes.
Installing a Dual-Control Mechanism: A Practical Walkthrough
Turn off the circuit breaker before handling any conductors. Verify power absence with a non-contact voltage tester directly on the terminals of your two-button module. Strip 6mm of insulation from each cable end–ground (green/yellow), neutral (blue), and live phase (brown/black)–using wire strippers calibrated for 1.5mm² conductors. Secure excess wire length inside the electrical box to prevent stray strands from causing short circuits.
Attach the incoming phase conductor to the common terminal–typically marked with a distinct screw or label–on the combined control unit. Connect the two outgoing cables to the separate L1 and L2 outputs, ensuring polarity alignment with the fixtures they serve. For modern installations, loop the neutral conductor through all three devices (combined control plus fixtures) without interruption; older setups may require pigtail splicing inside the box.
Securing Ground and Finishing Touches
Bond all ground conductors together using a twist-on connector, then fasten the joined bundle to the box’s grounding screw. Tuck cables neatly into the enclosure, avoiding sharp edges or moving parts. Replace the faceplate, restoring power only after manual confirmation that no exposed connections remain. Test both controls independently before finalizing installation to ensure proper load distribution.
Label each circuit leg directly on the cover plate for future maintenance–use heat-resistant tape or embossed markers. For dimmable loads, confirm compatibility with the specific multi-way regulator model; some LEDs require neutral-fed variants to prevent flickering. Store spare connectors and a torque screwdriver (≤1.2Nm for terminal screws) in the toolkit for adjustments.
How to Distinguish Live, Return, and Earth Conductors Safely
Use a non-contact voltage tester before touching any conductor. Hold the probe near each wire–only the live (hot) conductor will trigger an alert, typically through light or sound. If no signal appears, verify the tester’s functionality on a known energized source first. This step prevents misidentification due to faulty tools.
Examine wire insulation colors as a secondary indicator. In most modern installations, live wires are brown (EU) or black (US), neutral wires blue (EU) or white (US), and earth wires green/yellow-striped or bare. Older systems may deviate–never rely solely on color coding without testing.
For direct verification, use a multimeter set to AC voltage mode. Probe the live conductor against neutral–the reading should match the system voltage (e.g., 230V or 120V). Testing live to ground should yield the same value; neutral to ground should show near zero. Deviations signal a wiring fault or misconnection.
Avoid assuming neutrality based on position. Neutral wires carry current and can deliver a lethal shock if handled improperly. Always treat them with the same caution as live conductors. Ground wires, while typically safe, must never carry current under normal conditions–check for continuity to metal boxes or grounding rods.
Label each wire immediately after identification. Use heat-shrink tubing or color-coded tags to mark live, neutral, and earth permanently. This prevents confusion during assembly or future maintenance, especially in multi-device setups where conductors may run parallel or split.
If wires lack clear insulation or labels, strip a small section carefully–only enough to expose copper for testing. Never leave bare wire exposed; insulate it thoroughly with electrical tape or wire nuts after confirmation. For added safety, disconnect the circuit at the breaker panel while identifying conductors, even if testing with the power on is unavoidable.
