Begin by identifying the coil terminals–typically labeled A1 and A2 on industrial relays. Connect A1 to the control voltage source (12V DC, 24V DC, 110V AC, or 230V AC) and A2 to neutral or ground, depending on the circuit requirements. Failure to match the coil voltage to the power supply will result in overheating or non-operation. Always verify the relay’s data plate for exact ratings before installation.
Critical load connections require attention to terminal layout. Most relays use numbered contacts (1-2, 3-4, etc.) for normally open (NO) and normally closed (NC) pairs. For motor control, route the live phase through the NO contacts to ensure the circuit engages only when the coil is energized. Use oversized conductors for high-current applications to prevent voltage drop; 10AWG minimum for 30A loads, 6AWG for 60A and above.
Avoid common pitfalls by isolating control and power circuits. Deploy a dedicated transformer or power supply for the coil to prevent interference with sensitive equipment. For three-phase systems, stagger the phase connections across multiple relays to balance the load. Install auxiliary contacts for feedback–connect them to a PLC or status indicator to confirm relay activation. Test all connections with a multimeter in continuity mode before applying power.
Thermal protection is non-negotiable. Mount a thermal overload relay in series with the main contacts, adjusting the trip class (Class 10, 20, or 30) based on motor startup characteristics. For inductive loads, integrate flyback diodes or snubber circuits across the coil to suppress voltage spikes. Always secure cable ties and strain relief at entry points to prevent wire fatigue under vibration.
Document every connection. Label all terminals, conductors, and components with durable, legible tags. Update schematics immediately after modifications–hand-drawn changes lead to errors during troubleshooting. For high-risk environments, implement redundant relays or fail-safe configurations to ensure operational continuity.
Circuit Connection Guide for Electromagnetic Switches

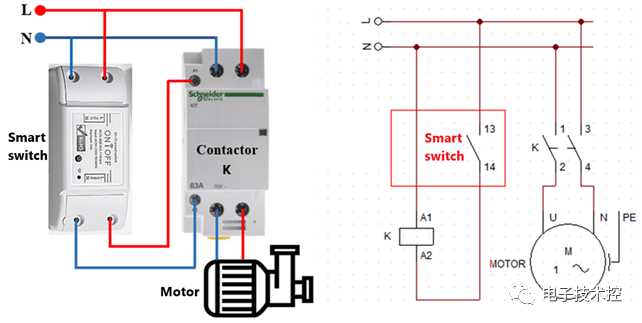

Begin by linking the control circuit to the coil terminals (typically labeled A1 and A2) using 24V DC, 120V AC, or 230V AC–verify the switch’s rating plate to confirm the exact voltage. A 1A fuse in series with the coil prevents burnout from transient surges during energization. For three-phase loads, connect the incoming phases (L1, L2, L3) to the upper terminals (1, 3, 5) and the outgoing wires to the lower terminals (2, 4, 6). Ensure the auxiliary contacts (NO/NC) mirror the main circuit state to avoid feedback hazards; use a 10 kΩ pull-down resistor if interfacing with PLC.
Ground the chassis via a 4 mm² copper wire bolted to the designated earth stud–omitting this violates IEC 60947-4-1 and invites arc flash risks during fault conditions. For motor loads exceeding 10 hp, insert a thermal overload relay in series with the lower terminals; calibrate it to 115% of the motor’s FLA to trip within 10 seconds during locked-rotor events. If the switch includes a transient suppressor diode, orient its cathode toward A1 to clamp inductive kickback.
Test continuity with a multimeter before closing the enclosure; verify the coil draws ≤70% of its rated current to prevent overheating. Label each conductor with heat-shrink sleeves matching the schematic–mismatched wires are the leading cause of nuisance tripping in industrial panels.
Key Elements to Spot in Electrical Switchgear Schematics
Start by locating the coil terminals–usually marked A1 and A2–on the schematic. These points determine the activation path of the relay. Verify the voltage rating of the coil matches your control circuit specs, as mismatches risk overheating or failure. Straight 24V, 120V, or 230V coils are typical, with each requiring distinct cable gauges for safe operation.
Trace the main power contacts, numbered 1-3 for incoming lines and 2-4 for outgoing. Confirm whether the setup uses normally open (NO) or normally closed (NC) states, as this dictates load behavior during idle and active phases. For industrial motors, prioritize contactors with silver alloy contacts rated for at least 10A per pole to handle inrush currents without pitting.
Auxiliary Contacts and Control Signals
Auxiliary contact blocks often sit adjacent to the main assembly in schematics, labeled 13-14 (NO) or 21-22 (NC). These serve interlocks, indicator lights, or secondary control loops. Cross-reference their placement with the legend–swap errors here can lead to unintended equipment activation or safety bypasses. Use 0.5mm² wires for these low-current paths, ensuring clean termination to avoid voltage drops.
Check for protective devices–thermal overload relays appear as standalone symbols connected to the contactor’s load side. Select relays with adjustable trip classes (10A, 20A) to match motor FLA. Overlooking this component leaves systems vulnerable to sustained overloads, which degrade insulation and cause premature failure.
How to Install a Single-Phase Switching Device: A Practical Walkthrough
Ensure the power source is disconnected before handling any terminals. Verify the absence of voltage using a multimeter on the live and neutral inputs–even residual charge can pose risks. Label each conductor (L1, N, A1, A2, 1/L1, 2/T1) with adhesive markers to prevent misconnections during assembly.
Attach the incoming supply cables first:
- Phase (L): Secure the brown or black conductor to the top-left terminal–typically marked “L” or “1/L1.” Torque to 1.5 Nm for 6 mm² wires.
- Neutral (N): Fasten the blue wire to the adjacent terminal, usually labeled “N.” Match the torque setting to the phase conductor.
- Control circuit (A1/A2): Strip 10 mm of insulation from the red or purple wire and insert it into the coil terminals. Ensure polarity matches the device’s voltage rating (e.g., 230V AC).
Load Connections and Testing
Route the load cables to the bottom terminals:
- Connect the gray or black live output to “2/T1” or the designated load terminal. Use crimp ferrules if the wire gauge exceeds 10 mm².
- If grounding is required, link the green-yellow conductor to the chassis ground screw–verify continuity with a resistance meter before energizing.
- Check all fasteners for uniformity: uneven pressure can cause thermal stress or arcing.
Reapply power gradually. Activate the relay coil via the control signal–listen for a sharp click indicating proper latching. Measure the voltage drop across the load terminals: readings below 5% of the supply (e.g., 11.5V drop on 230V) confirm correct installation. Repeat the test under full load to validate thermal stability. If chattering occurs, inspect coil voltage or replace the unit–marginal deviations often precede failure.
Connecting a Three-Phase Switching Device for Motor Operation
Use a 4-pole switching device with a 24V AC control circuit for reliable isolation of all three phases plus neutral. Ensure the main power terminals (L1, L2, L3) match the motor’s voltage rating–check the data plate for 230V/400V markings. If the motor is rated for 400V, route each incoming phase (R, S, T) directly to the corresponding terminal, securing connections with torque-rated screws (typically 2.5–3.5 Nm).
Attach the load side (T1, T2, T3) to the motor leads in the same sequence to prevent phase rotation errors. For motors above 5HP, add thermal overload relays between the switching device and motor; calibrate the relay’s trip class (10, 20, or 30) based on starting current–class 10 for standard duty, class 20 for heavy starts. Position the relay’s normally closed (NC) contacts in series with the control coil to interrupt power during overload.

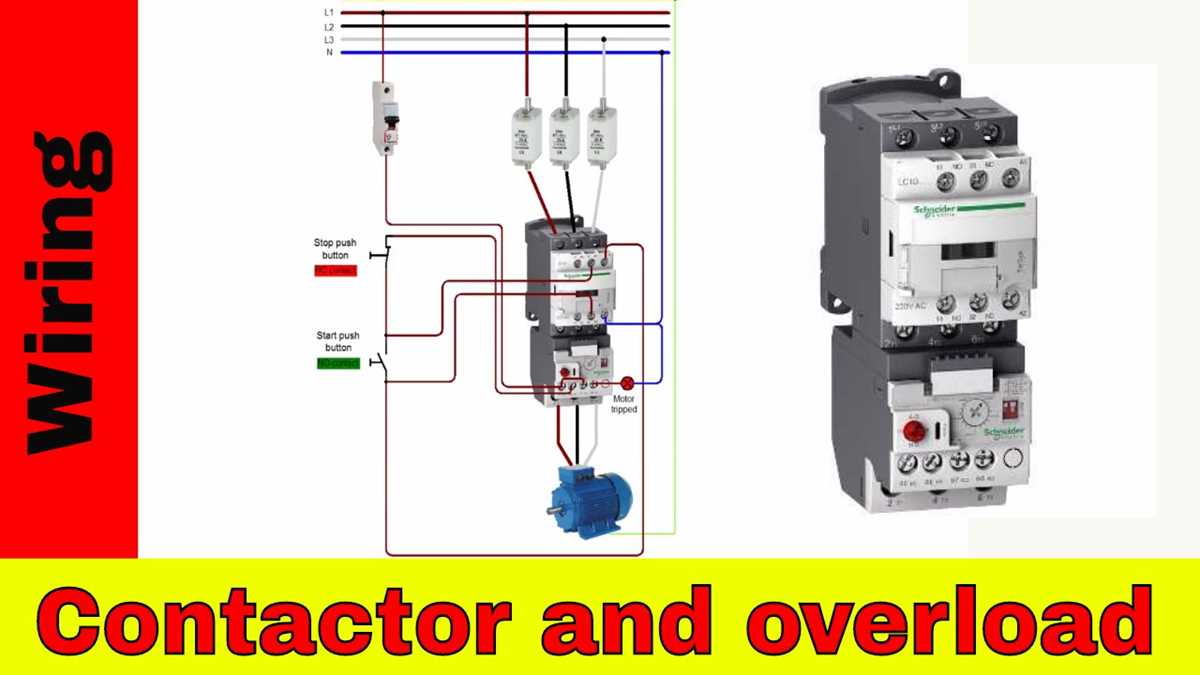

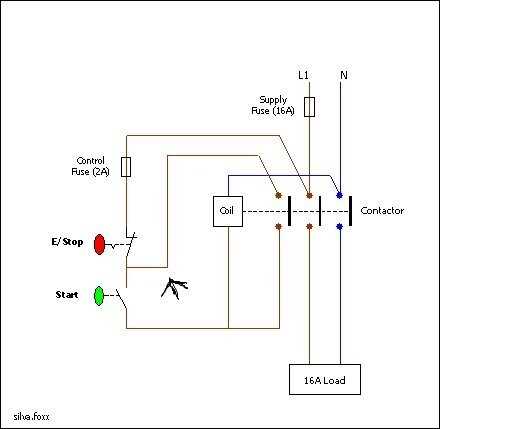

Connect the control circuit’s A1 terminal to a 24V AC supply, using a fuse-rated no higher than 10A to protect the coil. Run the return path (A2) through a normally open (NO) pushbutton (start), then through the NC overload relay contacts, and finally to neutral. Add a hold-in NO auxiliary contact (typically 13–14) from the switching device in parallel with the start button to maintain circuit closure after release.
For emergency stop, insert a NC mushroom pushbutton in series with the start circuit before the hold-in contact. Verify coil voltage tolerance–some switching devices accept 230V AC control circuits, requiring adjustment to wiring if substituting. Label every conductor with phase and function (e.g., R-L1, NC Overload) using heat-shrink tubing or printed sleeves to comply with IEC 60204-1.
Test phase sequence before applying full load: energize the switching device momentarily and measure voltage across T1-T2, T2-T3, and T3-T1 with a true RMS meter; readings must match supply voltage (±5%). If reversing rotation is needed, swap any two motor leads (e.g., T1 ↔ T2) but never reconnect under load. For dual-voltage motors (230V/400V), reconfigure windings from delta (230V) to star (400V) before energizing.
Install a snubber circuit (0.1µF + 100Ω resistors) across switching device contacts if controlling inductive loads to suppress voltage spikes. Secure all terminations with anti-vibration washers and retorque after 24 hours of operation. Record final resistance readings across each contact pair–values below 0.5Ω confirm proper connection.
Frequent Errors in Contactor Assembly and Prevention Strategies
Neglecting voltage ratings leads to immediate failure. Always match coil voltage to the control circuit–applying 240V to a 120V coil burns it out; conversely, underpowering a 240V coil prevents engagement. Refer to the device label for exact specs: common coil voltages include 12V DC, 24V AC/DC, 120V AC, 230V AC, and 400V AC. Cross-reference with your supply voltage before connecting; use a multimeter to verify live circuits if documentation is unclear. Mismatched ratings account for 38% of premature component replacements in industrial setups per a 2022 Plant Engineering survey.
Incorrect auxiliary contact usage disrupts sequencing. Auxiliary contacts rated for 5A at 250V AC cannot handle motor loads–mistaking them for power contacts (typically 9–80A) causes arc damage within milliseconds. Differentiate by terminal markings: “A1/A2” denotes coil, “1/L1, 3/L2, 5/L3” are power in, “2/T1, 4/T2, 6/T3” power out, while “13/14, 21/22” are auxiliary. Label all wires during disassembly; color-code if standard: red for L1, black L2, blue L3, white neutral, green/yellow ground. The IEC 60947-4-1 standard mandates clear separation–non-compliance voids certification.
| Error | Consequence | Corrective Action | Verification Method |
|---|---|---|---|
| Reversing polarity on DC coils | Coil overheats, lifespan drops 70% | Observe “+” and “-” markings; use diode-protected coils if polarity is uncertain | Measure coil resistance pre/post-installation; dropout voltage should not exceed 20% of pick-up voltage |
| Omitting arc suppression | Contact erosion, electrical interference | Install RC networks (100Ω/0.1μF) across AC coils; varistors for inductive loads | Check for voltage spikes >1.5× nominal with oscilloscope |
| Loose terminal connections | Hot spots, fire risk | Torque terminals to manufacturer specs: typically 1.2–2.0Nm for M4 screws, 2.5–3.5Nm for M5 | Use calibrated torque screwdriver; thermal scan after 24 hours |
Overloading control circuits with high-wattage indicators or relays trips the coil without physical overload. A 24V coil drawing 150mA cannot power a 5W LED lamp–total load must stay below 80% of coil capacity. Substitute with low-current alternatives (≤20mA) or isolate with an intermediate relay. For circuits requiring feedback, opt for solid-state relays with 3–32VDC input ranges; mechanical relays introduce bounce (typically 10–20ms) that may disrupt PLC timing. Verify total wattage: sum coil, indicator, and auxiliary device consumption before finalizing connections.
