Start with a multimeter check before handling any connection. Verify the vehicle’s socket output matches the standard voltage–12V for auxiliary circuits, 12V with ignition toggle for the brake controller, and ground resistance below 0.5 ohms. Cross-reference the color codes: yellow (left turn/brake), green (right turn/brake), brown (tail/running lights), white (ground), blue (electric brakes), black (auxiliary power), and red (back-up lights, if equipped). Mismatched colors indicate a need for adapter harnesses; never force a connection.
Secure crimp terminals with heat-shrink tubing rated for at least 600V. Strip wires to 5mm, twist strands, and crimp with a ratcheting tool–cheap crimpers fail under vibration. Solder joints are optional but recommended for high-amperage circuits like brakes or auxiliary power. Wrap exposed connections in vinyl electrical tape, then cover with conduit for off-road or extreme-weather use. Avoid zip ties on moving parts; they chafe through insulation.
Test circuits under load: activate each function separately while monitoring for voltage drops. A flickering light or delayed brake response signals poor ground or corroded pins. Clean connection points with contact cleaner, then apply dielectric grease to prevent oxidation. For 7-way plugs, prioritize the brake controller circuit–improper wiring risks trailer surge during hard braking or prevents ABS engagement on the tow vehicle.
Route cables away from sharp edges, heat sources, and moving suspension components. Clamp at 30cm intervals with rubber-lined mounts. Leave 10cm slack at each connection point to avoid tension stress. For long-distance towing, fuse each power-carrying wire within 20cm of the battery–rating based on cable gauge (e.g., 20A for 14AWG, 30A for 12AWG). Omit fuses only on ground circuits.
Document your setup with photos before finalizing–label each wire at both ends with a permanent marker. Store spare parts (extra terminals, heat-shrink, dielectric grease) in a waterproof case. For adaptive systems (e.g., European 13-pin connectors), use pre-wired adapters; modifying factory connectors voids warranties and risks trailer stability control interference.
Electrical Connector Layout for Heavy-Duty Towing Plugs
Begin by verifying the voltage between the vehicle’s ground and each contact before assembly. Standard North American setups assign functions as follows: battery charge (+12V) connects to the center post (contact #1), right turn/brake lights occupy the 5 o’clock pin (contact #4), left turn/brake lights sit at 7 o’clock (contact #2), ground terminates at the large flat blade (contact #7), electric brakes link to the slot at 1 o’clock (contact #5), reverse lamps illuminate via the 11 o’clock pin (contact #6), and auxiliary power supplies the 3 o’clock blade (contact #3). Cross-reference with a multimeter–European variants often invert the brake and turn circuit pairing.
- Use marine-grade 16-gauge wire for circuits under 10A, 12-gauge for electric brakes.
- Solder joints, then seal with adhesive-lined heat shrink tubing to prevent corrosive seepage.
- Secure the plug housing with stainless steel screws; avoid zinc-plated fasteners in coastal areas.
- Route harness away from exhaust manifolds, sharp edges, and rotating parts.
- Test continuity between the connector and the corresponding socket after each installation step.
- Label every wire with fade-resistant vinyl markers; include date and technician initials.
Recognized Color Schemes for 7-Connector Vehicle Socket Leads
Always verify the yellow circuit handles the left turn signal and brake indicator–this remains universal across North American and European configurations. For SAE J560 compliant setups, green corresponds to the right-side equivalent, while variations exist in ISO 1185 layouts where right functions may shift to black or brown. Double-check pin assignments if mixing standards.
White serves as the ground reference; ensure its gauge matches the combined load of all active circuits to prevent voltage drop. Blue typically governs auxiliary functions like electric trailer brakes or reverse lights, but confirm with a multimeter if modifying factory installations–aftermarket units often repurpose this route for battery charging instead.
Brown should carry running lights, though older trailers might use red for the same purpose. Black or pink wires frequently designate +12V constant power for onboard equipment–secure these connections with dielectric grease and heat-shrink tubing to resist corrosion, especially on connectors exposed to road debris.

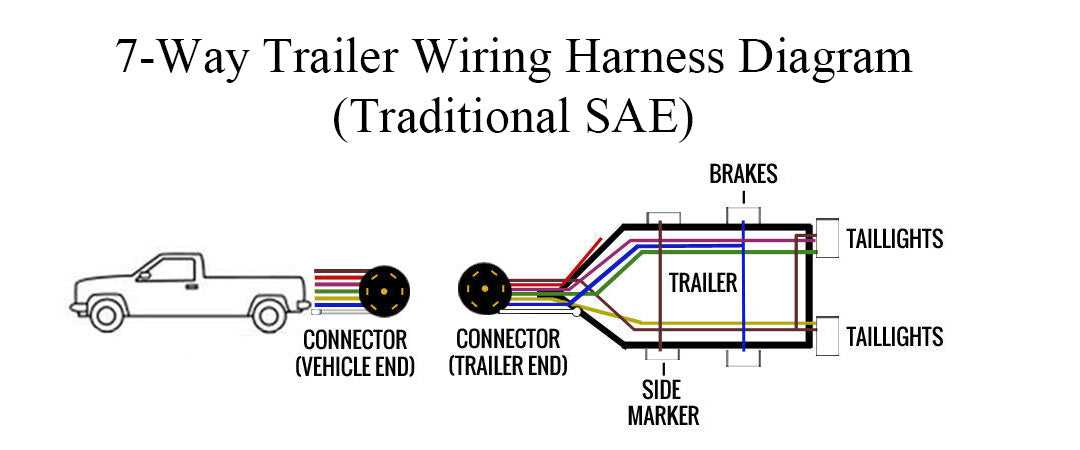

Step-by-Step Guide to Setting Up a 7-Way Vehicle Plug
Before stripping any cables, verify the voltage and function of each contact using a multimeter. The standard color-coding for a 7-way round connector follows this assignment:
- White: Ground (critical for all circuits; ensure a clean, corrosion-free connection)
- Brown: Tail lamps (runs alongside marker lights; test with parking lights on)
- Yellow: Left turn/brake signal (verify with turn signal and brake pedal)
- Green: Right turn/brake signal (cross-check with yellow to avoid shorts)
- Blue: Electric brakes (12V output; requires an inline fuse for safety)
- Black: 12V auxiliary power (for winches or internal lighting; max 40A capacity)
- Red/Purple: Reverse lamps (optional; often omitted; check local regulations)
Cut the insulation ¼ inch from the wire end, twist strands tightly, and crimp a heat-shrink butt connector for durability. Apply dielectric grease inside the plug housing to prevent moisture ingress, then secure each wire into its slot with the locking tab. Test every function sequentially–activate brakes, signals, and auxiliary circuits–while monitoring for voltage drops (should remain above 11.5V).
Troubleshooting Common Issues
- Corrosion buildup: Disassemble, clean contacts with a brass brush, and reapply grease.
- Intermittent connections: Replace the entire assembly; soldering is unreliable for vibration-prone setups.
- Incorrect brake function: Confirm the blue wire connects to a brake controller output (not direct battery).
- Auxiliary power drain: Insert a relay if the tow vehicle’s battery cannot sustain prolonged loads.
Use a dedicated circuit tester with a 21W bulb to simulate loading conditions–dim lights indicate poor grounding or undersized wire (minimum 16 AWG for lighting, 12 AWG for brakes). Avoid daisy-chaining grounds; route a single dedicated ground wire back to the tow vehicle’s chassis.
Avoiding Pitfalls in Heavy-Duty Electrical Connector Setup
Incorrect ground wire attachment leads to inconsistent lighting and potential short circuits. Always secure the ground to a clean, bare metal surface–paint, rust, or corrosion act as insulators. Use a dedicated terminal instead of relying on bolt threads or chassis points that may loosen under vibration. Test continuity with a multimeter after installation to confirm a solid connection before finalizing.
Mismatched Voltage Standards
Mixing SAE J560 (12V) with ISO 1724 (24V) connections without proper adapters will damage bulbs or electronic components. Check the manufacturer’s specifications for the towing vehicle and the load–auxiliary circuits often require relays for 24V systems. Label each connector cable during installation to prevent accidental cross-wiring, and use color-coded heat-shrink tubing for clarity.
Skipping the circuit protection step invites overheating and fire hazards. Install a fused distribution block or in-line fuses rated for the specific current draw–typically 5-10A for basic lighting and 15-20A for auxiliary power. Position fuses as close to the power source as possible, not at the end of extended runs where voltage drop occurs. Replace blown fuses with the exact rating; never substitute with higher ampacity.
Neglecting waterproofing compromises reliability in wet conditions. Apply dielectric grease to connector pins and seal the junction box entry points with shrink tubing or silicone sealant. For plugs exposed to road spray, use waterproof boots and check the seals annually. Corrosion on terminals–even minor discoloration–degrades performance; clean with a wire brush and reapply conductive compound.
Overlooking Load Capacity
Running high-draw accessories (e.g., winches, refrigerators) through the standard 7-way circuit risks overheating the harness. Dedicate a separate power feed with thicker gauge cables (minimum 10AWG for 20A loads) directly from the battery, using a relay to prevent voltage drop. Calculate total amperage requirements–most connectors handle 25A continuous; exceeding this without upgrades melts insulation.
Essential Gear for Connecting a 7-Way Vehicle Socket
Start with a multimeter rated for 12-24V DC to verify circuit integrity. Use a Fluke 87V or Klein MM700 for accuracy–cheaper models often misread millivolt drops. Keep spare 14-16 AWG stranded copper wire (GPT or SXL insulation) on hand; solid core wire risks fatigue cracks under vibration. Crimp connectors should match the gauge–yellow for 12-10 AWG, blue for 16-14 AWG–and always solder joints after crimping to prevent corrosion at connections.
Hand Tools and Consumables
| Tool | Specification | Purpose |
|---|---|---|
| Wire strippers | Self-adjusting (Klein Katapult) | Cleanly removes insulation without nicking conductors |
| Crimping pliers | Ratchet-style (IWISS SN-28B) | Ensures uniform pressure on butt/splice connectors |
| Heat gun | 600W with 200-500°C range | Shrinks adhesive-lined tubing for waterproof seals |
| Torx driver | T25 size | Removes factory socket housing screws (common on OEM setups) |
Use dielectric grease (Dow Corning 4 or CRC 05051) on all contacts; it displaces moisture and prevents oxidation. Apply a thin layer before assembling connectors, but avoid excess–it can insulate if over-applied. For heavy-duty towing, upgrade to a weatherproof junction box (e.g., Bargman 972300) instead of relying on inline splices. Mount it within 1 meter of the socket to minimize voltage drop.
Store unused terminals and wire in airtight containers with silica gel packs. Oxidized copper drastically reduces conductivity–replace any discolored connectors immediately. Test each circuit under load (e.g., brake light with a 21W bulb) before final assembly; a 0.5V drop across a connector indicates a faulty joint needing rework.
