For optimal performance with a 24-cell setup, series linking is non-negotiable. Start by pairing two identical deep-cycle marine-rated power sources–each rated at 12 Ah or higher–using heavy-gauge copper cables (minimum 4 AWG) to minimize voltage drop. The positive terminal of the first battery connects directly to the negative of the second. The remaining terminals then feed into your propulsion unit’s controller via a dedicated 80-amp circuit breaker, positioned within 7 inches of the battery bank to comply with ABYC standards.
Critical connections: The controller’s power input must attach to the combined output of the tandem batteries–never tap a single unit alone, as this creates imbalance and reduces runtime by up to 40%. Verify polarity with a multimeter before energizing; reversed leads will destroy the controller instantly. Use tinned marine-grade lugs crimped with a hydraulic press and sealed with heat-shrink tubing to prevent corrosion.
Grounding requires a separate 4 AWG path to the boat’s main bonding system, avoiding shared paths with lighting or electronics. Fail-safe installation includes a manual cutoff switch within reach of the helm, isolating both batteries in emergencies. Test under load before deployment–expect steady 23.8–25.2 V at full throttle; readings outside this range indicate poor connections or battery degradation.
For prolonged off-grid use, integrate a 20-amp solar charge regulator wired in parallel to the battery bank with 6 AWG cables. Ensure the regulator’s output matches the bank’s voltage–mismatch will lead to overcharging or rapid discharge cycles. Properly installed, this setup delivers 9–12 hours of continuous operation at 75% throttle on a single charge with Group 27 AGM batteries.
Connecting a Dual-Battery 24V Electric Propulsion System

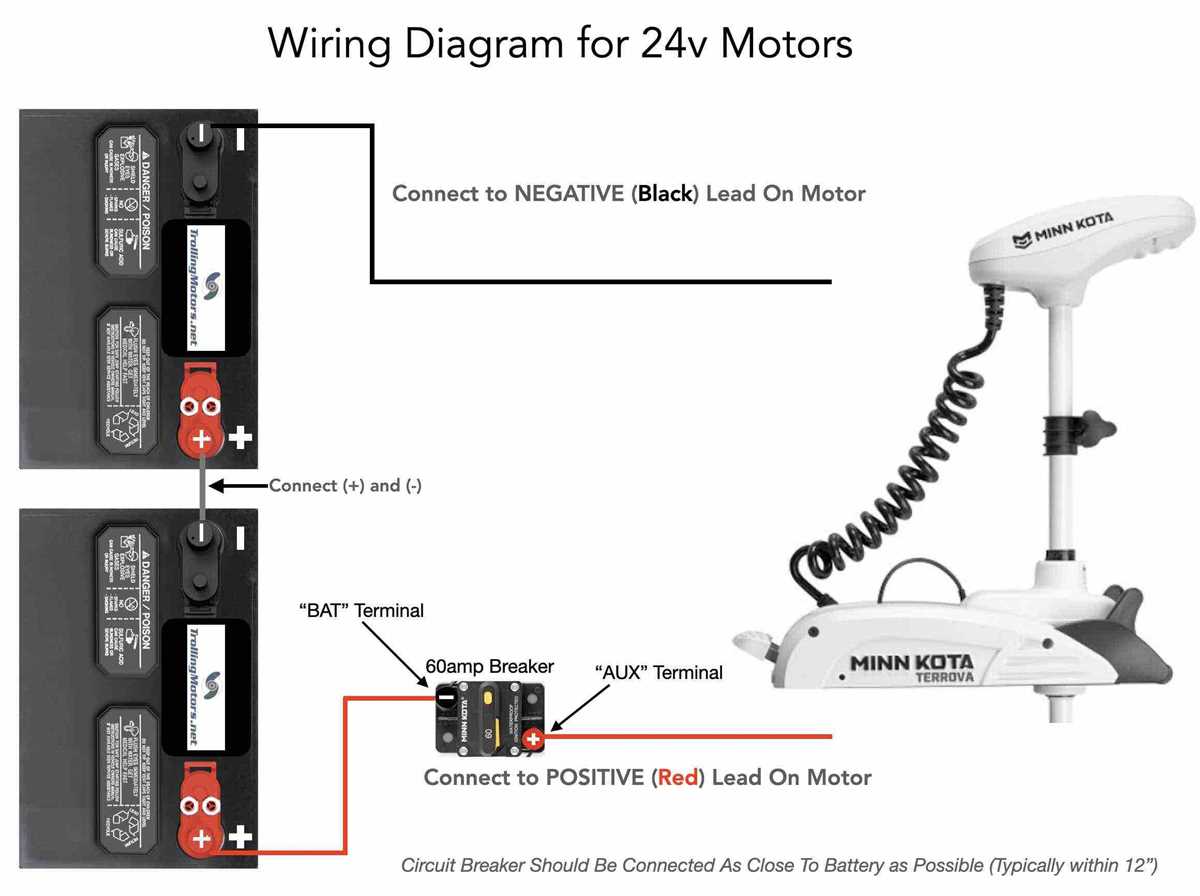

Start by linking two 12V deep-cycle batteries in series to achieve the required output. Use heavy-gauge marine cable–minimum 6 AWG–to prevent voltage drop and overheating. Connect the positive terminal of the first battery to the negative terminal of the second using a tinned copper jumper, ensuring corrosion resistance in wet environments.
Attach the propulsion unit’s positive lead to the free positive terminal of the second battery. The negative lead connects to the free negative terminal of the first battery–this completes the circuit. Verify polarity with a multimeter; reversed connections will damage the controller and void warranties.
Install a 40-amp circuit breaker within 7 inches of the battery bank’s positive post. This interrupts power during short circuits or overloads, protecting both batteries and components. For motors rated above 55 lbs thrust, upgrade to a 60-amp breaker–undersized breakers trip unnecessarily under load.
Integrate a dual-battery switch if selective power isolation is needed. Position the switch near the helm for quick access. Label each position (e.g., “Battery 1,” “Battery 2,” “Both”) to avoid confusion during emergencies. Avoid using automotive switches; marine-grade units resist saltwater corrosion.
Fuse the main positive line with a ANL fuse holder rated 20% above the breaker’s amperage. For a 40-amp breaker, use a 50-amp ANL fuse. Mount the holder in a dry, ventilated compartment to prevent moisture buildup and fuse failure.
Ground the system by running a dedicated 8 AWG cable from the controller’s negative bus bar to the vessel’s metal hull or a common grounding plate. Avoid relying on engine blocks or fuel tanks; poor grounding causes erratic speed control and radio interference.
Test the setup at 50% throttle before full operation. Listen for unusual noises–humming or buzzing indicates loose connections. Monitor voltage at full load; a drop below 22V suggests undersized cables or weak batteries, requiring immediate correction.
Selecting an Optimal Battery Setup for a 24V Energy Source
Opt for two 12V deep-cycle marine-grade units connected in series for consistent current delivery. Lithium iron phosphate variants offer 3,000+ charge cycles at 80% depth of discharge, while lead-acid alternatives provide 500-800 cycles but require frequent equalization. Calculate runtime demands: a 100Ah system at 24V sustains a 30A load for approximately 3.3 hours before reaching 50% capacity–adjust reserve margins based on typical excursion duration.
Match terminal posts to cable gauge: 4 AWG copper handles 100A continuous, 6 AWG suffices for 55A; apply marine-grade heat-shrink tubing to prevent corrosion. Position batteries close to the drive unit to minimize voltage drop–every 10 feet of 6 AWG cable introduces ~0.3V loss per 50A draw. Use a 250A class T fuse within 7 inches of the positive post to isolate faults without tripping prematurely.
Parallel configurations introduce balancing issues and uneven discharge, reducing usable capacity by 30-40% due to internal resistance mismatches. Prioritize batteries with built-in battery management systems for lithium variants to prevent overcharge, while flooded lead-acid types need monthly specific gravity checks of each cell–target 1.265 at full charge. For winter storage, maintain 70% charge and disconnect all loads to prevent sulfation in lead-acid units.
Step-by-Step Guide to Linking Dual 12V Power Sources in Sequence
Begin by placing the two 12V energy storage units side by side, ensuring the terminals face opposite directions for easier cable routing. Use a multimeter to confirm each unit outputs at least 12.6V before proceeding–this prevents uneven charge distribution in the final setup. Secure the storage units firmly with non-conductive mounts to avoid accidental short circuits from vibration or movement.
Attach a heavy-gauge jumper lead (minimum 4 AWG for currents above 30A) to the positive terminal of the first storage unit. Connect the opposite end of this lead to the negative terminal of the second unit. This creates the critical series link–verifying polarity here eliminates risk of reverse charging, which can permanently damage the components. Double-check connections with a voltmeter; total voltage should read 24V–25.2V at this stage.
Connect the load’s positive input to the free positive terminal of the second unit, then route the negative lead to the remaining negative terminal of the first unit. Avoid daisy-chaining thinner wires–heat buildup under sustained loads (e.g., 50A output) will degrade performance. For marine or automotive applications, use tinned copper cables to resist corrosion from moisture exposure.
| Component | Minimum Specification |
|---|---|
| Jumper cables | 4 AWG (30A–80A), 2 AWG (80A+) |
| Terminal connectors | Tinned copper, crimped + soldered |
| Voltmeter test | 24V–25.2V across final terminals |
Insulate all exposed connections with heat-shrink tubing or dielectric grease–this prevents oxidation and short circuits from dust or condensation. Stress-test the configuration by running a high-draw device (e.g., a 20A load) for 10 minutes; monitor for voltage sag below 23.5V, which indicates insufficient gauge thickness or loose connections.
Periodically inspect the series setup every 3 months for terminal corrosion or cable strain. Replace leads showing fraying or discoloration immediately–resistance increases exponentially with age, reducing efficiency. For deep-cycle units, charge them simultaneously with a dual-channel 24V charger to maintain balanced capacity and extend lifespan.
Selecting Proper Electrical Connectors and Cable Thickness for 24V Marine Propulsion Systems
For a 24V electric thrust device capable of 40–60 lbs thrust, use 6 AWG marine-grade tinned copper cables as the baseline. This thickness prevents excessive voltage drop (under 3% over 15 feet) while handling sustained currents of 40–50A. Avoid aluminum wiring–its higher resistance accelerates corrosion in saltwater environments, even when insulated. Verify terminal ratings match the cable gauge; undersized connectors create hotspots that degrade performance.
Crimp terminals should be double-crimped (wire core + insulation grip) using a ratcheted tool; soldered connections alone are unreliable due to vibration. Heat-shrink tubing with adhesive lining adds a second barrier against moisture ingress–critical for sub-surface or spray-exposed junctions. For battery-side connections, opt for ANL or Class T fuses rated 20% above the motor’s max draw (e.g., 60A fuse for a 50A load) to prevent thermal overload.
Battery and Circuit Protection Essentials
Dual 12V deep-cycle AGM batteries wired in series require individual circuit breakers on both positive leads (one per battery) for safe isolation during maintenance. Use manual reset breakers (e.g., Blue Sea 7210) within 7 inches of each battery terminal to minimize unprotected cable length. Never combine positive and negative cables into a single breakered line–this violates ABYC safety standards and risks short circuits.
For remote-mounted switch panels, 10 AWG stranded copper wire is sufficient for control signals, but route it separately from high-current paths to avoid induced noise. Terminal blocks should be phenolic or marine-grade nylon (e.g., IDEC RH series) with at least 25A current capacity per stud, even if carrying lower loads–corrosion resistance justifies the upgrade. Label every connection with heat-resistant shrinking labels; UV-stable adhesive prevents degradation under direct sunlight.
Grounding and System Integrity
Establish a single ground point at the motor housing or a common busbar mounted above the waterline, using 4 AWG cable to minimize resistance. Avoid daisy-chaining grounds–parallel paths create stray currents that accelerate corrosion. For fiberglass hulls, bond the ground to a zinc anodic stud (minimum 1″ diameter) submerged below the waterline; replace depleted anodes when mass drops by 50%. Never use the engine block or steering column as a return path–this creates galvanic coupling that damages metallic components.
Test cable runs with a megohmmeter (500V DC) after installation; insulation resistance should exceed 50 MΩ. If readings drop below 1 MΩ, inspect for pinched insulation, improperly stripped ends, or water infiltration. For fast-acting protection, install a thermal switch (e.g., Klixon 1082) on the motor’s armature, set to trip at 120°C–this detects mechanical overloads before cables overheat.
Replace all factory-issued connectors on retail motors with gold-plated bullet or Anderson Powerpole plugs (rated 75A) for improved conductivity and durability. Apply dielectric grease to every junction to displace moisture and oxygen; avoid petroleum-based products–they degrade rubber seals. Store spare cables coiled without twists to prevent work hardening; 90° bends reduce fatigue life by 40% compared to smooth loops.
