Use a minimum 2/0 AWG copper conductor or 4/0 AWG aluminum conductor for the feeder circuit from the main service to the auxiliary distribution unit. These sizing requirements ensure compliance with NEC 310.15(B)(7) for a 100-ampere-rated secondary breaker, accounting for voltage drop over distances exceeding 50 feet. Secure all connections with anti-oxidant compound–particularly for aluminum conductors–to prevent resistance buildup at terminal points.
Mount the secondary breaker in a NEMA 3R-rated enclosure if exposed to outdoor conditions, protecting against dust and water ingress while allowing proper ventilation. Position the unit at least 30 inches from the main panel but within 25 feet of the service drop to optimize efficiency and meet NEC accessibility standards under Article 240. Place the grounding busbar independently from the neutral bar, bonding it directly to a #4 AWG copper ground wire tied to the main system’s grounding electrode.

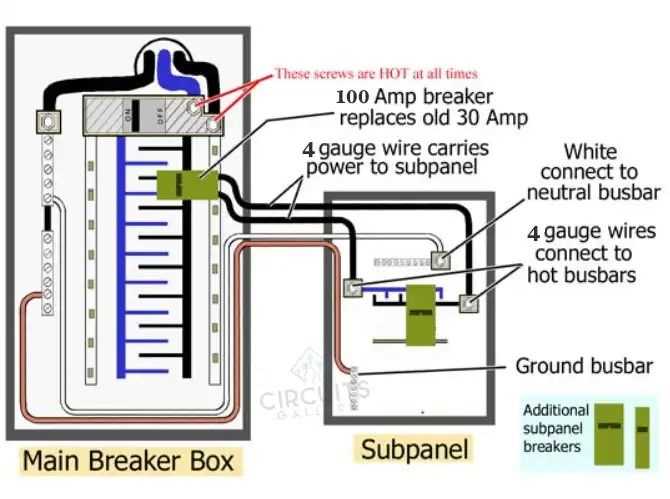

For a split-phase installation, run two hot conductors and a neutral from the primary breaker to the auxiliary unit, avoiding shared neutral paths unless separated by a double-pole, single-throw disconnect. Label all circuits with heat-shrink tubing or engraved markers indicating amperage limits and load types–critical for future maintenance or inspections. Verify torque specifications per NEC 110.14(D) using a calibrated torque screwdriver to prevent terminal loosening over time, particularly under cyclic loads.
Avoid tap conductors unless derated per NEC 240.21(B); improper sizing leads to overheating in overloaded scenarios. Test continuity with a digital multimeter before energizing, confirming zero resistance on all closed circuits and infinite resistance on open circuits. If feeding a detached structure, include a grounding electrode system–either a rod-and-plate or Ufer ground–bonded to the secondary unit’s grounding busbar with #6 AWG copper or equivalent.
Connecting a High-Capacity Secondary Electrical Hub
Begin by selecting a 3/0 AWG copper or 4/0 AWG aluminum feeder cable for the main conduit run. Ensure the primary service disconnect is rated at least 25% higher than the secondary hub’s demand–typically 125 amperes–to accommodate transient surges. Route the cables through 1.25-inch Schedule 40 PVC conduit if burying underground, or metallic conduit for exposed runs, maintaining 36 inches of clearance from high-traffic areas and combustible materials. Ground rods must be 8-foot copper-clad, driven at least 6 feet apart, and bonded to the enclosure with #6 bare copper wire to meet NEC 250.52(A)(5).
Inside the distribution box, terminate the hot leads to a double-pole 100-amp breaker in the main service panel, using anti-oxidant compound on aluminum connections to prevent corrosion. The neutral bus must be isolated from the grounded bus in the secondary unit, with no more than 1/4-inch of exposed conductor beyond the terminal screw. For three-phase systems, verify phase rotation using a digital phase monitor before energizing, as improper sequencing can damage motors or variable-frequency drives. Install a surge arrestor rated for 6 kA at the feeder’s entry point to suppress voltage spikes from lightning or switching events.
Label every circuit in the auxiliary box with permanent, waterproof tags, specifying load types (e.g., “EV Charger – 50A Dedicated”) and wire gauges. Test continuity with a megohmmeter at 500V DC before final energization to detect insulation breakdowns. For outdoor installations, apply dielectric grease to all metal-to-metal contact points and ensure the enclosure meets NEMA 4X standards for corrosion resistance. Keep a 10-foot clearance from gas meters and propane tanks to comply with NFPA 54.
Essential Gear for Installing a 90-Amp Secondary Power Hub
Start with a 90-amp main breaker – this component isolates the feeder circuit and protects the auxiliary load center from overloads. Opt for a UL-listed unit rated for 225% of continuous loads; models from Siemens or Eaton offer reliable thermal-magnetic trip mechanisms. Ensure the breaker’s lugs are sized for 2/0 AWG copper conductors or equivalent aluminum to handle 100 A RMS at 75 °C.
Use insulated copper or aluminum conductors sized per NEC Table 310.16; for 90 A service, 2 AWG copper or 1/0 AWG aluminum meets code when derated for conduit fill. Include a fourth grounding conductor (minimum 8 AWG bare copper) bonded to the neutral bus only at the primary service disconnect. Choose THHN/THWN-2 wire rated for 90 °C in wet locations to prevent insulation breakdown under load.
Install a separate ground rod driven at least 8 ft deep, connected with an irreversible crimp sleeve or exothermic weld, not mechanical clamps prone to corrosion. Pair it with a grounding electrode conductor sized per NEC 250.66, ensuring resistance below 25 ohms; verify with a digital earth tester before energizing. Include anti-oxidant compound on aluminum connections to prevent galvanic corrosion.
Mounting hardware requires ½-inch lag screws or expansion anchors into structural studs, never drywall anchors. Use non-metallic bushings on all conduit entries to protect conductors from abrasion. A torque screwdriver calibrated to manufacturer specs (e.g., 15–20 lb-in for breaker lugs) prevents loose connections that cause arcing faults.
Step-by-Step Guide to Installing Feeder Conductors from Primary Electrical Hub
Shut off the primary breaker in the main service box to ensure no current flows during installation. Use a voltage tester to confirm all terminals are de-energized before proceeding. Failure to verify zero voltage risks severe injury or equipment damage.
Select conductors rated for 125% of the anticipated load–1/0 AWG copper or 2/0 AWG aluminum for 100-amp service ensures compliance with NEC 310.15(B)(16). Measure the exact distance between the main hub and the secondary distribution point, accounting for obstacles and service bends. Add 20% extra length to avoid tension during conduit pulls.
Fish the cable through rigid or EMT conduit using a nylon pull rope. Lubricate the conductors with wire-pulling compound if the run exceeds 20 feet or includes multiple 90-degree bends. For underground runs, use Schedule 40 PVC buried at least 18 inches deep, or 24 inches if subject to vehicular traffic. Protect conduit ends with sealed bushings to prevent moisture ingress.
Strip insulation from conductor ends using a calibrated cutting tool–expose ¾ inch of bare wire for copper lugs, 1 inch for aluminum. Terminate each conductor to the designated breaker or lug, tightening to the manufacturer’s specified torque value (typically 20–30 lb-ft for 100-amp terminals). Loose connections generate heat and violate NEC 110.14(D).
Install a ground conductor–either an insulated 6 AWG copper or bare 4 AWG copper–bonded to the main panel’s grounding bus and the secondary hub’s neutral-ground bar. Omit any splices in the ground path; continuous length prevents impedance buildup. Test continuity with a megohmmeter; resistance should read less than 0.1 ohms.
Seal conduit entry points with fire-rated caulk if penetrating walls or ceilings. Label the secondary distribution point with maximum overcurrent rating, conductor type, and date of installation per NEC 110.22. Energize the circuit progressively, verifying voltage at each hot leg (240V phase-to-phase, 120V phase-to-neutral) with a true RMS multimeter.
Record installation details–conductor gauge, conduit type, breaker brand, torque values–in a permanent log. Store near the main service box for future reference during inspections or troubleshooting. Retest all connections annually; aluminum conductors require torque checks every 18 months due to thermal cycling.
Proper Ground and Neutral Conductor Sizing for Electrical Installation Branches
Install a separate grounding electrode conductor (GEC) sized per NEC Table 250.66 when connecting the branch circuit distribution center to a metallic water pipe, concrete-encased electrode, or ground rod. For a 200-ampere main service disconnect, the minimum GEC diameter is #4 AWG copper or #2 AWG aluminum, regardless of the feeder’s overcurrent protection rating. Always bond the neutral bus to the enclosure at the main service only; sub-distribution centers must keep neutral and ground entirely isolated except for a single bonding screw or strap removed during inspections.
Neutral conductors must handle full continuous load without overheating. For a 125-ampere feeder protected by a 125-ampere breaker, upsize the neutral to #1 AWG copper when aluminum is used for phase conductors (Table 310.16). If harmonic distortion exceeds 20%, increase neutral cross-section by 150% of phase conductor size. Avoid shared neutrals on multi-wire branch circuits to prevent circulating currents and overloading. Verify conduit fill compliance before pulling conductors–four #2 AWG THHN wires require at least a 1.25-inch EMT trade size per Chapter 9, Table 4.
Conductor Sizing Reference by Protection Rating
| Overcurrent Device Rating | Phase Conductor (Cu) | Neutral Conductor (Cu) | Grounding Electrode Conductor (Cu) |
|---|---|---|---|
| 60 A | #6 AWG | #6 AWG | #8 AWG |
| 100 A | #3 AWG | #3 AWG (or #1 AWG upsized) | #6 AWG |
| 150 A | #1 AWG | #1 AWG (200% upsized if nonlinear loads) | #4 AWG |
| 200 A | 2/0 AWG | 2/0 AWG | #4 AWG |
Terminate all equipment grounding conductors (EGCs) at their respective enclosures using irreversible crimp connectors listed for the conductor material–no twist-on wire nuts. For circuits exceeding 100 feet, increase EGC size by one trade size per NEC 250.122. Inspect torque values on ground lugs with a calibrated torque screwdriver; under-tightened connections risk arcing and heat buildup. Use insulated bushings on conduit ends when pulling #6 AWG or larger conductors to prevent abrasion.
Verify ground continuity with a 3-point earth resistance tester before energizing. Target readings below 25 ohms; install additional ground rods spaced at least 6 feet apart if resistance exceeds threshold. Never rely on metallic conduit alone for grounding–run an explicit ground wire even in EMT or RMC. Label neutral and ground buses clearly at every distribution center to prevent misconnections during maintenance. Store spare bonding jumpers in a corrosion-resistant container near the main disconnect.
