Start by identifying the neutral and live terminals on your control box – using a multimeter set to AC voltage (230V or 120V, depending on your supply). Mark these terminals clearly: L for live, N for neutral, and ⏚ for earth if applicable. Most level sensors operate as a single-pole, single-throw mechanism with NO (normally open) or NC (normally closed) contacts. For basic pump management, use the NO configuration – this ensures the circuit completes only when the sensor reaches the activation point, typically around 10–15 mm of movement. Connect one sensor wire directly to the live terminal, and the other to the pump’s relay coil or motor start terminal.

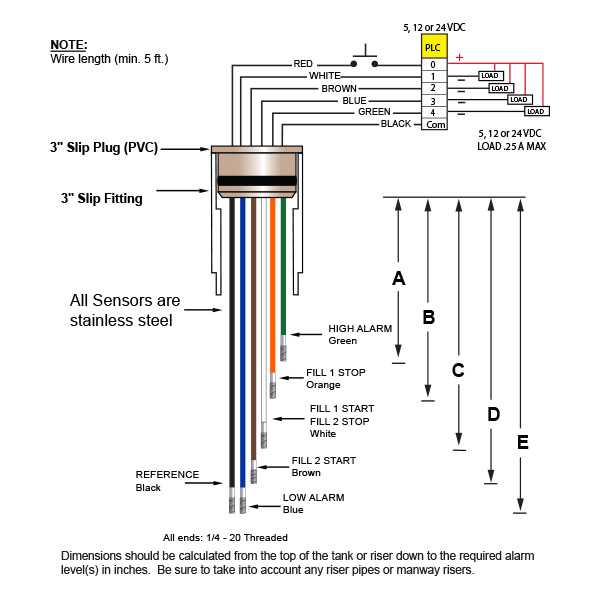

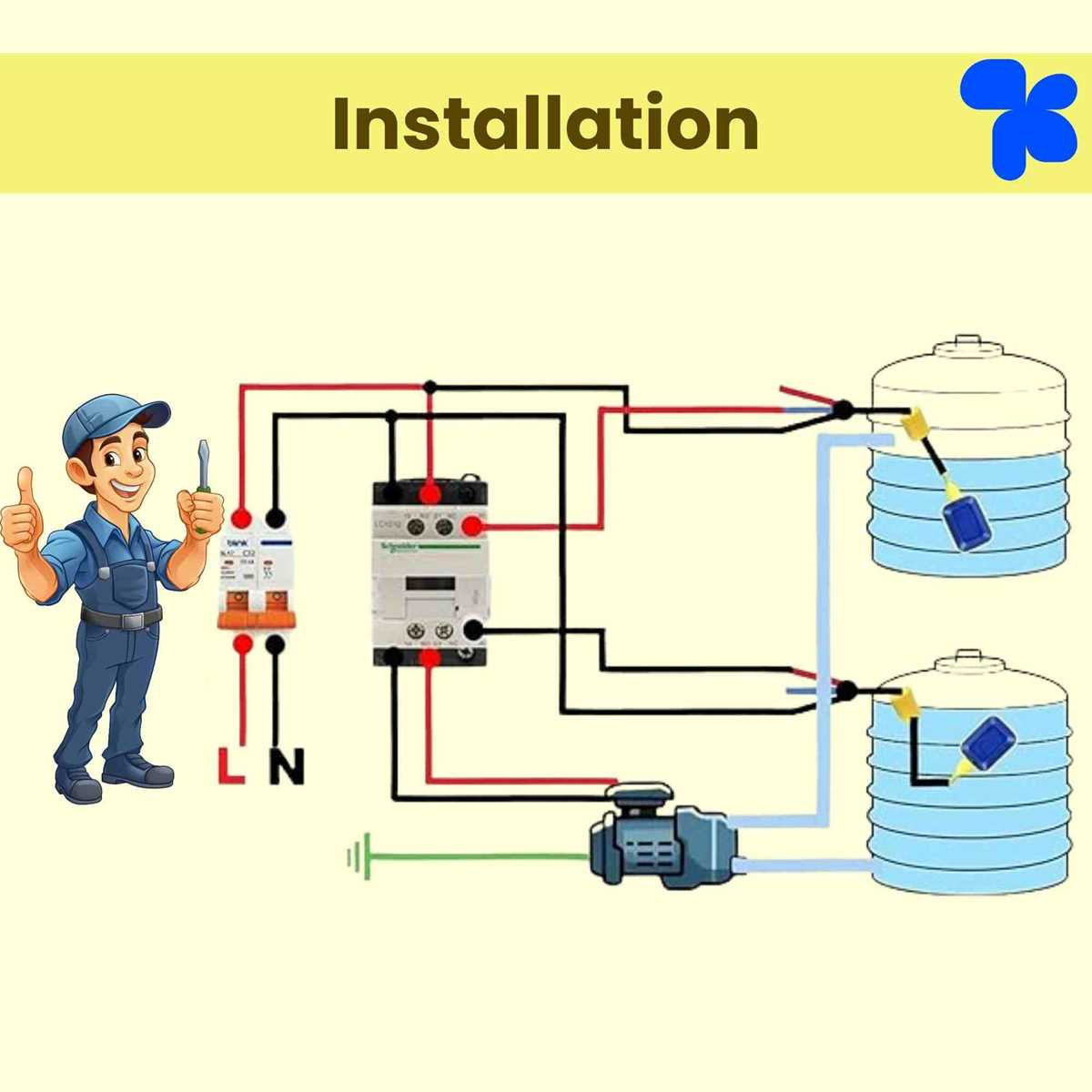

For dual-level setups, incorporate a second sensor wired in series with the first. The upper sensor controls the start sequence, while the lower one defines the shut-off point. Use a relay rated for inductive loads (e.g., 10A at 250V AC) between the sensor and the motor to prevent arcing. Ensure wiring gauge matches the motor’s current draw: 1.5 mm² for up to 3 kW, 2.5 mm² for up to 5.5 kW. Protect the circuit with a 6A or 10A fuse on the live line, depending on motor size, and include a snubber capacitor (0.1 µF, 630V) across the sensor contacts to suppress voltage spikes.
Test the assembly by filling the tank incrementally – the pump should engage at the upper sensor’s threshold and halt at the lower one within 2–3 seconds. If response is delayed, check for excessive cable length (keep under 50 meters) or improper grounding. For submerged applications, use waterproof connectors (IP68) and corrosion-resistant cables (tinned copper). Avoid daisy-chaining multiple sensors to a single cable; run individual wires to minimize voltage drop. In systems with variable frequency drives, isolate sensor circuits with a dedicated power source to prevent interference.
Color-code all conductors: brown for live, blue for neutral, green/yellow for earth. Label both ends of each wire and the corresponding terminals. Store reference drawings at the installation site, noting sensor activation thresholds and pump run times. For redundant protection, add a manual override switch in parallel with the sensor circuit – this should be a spring-loaded pushbutton to prevent accidental bypass.
Connecting a Level Sensor in Control Circuits
Use a 3-wire configuration for precision in tank monitoring: connect the common (C) terminal to the power source, the normally open (NO) terminal to the load (pump or alarm), and the normally closed (NC) terminal for fail-safe override. Ensure the sensor’s current rating exceeds the inductive load by at least 20%–for a 5A pump, select a sensor rated for 6A or higher. Apply waterproof heat-shrink tubing over spliced connections to prevent corrosion, especially in submerged or high-humidity environments.

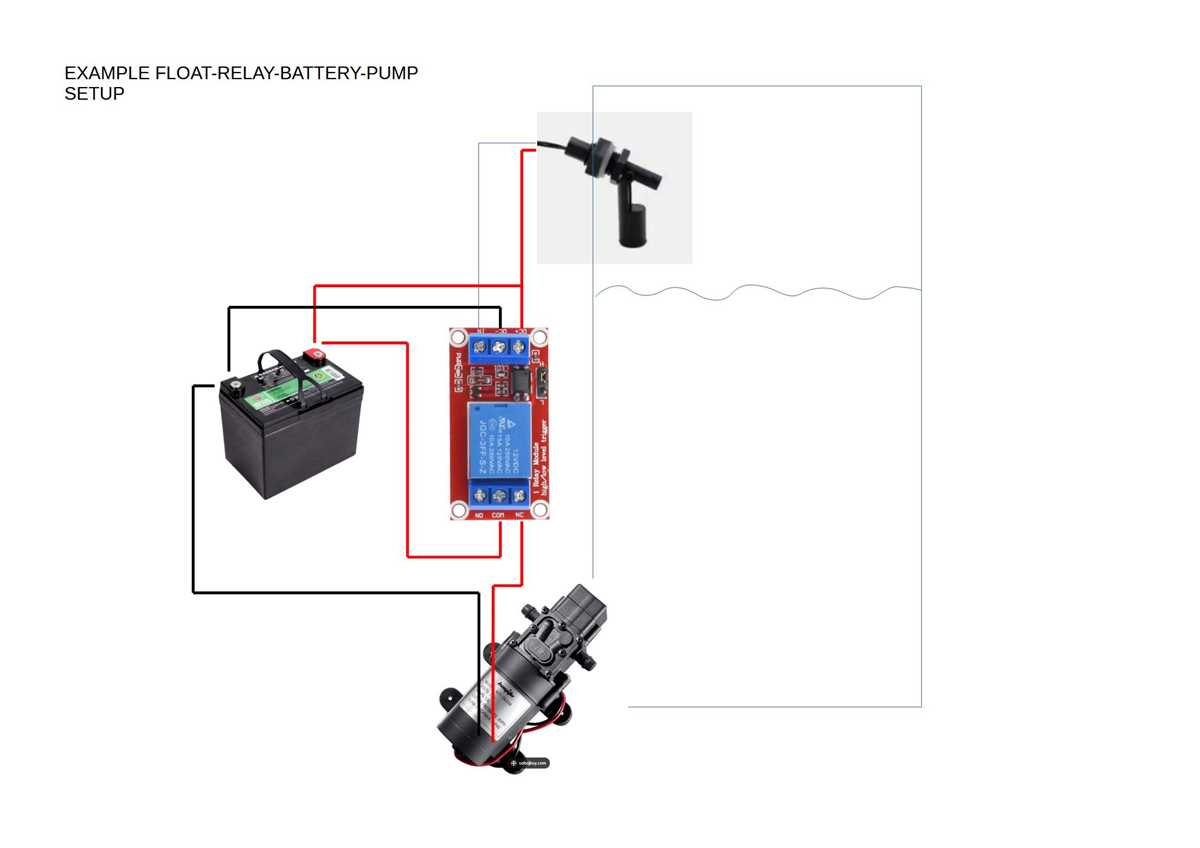

For AC applications, pair the sensor with a relay (SPDT, 10A minimum) to isolate low-voltage control signals from high-power loads. A 24V DC sensor with a 250V AC relay handles most residential and industrial setups–verify coil voltage compatibility with your system. Mount the sensor at the target fill/empty level using non-metallic brackets to avoid galvanic corrosion in conductive fluids like brine or acids.
Test sensor operation before final installation: simulate liquid rise by lifting the actuator to confirm the NO contact closes at the correct threshold, then release to check the NC contact engages. In dual-sensor setups (e.g., high/low levels), wire the high-level sensor to trigger first, preventing false starts during brief fluctuations. Log resistance across contacts with a multimeter under dry and wet conditions to detect internal faults–expect 1MΩ when open.
How to Connect a Level Sensor to a Pump in 3 Steps
Use a normally open (NO) or normally closed (NC) sensor based on your pump’s control logic. For submersible pumps, an NC sensor prevents dry running–it opens the circuit when liquid rises, cutting power. For external pumps, an NO sensor activates when liquid reaches the set point, closing the circuit to start the pump. Confirm the sensor’s contact rating matches your pump’s voltage (typically 120V–240V AC) and current draw (check the motor’s nameplate; most residential pumps require 5A–15A).
Step 1: Verify Power Source and Circuit Protection
- Disconnect the pump’s power at the breaker. Use a multimeter to confirm no voltage remains.
- Install a dual-pole circuit breaker sized 20% above the pump’s full-load current (e.g., 15A breaker for a 12A pump).
- Run 12-gauge or thicker copper wire from the breaker to the sensor’s control box, ensuring proper grounding (green or bare wire).
- If using an NC sensor, wire the pump’s motor directly in series with the sensor. For NO sensors, wire the sensor in parallel with a relay if the pump’s current exceeds the sensor’s rating (most sensors handle ≤10A; relays can manage 20A–30A).
Step 2: Secure Sensor Placement and Calibration

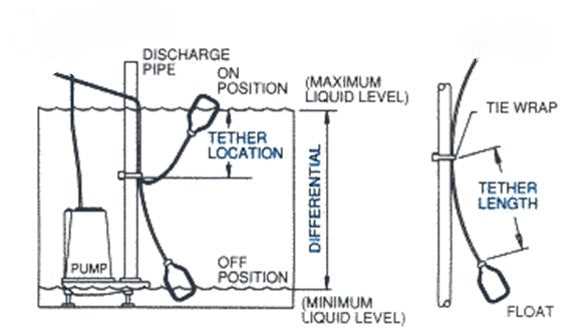

- Mount the sensor at the desired activation height using stainless steel brackets or a weighted cage for sump or tank applications. Ensure the cable length accounts for sag without stretching (add 10% extra length for adjustments).
- For adjustable sensors, set the trip point by filling the tank to the target level and locking the sensor’s collar or magnet in place. Test by manually tilting the sensor–it should click audibly at the set point.
- In underground basins, position the sensor’s cable upward to prevent sediment clogging the contacts. Use waterproof conduit (PVC or liquid-tight flexible conduit) for outdoor installations.
Connect the sensor’s leads to the pump’s motor or relay using crimp connectors (not wire nuts). For NO sensors, link one lead to the power wire (L1) and the other to the relay coil (if used) or directly to the motor’s start winding. For NC sensors, splice both leads into the pump’s power circuit–an open circuit will stop the pump. Label all connections with heat-shrink tubing or permanent marker (e.g., “L1 – Sensor Lead”).
Test the setup by simulating the target liquid level:
- For sump pumps: Pour water into the pit to trigger the sensor. The pump should start within 2–3 seconds (check for relay chatter, which indicates faulty connections).
- For tank pumps: Slowly fill the tank while monitoring the motor’s amp draw with a clamp meter–current should drop to near-zero when the sensor disconnects (NC) or rise to full load when engaged (NO).
- Confirm the sensor resets reliably by draining or refilling the container three times. Failed resets signal debris on contacts or incorrect mounting angle.
Seal all junction boxes with silicone or EN-rated gaskets to prevent moisture ingress. For 240V pumps, use a 2-pole relay to isolate the sensor from high current. Replace sensors every 3–5 years or if clicking becomes erratic–oxidized contacts increase resistance, risking motor burnout. Keep spare sensors onsite for pits prone to freezing or clogging.
Understanding Normally Open vs. Normally Closed Level Sensors
For fail-safe operation in pumping systems, choose a normally closed (NC) contact type if the application demands that the circuit remains active during idle states. NC units default to a connected position, breaking the circuit only when liquid reaches the threshold, ensuring power flows to the pump until detection occurs. This prevents dry-running in systems where interruption poses a greater risk, such as wastewater sumps or fuel tanks, where redundancy matters. Conversely, normally open (NO) contacts suit scenarios where default disconnection is critical–like filling operations where an open circuit halts inflow until the target level is reached, reducing overflow hazards. Always match the contact type to the system’s safety priority: NC for “always-on” protection, NO for “fail-off” reliability.
| Feature | Normally Open (NO) | Normally Closed (NC) |
|---|---|---|
| Default State | Disconnected | Connected |
| Action When Activated | Closes circuit | Opens circuit |
| Common Use Cases | Filling tanks, alarms | Pump protection, emergency shutoffs |
| Failure Risk Mitigation | Stops operation if unit fails | Allows continued operation if unit fails |
| Energy Consumption | Low (circuit open at rest) | Higher (circuit closed at rest) |
Test continuity with a multimeter before installation: NO contacts should read infinite resistance at rest, while NC contacts should show near-zero resistance. For adjustable units, set the trigger point at least 10% below the maximum capacity to avoid nuisance trips. Always route low-voltage control signals (e.g., 24VAC/DC) through NO/NC contacts to isolate high-current loads, minimizing arc risk and extending contact lifespan. If using dual-stage sensors, wire the lower stage to NO contacts to initiate filling and the upper stage to NC contacts for shutdown–this dual-layer approach ensures layered safety.
Critical Errors in Connecting Level Sensors and Prevention Methods
Incorrect polarity reversal ranks among the most frequent yet overlooked issues. Many installers confuse the common (COM) and normally open (NO) or normally closed (NC) terminals, especially when dealing with single-pole double-throw configurations. Always verify terminal markings against the manufacturer’s datasheet–some devices use color-coded wires (e.g., brown for COM, blue for NO) while others rely on printed labels. Test the circuit with a multimeter before finalizing connections; a simple continuity check can prevent hours of troubleshooting later.
Overlooking Current and Voltage Ratings
Using a level sensor rated for 120V AC on a 240V circuit, or vice versa, will lead to immediate failure or hazardous conditions. Similarly, exceeding the maximum current capacity–often as low as 5A for compact units–can melt internal contacts. Check the label on the device or consult the technical specifications for exact values. If the application involves inductive loads (e.g., relays, motors), ensure the sensor’s rating accounts for inrush current, typically 3–5 times the steady-state value. For high-current setups, use an intermediate relay as a buffer.
Improper mounting orientation causes unreliable operation, particularly in mechanical ball-type detectors. Some units require vertical installation with the cable entry at the top to function correctly, while others need it at the bottom. Horizontal mounting may work but demands precise alignment–even slight deviations can prevent the internal weight from moving freely. Refer to the installation guide for exact dimensions; manufacturers often recommend a minimum clearance (e.g., 10mm) around the sensor to avoid interference.
Neglecting environmental factors leads to premature wear. Corrosive liquids, extreme temperatures, or excessive vibration can degrade connections faster than anticipated. For submerged applications, choose sensors with IP68-rated enclosures and sealed terminals. In outdoor setups, protect splices with waterproof heat-shrink tubing or gel-filled junction boxes–standard electrical tape degrades within months. If the liquid conducts electricity (e.g., saltwater), opt for encapsulated units to prevent short circuits.
Skipping calibration checks after installation invites false alarms or undetected faults. Most non-adjustable sensors have a fixed activation point, but errors in sizing (e.g., choosing a 1-meter unit for a 90cm tank) result in unplanned overflows. For adjustable models, set the activation point with the tank partially filled, not empty–thermal expansion or residue can alter readings. Document the final position; if the sensor fails, comparing it to the original setup speeds up replacement.
