Start with a 240-volt single-phase circuit for heavy-duty pneumatic tools. Most industrial-grade models draw 15–20 amps under load, so wire thickness must meet minimum 12 AWG standards–10 AWG for runs exceeding 50 feet to prevent voltage drop. Label each conductor: hot (black/red), neutral (white), and ground (green or bare copper). Secure connections with crimp terminals or copper lugs rated for 90°C insulation.
Position the overload relay between the contactor and motor windings. Use a current rating of 125% of the unit’s full-load amperage–for a 15-amp draw, select a 19-amp relay. Include a manual reset button to avoid automatic restart after thermal trips, which could damage pressure-sensitive components.
Mount the pressure switch upstream of the receiver tank, never downstream, to prevent false readings from compressed-air pulsations. Set cut-in pressure 10–15 psi below cut-out: for a 150 psi cut-out, adjust to 135–140 psi cut-in. Verify switch compatibility with the motor’s voltage–misalignment voids warranties and risks phase reversal.
Isolate capacitor-start motors with a centrifugal switch wired directly to the start winding. Bypass faulty switches immediately; prolonged operation without disengagement melts insulation within minutes. For dual-voltage motors (120V/240V), confirm jumper configurations: series for 240V, parallel for 120V–cross-connection destroys windings.
Ground the enclosure and motor frame via a dedicated conductor, not the neutral. Test continuity with a 10-ohm maximum allowance between any metallic component and the ground bus. Use dielectric grease on all terminals exposed to humidity or oil vapors to prevent oxidation.
Avoid MCBs rated over 30 amps for 20-amp circuits. Install separate fuses–time-delay type–on both hot legs. For single-phase units, parallel fuses must match amperage within 1% tolerance; mismatched fuses cause uneven breaker trips and nuisance shutdowns during startup surges.
Electrical Connection Guide for Air Pump Systems
Begin by identifying the power source voltage–most industrial units operate on 230V or 460V single-phase or three-phase circuits. Check the motor nameplate for exact specifications; matching these values prevents overloads or underperformance. Use a dedicated circuit with a properly rated breaker: 15A for smaller units (up to 2 HP), 30A for mid-range models (3-5 HP), and 50A+ for heavy-duty systems (7.5 HP and above).
Connect the thermal overload protector in series with the motor windings to interrupt power during overheating or current spikes. Locate the protector’s terminal block–typically labeled “T1,” “T2,” and “T3” for three-phase setups or “L1” and “L2” for single-phase. Wire the protector’s “95” and “96” terminals to the control circuit if using a magnetic starter, ensuring the circuit disconnects fully under fault conditions.
For start capacitors, use only the exact microfarad (µF) rating specified on the unit’s label–deviations of even 10% can cause premature motor failure. Wire the capacitor between the “start” and “run” terminals on the motor’s auxiliary winding, securing connections with crimp connectors or solder to prevent vibration loosening. Test capacitance with a multimeter before installation; leaking or bulging capacitors must be replaced immediately.
Ground the system properly using an 8 AWG or thicker copper wire, connecting the motor frame to the grounding busbar in the distribution panel. Avoid daisy-chaining grounds–each component should have a direct, uninterrupted path to earth. For outdoor installations, use weatherproof junction boxes and seal cable entries with gland fittings to prevent moisture ingress, which corrodes terminals and creates safety hazards.
Label every wire termination: “Line In,” “Load Out,” “Common,” “Overload,” and “Capacitor” using durable, heat-resistant tags. Verify all connections with a torque screwdriver set to manufacturer-specified values (typically 12-15 lb-in for screw terminals). After assembly, test run the system while monitoring current draw with a clamp meter–normal operating amperage should match the motor’s nameplate rating ±5%.
Choosing the Correct Electrical Layout for Your Air Pump Unit
Begin by locating the model number of your pressure system–typically stamped on a metal plate or printed on the motor casing. This identifier is critical to matching the schematics with the exact configuration of relays, capacitors, and voltage requirements. Without it, even minor deviations in current paths can lead to overheating or premature failure.
Manufacturers often release multiple revisions of connection guides for the same unit type. Always use the version corresponding to your model’s manufacturing date, found in the serial number or on the unit’s documentation. A 2021 revision may introduce safeguards absent in earlier layouts, such as thermal overload protection or updated ground paths.
Key Factors to Verify Before Installation
- Voltage rating: Check whether the system runs on 115V, 230V, or dual-voltage. Mismatched power supply risks blowing fuses or damaging the motor windings.
- Phase type: Single-phase layouts differ radically from three-phase, especially in how start and run capacitors are wired. Confusion here can destroy the relay or capacitor bank.
- Hermetic vs. non-hermetic: Sealed units often require external overload protectors, while open-drive types rely on built-in thermal cutouts.
- Environmental conditions: Units installed outdoors or in humid spaces may need additional grounding points or moisture-resistant connectors.
Retrieve official electrical plans from the supplier’s website rather than third-party forums. Manufacturers like Copeland, Danfoss, or Emerson provide downloadable PDFs with verified terminal markings–often labeled T1, T2, C, S, R–rather than vague color codes prone to misinterpretation.
Cross-reference the label diagram against physical terminals. Older models may show faded markings, making visual confirmation mandatory. Use a multimeter in continuity mode to trace paths if markings are unclear. Any ambiguity in start-run capacitor placement demands immediate clarification; improper placement can cause humming without activation.
Common Pitfalls in Schematic Interpretation
- Assuming color uniformity: Wires can vary by region and year. A brown lead in one manual may be black in another.
- Ignoring jumper positions: Factory-default jumpers configure internal components; removing them without adjustment bypasses safety features.
- Overlooking rated current: Undersized breakers or wires cause nuisance tripping during startup surges–typically 3x the running amperage.
- Disregarding torque specs: Terminals must be tightened to manufacturer-specified values (usually 12–15 in-lbs) to prevent arcing.
For variable-speed air movers, additional wiring for communication modules like Modbus or relay control boards must align with the electronic control manual–not just the motor schematic. These often include separate diagrams for digital signal pathways, which can’t be merged with standard motor circuits.
Keep a printed copy of the matched electrical plan inside the control box for future troubleshooting. Annotate any alterations in pen to ensure technicians track modifications, such as added surge suppressors or revised breaker sizes, preventing future misconfigurations.
How to Read Electrical Layouts for Air Pressure Systems
Begin by identifying the power source symbols–typically a battery or mains connection–marked with labels like “L1,” “L2,” and “N.” Verify voltage ratings (e.g., 120V, 240V) on the schematic to match the unit’s requirements. Incorrect voltage can damage components or prevent startup. Look for a dedicated grounding symbol (usually a downward-pointing arrow or “GND”) near the motor terminals to ensure safety compliance.
Trace the circuit path from the power input to the pressure switch, which acts as the main control element. Modern schematics often depict this switch with a zigzag line or a rectangular box labeled with pressure ranges (e.g., “30–50 PSI”). Check for auxiliary contacts–some switches include a “common,” “normally open,” and “normally closed” terminal to manage motor cycling and safety lockouts.
- Examine relay coils and contacts if present. A relay is shown as a coil symbol (a rectangle with a curved line) connected to contacts (small circles or rectangles). Relays often handle high-current loads; confirm their ratings match the motor’s amperage (e.g., 10A relay for a 5HP unit).
- Locate the capacitor symbols, usually a circle with two parallel lines or labeled “Start Cap” and “Run Cap.” Start capacitors (higher microfarad values) assist motor acceleration, while run capacitors (lower values) maintain efficiency. Miswired capacitors cause overheating or failed starts.
- Find the thermal overload protector, depicted as a small rectangle with “OL” or a bimetallic strip symbol. It interrupts power if the motor overheats, so ensure it’s positioned inline with the motor windings.

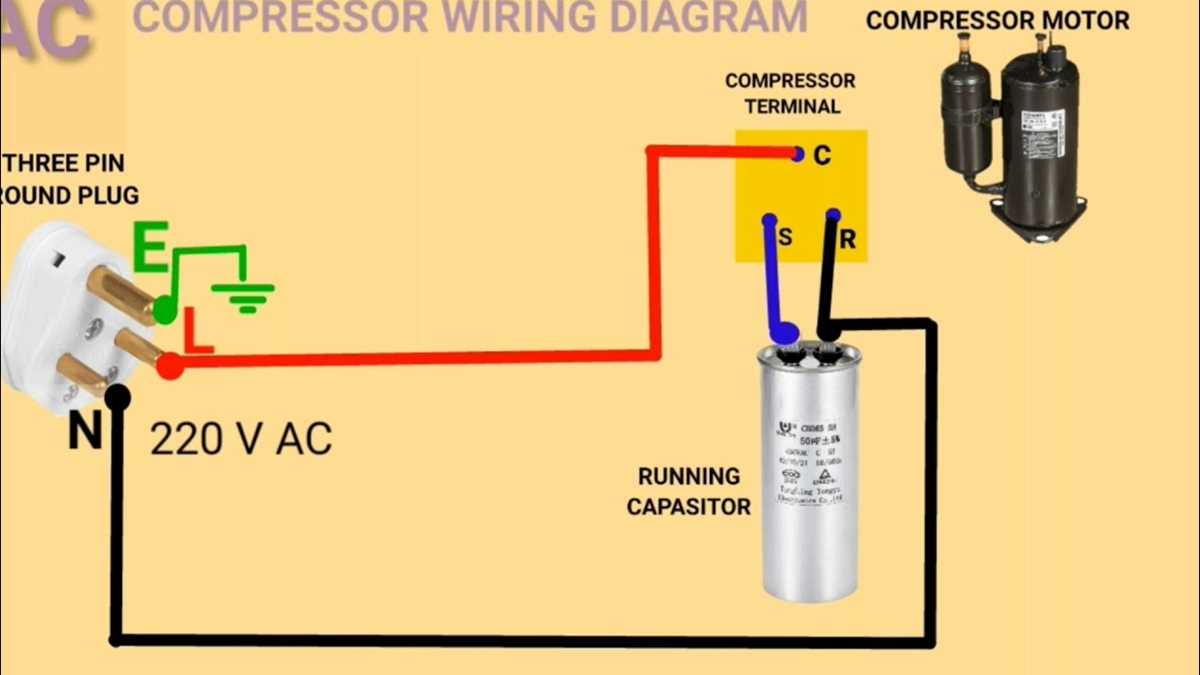

Motor windings are represented as three sets of coils (for single-phase models) labeled “C” (common), “S” (start), and “R” (run). For three-phase units, look for “U,” “V,” and “W” terminals. Cross-reference these labels with the equipment’s label plate to avoid misconnections that could reverse rotation or damage windings. Use a multimeter to confirm winding resistance (e.g., 1–5 ohms for run windings, 5–50 ohms for start windings).
Follow the control circuit lines, often drawn thinner than power lines, to identify auxiliary components like timers or pressure sensors. A pressure sensor might connect to a solenoid valve (shown as a rectangle with an arrow) to regulate unloading. Confirm these lines terminate at the correct terminal blocks, avoiding shorts that could trip breakers. If the layout includes a reversing switch (for scroll units), note its dual-contact configuration to prevent wiring conflicts.
- Isolate power before handling connections. Use a non-contact voltage tester to verify zero current.
- Cross-check wire colors on the schematic with actual cable insulation (e.g., black = L1, red = L2, white = neutral).
- Test continuity between components with an ohmmeter to expose broken wires or loose connections.
- Reassemble shielding after adjustments–exposed terminals risk arcing or moisture ingress.
