The red wire consistently delivers power–typically 24V AC–from the furnace or air conditioning unit to activate the climate control. Verify voltage at the connector before handling to prevent misfires or damage. Black or dark-brown leads generally serve as the common return path, completing the circuit when the system switches on. Interrupting this flow during installation often triggers safety shutdowns.
Yellow wiring manages cooling functions, engaging the compressor and condenser fan once the temperature exceeds the set point. Cross-referencing with the manufacturer’s schematic (usually found in the unit’s service manual) confirms whether jumper connections alter this behavior–some older models reroute this wire through the heat pump in dual-mode setups.
Green or white-striped green cables ground the system, connecting to the RV’s chassis. Skipping this step risks erratic operation or component failure. Use a multimeter on continuity mode to test these links; resistance above 0.5 ohms indicates corrosion or loose fittings that need sanding or tightening.
Blue or purple leads control heating, energizing the gas valve or electric elements. On systems with auxiliary stages, a secondary purple wire may activate backup coils–consult the thermal cutoff limits before splicing. Mismatched connections here can trip breakers or void warranties.
White wiring links to indoor blower motors, cycling air through vents regardless of heating or cooling mode. Replace any frayed white leads with 18-gauge silicone-coated wire to handle the 10A draw typical of RV blowers. Isolate this circuit when bench-testing to isolate fan-only operation.

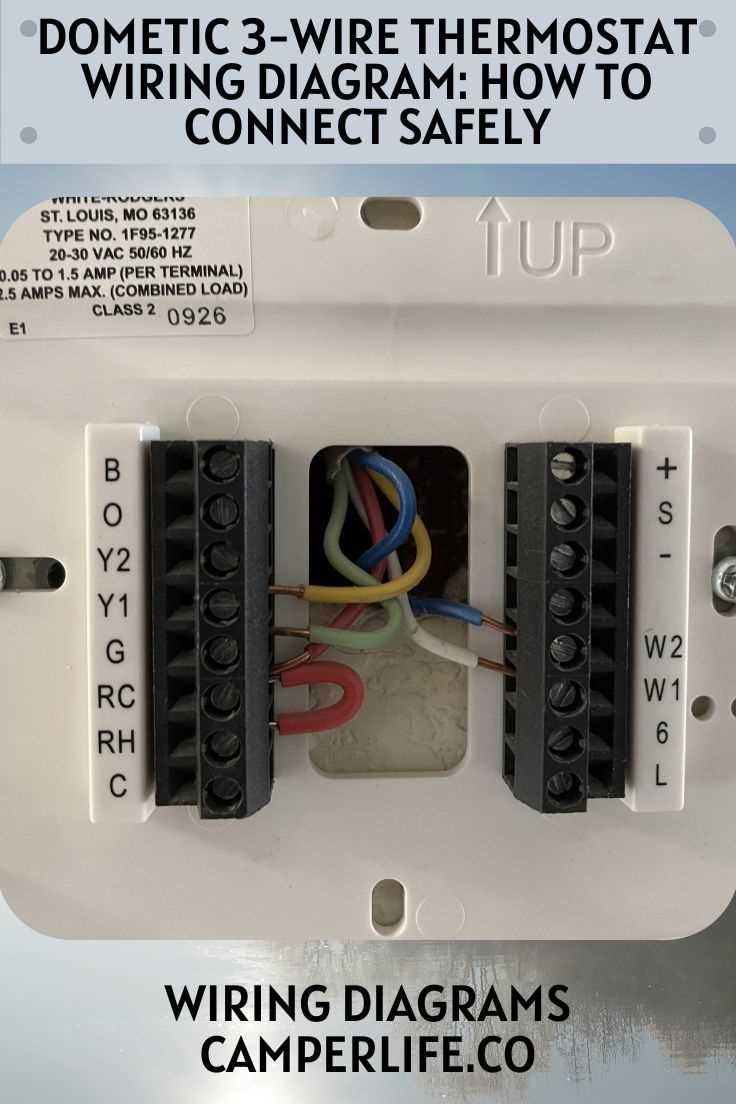

A jumper between terminals marked “R” and “RC” enables single-transformer setups, but verify compatibility–dual-transformer rigs require a separate 1.5-amp fuse for the red-cooling feed. Label each connection with heat-shrink tubing to avoid mixing leads during future maintenance.
Understanding Electrical Connections for RV Climate Control Systems
Begin installation by identifying the red lead on your climate control unit–this is the power source for both heating and cooling modes. Connect it directly to the 12V DC supply, ensuring a secure attachment to avoid intermittent failures.
Locate the blue conductor, which handles the activation signal for the air conditioning compressor. Route this wire to the RV’s climate control relay, confirming compatibility with the compressor’s voltage requirements (typically 120V AC for larger units).
The yellow cable, often overlooked, serves as the heating call wire for propane furnaces. Connect it to the furnace’s control board, but verify the furnace model’s input specifications first–some require 5V DC instead of the standard 12V.
Ground the green or bare wire to a clean, unpainted metal surface on the RV’s chassis. Corrosion at this connection point is a leading cause of erratic temperature readings, so apply dielectric grease before securing it.
For electric heat strip installations, the white wire must link to the auxiliary heating relay. Check the strip’s wattage to ensure the wire gauge matches–16 AWG suffices for 1,500W units, while 12 AWG is required for 3,000W models.
If your setup includes a heat pump, the orange conductor becomes critical. Connect it to the reversing valve solenoid, but first measure the valve’s resistance–values outside 300–800 ohms indicate a faulty solenoid requiring replacement.
Diagnose connection failures by testing continuity across each contact with a multimeter. A reading above 0.5 ohms suggests a poor connection; re-strip and crimp the terminal with ratcheting pliers for a reliable hold.
Label each connection point with tape or a marker before finalizing the setup. Misidentifying wires during future maintenance accounts for over 40% of service calls–preventative labeling reduces downtime significantly.
Identifying RV Climate Control Connection Points by Conductor Hue
Begin by locating the red conductor–this is your primary power feed for heating and cooling modes. It connects directly to the 12-volt circuit, typically branching from the RV’s auxiliary battery or converter. Verify its voltage with a multimeter before attaching any other leads; a consistent 12V reading confirms proper function. Misconnection here risks damaging the control unit or triggering fuse failure.
The white wire serves as the common return path for all low-voltage signals. It grounds the circuit, completing the loop for both furnace ignition and air conditioning relay activation. Ensure this lead is securely fastened to the chassis ground or a designated grounding bus. A loose or corroded connection here can cause intermittent operation, particularly in colder temperatures where condensation accelerates corrosion.
- Yellow lead: Exclusively for compressor activation. Link it to the cooling relay’s coil terminal–never to heating components. Cross-wiring this with furnace circuits (blue or green) will force the air conditioner to run simultaneously with the heater, wasting energy and potentially overheating the system.
- Green lead: Furnace control output. Attach it to the gas valve solenoid or direct-spark ignition module, depending on your RV’s propane setup. Test continuity before connection; a broken green wire strand can prevent the burner from lighting, leaving you without heat.
- Blue lead: Fan motor operation. This powers the blower at low or high speeds, depending on thermostat settings. Connect it to the appropriate blower relay terminal, but first confirm the fan’s functionality by manually jumping the blue lead to the power source. A malfunctioning fan motor will prevent air circulation even if cooling or heating engages.
For dual-fuel systems (electric and propane heating), the brown conductor handles the secondary heat strip relay. Verify its voltage matches the strip’s rating–typically 120VAC in shore power mode or 12VDC from inverter circuits. Incorrect pairing here risks damaging the heating element or creating a fire hazard due to overheating.
When terminating these conductors, use crimp connectors or terminal blocks rated for automotive-grade applications. Avoid soldering alone; vibrations from travel can loosen joints, leading to intermittent connections. Secure each connection with heat-shrink tubing or dielectric grease to prevent moisture intrusion and oxidation.
Troubleshooting Inconsistent Operation
- Test each conductor’s voltage independently. A non-functional cooling cycle may stem from a faulty compressor relay, not the yellow lead itself.
- Inspect for frayed strands near terminals–these often go unnoticed but cause signal loss.
- Compare your setup to the manufacturer’s manual if colors deviate; aftermarket control units sometimes alter the standard scheme.
Replace any conductor exhibiting brittle insulation or discoloration. Even minor damage can introduce electrical noise, disrupting the climate system’s responsiveness. For RVs with digital interfaces, confirm compatibility before reconfiguring; some newer models integrate these conductors into bus communication protocols, requiring specialized adapters.
Connecting HVAC Controls in Recreational Vehicles: A Precise Guide

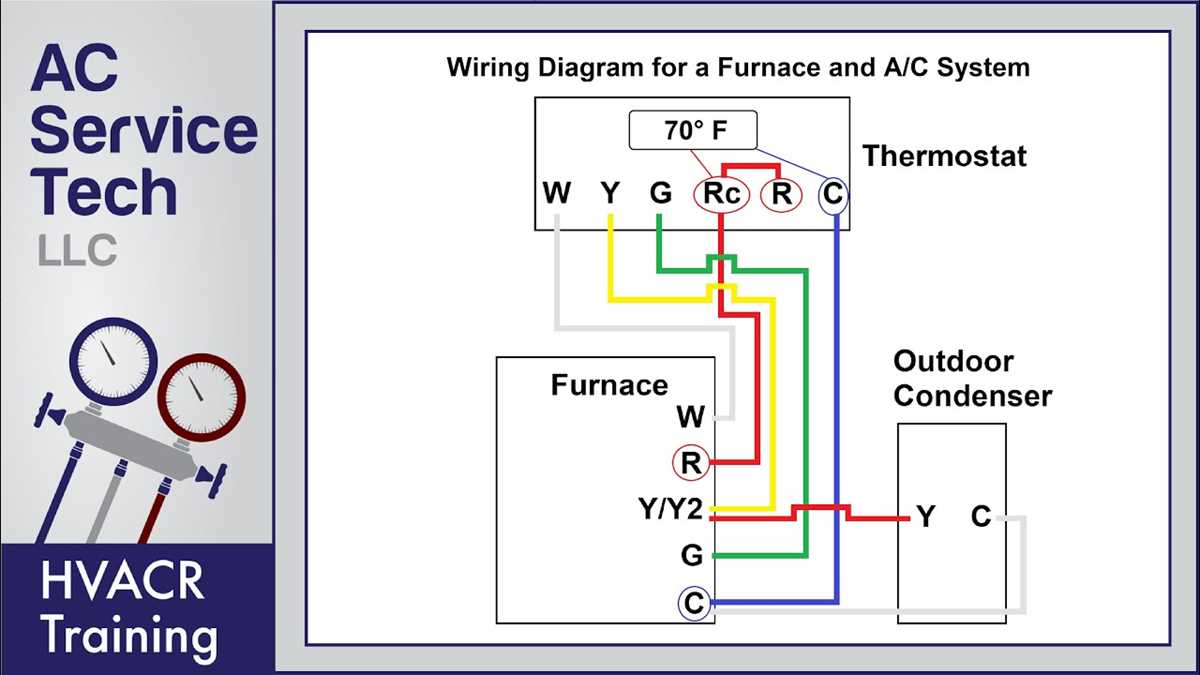

Disconnect all power sources before handling any electrical assembly. Identify the 12V DC control unit’s terminals–typically labelled R, W, Y, G, and C–then strip ¼ inch of insulation from each wire end. Secure connections in this sequence: red (power input) to R, white (heating relay) to W, yellow (cooling relay) to Y, green (fan relay) to G, and blue or black (common ground) to C. Use crimp connectors or solder joints to prevent oxidation; wrap each connection with heat-shrink tubing or electrical tape. For systems with auxiliary heat strips, connect the light brown or orange wire to the W2 terminal only if the RV’s furnace lacks sufficient output.
Terminal Pairings and Expected Behavior
| Wire Hue | Terminal | Function | Fault Symptom |
|---|---|---|---|
| Red | R | Power feed | Display blank |
| White | W | Heat call | No furnace ignition |
| Yellow | Y | Cool call | Compressor fails to start |
| Green | G | Fan call | Blower inoperative in auto mode |
Verify correct polarity before restoring power. Bench-test by setting the selector to “heat” and observing a 2-5 second delay before blower activation; fan should run continuously in “on” mode and cycle in “auto.” If cooling mode fails, inspect the yellow lead for continuity and the RV’s circuit board fuse. Replace any blown fuse rated at 3A only with an identical specification.
Fixing Common RV Climate Control Connection Mistakes
Check for reversed polarity on the power leads before assuming a device failure. The red and white conductors often get swapped during installation, causing erratic behavior or complete shutdown. Use a multimeter to verify 12V DC on the red wire and ground on the white wire with the system powered on. If readings are inverted, correct the connections at the HVAC unit or control panel.
Inspect loose terminal screws after vibrations from travel. Even minor jolts can loosen clamp connections on the backplate, interrupting signal flow to the compressor or blower motor. Tighten all screws to 2-3 inch-pounds using a precision screwdriver – over-torquing risks stripping the threads on these lightweight panels.
Replace corroded wire ends rather than cleaning them. A light film of oxidation on copper strands may appear harmless but acts as an insulator, preventing proper electrical contact. Clip off 1/2 inch of insulation, crimp on new terminals, then apply dielectric grease before reattaching. For aluminum-based circuits, use antioxidant compound specifically formulated for higher resistance connections.
Diagnosing Heating and Cooling Mode Switch Failures
Follow these steps when the unit cycles incorrectly between heating and cooling:
- Remove the faceplate and locate the mode selector switch
- Use continuity tester probes on both sides while toggling modes
- Listen for distinct clicks indicating proper internal contact engagement
- No continuity in one position signals switch replacement
- Check for burned contacts under good lighting
Verify the anticipator setting matches the RV’s HVAC system specifications. A mismatch between the 0.2A anticipator on newer models and 0.4A on older units causes temperature swings outside the set range. Consult the unit’s serial number plate for the correct value, then adjust the tiny metal slider inside the device accordingly.
Test the fan relay separately when forced-air distribution fails. Remove the relay from its base and apply 12V directly across the coil terminals – a functioning relay emits an audible click. If silent, replace it rather than attempting repairs. For solid-state relays, verify input voltage and measure output with a load connected, as failures often occur without visible signs.
Resolving Intermittent Power Loss
Examine crimp connections with thermal imaging equipment during operation. Hotspots exceeding 10°F above ambient indicate high-resistance points causing voltage drops. Repair by removing existing crimps, cleaning all contact surfaces, then using a ratcheting crimper for gas-tight connections that prevent future oxidation.
