Begin troubleshooting or upgrades by isolating the solenoid relay–located adjacent to the battery pack–before handling any contacts. Verify continuity across terminals S1 and M with a multimeter set to 200 ohms; readings above 0.5Ω indicate corrosion or pitted contacts requiring cleaning or replacement. Disconnect the main positive lead from the battery array first if testing under load to prevent accidental shorting.
Trace the high-current path from the controller to the motor: red (thick gauge) cables denote positive flow, black (equivalent gauge) return ground. Identify the shunt resistor–a small, high-wattage component typically mounted near the controller–critical for current sensing. Bypass it only temporarily during diagnostics; sustained removal will disable speed regulation and risk overheating the motor windings.
Replace any cracked insulation on leads between the accelerator potentiometer and controller immediately. A 5kΩ linear taper potentiometer is standard; deviations outside 4.7kΩ–5.3kΩ at full throttle signal wear or water ingress. Use dielectric grease on pin connectors when reassembling to prevent moisture-induced voltage drop.
Check fuse ratings: 150A for main circuit protection, 30A for accessories. Substitute blown fuses with identically rated replacements–never jumper or oversize–because undersized conductors downstream can melt under 60–80A typical draw. When replacing contactors, select units with coil voltage matching the system (48V nominal) and contact rating exceeding 200A peak.
For lithium upgrades, confirm BMS compatibility with existing chargers. Balance leads must interface correctly with the onboard charger’s CAN bus; mismatched protocols cause premature cell depletion. Use a battery monitor displaying individual cell voltages every 5 seconds during initial charging cycles to detect imbalance early.
Understanding the Electrical Schematic for 48V Golf Carts
Begin by locating the main power sources: batteries should connect in a series configuration to achieve the required system voltage. Each 8V battery must link sequentially, with the positive terminal of one unit attaching to the negative of the next. Verify connections with a multimeter–readings should show approximately 48V across the total assembly.
Focus on the speed controller’s terminal block. The key posts include:
- B+ and B-: primary power input from the battery bank
- M: motor output
- A (armature) and F (field)
- Key switch: ignition input
Secure all connections with appropriately rated cables–10 AWG minimum for main lines, 14 AWG for auxiliary circuits.
Inspect the solenoid for proper operation. The coil should energize at 48V when the key activates, closing the contacts to deliver full system power to the motor. Test continuity across the solenoid’s large terminals when engaged–zero ohms confirms a solid connection. If resistance exceeds 0.5 ohms, replace the unit.
For lights and accessories, trace the fused circuit paths. Tail lamps typically draw 2A each, while headlights may require 5A. Check fuse ratings against the schematic–undersized fuses risk overheating. The auxiliary relay should trigger at 12V, stepping down from the main bank via a voltage reducer.
Troubleshoot intermittent power loss by examining:
- Battery interconnects for corrosion–clean with a wire brush, apply dielectric grease
- Controller heat sink for debris or dust buildup–thermal paste may need reapplication
- Throttle potentiometer for wear–sweep testing should show smooth resistance changes from 0 to 5k ohms
Replace components only after verifying inputs and outputs with live voltage checks.
Document all modifications using colored markers on a physical reference sheet. Note cable gauges, fuse amperages, and component ratings directly beside connection points. This prevents mismatches during future maintenance or upgrades–such as swapping to lithium batteries, which require recalibrating the charger’s parameters.
Identifying Key Electrical Path Connections in a 48V Golf Utility Vehicle
Begin by tracing the primary electrical conduit from the rear storage compartment, where the power source bank is housed. The central harness exits through a grommet positioned near the left frame rail, typically secured with zip ties or a protective sleeve. Follow this conduit forward toward the controller assembly–located beneath the driver-side floorboard–ensuring no abrupt bends or chafing against metal edges exist.
Examine the junction where the main bundle splits into two critical branches: one directing power to the motor and another to auxiliary systems. The motor connection features heavier gauge cables, color-coded red (positive) and black (negative), terminating in a specialized terminal block adjacent to the rear axle. Verify these are firmly seated, as corrosion or loose connections here disrupt acceleration performance.
Locate the auxiliary branch near the middle of the chassis, where wires expand into a multi-pin rectangular connector. This assembly, often gray or white, links to the vehicle’s onboard computer, lighting, and accessory circuits. Separate each pin grouping by function: headlights (yellow), brake lights (red/black striped), and dashboard indicators (orange). A faulty connection here manifests as erratic gauge readings or non-functional signals.
Check the ground reference point–usually a bolt affixed to the frame near the controller. The main negative return cable from the power source terminates here, alongside grounds for the motor and accessories. Corrosion at this point creates resistance, leading to voltage drops and unpredictable behavior. Sand the contact surface lightly and apply dielectric grease before reattaching.
Inspect the solenoid assembly mounted on the front right side of the cargo area. Three key wires converge here: the thick positive lead from the power source (red), a thinner activation wire (smaller red/green), and the output to the motor (heavy red). The solenoid’s clicking sound during key ignition confirms proper engagement–absence suggests a failed coil or burnt contacts.
For vehicles equipped with regenerative braking, identify the dedicated sensor cable–a thin, shielded wire running from the pedal assembly to the controller. This wire, often blue or purple, transmits braking force data. Damage here causes inconsistent braking response or sudden deceleration surges. Route it away from high-current paths to prevent electromagnetic interference.
Use a multimeter to verify continuity at each connection point. Probe between the controller’s B+ terminal and the power source positive post–readings should match system voltage (52V off-charger). Dropouts indicate hidden breaks in the conduit. Replace degraded sections with marine-grade heat-shrink tubing to prevent moisture ingress, re-crimping with soldered butt connectors for reliability.
Step-by-Step Guide to Tracing Electric Vehicle Battery Connections in a 48-Energy Unit System
Locate the main power switch beneath the vehicle’s seat or near the rear battery compartment. Disconnect it before handling any cables to eliminate risk of short circuits. Identify the thickest cables first–these connect the battery terminals to the controller and motor assembly.

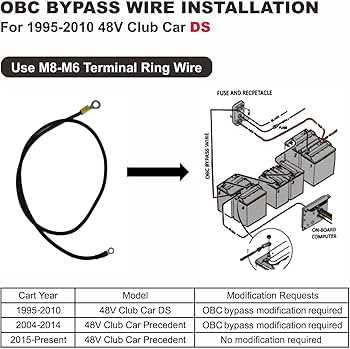

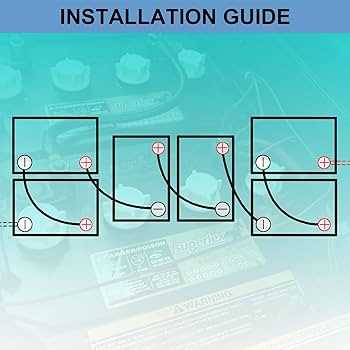

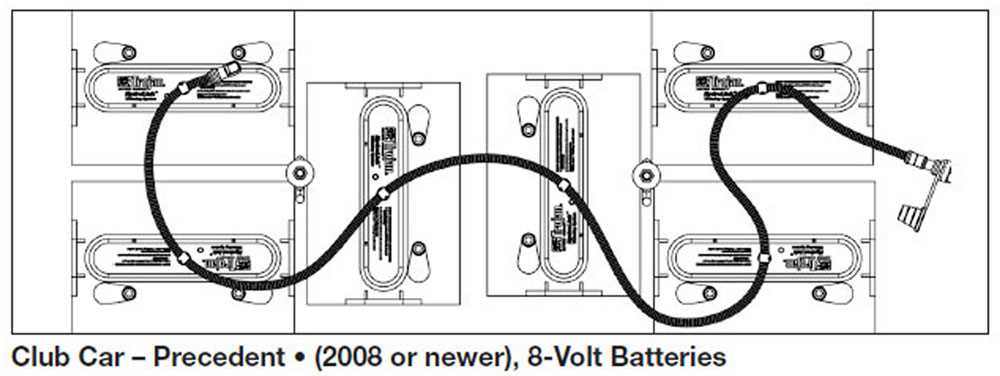

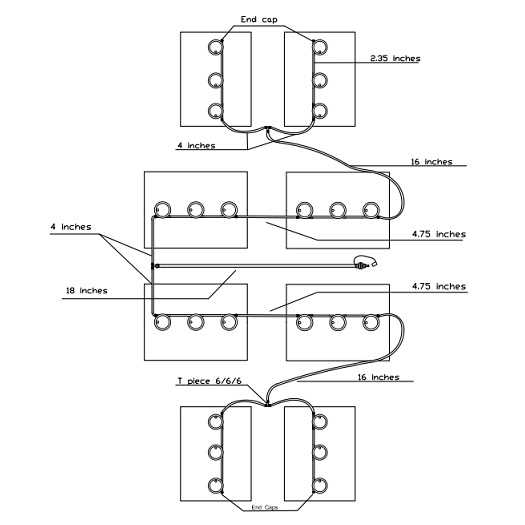

Remove the battery compartment cover by unscrewing the fasteners or releasing the clips holding it in place. Note the arrangement of the six 8-energy unit batteries (or eight 6-energy units) in series configuration. Observe the positive (+) and negative (-) markings on each terminal; cables run from the positive of one battery to the negative of the next.
Trace the primary positive cable from the first battery’s positive terminal–it routes directly to the solenoid or speed controller. Follow it visually, ensuring no corrosion, fraying, or loose connections exist. Use a multimeter set to DC voltage to verify full charge status (50.4V-52.8V for a fully charged system) between the first positive and last negative terminal.
Check the negative return path from the motor to the final battery’s negative post. This ground cable often splits toward multiple components, including the charger receptacle, accessory fuse block, and solenoid. Mark each connection point with masking tape and a permanent marker if disassembly is required for cleaning or replacement.
Inspect inter-battery jumper straps next–these should have identical gauge (6 AWG minimum) and secure ring terminals crimped tightly. Loose or oxidized straps reduce current flow, creating voltage drops. Clean terminals with a wire brush and apply dielectric grease before reattaching. Ensure each strap makes firm contact without touching adjacent posts.
Reconnect the main power switch last, then test system operation. Press the accelerator while monitoring voltage across the main positive and ground terminals–voltage should rise smoothly without sudden drops. If irregular readings occur, isolate each parallel branch using the multimeter and inspect cables for hidden damage behind panels or beneath flooring.
Identifying and Testing the Solenoid Circuit on a 48V Electric Vehicle
Locate the solenoid assembly beneath the vehicle’s front hood–typically mounted near the battery bank or motor controller. Use a multimeter set to continuity mode to verify the coil’s resistance: probe the two smaller terminals (coil posts) while the system is powered off. A functional solenoid should read between 20–40 ohms; readings outside this range indicate a faulty coil or corroded connections. For the main contact tests, shift the multimeter to DC voltage (0–50V scale) and measure across the larger terminals while engaging the accelerator. A healthy solenoid will show near-full battery voltage (45–52V) during pedal activation; inconsistent or zero voltage suggests internal contact failure or a broken switch linkage.
| Test Point | Expected Reading | Fault Indication |
|---|---|---|
| Coil terminals (ohms) | 20–40 Ω | <10 Ω (short) / OL (open) |
| Contact terminals (voltage) | 45–52V on engagement | <30V (weak) / 0V (no contact) |
| Accelerator signal (open circuit) | 12–15V to ground | 0V or fluctuating (faulty F/R switch) |
Visually inspect the solenoid housing for bulging, discoloration, or melted plastic–physical deformities confirm overheating. Check the high-current cables (8–10 AWG) for fraying, especially at the crimp terminals; these often fail under vibration. If voltage tests pass but the unit still malfunctions, manually bridge the large terminals with a screwdriver (briefly, with extreme caution) while the accelerator is depressed. A responsive motor confirms solenoid failure; if the vehicle remains inert, shift diagnostics to the controller or motor brushes.
