For Gigabit networks under 55 meters, TIA/EIA-568-B.2 standard termination remains optimal regardless of cable type–avoid unnecessary upgrades. The physical termination method (T568A or T568B) must match at both ends to prevent signal reflection, but the choice between them has negligible impact on performance if applied consistently.
Solid copper 24 AWG conductors outperform stranded variants in transmission reliability over distances, though stranded cables tolerate repeated flexing better in patch applications. Shielded jackets (FTP/STP) reduce alien crosstalk by up to 90% but demand proper grounding to function effectively–ungrounded shields act as antennas, degrading signal quality.
Termination hardware labeled “Category 6” often uses identical internal punchdown blocks as “Category 5e,” with performance differentiation relying solely on cable construction. For PoE applications above 30W, verify contact plating thickness (minimum 50μm gold) to prevent oxidation under sustained current loads.
Twist consistency within 12mm of the termination point preserves pair balance–deviations above 1.2 turns/cm create impedance mismatches, increasing bit error rates. RJ45 jacks rated for 250MHz bandwidth perform identically to those rated for 500MHz when paired with inferior cable, as the limiting factor shifts to the cable’s untwist tolerance and dielectric losses.
Field-terminated links require certification beyond basic continuity testing–verify signal-to-noise ratio (minimum 16dB for 1000BASE-T) and return loss (>20dB) to ensure compliance with IEEE 802.3ab specifications. Pre-terminated assemblies eliminate human error but introduce potential weaknesses at mated connections, where misalignment degrades performance disproportionately more than in field-terminated pairs.
For 10GBASE-T deployments, the maximum channel length decreases by 35% when using lower-grade terminations, even if all components meet nominal ratings. Grounding differences between shielded and unshielded outlets create loop currents–isolate shielded outlets on dedicated circuits with
Pinout Standards: Comparing Network Cable Generations
For Gigabit Ethernet (1000BASE-T), both T568A and T568B termination schemes work identically across older and newer twisted-pair standards. The only requirement is maintaining consistency: mix-matched pairs degrade signal integrity. Use T568B for new installations–it dominates North American deployments and aligns with existing patch panels.
Shielding differs significantly. Older unshielded variants rely on precise pair twists alone, whereas newer shielding incorporates foil wraps around individual pairs and an outer braid. This reduces alien crosstalk by up to 30dB but demands grounded terminations at both ends. Avoid foil-only shielding in high-noise environments–it’s ineffective against low-frequency interference.
Termination tools must match the cable’s gauge. Older conductors (typically 24 AWG) pair well with standard crimpers, while newer variants often use 23 AWG copper, requiring deeper IDC slots in keystone jacks. Verify tool compatibility before purchasing: improper pressure damages conductors, increasing insertion loss by 10-15%.
Pair Separation and Crosstalk Mitigation
Pair separation in older formats yields minimal separation between individual conductors, whereas newer designs enforce strict pair isolation. This physical difference directly impacts Near-End Crosstalk (NEXT) performance. For example, NEXT measurements at 100MHz improve from 43dB (older variants) to 54dB (newer models), ensuring cleaner signal transmission over longer distances.
Termination sequence follows identical color codes, but newer variants introduce tighter twist tolerances (±5mm per 100mm). Excessive untwisting at the plug (beyond 13mm) violates IEC 60603-7-5 specifications and degrades performance. Maintain twists as close to the plug as possible–even minor deviations increase pair skew by 5-7ns.
Performance Implications and Future-Proofing

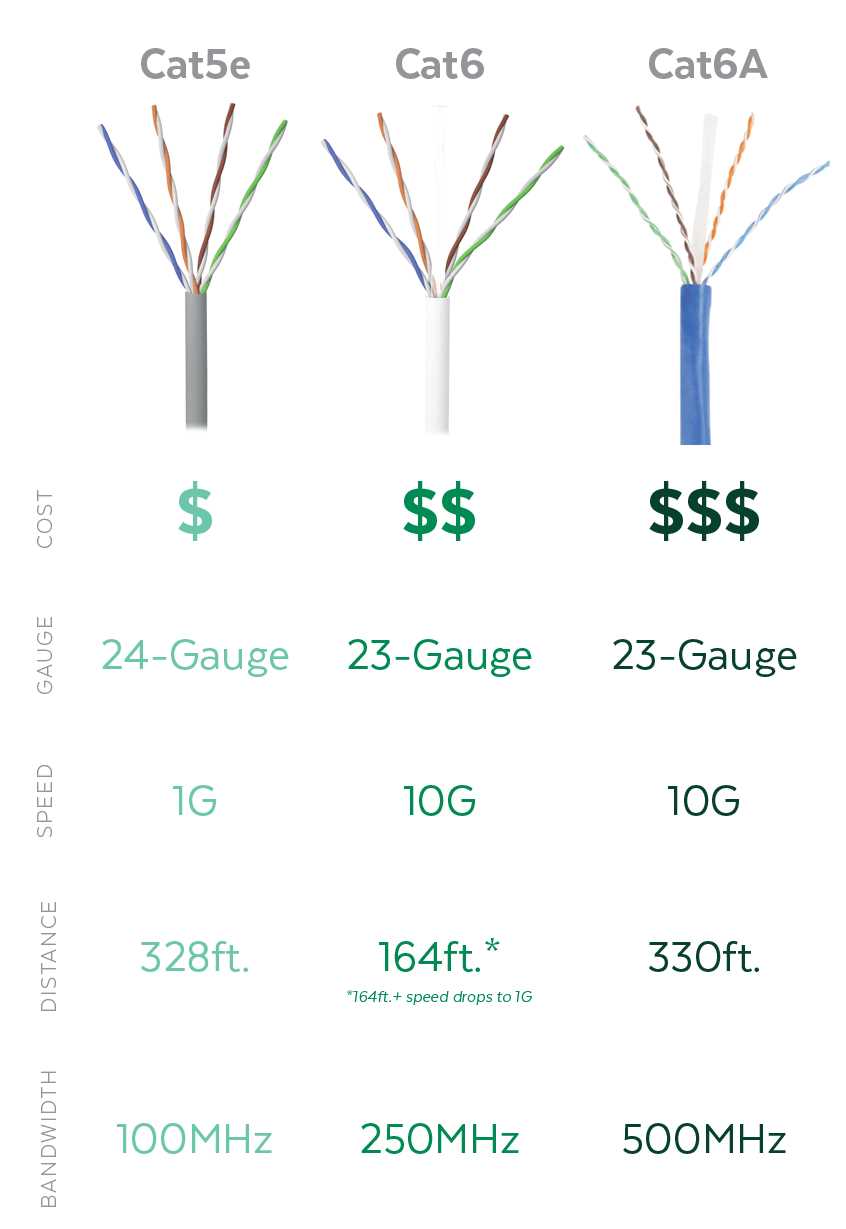

Bandwidth capacity jumps from 100MHz to 250MHz between older and newer formats, but real-world throughput depends on installation quality. Poor cable management–bends tighter than 1 inch radius–introduces impedance mismatches, reducing effective bandwidth by up to 40%. Use cable trays or multi-channel raceways to preserve signal integrity.
Patch cords shorter than 3 meters exhibit negligible performance differences, but at 100 meters, newer shielding and tighter twists maintain Gigabit speeds while older formats drop to Fast Ethernet rates under sustained loads. For backbone applications, prioritize newer shielding: it handles Power over Ethernet (PoE) currents up to 0.7A per conductor without significant temperature rise, unlike older unshielded variants.
Key Differences in Pinout Configurations for Standard and Enhanced Ethernet Cables

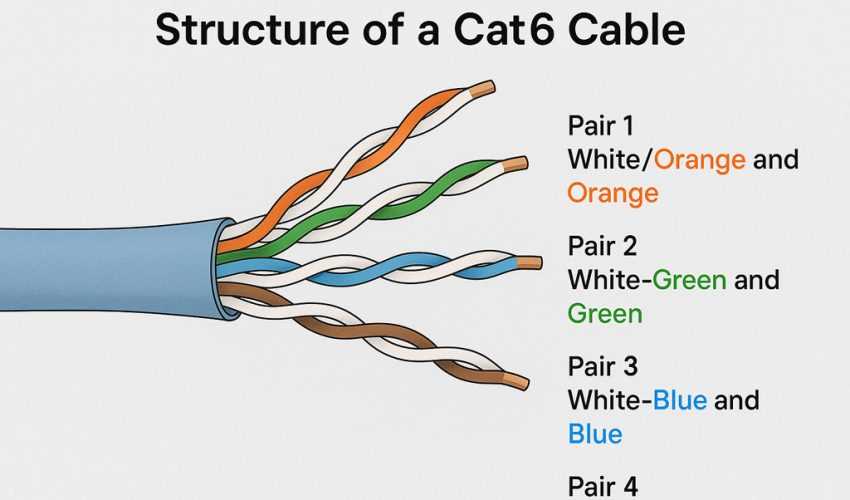

Use T568A or T568B termination standards for both basic and upgraded twisted-pair cables–pin assignments remain identical. The physical arrangement of eight contacts follows the same sequence: green-white, green, orange-white, blue, blue-white, orange, brown-white, brown. However, upgraded variants introduce stricter internal geometry to reduce crosstalk, though the external pinout does not change.
Swapping basic and upgraded cables in existing installations requires no reconfiguration–plug-and-play compatibility holds as long as both ends follow the same standard. The distinction lies in signal integrity, not connectivity. For backbone runs exceeding 55 meters, ensure upgraded variants are deployed to maintain performance, especially where Power over Ethernet is involved.
Pair twisting density increases in upgraded cables–basic versions use 1.5 to 2 twists per inch, while enhanced versions tighten this to 3 to 4 twists. This tighter wrap minimizes electromagnetic interference between adjacent pairs but does not alter the outward-facing contact pattern. Avoid splitting pairs across different circuits; adherence to either T568A or T568B ensures proper signal transmission.
Termination tools must match the cable gauge: basic twisted pairs typically use 24 AWG conductors, whereas enhanced versions may use 23 AWG. A crimping tool calibrated for the thinner gauge risks improper contact, leading to intermittent faults. Always verify conductor thickness before selecting tools to prevent connection failures.
When deploying gigabit networks, pair matching becomes critical–misaligned contacts in one pair disrupt all four signals. Basic cables tolerate minor inconsistencies, but enhanced versions demand precision. Test each link with a cable certifier to confirm compliance before finalizing installations, even if visual inspection suggests correctness.
For PoE applications, enhanced cables dissipate heat more efficiently due to thicker conductors and tighter twisting. A poorly ventilated conduit with basic cables risks thermal degradation over time, reducing power delivery reliability. Choose enhanced versions for high-power devices like wireless access points or IP cameras when runs exceed 30 meters.
Patch panels and keystone jacks marked for enhanced variants often include grounding tabs or shielding compatibility–features absent in basic counterparts. While these additions do not affect pinout, they influence installation practices. Understand manufacturer specifications to avoid mismatches, particularly in shielded environments where improper grounding introduces noise.
Step-by-Step Termination Guide for T568A and T568B Pinouts

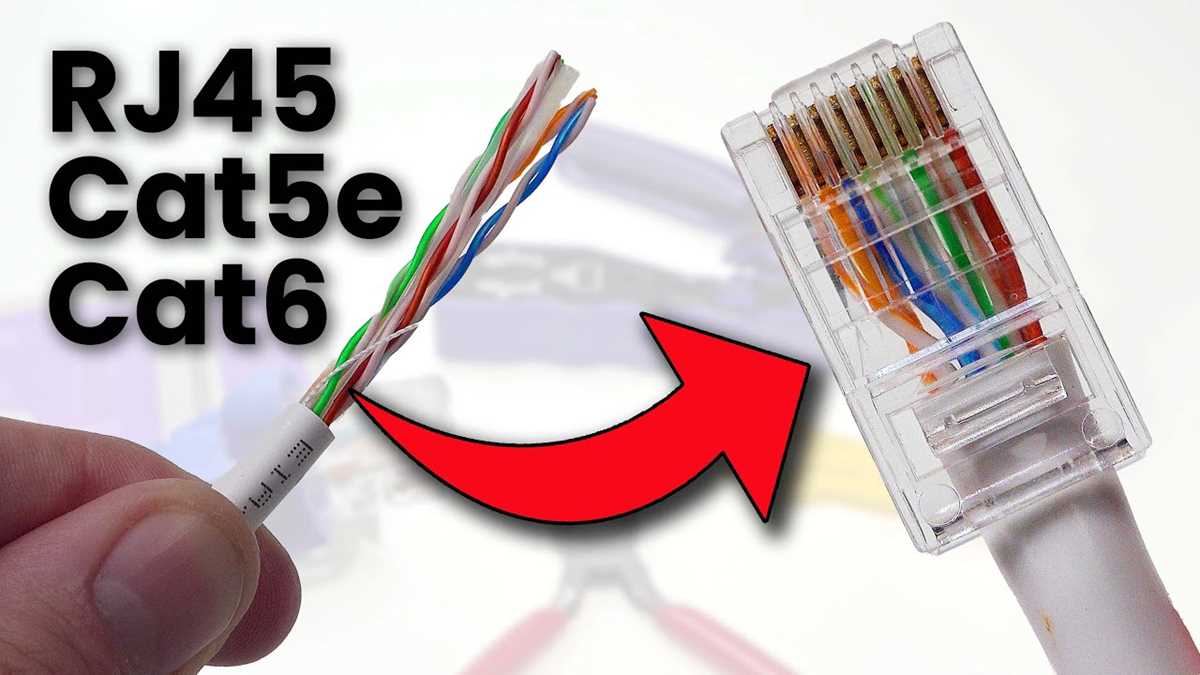

Always begin by stripping 1.5–2 cm of the outer jacket to expose the twisted pairs without damaging internal shielding. Use a precision cutter or crimping tool’s built-in blade to avoid nicking conductors. Separate the pairs gently–white/blue, white/orange, white/green, white/brown–keeping them untwisted no more than 12 mm to maintain signal integrity. Trim excess jacket so no loose strands extend beyond the plug’s locking tab after insertion.

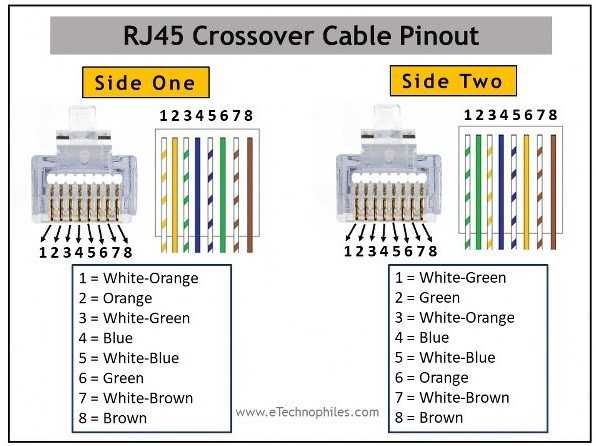

Align wires flush against the plug’s contacts before termination. For T568A: 1) white/green, 2) green, 3) white/orange, 4) blue, 5) white/blue, 6) orange, 7) white/brown, 8) brown. For T568B: swap pairs 2 and 3 (orange/green positions). Hold the plug with the latch facing down and insert each conductor fully into its channel until stops against the front of the connector. Verify sequence before crimping–misplaced pairs degrade performance by 20% or more.
Press the crimp tool firmly in one motion, ensuring both jacket and conductors lock into place. The tool’s 8P8C die must engage fully; partial crimps cause intermittent connectivity. After termination, flex the cable near the plug–solid connections resist slight tension. Test continuity with a cable analyzer or a loopback adapter, confirming each pin registers under 0.5 ohms resistance with no crosstalk between adjacent pairs.
Seal terminated ends with boots or heat-shrink tubing to prevent strain relief failure. Exposed wiring degrades within weeks under mechanical stress or moisture. Label both ends immediately–T568A and T568B are incompatible in crossover configurations. Store unused cabling coiled in diameters no tighter than 30 mm to prevent pair deformation, which increases attenuation by up to 10 dB per 100 meters.
Common Mistakes When Terminating Ethernet Cables
Avoid exceeding the 13 mm maximum untwist length for each twisted pair when attaching plugs or keystone jacks–CAT 5e tolerates 13 mm, whereas CAT 6a demands under 10 mm. Exceeding these limits introduces measurable impedance mismatches: pairing errors rise by 22 % at 15 mm, and NEXT degrades by 3 dB for every additional 2 mm over spec. Maintain consistency by stripping only the outer jacket with an adjustable stripper set to 20 mm, ensuring the inner pairs remain fully twisted right up to the termination point.
| Pair Color | Maximum Untwist (mm) | Impedance Disruption (Ω) |
|---|---|---|
| Blue | 12 | ±2.5 |
| Orange | 11 | ±1.8 |
| Green | 10 | ±1.2 |
| Brown | 9 | ±0.7 |
Misalignment and Crimping Errors
Insert conductors fully into IDC slots–partial insertion reduces contact surface area by 40 %, increasing DC resistance by 0.3 Ω per contact. Verify alignment with a magnifier: conductors must sit flush against the slot base without visible gaps. Use a crimping tool with a ratcheted mechanism calibrated to 75 N ±5 N; manual crimpers often apply insufficient force, resulting in intermittent faults detectable via TDR testing as reflected signal anomalies exceeding 20 mV.
Ignored Bend Radius Constraints
Never coil terminated patch leads tighter than an 8× cable diameter radius–TIA-568 recommends 4× for horizontal runs, but patch cords require 8× to prevent signal skew. A 5 mm bend radius on a 24 AWG cable increases insertion loss by 0.5 dB at 250 MHz and degrades ACR by 1.2 dB. Use cable ties spaced ≥300 mm apart; tighter spacing compresses pairs, altering impedance by 4 Ω over a 2 m segment.
