Begin by sketching connections on graph paper with a single vertical line for each wire. Label every conductor at both ends–source and load–using consistent naming, such as L1, N, or GND. Confusion arises when the same cable switches labels mid-path; avoid this by tracing each line with a colored marker if necessary.
Prioritize clarity over compactness. Break complex circuits into modular blocks–power supply, control logic, output devices–and draw them separately before linking. For a three-phase motor starter, isolate the contactor coil, auxiliary contacts, and overload relay into distinct sections. Connect them with dashed arrows or numbered references to maintain readability without clutter.
Use standardized symbols but document deviations. A resistor drawn as a zigzag is universal, but your custom sensor might need a legend. Include a small table in the corner listing non-standard notations, like ⏚ for chassis ground or ⚡ for fused power. Misinterpreted symbols cause errors; a 10-minute verification saves hours of troubleshooting.
Highlight critical safety nodes in red. Fuses, emergency stops, and current-limiting resistors should stand out even on quick scans. For high-voltage setups, add a warning triangle (ISO 7010 W001) next to the schematic near these components. Never assume the next technician will notice subtle details.
Test each path before finalizing. Use a multimeter continuity mode to verify every connection matches the drawing. Record real-world wire colors next to labels–Bk (black) for neutral on North American systems might be Bl (blue) on European setups. Small inconsistencies cascade into failures during repairs.
Store schematics digitally in vector formats like SVG or DXF for scalability. Raster images (PNG, JPEG) pixelate when zoomed, obscuring thin traces. Include metadata–creation date, revision number, responsible engineer–embedded in the file properties. Paper copies degrade; keep a laminated reference on-site during installations.
Update revisions systematically. Every modification–component swap, voltage change–warrants a new version with a change log. Chronicling “Moved R3 from panel A to B (2.4 → 2.5)” prevents regressions during future upgrades. Architects rely on this process; electricians should too.
Understanding Electrical Schematic Fundamentals
Always begin by labeling every conductor in your circuit plan with unique identifiers–color codes alone fail under poor lighting or faded prints. Standardize wire markers: L1 (live), N (neutral), GND (ground), and S1-S4 for switched outputs. Mislabeling a single connection can introduce ground faults or short circuits, costing hours in diagnostics.
Use a consistent symbol set: IEC 60617 for European projects, ANSI Y32.2 for North American. Cross-reference symbols directly on the plan–e.g., resistors (R1-R20), capacitors (C1-C15), relays (K1-K5), and switches (SW1-SW6). Omitting this invites misinterpretation, especially in multi-source power systems.
Break complex circuits into functional zones: power distribution, control logic, and load paths. Isolate each zone on separate sheets if exceeding 20 components–crowded layouts mask errors. For sequentially actuated systems (e.g., motor starters), annotate operation steps as numbered callouts beside each relay coil.
Verify circuit integrity with a multimeter before energizing. Set probes to continuity mode (200Ω range) and validate each path:
- Check that neutral conductors register ≤1Ω between distribution box and load terminals.
- Ensure ground paths show zero resistance to chassis/test points.
- Confirm switched outputs toggle between 0V and supply voltage when activated.
Skip this step, and undetected shorts risk equipment damage upon power-up.

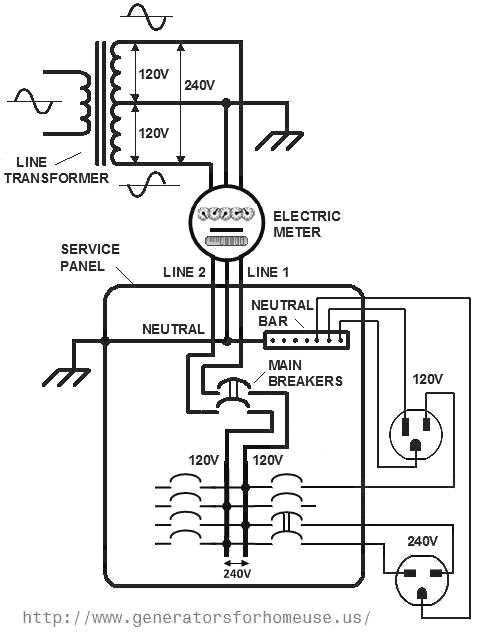

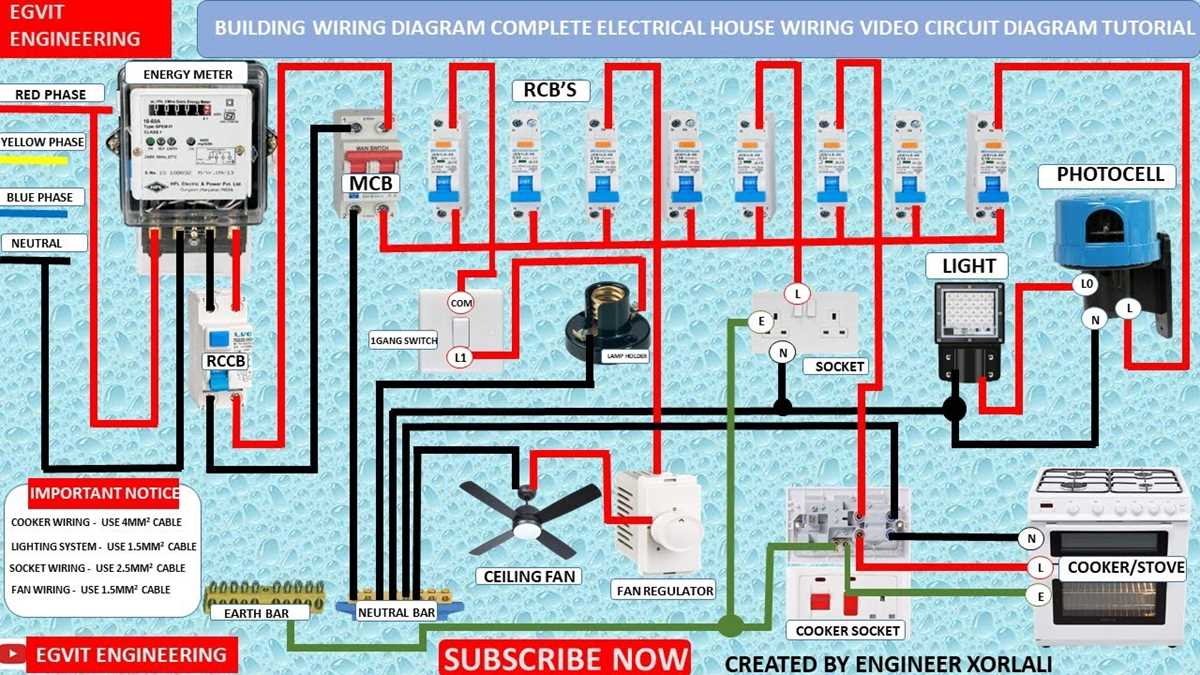

Incorporate current ratings adjacent to every conductor: 14 AWG handles 15A, 12 AWG handles 20A, 10 AWG handles 30A–exceeding these values triggers overheating. Label protective devices: 20A breakers for general outlets, 15A for lighting circuits, and 30A double-pole for 240V appliances. Mismatches void UL/CE compliance.

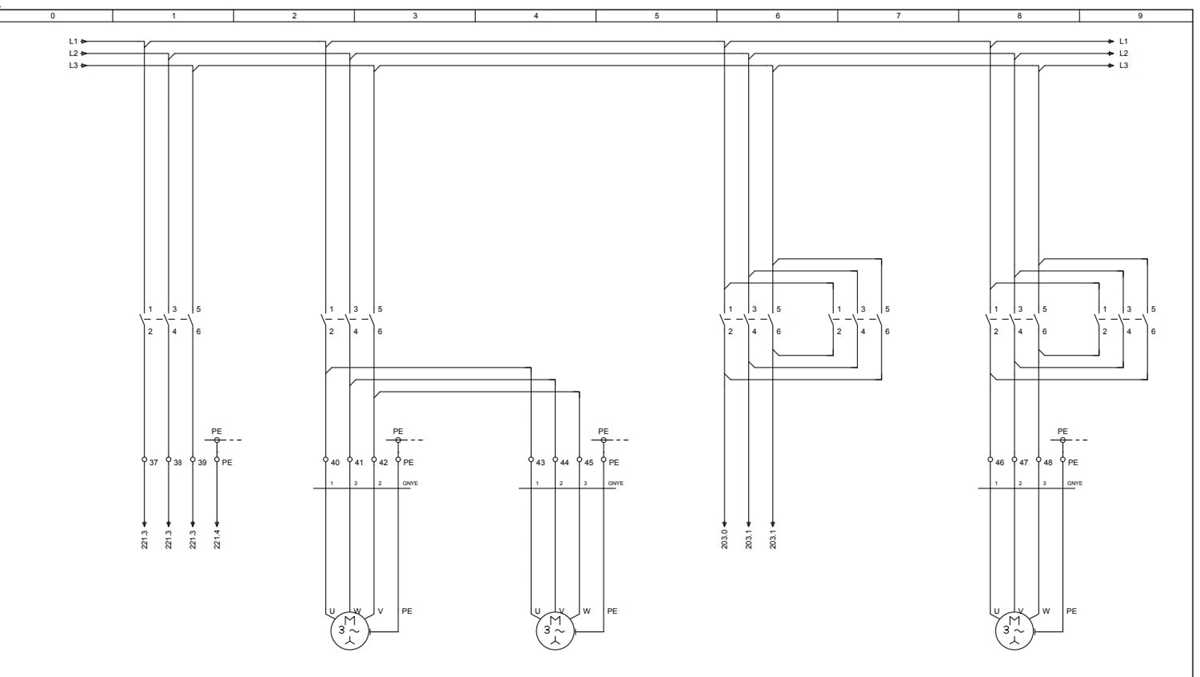

For three-phase systems, maintain phase balance within 5% variance. Measure line-to-line voltages (L1-L2, L2-L3, L3-L1)–discrepancies indicate wiring faults or load imbalances. Use CT clamps to confirm current draws; deviations suggest faulty motors or incorrect conductor sizing.

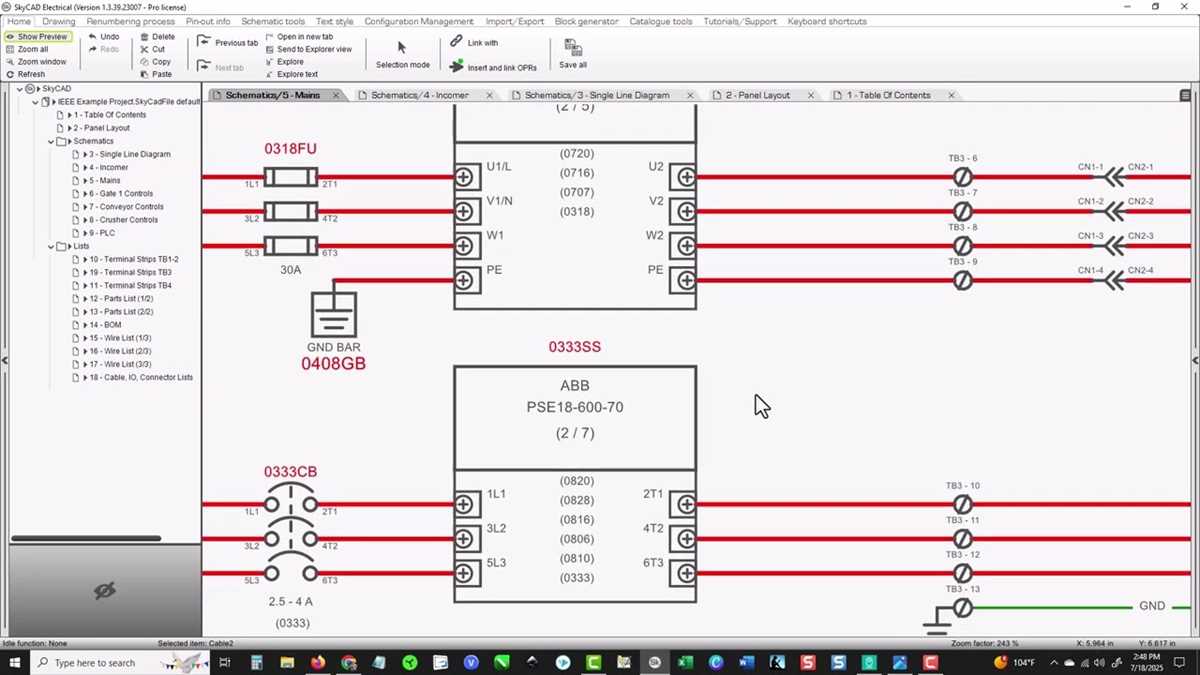

Maintain a terminal block index: assign each terminal a fixed identifier (e.g., TB1-1 for the first block, first terminal). Document wire origins/destinations:
- Source: Panel Board A, Terminal 5 (
PB-A5) - Destination: Motor Starter Coil (
K1-A1) - Gauge: 12 AWG THHN
- Color: Red/Blue stripe
Missing entries create orphaned circuits during maintenance.
For sensor/transducer loops, specify signal types: 0-10V, 4-20mA, or dry contacts. Note excitation voltages (e.g., 24VDC) and ground references–floating signals drift without a proper return path. Include calibration notes: scaling factors (e.g., 1mV/°F), zero offsets, and sensor locations (e.g., “Upper Chassis, Near Intake”). Absent details render readings unreliable.
Decoding Key Electrical Schematic Symbols
Begin by memorizing the most frequent symbols–these appear in nearly every circuit map. A straight horizontal or vertical line represents a conductor (wire), while a small circle or dot at a junction indicates a connection point where paths cross without electrical contact. Terminals often use thicker lines or filled dots to show solid joins. For components like resistors, look for a zigzag line; capacitors use two parallel lines (one curved for polarized types). Batteries are stacked parallel lines with alternating lengths–longer for the positive terminal.
- Switches: Depicted as a break in a line with a slanted line or gap. Open switches show a gap; closed switches connect the path.
- Ground: Three descending lines tapering to a point (earth ground) or a single horizontal line (chassis ground).
- Diodes/LEDs: Triangle pointing toward a vertical line. LEDs add two small arrows outward from the triangle.
- Transistors: Three lines converging at angles–NPN (arrow inward) vs. PNP (arrow outward).
- Inductors: Series of loops or a coiled line. Iron-core variants add a parallel line beside the coil.
Verify symbols against the legend if present–manufacturers may tweak standard shapes. Cross-reference labels next to components (e.g., “R1,” “Q2”) with the parts list for exact values (ohms, voltage ratings). When tracing circuits, follow current flow from power sources: start at the highest potential (e.g., battery positive) and move through each element toward ground or return paths. Color-coded conductors in schematics often match real-world wire colors–red typically denotes positive, black or white for neutral, green for earth. If symbols overlap or obscure connections, redraw critical paths onto scrap paper to clarify interactions.
Step-by-Step Guide to Sketching a Basic Electronic Schematic
Select graph paper with 5mm grids to maintain consistent spacing for components. A pencil with 0.5mm lead ensures clean, erasable lines for corrections. Begin by listing all required elements: power source, resistors, LEDs, switches, and connectors. Assign each part a unique identifier (e.g., R1, LED2) to avoid confusion during assembly.
Draw the power rail horizontally at the top of the sheet–use a bold line to distinguish it from signal traces. For 5V circuits, mark the rail clearly; for dual-power setups (e.g., ±12V), add a parallel line below. Position ground symbols along the bottom edge, aligning them vertically with components they serve. Keep all connections orthogonal (horizontal/vertical) to minimize crossing lines.
Use the following symbols for accuracy:
| Component | Symbol | Notes |
|---|---|---|
| Resistor | ─[─] | Label with ohm value (e.g., 220Ω) |
| LED | ─▷│ | Annotate anode (+) and cathode (-) |
| Battery | ─| │─ | Indicate voltage (e.g., 9V) |
| Switch | ─o─o─ | Mark pole positions if DPST |
Place components logically: start with inputs (switches, sensors) on the left, followed by processing elements (resistors, ICs), and output devices (LEDs, motors) on the right. For a simple LED circuit, connect the switch directly to the battery’s positive terminal, then route through a current-limiting resistor (e.g., 330Ω) before the LED. Terminate the LED’s cathode at the ground rail. Verify each path flows left-to-right or top-to-bottom.
Trace all connections with a pen or red marker once satisfied with the pencil draft. Erase stray pencil marks after ink dries. Add component values adjacent to their symbols (e.g., “R1 470Ω”) and reference designators adjacent to connection points (e.g., “VCC” for power, “GND” for ground). For multi-part assemblies, include a title block in the bottom-right corner with: circuit name, date, scale (e.g., 1:1), and revision number.
Cross-check the layout against Ohm’s Law for critical paths. For example, confirm the resistor value ensures the LED’s forward current (typically 20mA) doesn’t exceed its rating. Use a multimeter to validate actual voltage drops across components if the schematic will be used for physical builds. Store the final version in a protective sleeve to prevent smearing.

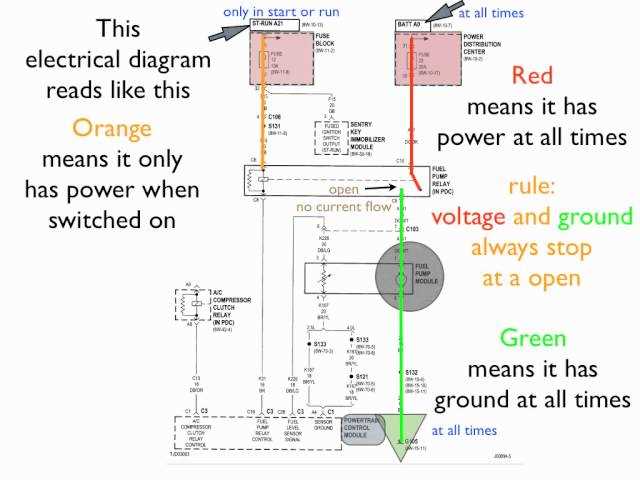

Tracing Current Origins and Return Paths in Schematic Layouts
Start by locating the battery symbol–a rectangle with one longer line at the positive (+) terminal and a shorter line at negative (−). In automotive or DC systems, this indicates the primary energy input. Industrial AC schematics often use three-phase sources marked L1, L2, L3, with neutral (N) and earth (⏚) connections typically grouped nearby. Verify voltage ratings adjacent to labels; mismatched values can damage components or create safety hazards.
Ground references appear as downward-pointing triangles, horizontal lines intersecting perpendiculars, or the ⏚ symbol. In analog circuits, analog grounds may be isolated from digital grounds to prevent noise interference–look for separate symbols or labeled nodes. Chassis grounds connect to the metal frame; these often link to the battery’s negative terminal but require confirmation to avoid unintended loops.
Examine switching elements like relays or transistors–power flows through their contacts or emitter-collector paths when activated. Trace the path backward to confirm the source feeding the coil or base; incorrect routing here disrupts intended operation. Fuses and breakers appear as zigzag lines or dashed rectangles; their absence in critical lines signals a red flag for overload risks.
Color coding in physical builds often mirrors schematic cues: red for positive, black or blue for negative, green/yellow for earth. However, schematics mayomit colors, relying instead on labels like “VCC,” “VDD,” “GND,” or “VSS.” Cross-reference these with component datasheets; “VCC” typically denotes positive supply, while “GND” is the return path, but conventions vary across manufacturers.
Star grounding prevents erratic behavior in mixed-signal designs–identify central ground nodes where multiple branches converge. Split planes, common in PCB layouts, mandate clear demarcation between noisy (motor drives, relays) and sensitive (microcontrollers, sensors) zones. Misrouted returns can induce phantom voltages, causing erratic readings or component failure.
Check for hidden power sources: capacitors store charge and can act as temporary supplies; electrolytics near ICs filter noise but require correct polarity (marked on the symbol). Linear regulators (e.g., 7805) transform higher voltages to usable levels; their input/output must match the load requirements. Thermal shutdown protection in regulators often lacks representation–account for this in thermal calculations.
Validate continuity in software tools by simulating the layout: use multimeter probes on a prototype to confirm each node matches the schematic. Probe the ground plane’s impedance–high resistance (>0.1Ω) indicates poor soldering or corroded traces. Document discrepancies immediately; even minor deviations can cascade into system-wide failures.
