Ensure compatibility by matching the vehicle’s harness color codes to the corresponding terminal assignments specified in ISO 1724 or SAE J560. The green terminal (right turn/brake) must connect to a 1.5 mm² wire with a minimum current rating of 12 amperes, while the yellow terminal (left turn/brake) requires identical specifications. Ground (white) demands a thicker 2.5 mm² conductor if the distance exceeds 4 meters to prevent voltage drop.
Verify terminal polarization before connection–reversed polarity in the brown (tail/license plate) circuit risks damaging LEDs on modern lighting systems. For 12V systems, use a multimeter to confirm a clean 11.8V-13.2V range at each contact under load; fluctuations beyond ±0.5V indicate corroded contacts or undersized wiring.
Install an in-line fuse rated at 15A within 30 cm of the battery terminal for circuits carrying brake or turn signals. Dual-function circuits (e.g., turn/brake) must not exceed a combined load of 10A. For auxiliary power (blue), a relay is mandatory if the current draw surpasses 5A; direct battery connection without relay risks fire hazards.
Pressure-test connections with dielectric grease before sealing; environmental exposure accelerates oxidation, particularly in coastal or high-humidity regions. Replace factory crimp terminals with solder-and-heat-shrink alternatives if corrosion evidence is present. Store unused assemblies indoors–UV exposure degrades PVC insulation at a rate of 0.1 mm per year in direct sunlight.
Electrical Layout for Heavy-Duty Plug Configuration
Begin by ensuring all cable ends are stripped precisely to 12 mm–excessive length causes interference, while insufficient exposure risks poor conductivity. Confirm compatibility with ISO 19123 or SAE J560 standards before proceeding; deviations may render safety circuits inoperative.
Connect the primary power feed (typically 12V auxiliary) to terminal 3 (center-right), verifying amperage does not exceed 30A to prevent overheating. For synchronized lighting, route left and right turn signals to terminals 4 and 6, respectively, using 1.5 mm² cross-sectional wire for consistent signal strength. Ground all circuits at terminal 1 (chassis link) with a minimum 4 mm² copper conductor to avoid voltage drop under load.
- Terminal 2: Brake lights (12V pulsed) – Use heat-shrink tubing on splices to prevent corrosion.
- Terminal 5: Position lights (side markers) – Test illumination at 13.5V to simulate real-world conditions.
- Terminal 7: Reverse lights (12V steady) – Isolate from other circuits using a 10A fuse.
For trailers exceeding 7.5 meters, install a dedicated relay between terminal 3 and the vehicle’s electrical system to prevent brownouts. Avoid daisy-chaining multiple loads from a single terminal–distribute power via a junction box for balanced current draw. Inspect connectors annually: oxidized contacts degrade faster under 80% humidity or road salt exposure.
Troubleshooting Voltage Irregularities
If flickering occurs, measure voltage drop across each terminal under load (acceptable range: ±0.5V of source voltage). Suspect a faulty earth link if dimming persists–reattach the ground clamp directly to unpainted metal with star washers. Replace wires showing insulation cracks or discoloration immediately; PVC degrades at 85°C, silicone alternatives tolerate 200°C.
- Disconnect all loads before testing continuity.
- Use a multimeter in diode mode to detect short circuits.
- Apply dielectric grease sparsely–excess traps moisture.
- Vehicles with ABS require a dedicated CAN bus interface at terminal 7 (if equipped).
- European models may invert terminal 2/4 assignments–consult manufacturer documentation.

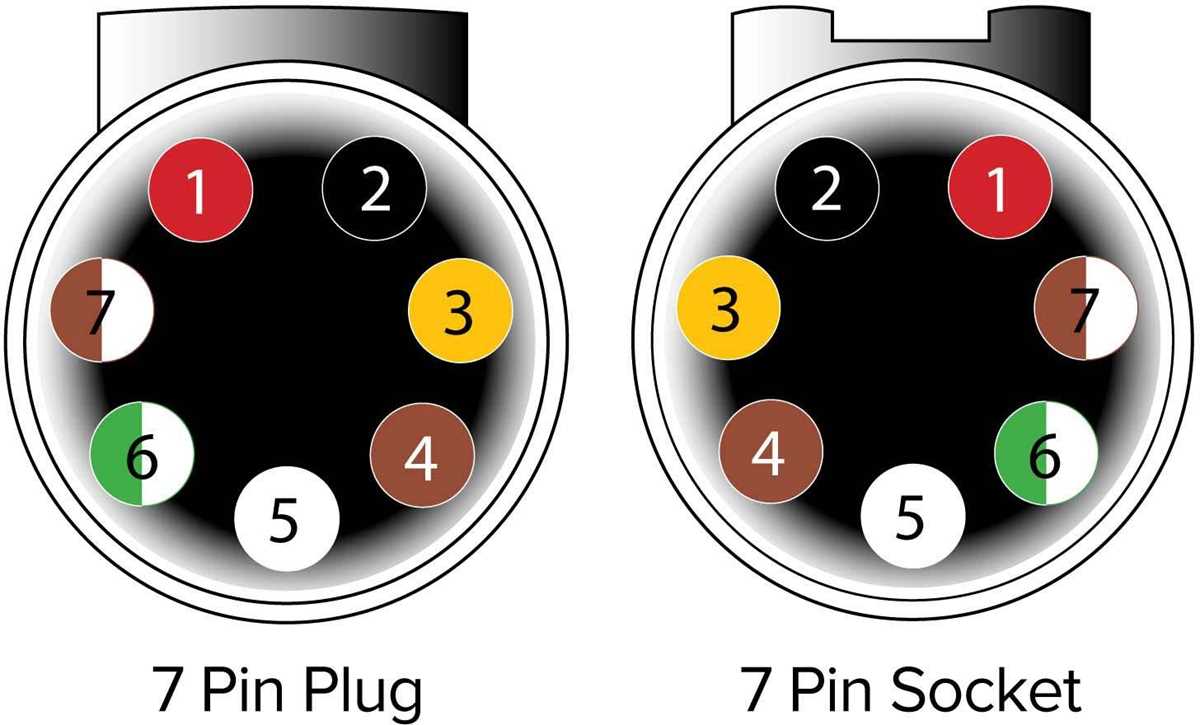

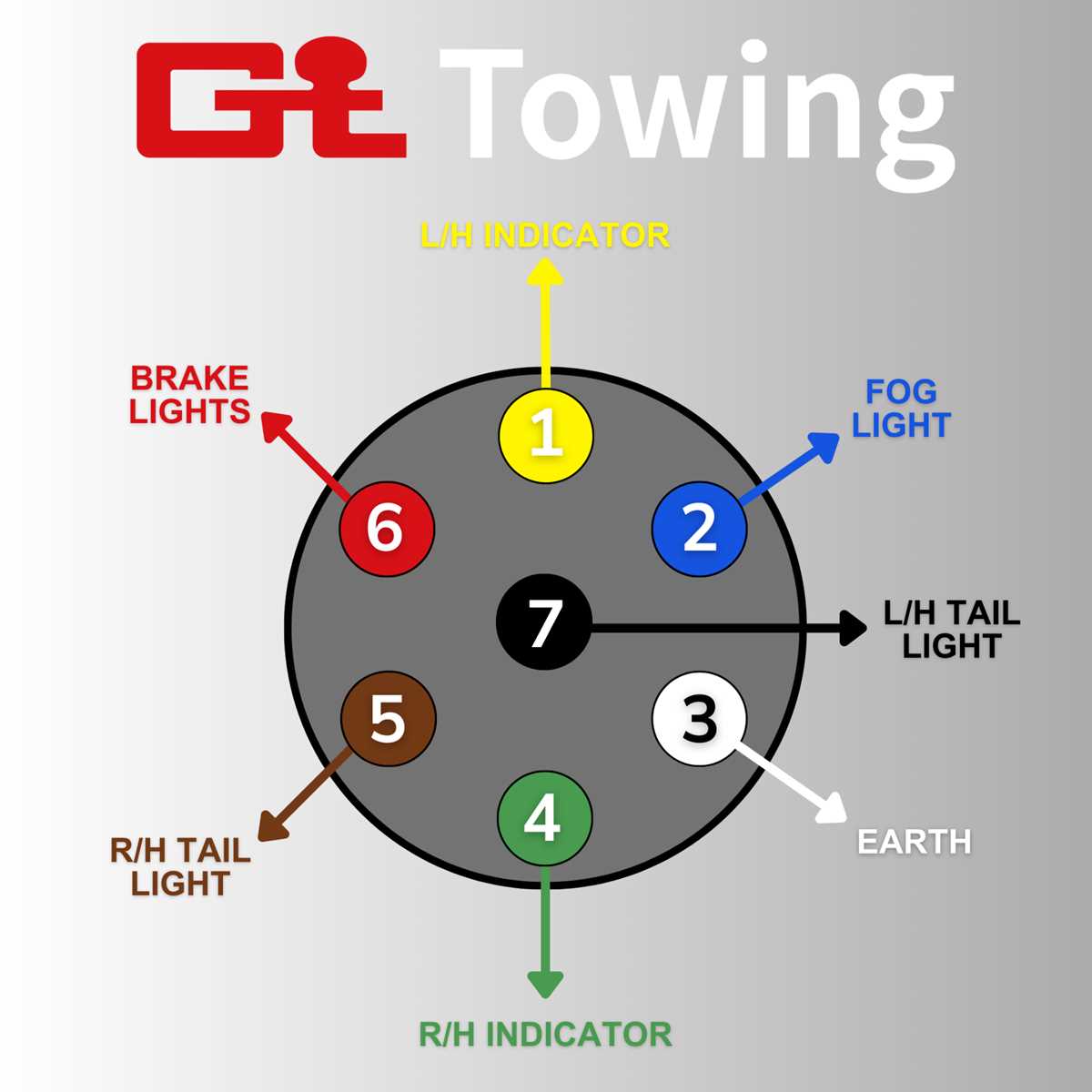

Decoding Lead Hues in Standard 7-Way Vehicle Adapter Cables
Verify the yellow lead first–it consistently powers left-hand brake lights and turn indicators in North American setups. Cross-reference with the green conductor, which mirrors this function on the right side. Both wires must deliver 12V during activation but remain grounded at rest; deviations suggest corrosion or faulty fuses in the tow vehicle’s lighting circuit. Use a multimeter to probe voltage at the plug’s exposed ends before connecting to the tow unit.
Locate the brown feed utilizing its mid-mounted placement in the connection cluster–this strand exclusively controls tail markers, side markers and license plate illumination. Confirm proper continuity by activating both parking lights and tail lamps simultaneously; this wire should maintain steady 12V output whenever either function engages. Dimmed output typically indicates insufficient ground return; inspect mounting surfaces behind light assemblies for oxidized contact points.
Critical High-Amp Conductors to Inspect
The white base conductor establishes system-wide common ground–connect this first to ensure every other feed operates correctly without erratic behavior. Verify low impedance by measuring less than 0.5 ohms between this strand and the chassis while all lamps are energized. Elevated readings necessitate cleaning mounting studs, applying dielectric grease, or replacing corroded pigtails entirely.
Identify the black auxiliary circuit by its thicker gauge relative to lighting feeds–this cable supplies continuous battery-level voltage for trailer-integrated electronics like winches or RV batteries. Probe for uninterrupted 12V+ output even when the ignition remains off, ensuring charging compatibility. Absence of voltage here suggests a blown fuse, active anti-theft cutoff, or disconnected relay in the power distribution module.
The remaining blue strand serves dual-purpose braking systems through proportional controllers–monitor voltage swing between 3V–10V during moderate braking to validate correct function. Absence of modulation necessitates recalibrating or replacing the brake actuator, while erratic voltage spikes indicate faulty isolation between this and other feeds within the tow harness.
Compare all identifications against manufacturer documentation–lead color deviations exist between SAE J2863 (North America), ISO 1724 (Europe), and DIN 72570 (German) standards. Mismatches require immediate relabeling to prevent accidental cross-feeding; always re-test with load-rated instrumentation after any alterations.
Step-by-Step Guide to Testing Electrical Flow in a 7-Way Vehicle Plug
Start by disconnecting the harness from both the tow vehicle and the accessory. Set a multimeter to continuity mode (typically marked with a diode symbol or sound wave). Attach one probe to the grounding point on the chassis–avoid relying on the plug’s ground terminal alone, as corrosion may disrupt contact. With the second probe, touch each terminal slot sequentially while observing the meter’s response. A consistent tone or zero-ohm reading confirms an intact path; silence or fluctuating resistance indicates an open circuit or compromised link.
Key Terminal Functions and Expected Readings
| Slot Position | Primary Purpose | Multimeter Behavior | Common Failure Modes |
|---|---|---|---|
| Center Terminal (Round) | Auxiliary power (typically 12V) | Steady tone, <1Ω | Loose crimp, burnt fuse |
| Right-Side Blade (Wide) | Brake signal feed | Short beep on activation | Corroded switch contacts |
| Left-Side Blade (Wide) | Left turn/stop illumination | Two beeps when brake pedal pressed | Brittle wire at flex point |
| Upper Right Flat Contact | Tail and marker lamps | Constant tone when tail lights engaged | Water ingress inside bulb socket |
If continuity checks pass but lights remain non-functional, shift the multimeter to DC voltage mode. Probe between each terminal and the chassis ground with the corresponding vehicle circuit energized (e.g., turn signal activated). A reading below 11V suggests excessive resistance; 0V points to a severed conductor or blown fuse. For brake and signal circuits, measure while an assistant operates pedal or stalk–momentary spikes should mirror the vehicle’s own lamp behavior.
Inspect the harness for external damage: chafed insulation, green or white powdery corrosion, or visibly burnt terminals. Use a sharp utility knife to strip ¼ inch of sheathing on suspect segments, then retest. Wire brush corroded contacts before applying dielectric grease to prevent future oxidation. If continuity persists only when twisting wires, solder and heat-shrink the splice to restore reliability–avoid electrical tape, which traps moisture.
Essential Tools for Splicing and Restoring a Faulty 7-Way Vehicle Plug Assembly
Start with a high-quality crimping tool designed for 16-12 AWG gauge cables–avoid cheap pliers that crush connectors instead of forming gas-tight seals. The Klein Tools 1005 or Ideal Industries 30-993 models include built-in wire strippers and ratcheting mechanisms ensuring consistent compression. For insulation piercing, use heat-shrink butt splices (3M Scotchcast 82-A1 or equivalent) pre-coated with adhesive–standard vinyl tubes fail under vibration and moisture. Keep a digital multimeter with 0.1Ω resolution (Fluke 17B Max+ or similar) to verify continuity and detect high-resistance shorts before finalizing repairs, as visual checks miss hidden damage. A butane-powered heat gun (not a lighter) with variable temperature control prevents overheating, which degrades adjacent cable jackets or melts internal strands.
Add a cordless soldering iron (Weller BP6500) for stranded-core junctions–the iron’s 45W output minimizes heat soak into adjacent terminals, unlike battery-powered pens that struggle with steady temps. Include fine-grit emery cloth (220-400 grit) to remove oxidation from terminals before joining; steel wool leaves residue that increases resistance over time. Carry a miniature vise with padded jaws to secure wires during splicing–freehand work risks inconsistent tension and misaligned sleeves. Always seal completed linkages with flexible silicone dielectric grease (Permatex 22058 or Dow Corning 4) to displace moisture and prevent corrosion; petroleum-based lubes degrade PVC insulation.
