Start by confirming the standard wire color assignments for a 6-way round connector. The yellow lead carries the left turn and brake signal, while the green wire handles the right side. The white cable serves as the ground, and the brown conductor supplies running lights. For auxiliary functions, the blue line typically controls electric brakes, and the black or red circuit delivers a 12V power feed or backup lighting. Verify these allocations against your vehicle’s manual–some makers deviate, especially if the harness was pre-installed.
Use a multimeter set to DC voltage to test each terminal while an assistant activates the corresponding lights or brake pedal. Probe the socket with the ground lead attached to a clean chassis point; readings should match the battery voltage (±0.5V) when the signal is active. If no voltage appears, trace the cable back to the fuse panel–common failure points include corroded junctions behind tail lights or broken strands near strain-relief grommets. Shield connections from moisture with dielectric grease applied inside the connector housing.
For permanent installations, crimp each joint with insulated butt splices rated for 20A and heat-shrink the assembly. Temporary hookups can rely on snap-lock connectors, but secure them with zip ties to prevent vibration-induced disconnections. Route all harnesses away from sharp edges and moving components; use loom tubing where cables pass through frame holes. Always disconnect the towing vehicle’s negative terminal before attaching or removing connectors to avoid short circuits.
Avoid universal adapter cords sold without certification–they often use undersized conductors that overheat under load. Instead, select tinned copper wire with at least 16-gauge thickness for lighting circuits and 14-gauge for brake and power feeds. Confirm the ground return path by measuring continuity between the vehicle’s chassis and the connector’s ground contact; resistance should read below 0.1 ohms. If resistance is higher, clean mounting surfaces to bare metal and re-seal with anti-corrosion coating.
Connecting a 6-Way Vehicle Connector: Key Configurations
Start by matching the auxiliary power line to the central slot–typically marked in red–to ensure continuous battery charging for the towed unit. Use a multimeter to verify 12V output before attaching; voltages below 10V indicate a faulty alternator or corroded ground at the chassis connection point. The brown circuit along the outer ring handles running lights; test with a 3W bulb to confirm signal integrity, especially if LED clusters are installed, as their low current draw can mask wiring faults.
Ground and Signal Path Troubleshooting
Secure the white ground cable directly to bare metal, avoiding paint or coatings. A loose connection here creates intermittent lighting failures or brake controller activation delays. For the green and yellow stop/tail circuits, probe each terminal while activating brake lights and turn signals separately–crossed wires here cause rapid bulb burnout due to combined current loads. If using a factory harness, disconnect the vehicle’s rear harness first to prevent feedback loops that can trigger false ABS faults.
When routing harnesses, position them above the axle and away from exhaust components; heat shrinks tubing over junctions prevent chafing that exposes bare wire within weeks. Confirm compatibility with aftermarket controllers by checking for a purple accessory lead, which delivers 5V reference voltage–omit this connection if the towed device lacks voltage-sensitive brakes, as backfeeding can damage onboard sensors. Always cap unused slots with dielectric grease to prevent moisture ingress, the primary cause of seasonal failure patterns.
Matching Conductors to Terminals in a Six-Contact Connector
Begin by isolating the power feed conductor–typically a thick yellow or white cable with heavy-duty insulation–orange stripe confirms it carries a full twelve-volt charge from the vehicle battery. Trace it back to the socket’s primary input slot, marked either “B+” or labeled with a battery icon; secure it under the screw clamp with torque between 8 and 12 inch-pounds to prevent corrosion-induced voltage drops.
Locate the ground return line–always bare copper or a black wire sleeved in corrosion-resistant sheathing–attach it directly to the chassis stud or the terminal stamped “GND.” Remove any paint or oxidation using a wire brush, then apply dielectric grease before tightening to prevent noise interference on lighting circuits.
Identify the brake-light pair: a green conductor (right circuit) and a brown one (left circuit). These terminate at the double-contact posts on the socket housing, usually marked “R” and “L” respectively; cross-check continuity with a multimeter set to 20 VDC to confirm they illuminate the corresponding vehicle lamps without phantom voltage bleed.
Resolve the auxiliary pair last–blue for electric brakes, purple for reverse lamps–securing the brake lead to the “E” terminal and the reverse signal to “Rv.” Test each by engaging trailer brake controllers and shift levers; verify signal integrity with less than 0.5 V drop under load to avoid intermittent faults.
Step-by-Step Guide to Linking a 6-Way Vehicle Connector

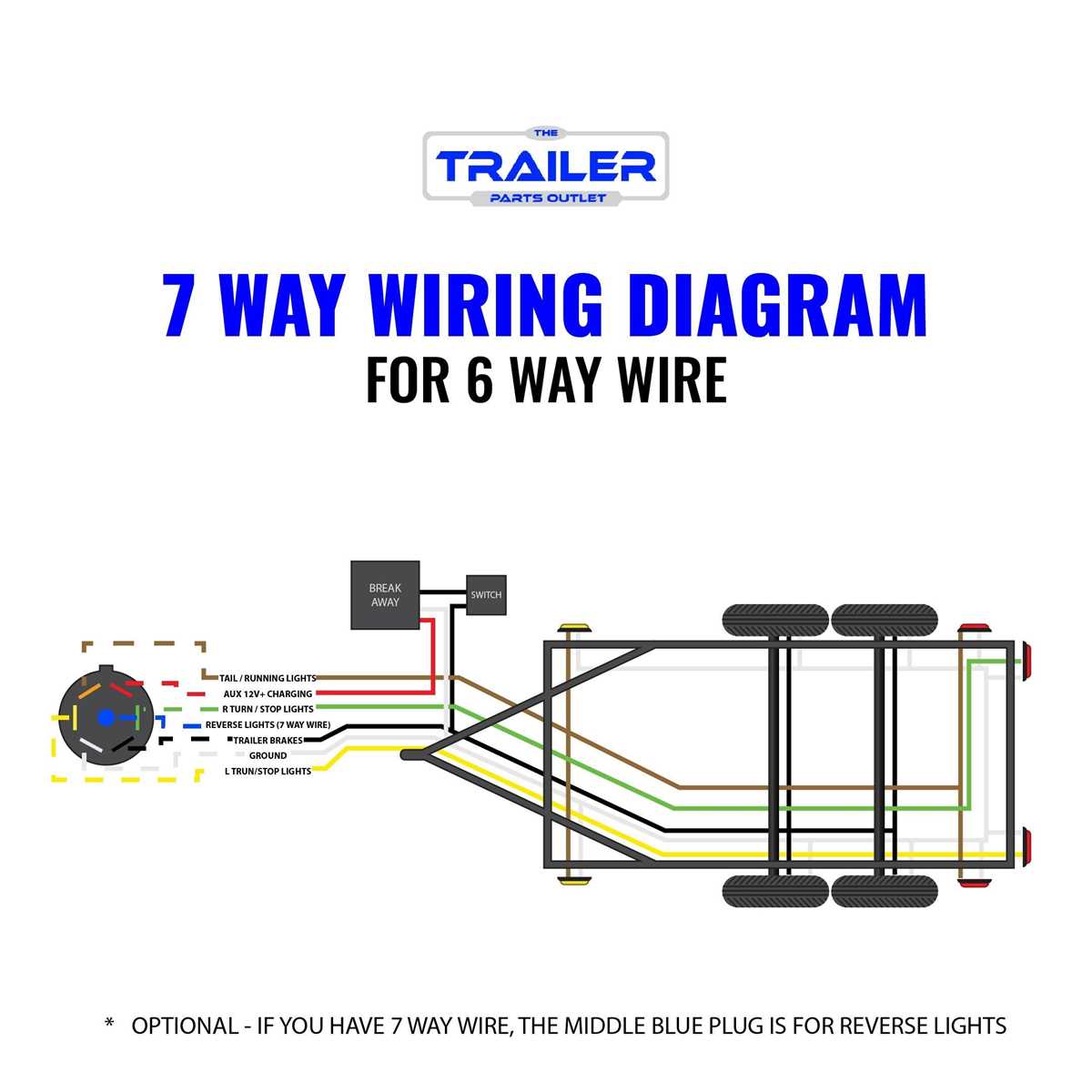

Begin by identifying the harness colors on both the vehicle’s socket and the towed equipment’s cable. Match the conductors as follows: yellow (left turn/brake), green (right turn/brake), brown (running lights), white (ground), blue (electric brake control), and red (12V auxiliary power). Strip 6mm of insulation from each wire, twist the exposed strands, and apply a crimp connector before securing with heat shrink tubing to prevent corrosion.
Attach the conductors in this sequence:
- Connect the white wire to the vehicle’s chassis ground–ensure bare metal contact free of paint or rust.
- Join the blue wire to the brake controller output terminal marked “output” or “trailer brakes.”
- Link the red wire to a fused 12V source–use a 10A fuse within 18 inches of the battery.
- Pair the brown wire to the tail lamp circuit–verify voltage (12V) with the lights activated.
- Combine the yellow and green wires to their respective turn/stop lamp circuits–test with a multimeter (12V when brakes or signals are engaged).
Tug each connection to confirm mechanical strength and wrap the assembly in split loom tubing to shield against road debris.

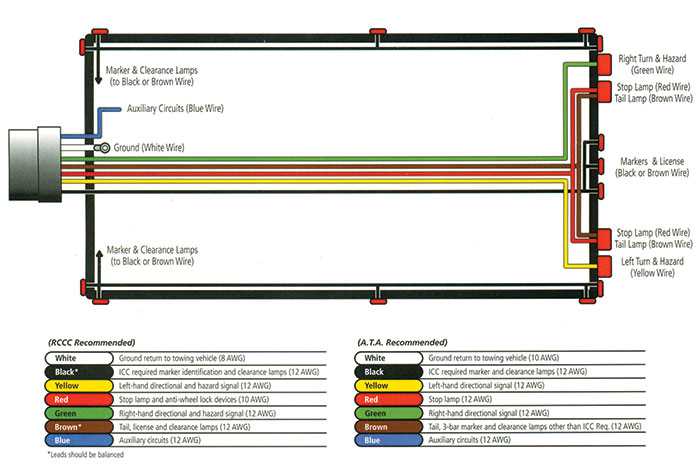

Standard Color Schemes and Roles in 6-Contact Vehicle Connector Configurations
Always verify the connector’s color assignments against the manufacturer’s specifications before making connections, as variations exist between regions and vehicle models. White typically grounds the system, ensuring stable current return and preventing electrical interference–connect it directly to the chassis or a dedicated grounding point. Brown usually carries the running lights signal, powering side markers, tail lights, and license plate illumination; test this circuit with a multimeter to confirm 12V output when activated. Green often handles the right-turn and brake light function, merging both signals in many setups; splice it properly to avoid signal bleeding into adjacent circuits.
| Color | Primary Function | Secondary Role (if applicable) | Voltage Check (Key On) |
|---|---|---|---|
| White | Ground | N/A | 0V (continuity to chassis) |
| Brown | Running Lights | N/A | 12V (when lights activated) |
| Green | Right Turn/Brake | N/A | 12V (pulsing for turn, steady for brake) |
| Yellow | Left Turn/Brake | Electric Brake Output (select models) | 12V (pulsing for turn, steady for brake) |
| Blue | Brake Controller Output | Auxiliary Power (12V) | 0-12V (modulated by controller) |
| Red | Battery Charge Line | Reverse Lights (rare) | 12V (continuous) |
Yellow commonly manages the left-turn and brake light function, similar to green but for the opposite side–ensure it doesn’t share a fuse with other circuits to isolate faults. Blue typically feeds the brake controller, supplying pulsed voltage to electric brakes; if your setup lacks a controller, this may serve as an auxiliary 12V line, but confirm with a test lamp before repurposing. Red often delivers a direct battery charge to maintain on-board batteries or power auxiliary equipment; fuse this line near the source to prevent shorts from draining the main battery.
Check each circuit for continuity and proper voltage under load–weak connections cause intermittent failures, especially in high-current paths like brakes or charging lines. Use heat-shrink terminals for all splices to prevent corrosion, particularly in yellow and green circuits where moisture accelerates signal degradation. If integrating additional components (e.g., backup sensors or dedicated work lights), tap into red or blue only after verifying their unused capacity–never overload these lines beyond their rated amperage.
Essential Gear and Supplies for Connecting a 6-Way Vehicle Socket
Begin with a multimeter calibrated for 12V DC testing–preferably a model with audible continuity alerts–to verify circuit integrity before handling live contacts. A crimping tool rated for 16-14 AWG insulated terminals ensures secure, corrosion-resistant joints; avoid pliers as they damage conductor strand integrity. Include heat-shrink tubing in dual-wall adhesive-lined format (minimum 4mm diameter) for sealing splices against moisture ingress, especially critical for ground and auxiliary circuits exposed to road spray.
- Wire strippers with adjustable depth control for 12-14 gauge automotive conductors
- Butane-powered heat gun with temperature control, or a precision soldering iron (60W) for heat-sensitive components
- Conductive grease (nickel-plated) for terminal protection on tow vehicle interfaces
- Torx and panel removal tools for accessing harness mounting points without cracking trim
- Voltage tester with LED feedback for live circuit identification
- AWG-labeled primary cable: 12-gauge GXL for power/ground, 16-gauge TXL for signal paths
- Circuit breaker or fuse holder (20A) for secondary protection on power feeds
- Abrasive pad (fine grit) for surface prep on oxidized connector housings
