Start by linking the positive terminal of the primary power cell to the corresponding input on the vessel’s thrust control unit. Use 4 AWG marine-grade cable–anything thinner risks voltage drop under sustained load, especially in currents exceeding 50 amps. Secure connections with tinned copper lugs and heat-shrink tubing to prevent corrosion from saltwater exposure.
Ground the system directly to the boat’s common negative busbar, avoiding multi-point earth paths that can introduce interference. For installations with electronic speed controllers, add a 10,000 µF capacitor across the input terminals to smooth out power spikes during abrupt throttle changes.
When routing cabling, maintain a minimum 6-inch separation from sensitive components like depth finders or GPS receivers to minimize signal noise. Label each wire at both ends with heat-resistant sleeves, noting polarity and function–misidentification during troubleshooting can lead to reverse polarity and permanent damage.
Test the configuration under load before finalizing. A multimeter should read 25.2–27.8 volts on the output side with the control box active. If readings fluctuate outside this range, inspect for loose terminals or undersized wiring. For vessels operating in rough conditions, add a fuse block with 110% rated breakers to handle inrush currents during startup.

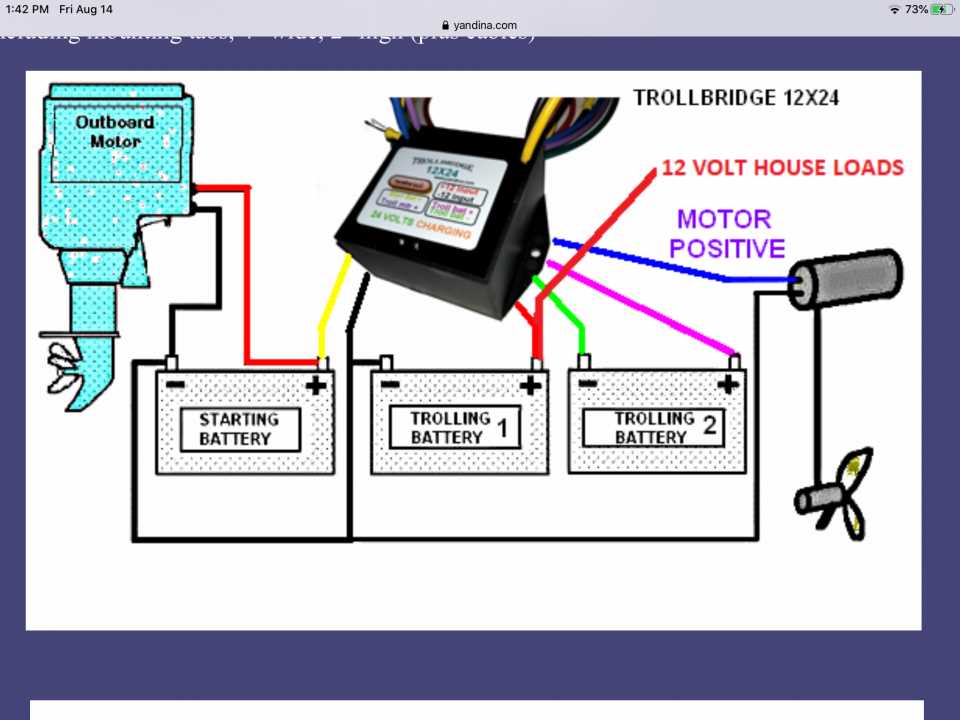

Connecting a Dual-Battery Electric Thrust System
Start with two deep-cycle 12V marine batteries–match their amp-hour ratings within 10% to prevent imbalance. Arrange them in series: connect the positive terminal of the first battery to the negative terminal of the second using 4 AWG copper cable, ensuring insulation resists 600V breakdown.
Route the main feed from the second battery’s positive terminal to a 60A circuit breaker mounted within 7 inches of the battery. This disconnect must trip within 3 milliseconds of a 200A surge to comply with ABYC E-11 standards.
From the breaker, run 4 AWG cable directly to a waterproof 50A rocker switch, then to the thrust unit’s control head. Use tinned ring terminals crimped with a hydraulic press and heat-shrunk to 125°C minimum rating.
Ground the system at the thrust unit’s mounting bracket–avoid the battery negative post. Attach an 8 AWG green-yellow striped cable to a dedicated grounding plate below the waterline, using stainless steel fasteners torqued to 15 Nm.
Add a 150A battery isolator between the batteries and the vessel’s house system. This prevents parasitic draw from discharging propulsion batteries while permitting charging via a 3-stage 20A marine-grade alternator.
Terminal Block Configuration
Install a 12-position barrier strip for accessory circuits. Allocate positions 1-4 for GPS/sonar (fused at 5A), 5-6 for LED navigation lights (10A fuse), and 7-12 as spares–each wired with 16 AWG marine-grade cable and sealed butt connectors.
Test each connection with a 1000V megohmmeter before energizing. Voltage drop across the main circuit must not exceed 0.4V under full load (50A). Replace any cable showing more than 0.01Ω resistance per foot.
Key Elements for a Dual-Battery Electric Propulsion Setup
Begin with two deep-cycle marine batteries rated at 12V each, connecting them in series to achieve the necessary voltage. Opt for AGM or lithium models with a capacity of at least 100Ah to ensure sufficient runtime under load. Avoid standard automotive batteries–their thin plates degrade quickly under frequent discharge cycles.
Install a dedicated battery disconnect switch between the power source and the control unit. This component prevents parasitic drain when the system is idle and provides a quick way to isolate the circuit during maintenance. Choose a switch with a built-in circuit breaker for added protection against short circuits.
Select marine-grade electrical cable with a cross-section of at least 4 AWG for main power lines. Larger gauge reduces voltage drop over long runs, critical for maintaining performance. Inspect terminals regularly for corrosion–clean with a wire brush and apply dielectric grease to connections exposed to moisture.
Integrate a robust fuse block or circuit breaker within 7 inches of the positive battery terminal. Use slow-blow fuses rated 10-15% above the propulsion unit’s maximum amperage draw. For a 55 lb thrust model, a 50A fuse provides adequate protection without nuisance tripping.
A dual-battery charger with equalization capability ensures both power cells maintain balanced charge levels. Look for a smart charger with temperature compensation to prevent overcharging in hot environments. Lithium-compatible chargers require specific voltage settings–verify compatibility before purchase.
Add a voltmeter or battery monitor to track remaining capacity. Analog gauges offer simplicity, while digital monitors with Bluetooth connectivity provide real-time data. Mount the display in an easily visible location, away from direct spray but accessible while operating the vessel.
Connecting Two 12V Energy Cells in a Power Circuit: A Practical Approach
Start by placing both 12V energy cells side-by-side, ensuring the positive terminal of the first aligns with the negative terminal of the second. Use a heavy-gauge cable (minimum 4 AWG) to link these adjacent posts–this minimizes voltage drop under load. Secure connections with marine-grade copper lugs crimped and soldered for corrosion resistance, especially critical in moist environments.
Tools and Safety Precautions
- Insulated gloves rated for 50V or higher
- Voltmeter (set to DC 50V range)
- Wire cutters/strippers with 4–6 AWG capacity
- Heat shrink tubing (¾” diameter, adhesive-lined)
- Terminal cleaner or wire brush
Before making any links, verify both cells read between 12.6V and 12.8V when fully charged. Clean terminals with a brass brush to remove oxidation, then apply a thin layer of dielectric grease after securing cables. Cover exposed connections with heat shrink tubing to prevent accidental shorting–never rely on electrical tape alone.
- Attach the first cable from the negative post of Cell A to the positive post of Cell B–this creates the series link.
- Connect the remaining free positive (Cell A) and negative (Cell B) terminals to your propulsion system’s input using identical gauge cables.
- Power on the setup and measure output: expect 25.2V–25.6V with healthy cells. If readings deviate, recheck all links for loose or corroded contacts.
Avoid common pitfalls: never mix cell chemistries (e.g., lead-acid with lithium), don’t exceed 30A continuous draw on 4 AWG cables, and always disconnect the negative lead first when servicing to prevent arcing. For prolonged use in saltwater, add a 100A fuse within 7″ of the positive terminal to isolate faults quickly.
Securing the Electric Propulsion Unit to Energy Storage with Precision
Use a marine-grade fuse rated for at least 130% of the system’s maximum continuous current between the power source and drive assembly. Install the fuse within 7 inches of the battery terminal to minimize fire risk from short circuits. Copper conductors with 6 AWG or thicker cross-section handle 25-50 amps safely; verify insulation resistance exceeds 500V DC.
- Apply dielectric grease to all terminal connections to prevent corrosion.
- Tighten lugs to 8-10 in-lb torque; overtightening strips threads.
- Avoid daisy-chaining energy cells–instead, link them directly in series-parallel to equalize voltage.
Mount the circuit protection component in a waterproof enclosure with IP67 sealing. Route cables away from sharp edges, engine manifolds, and exhaust systems using spacers every 12 inches. Test continuity with a multimeter after installation: resistivity below 0.2 ohms per foot confirms proper contact. Store backup connectors coated in anti-seize compound; oxidation increases resistance exponentially.
Resolving Electrical Faults in Dual-Battery Propulsion Configurations
Inspect terminal connections immediately if voltage drops below 22.5V under load. Corrosion or loose clamps introduce resistance, causing power loss. Clean terminals with a wire brush and apply dielectric grease before retightening to 15 Nm torque. Replace any copper alloy connectors showing green oxidation–aluminum alternatives accelerate degradation. Verify battery bank polarity by measuring across the main bus; reverse polarity destroys solid-state components within seconds.
Use a multimeter to test individual battery cells under a 30A load. Healthy lead-acid units maintain 2.1V per cell–deviations above 0.2V indicate sulfation or internal shorts. For lithium ferrous phosphate, check for cell balance using a dedicated BMS monitor. Unbalanced cells exceeding 100mV difference require immediate cell-level charging or pack replacement. Bypass jumpers or residential heavy-duty switches rated for 100A continuous current if intermittent failures occur.
Examine inline fuses and circuit breakers for premature tripping. Glass tube fuses should withstand 125% of the system’s maximum draw–replace blown 40A fuses with slow-blow variants if sporadic surges are suspected. Check main conductor gauge: 4 AWG copper is minimum for 50A circuits; 2 AWG aluminum doubles voltage drop over 10-foot runs. Conductors showing blackened insulation or brittle strands indicate overheating–reroute or upsize immediately.
| Fault Symptom | Root Cause | Isolation Test |
|---|---|---|
| Propulsion cuts out above 75% throttle | Voltage sag due to undersized conductors | Measure drop >0.5V between batteries and controller at full load |
| Intermittent power loss | Loose or corroded terminal | Wiggle test while monitoring voltage under load |
| Controller shuts off after 30 seconds | Thermal overload protection triggered | Check controller heatsink temperature; ensure airflow is unrestricted |
Replace relay switches if audible clicking persists without full engagement. Mechanical relays rated for 100,000 cycles fail prematurely under marine conditions–swap for sealed solid-state units with 200A surge capacity. Test throttle potentiometer linearity by measuring resistance across its range; erratic values confirm internal wear. Recalibrate controller limits if RPM response is nonlinear or exhibits dead zones above 1,500 RPM.
