Begin by shutting off the circuit breaker controlling the power source you’ll modify. Verify the absence of current using a non-contact voltage tester–never assume a switch is off. Standard receptacles in North America are rated for 120V AC, 15 or 20 amps, and must comply with local building codes such as NEC Article 406 for proper grounding.

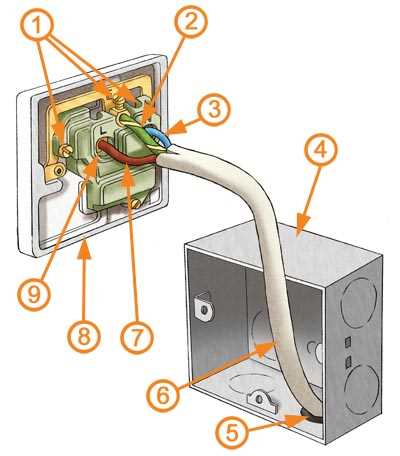

Remove the existing faceplate with a flathead screwdriver, then unscrew the mounting screws securing the receptacle to the junction box. Carefully pull the unit forward to expose the terminal connections. Identify the brass screws (hot), silver screws (neutral), and green screw (ground). Disconnect wires in the following order: ground first, then neutral, followed by hot. Ensure stranded copper wire (minimum 14 AWG for 15A circuits, 12 AWG for 20A) is stripped to 5/8 inch for secure hookups.
For new installations, feed 6 inches of cable through the knockout into the junction box, securing it with a cable clamp. Bend the wire ends into clockwise loops around terminal screws before tightening them–this prevents slippage under load. Twist grounding wires (bare or green-insulated) together with a pigtail, then attach the pigtail to the green screw on the receptacle. Fold wires neatly into the box, ensuring no bare conductors touch the metal sides.
Mount the receptacle flush against the box using provided screws, then attach the faceplate. Restore power at the breaker and test functionality with a plug-in circuit analyzer. For GFCI-protected outlets (required in kitchens, bathrooms, and outdoor locations), press the “TEST” button to verify trip functionality before finalizing the install. Always double-check torque specifications–loose connections cause overheating.
Installing a Household Socket Connection Guide
Turn off the circuit breaker before handling any live terminals. Use a non-contact voltage tester to confirm power is disconnected. Identify the hot (black or red wire), neutral (white wire), and ground (bare copper or green wire)–mixing these can cause short circuits or fires. Strip 1/2 inch of insulation from each conductor, twist the exposed ends clockwise, and secure them to the appropriate screws: brass for the phase wire, silver for neutral, and green for earth. Tighten screws firmly to prevent loose connections, which generate heat.
For split receptacles, break the tab between the two brass screws if separate control is needed. Ensure the grounding conductor attaches to the metal junction box first, then to the socket’s ground screw–this maintains safety redundancy. Push wires neatly into the box before securing the device plate, avoiding pinched or stretched cables. Test with a multimeter: 120V between phase and neutral, 0V between neutral and ground, and continuity between the box and ground screw.
Essential Gear and Supplies for Installing Wall Sockets
Start with a non-contact voltage tester rated for household circuits (e.g., Klein NCVT-3 or Fluke 1AC-A II). This tool detects live conductors without physical contact–critical for verifying that breaker switches are off before handling any cables. Pair it with insulated screwdrivers ( فيليبس №2 и плоский 4 мм) featuring handles rated at 1000 V to prevent accidental shorts when loosening terminal screws.
A wire stripper with calibrated notches for 14- and 12-gauge conductors eliminates guesswork; look for models with integrated crimping jaws (Klein Tools 11061) to handle both solid and stranded copper variants. Include a pair of 10-inch diagonal cutters–flush-cut profiles prevent jagged edges on sheathed cables, reducing risk of nicked insulation during pulls. A compact fish tape ( preferably ⅛-inch steel ribbon) ensures smooth routing through ½-inch EMT conduits without snags.
Stock junction enclosures in both shallow (1.25-inch) and deep (1.75-inch) varieties–UL-listed thermoplastic ensures compatibility with 15- and 20-amp circuits under NEC 314.16. Pre-cut 14-2 and 12-2 NM-B cable spools eliminate off-the-shelf measuring errors; verify THHN conductors comply with 90°C insulation ratings for enclosed spaces. Include duplex receptacles with side-screw terminals rather than back-wired push-ins–torque values to 16 in-lbs (0.5 Nm) per UL 498 prevent loosening after thermal cycling.
Finalize preparations with dedicated box anchors–plastic nail-in types for drywall (minimum 16-gauge thickness) or adjustable metal straps for sheetrock depths exceeding ½-inch. A multimeter (Fluke 17B or equivalent) verifies ground continuity and correct polarity post-installation; set it to AC 200 V scale for accurate readings on 120 V circuits. Store tools in a partitioned tackle box–individual foam slots maintain blade sharpness and prevent insulation damage during transit.
Step-by-Step Process to Identify Live, Return, and Earth Conductors
Equip a non-contact voltage tester before handling any conductors. Power on the detector and hover its tip near each wire without touching exposed metal. The live conductor will trigger an audible or visual alert–mark it immediately with red insulation tape or a permanent marker. Confirm by testing against the device’s manual to rule out false positives.
Locate the return conductor next–it typically connects to the wider prong slot in a receptacle. Use a multimeter set to AC voltage, connect one probe to the live wire, and touch the second probe to the suspected return. A reading between 110-125V indicates the correct wire. Absence of voltage suggests a neutral or misidentified conductor. Label it with white or light-gray tape.
Verifying the Earth Connection
Check the remaining conductor for continuity to a grounded metal box or screw. Attach one multimeter probe to the suspected earth wire and the other to a known ground point, such as a water pipe or grounded enclosure. A near-zero resistance reading (
For installations with armored cabling or conduit, use a tone generator and probe. Clamp the generator to the earth wire and sweep the probe along the metal sheath–consistent audio feedback confirms the path. Inspect junction points for broken or disconnected earth wires, especially in older setups where splices degrade over time.
Color codes vary by region: North America uses bare copper or green for earth, Europe often employs green/yellow striped conductors. If colors are faded or absent, rely on measurements rather than assumptions. Record findings with labels or a sketch–avoid trusting memory alone, as misidentification risks shock or fire.
Double-Checking Before Energizing
Re-test all conductors after insulation is restored. Apply a plug-in circuit analyzer to the receptacle–ensure the live, return, and earth indicators match expectations. If the analyzer displays “Open Ground” or “Hot/Neutral Reversed,” re-examine connections. Never proceed with energization until all discrepancies are resolved–even minor errors can damage equipment or pose hazards.
How to Safely Cut Power Before Handling a Receptacle
Locate your home’s main service panel immediately–it’s typically found in basements, garages, or utility closets. Open the door and examine the circuit directory if one exists; labels like “kitchen,” “bathroom,” or room-specific tags can save time. If labels are unclear or missing, prepare to test each breaker individually.
Flip the main switch to the “off” position if you can’t identify the correct breaker. This will de-energize the entire home, eliminating risk while you work. For homes with subpanels–common in larger properties–ensure you also shut off the corresponding main breaker feeding that subpanel to prevent backfeed.
Use a non-contact voltage tester to confirm power is off before touching any terminals. Hold the tester near the receptacle’s screws, slots, and wires; a lit indicator or audible beep signals live current. If the tester detects voltage, revisit the service panel and verify the breaker is fully engaged in the “off” position–some breakers may appear tripped but still carry residual power.
If working near water sources (sinks, outdoor fixtures), shut off the main water valve as an additional precaution. Wet conditions increase conductivity, turning minor oversights into severe hazards. Dry your hands thoroughly before handling any components, even after power is confirmed off.
For older homes with fuse boxes, unscrew the fuse completely rather than relying on the switch. Cartridge fuses require pulling straight out with insulated pliers–never use bare hands or metal tools. If replacing a fuse, ensure the new one matches the amperage rating (e.g., 15-amp for standard circuits); mismatched ratings risk overheating or fire.
- Keep a flashlight and spare batteries nearby–working in dimly lit areas increases error risk.
- Wear rubber-soled shoes to insulate against potential ground faults.
- Avoid touching metal pipes, ductwork, or grounded surfaces while handling live or recently disconnected components.
Once the receptacle is serviced, restore power by flipping the breaker back to “on.” Test the outlet with a plug-in device (like a lamp or phone charger) to confirm functionality before closing the wall plate. If the circuit trips again, there may be a short–recheck connections and wiring for exposed copper touching metal boxes or other conductors.

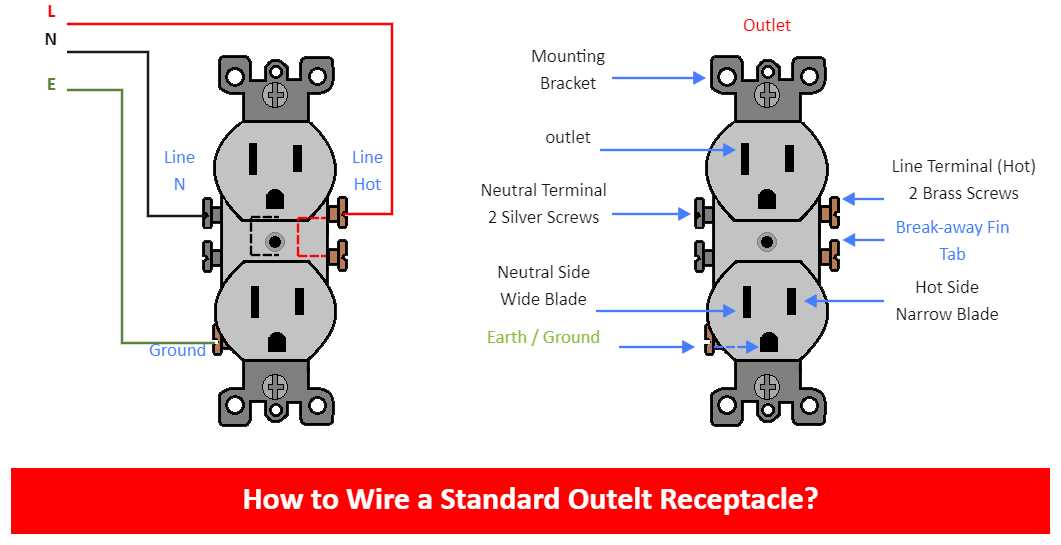

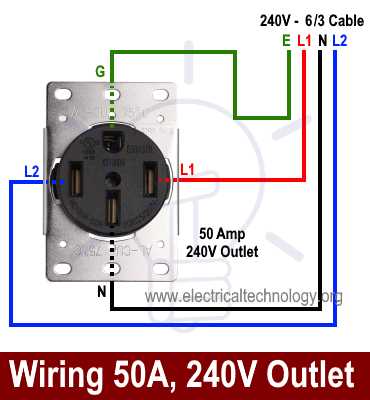

Connecting a 120V Receptacle: Proper Terminal Attachment
Always connect the hot wire (commonly black or red) to the brass-colored screw terminal. This is non-negotiable for safety and function–misplacement risks short circuits or equipment damage. Use a screwdriver to secure the wire tightly, ensuring no exposed copper extends beyond the terminal clamp. Strip exactly ⅝ inch of insulation from the conductor; overstripping weakens the connection, while understripping prevents proper contact.
The neutral conductor (typically white) must attach to the silver-colored screw. Verify this connection by tugging gently on the wire–it should not pull free. For split-circuit receptacles (e.g., those with a built-in switch), the neutral terminal often bridges two screws; confirm continuity with a multimeter before energizing. Ground wires (green or bare) attach exclusively to the green grounding screw at the device’s base.
Avoid back-stab connections for permanent installations. While push-in terminals save time, they’re prone to loosening under vibration or thermal cycling. Instead, loop the conductor clockwise around the screw, matching the screw’s rotation direction. This prevents the wire from unraveling when tightened. For 15-amp circuits, 14 AWG wire is standard; for 20-amp circuits, use 12 AWG minimum.
Terminal Identification Guide
| Wire Color | Terminal Color | Function | AWG Min. |
|---|---|---|---|
| Black/Red | Brass | Live conductor | 14 (15A) / 12 (20A) |
| White | Silver | Return path | 14 (15A) / 12 (20A) |
| Green/Bare | Green | Safety ground | 14 (15A) / 12 (20A) |
For tamper-resistant receptacles (required in most modern residential codes), ensure shutters operate freely after termination. Test by inserting a plug–both prongs should depress the shutters simultaneously. If resistance is felt, inspect for misaligned internal components before applying power. Never bypass these safety features, even temporarily; they prevent accidental child contact with live parts.
When replacing a worn socket, transfer the wires one at a time to avoid confusion. Label each conductor if disconnecting multiple wires (e.g., switched outlets or multi-gang boxes). For duplex sockets, the top and bottom sections typically share terminals–verify continuity if replacing only half the unit. Use torque-limiting drivers to tighten terminal screws to manufacturer specifications (usually 12–15 in-lbs for standard devices).
After securing all connections, wrap the receptacle in a single layer of electrical tape, covering all terminal screws. This prevents accidental shorts if the faceplate loosens. Energize the circuit and test with a non-contact voltage detector before plugging in devices. For GFCI-protected sockets, press the “TEST” button monthly as part of routine maintenance–if the reset button fails to pop out, replace the unit immediately.
