Begin with a four-way flat connector if your towing rig uses basic lighting functions–brake lights, turn signals, and running lamps. This setup fits most utility models and avoids unnecessary complexity. Use 16-gauge copper wire for standard 5×8-foot haulers; larger trailers (12+ feet) demand 14-gauge to prevent voltage drop. Secure splices with heat-shrink tubing, not electrical tape–moisture resistance matters when crossing streams or storing in open sites.
For dual-axle trailers with electric brakes, upgrade to a 7-way round plug. Dedicate the blue wire to brake control, the black wire to auxiliary power (e.g., winch or interior lights). Route all wires through plastic loom tubing–3/4-inch diameter resists crushing under weight. Test continuity with a multimeter before final mounting; even a 0.5-ohm resistance spike can cause brake failures on steep descents.
Avoid ground loops by connecting all ground wires (typically white or green) to a single, sanded metal point on the frame. Paint or rust creates unwanted resistance, so scrape it clean. For LED lights, check polarity–reversed connections burn them instantly. If integrating a reverse light circuit, use a purple wire; it’s the standardized color for backup functions per SAE J2863 guidelines.
Label every wire at both ends using sleeve markers (sold in kits). The extra five minutes spent here saves hours of troubleshooting later. When routing near suspension components, maintain a 4-inch clearance–vibration wears insulation faster than friction. If your hauler has hydraulic surge brakes, isolate the wiring above the hitch pivot; flexing metal snaps wires without loom protection.
Connecting Your Vehicle’s Electrical System to a Towable Unit
Begin by verifying the socket type on your automobile–most modern setups use a 7-pin connector for essential functions. Locate the pre-installed harness behind the rear bumper or beneath the vehicle’s floorboard; this saves time compared to splicing into factory wiring. If no plug exists, trace the taillight circuit paths and tap into the brake, turn signal, and tail light wires using weatherproof crimp connectors.

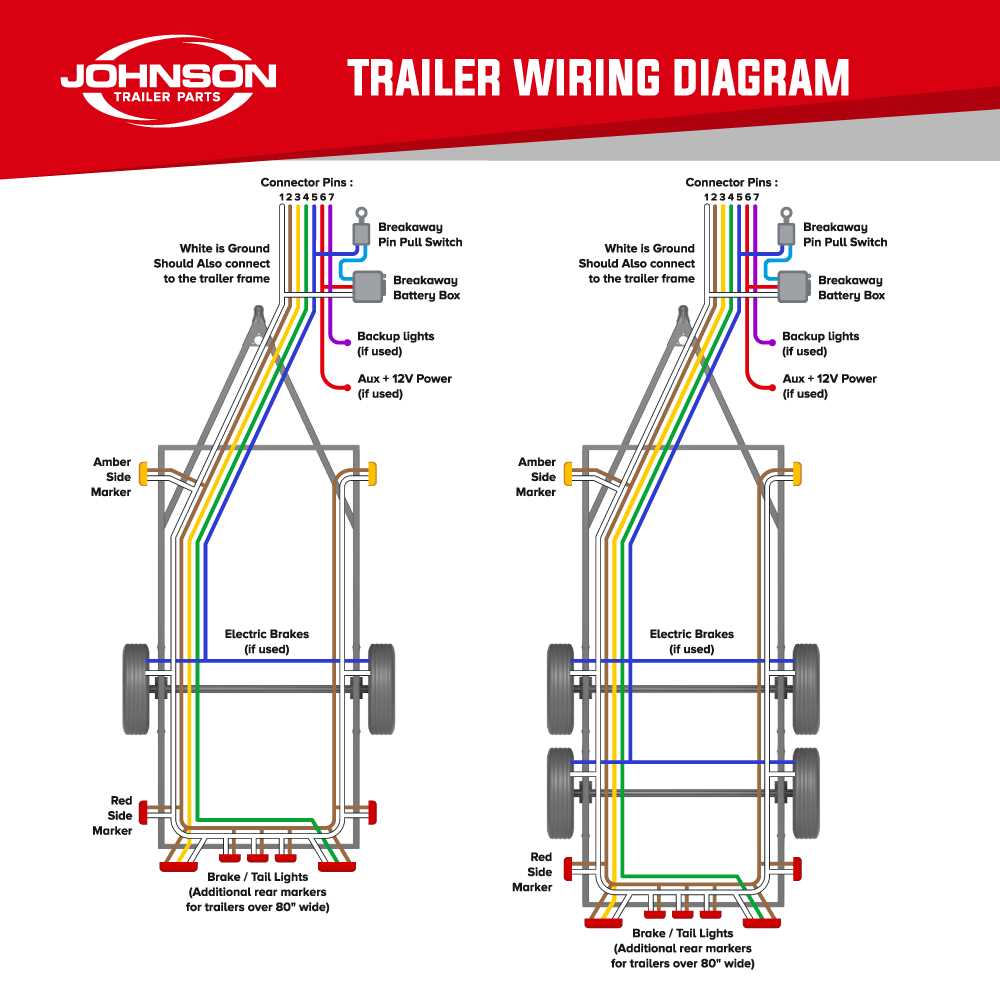

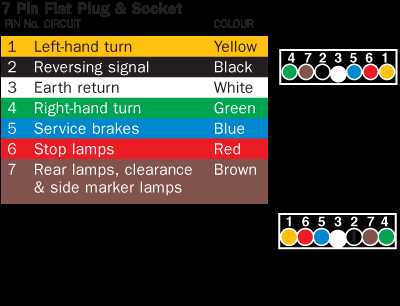

Match each circuit to the corresponding pin on the towable unit’s harness using this pinout configuration:
| Function | Pin Number | Wire Color (Standard) |
|---|---|---|
| Ground | 1 | White |
| Tail Lights | 2 | Brown |
| Left Turn/Brake | 3 | Yellow |
| Right Turn/Brake | 4 | Green |
| Electric Brakes | 5 | Blue |
| Battery Charge | 6 | Red |
| Reverse Lights | 7 | Purple |
Secure connections with dielectric grease to prevent corrosion, especially in wet climates. Test each function individually using a multimeter or a dedicated circuit tester–voltage should read 12-14V when activated. For trailers exceeding 3,500 lbs, integrate a brake controller; install it within reach of the driver’s seat, following the manufacturer’s polarity and gain settings.
Route cables away from moving parts, exhaust systems, and sharp edges, using loom tubing or conduit for protection. Avoid stretching wires taut; leave slack near hinges or pivot points. Ground the connection directly to the vehicle’s frame rather than relying on the hitch assembly–this minimizes voltage drop and intermittent failures.
Periodically inspect connections for signs of wear, overheating, or loose terminals. Replace damaged wires immediately rather than wrapping them in electrical tape, which degrades over time. For 6-pin systems, prioritize powering auxiliary lighting or hydraulic pumps by redirecting unused circuits if the towable unit lacks dedicated sockets.
Selecting the Optimal Electrical Link for Your Hauling Setup
Start by identifying the dominant standard in your region. North America primarily employs the 4-pin flat connector for basic lighting, while Europe favors the 13-pin round variant for extended functionality. For towing units under 3,500 kg, a 7-pin round plug suffices, covering brakes, reverse lights, and power feeds. Heavy-duty setups exceeding this weight benefit from the 13-pin solution, which integrates charging circuits for auxiliary batteries.
Verify compatibility with your vehicle’s existing socket before committing. Many modern SUVs and trucks come pre-wired with a matching connector, but older models may require an adapter. The 7-way blade type is prevalent in North American commercial hauling, accommodating electric brakes and 12V power alongside standard lighting. Ensure the chosen link supports your load’s specific demands–failure to do so risks insufficient power delivery or signal interference.
Materials and Build Quality Matter
Prioritize corrosion-resistant alloys for contact points, especially if operating in humid or saline environments. Gold-plated terminals offer superior conductivity but are costlier; tin-plated alternatives provide a budget-friendly balance for occasional use. Weatherproof seals (IP67-rated) prevent moisture ingress during rain or car washes, preserving signal integrity. Avoid cheap plastic housings–they crack under temperature fluctuations, exposing wires to wear.
For frequent disconnects, spring-loaded connectors reduce wear compared to friction-based designs. If towing sensitive equipment (e.g., livestock carriers), opt for shielded cables to minimize electromagnetic interference. Pre-terminated harnesses save installation time, but custom-length wires paired with crimp or solder connections ensure a cleaner, more reliable setup. Always test continuity with a multimeter before finalizing the connection.
Adapters and Cross-Compatibility
When mixing regional standards, a 7-to-13-pin adapter bridges most gaps without splicing wires. For European vehicles towing in North America, a 13-to-7-pin converter maintains reverse light functionality but may omit auxiliary circuits. Store adapters in a moisture-proof case to prevent corrosion between uses. For specialized applications (e.g., boat haulers), correlate the connector’s amp rating with your load’s demands–standard 7-pin blade types handle up to 30 amps, while industrial 13-pin variants support 40 amps.
How to Connect the Vehicle Connector: A Detailed Walkthrough

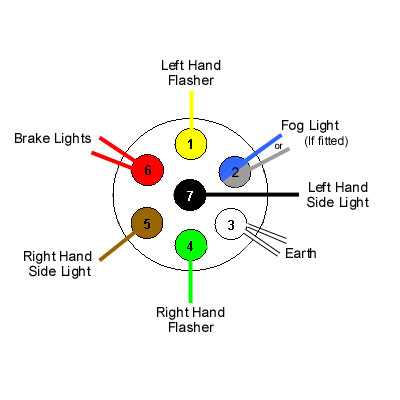

Begin by identifying the correct pin configuration for your tow vehicle’s socket. Most 7-pin connectors follow a standard layout where pin 1 (yellow) handles left turn/brake lights, pin 2 (blue) controls reverse lights, and pin 3 (white) serves as the ground. For 4-pin setups, the colors typically include brown (running lights), green (right turn/brake), and yellow (left turn/brake). Verify your vehicle’s manual or the socket’s labeling to avoid misalignment, as incorrect connections can damage the lighting system or cause shorts.
- Strip 5–7 mm of insulation from each wire end using a wire stripper, ensuring no copper strands are nicked.
- Twist the strands tightly to prevent fraying and apply a small amount of solder or use crimp connectors for a secure bond.
- Slide heat-shrink tubing over the connection before soldering or crimping, then slide it back and apply heat to seal.
- Match each wire to its corresponding terminal inside the plug housing, pressing firmly until it clicks or locks into place.
Test each function systematically: turn signals, brake lights, running lights, and hazards (if applicable). Use a multimeter set to DC voltage (20V range) to confirm continuity between the ground and each active terminal when activated. If a light fails, recheck connections for loose strands or corrosion–oxidation on terminals can disrupt signals. Secure the plug housing with its threaded collar or locking mechanism to prevent moisture ingress, and coat terminals with dielectric grease for long-term protection.
Standard Wire Colors and Their Electrical Roles in Towing Connections
Use the brown wire for all running lights–tail, side markers, and license plate illumination. Connect it directly to the corresponding circuit on the vehicle’s harness, ensuring no splices or extensions longer than 6 inches, as voltage drop becomes noticeable beyond this length. Test with a multimeter: voltage at the farthest light should stay within 0.5V of the source.
Ground the white stripe-negative wire to bare metal, away from painted surfaces and within 18 inches of the connector. Use a star washer and torque the bolt to 12-15 ft-lbs; corrosion starts at loose connections, mimicking dead circuits. Scrape paint off the mounting surface if necessary–oxidized layers resist current.
Signal and Brake Circuits
Route yellow (left) and green (right) wires through a separate fuse block, rated 7.5A per side. Avoid combining them before the bulbs: premature bulb burnout occurs if one filament fails and drains both circuits. Add splices only at existing factory joints; adhesiveless heat-shrink crimps prevent moisture ingress.
Verify brake function by jumpering the red auxiliary wire to the blue brake controller output only if the system uses electric drums. Hydraulic-over-electric trailers omit this wire entirely–checking for voltage here before installation prevents accidental activation of surge brakes. Label empty pins “NA” to avoid confusion later.
Auxiliary and Specialty Circuits
Purple wire, if present, feeds reverse lights and requires a diode when spliced into a factory backup circuit. Install it inline between the reverse light switch and the bulb, cathode facing the switch; omit the diode only if the tow vehicle already has one upstream. Confirm compatibility with LED reverse lamps, which may not draw enough current to trigger older switches.
Orange or black wires often carry 12V hot accessory power–always fuse this separately from the main harness at 20A. Route it through an auxiliary relay if the draw exceeds 5A to prevent connector melt. Keep wire gauge at least one size larger than the calculated load; undersized wires create resistance, generating heat in connectors designed for 7-10A continuous.
